Post-processing Software -PZDR
Optimum Workflow
Automated technique selection helps radiation dose control and enhances image consistency.
Automated equipment positioning and patient pose verification improve workflow efficiency for radiologists.
▶High Quality Image
▶Full DICOM 3.0, and HL7 support.
▶Multi-Vendor Integration.
▶Easily Customizable.
PRODUCT DETAILS
PPRODUCT DETAILS
THR-FP01
0.00
0.00

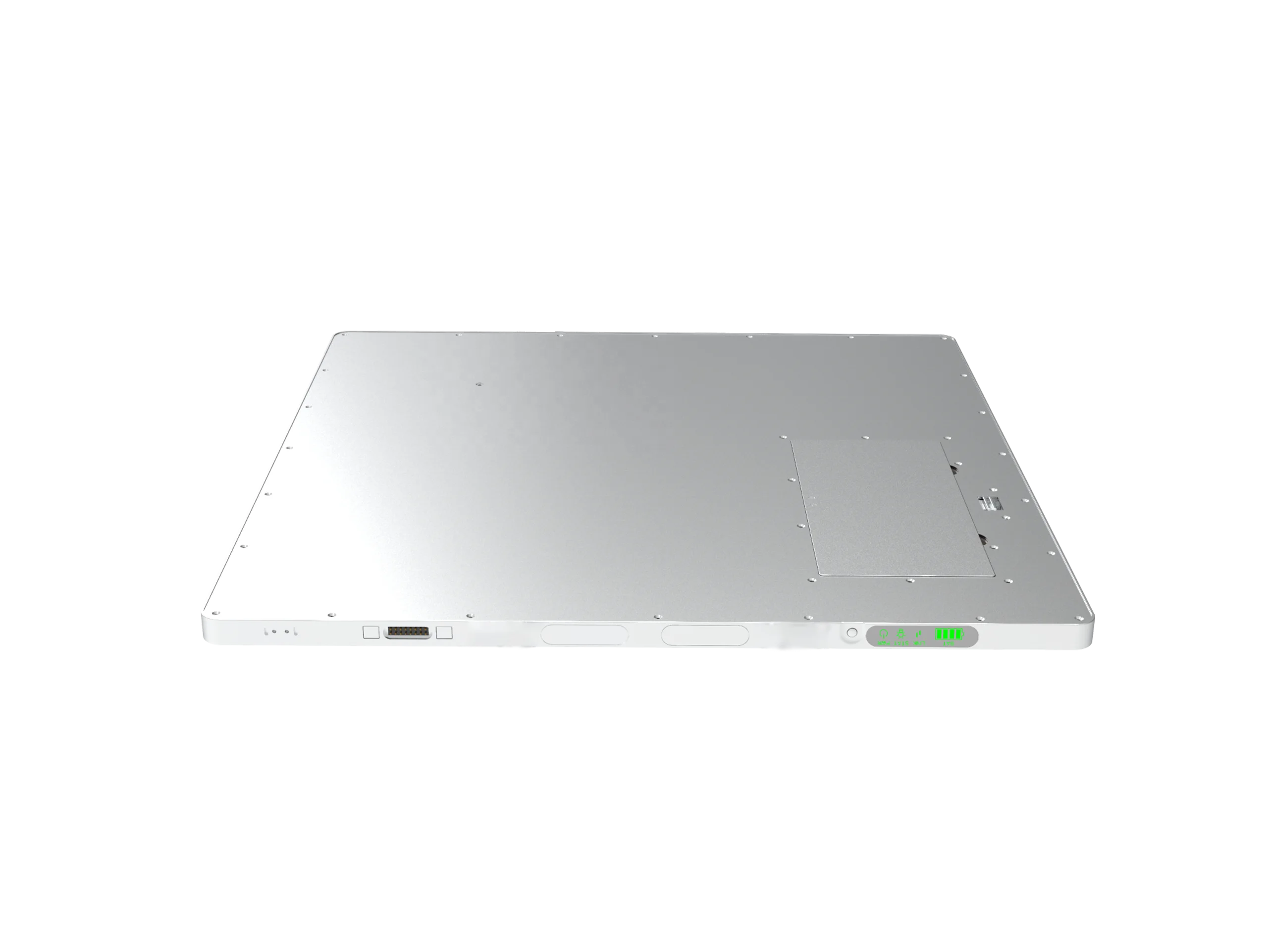

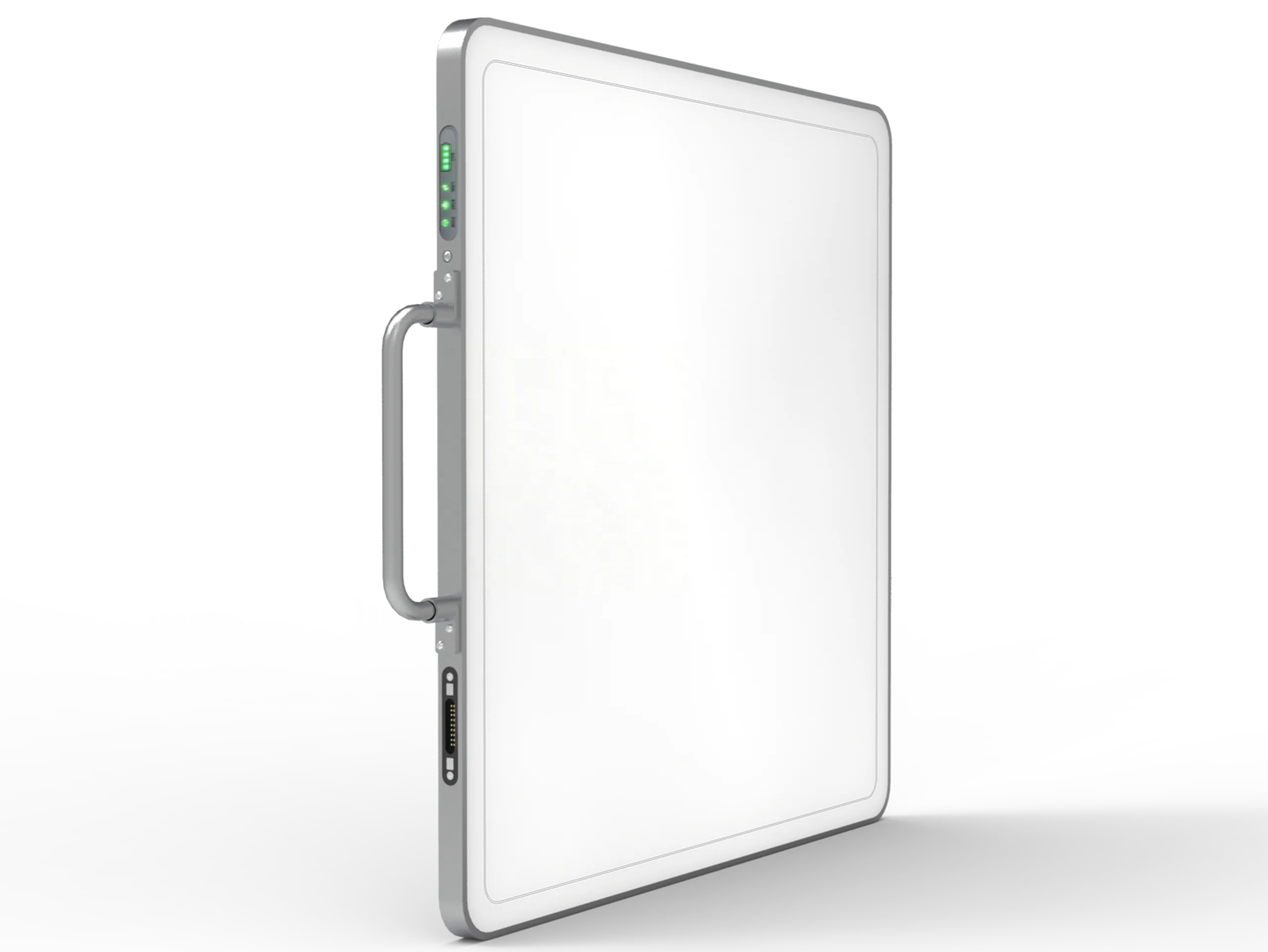

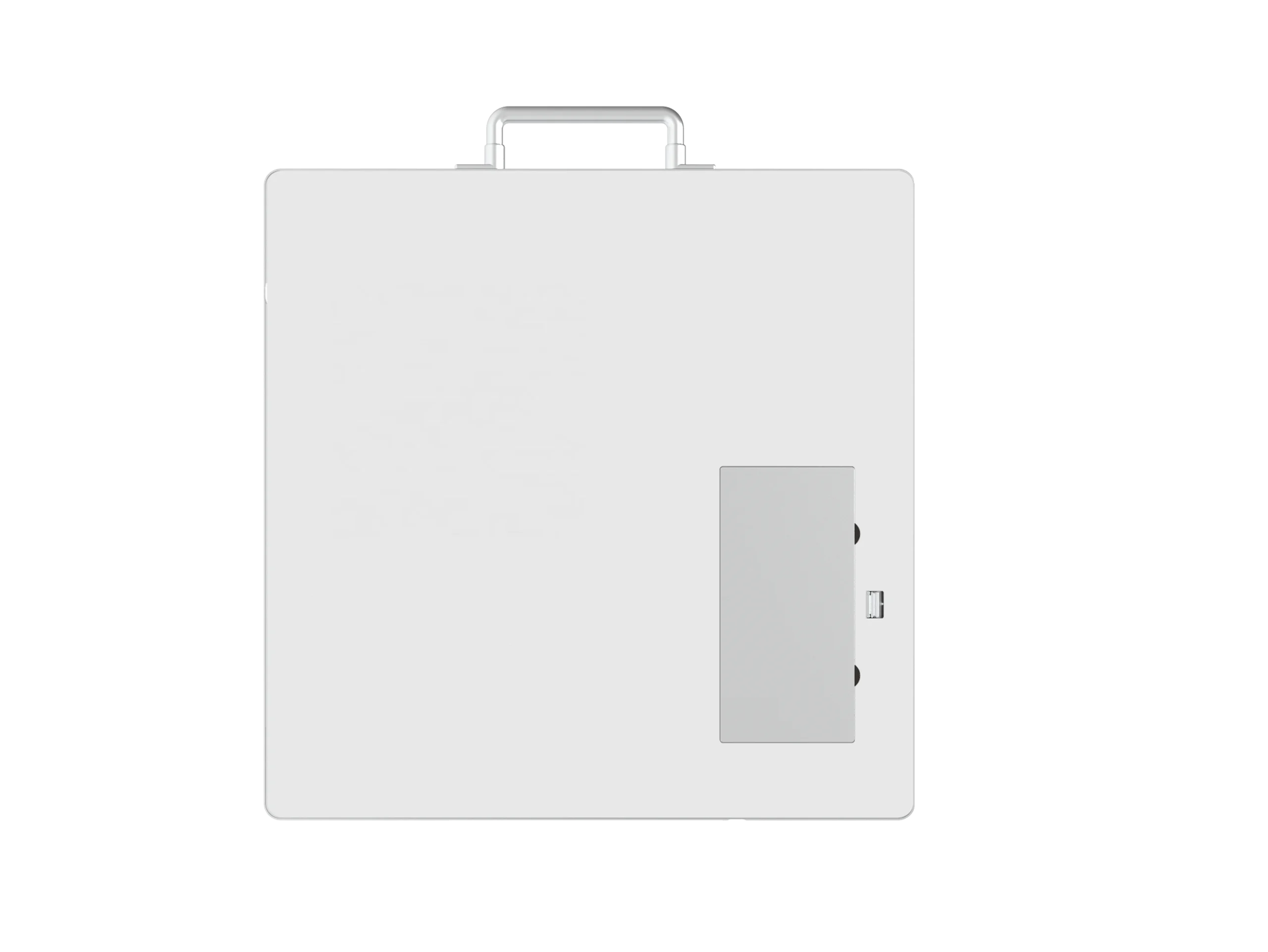

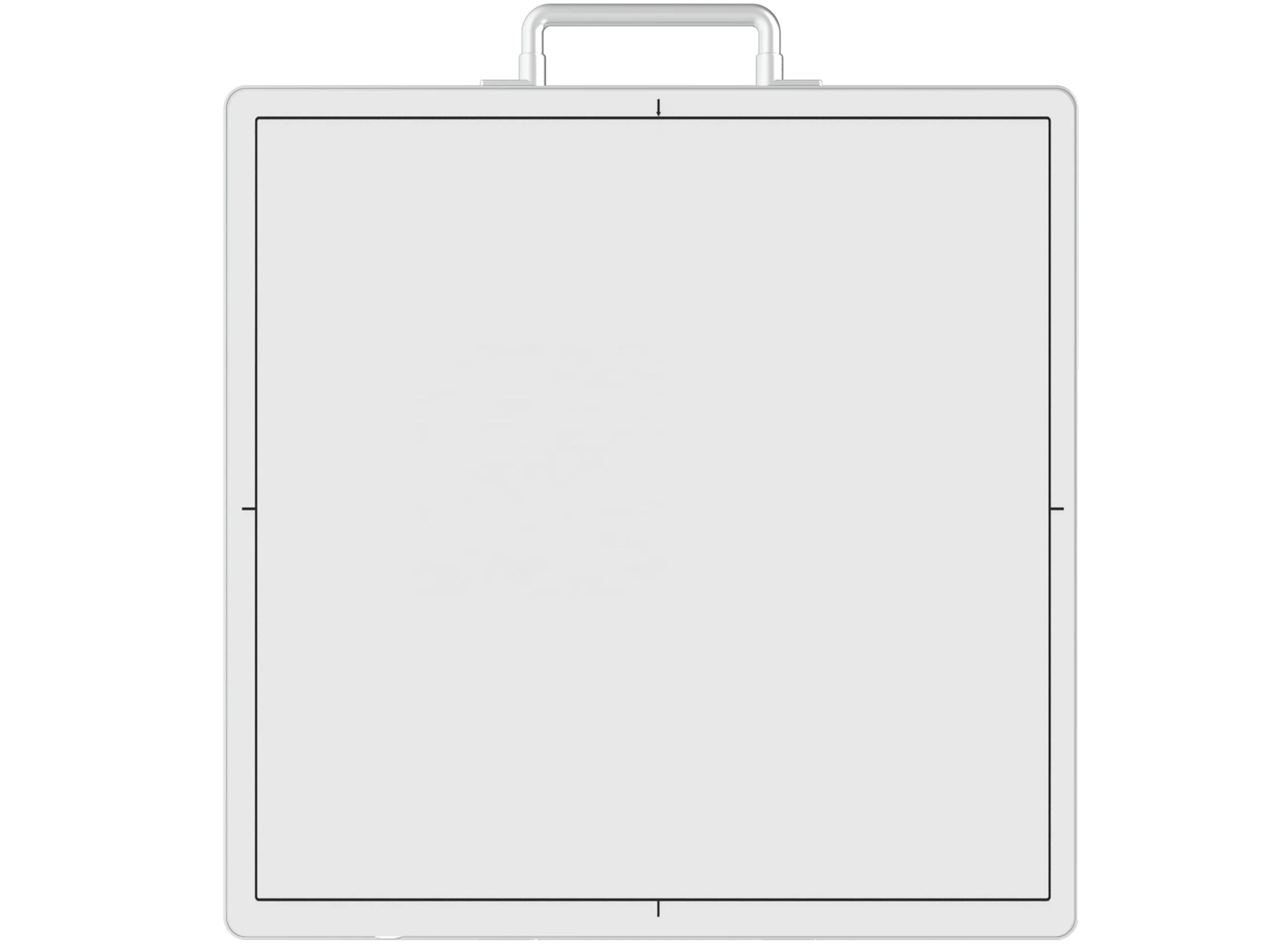

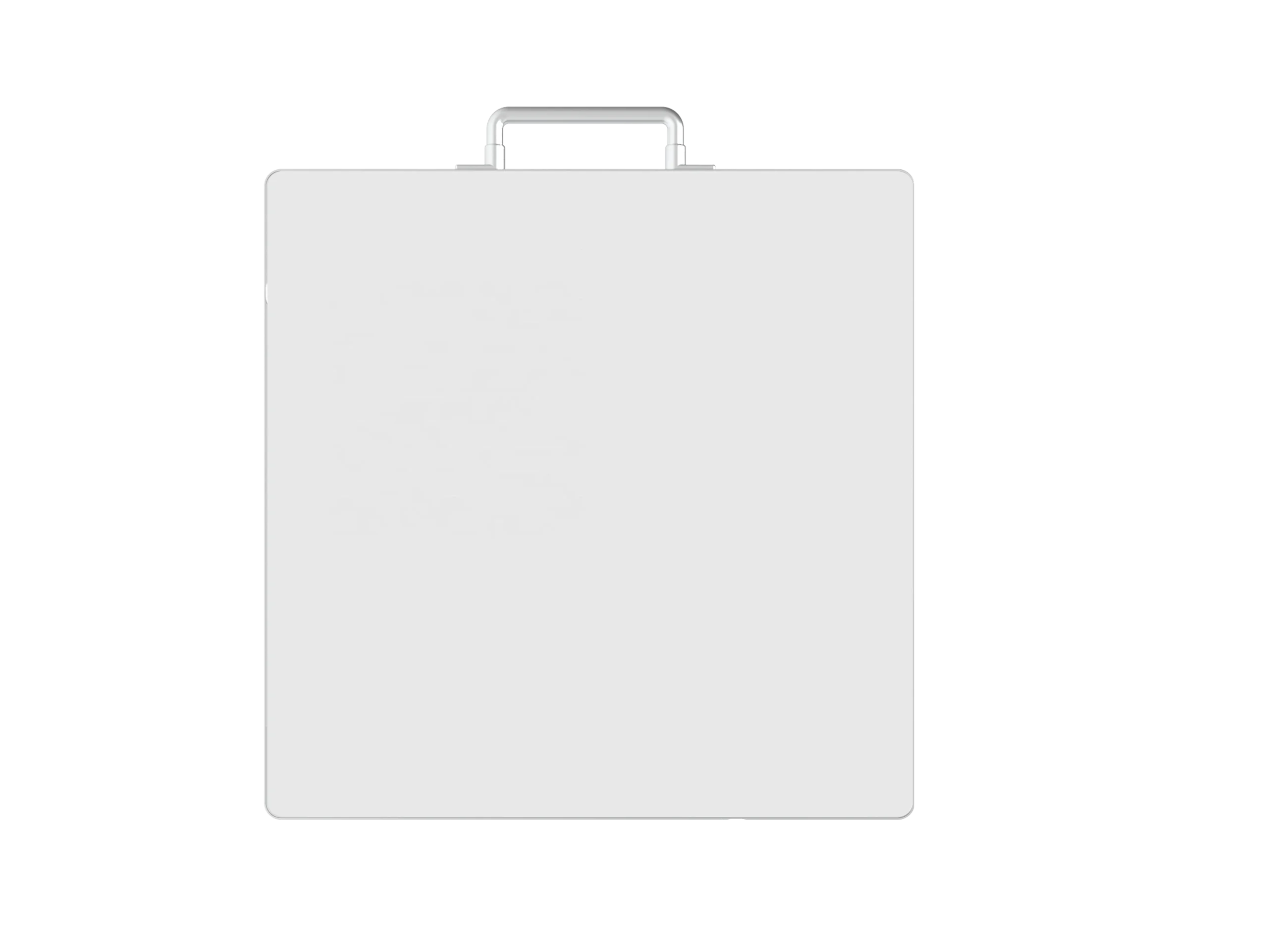

THR-FP01 is a high performance, cassette-sized flat panel detector with both wired and wireless functionalities. Battery stands by for at least 14 hours. THR-FP01 supports IEEE 802.11ac with transmission speed up to 1300M bps. The detector acquires outstanding images with high DQE and high resolution.
Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.
FLAT PANEL DETECTOR Features：
STATIC/DYNAMIC
STATIC/DYNAMIC
▶Waterproof & dust resistant
In challenging situations or while cleaning the products for safety, our IP56(Optional) protection gives you further assurance.
▶Robust design
Low weight FPD with maximum strength and durability that can support a surface load of 300 kg and 4cm circular point load of 150 kg has been produced by rigid and ergonomic design.
▶Last image hold
Captured image will be stored safely in detector until received at acquisition modality
In challenging situations or while cleaning the products for safety, our IP56(Optional) protection gives you further assurance.
▶Robust design
Low weight FPD with maximum strength and durability that can support a surface load of 300 kg and 4cm circular point load of 150 kg has been produced by rigid and ergonomic design.
▶Last image hold
Captured image will be stored safely in detector until received at acquisition modality

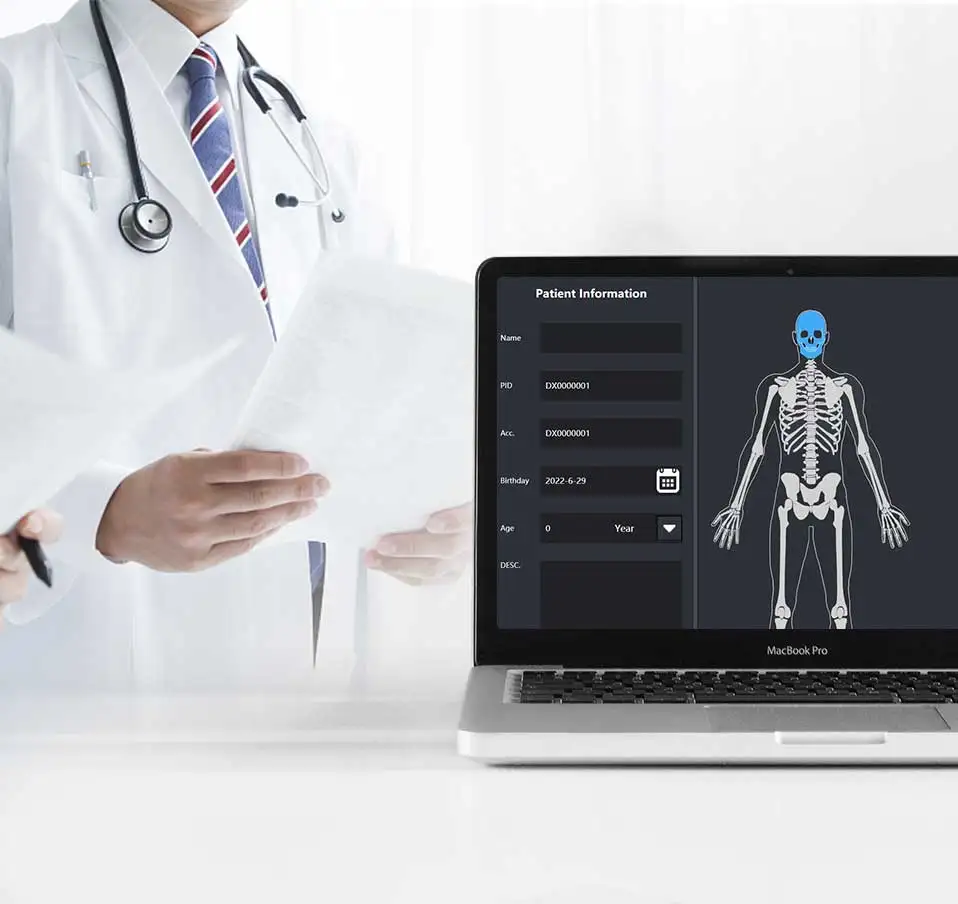

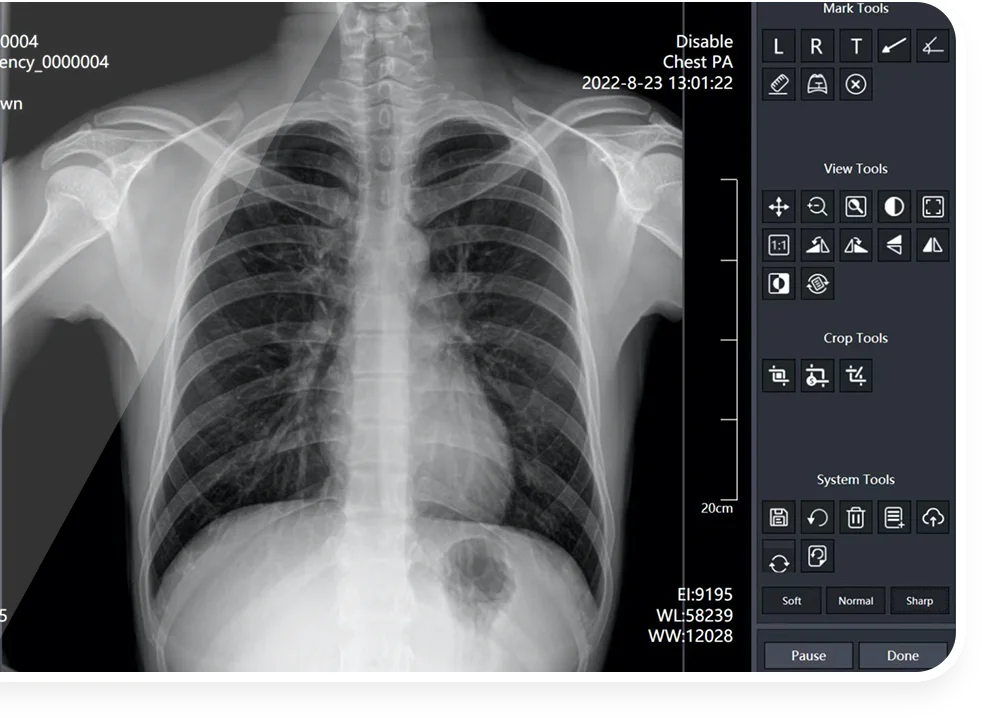

PZDR is a post-image processing with specialized modules to acquire, adjust and manage diagnostic images created by PZ flat panel detectors.
▶Optimized Workflow
▶Body Parts And Customer Specific Image Processing
▶Optimized For Various Applications
▶Support Different Languages
▶Optimized Workflow
▶Body Parts And Customer Specific Image Processing
▶Optimized For Various Applications
▶Support Different Languages

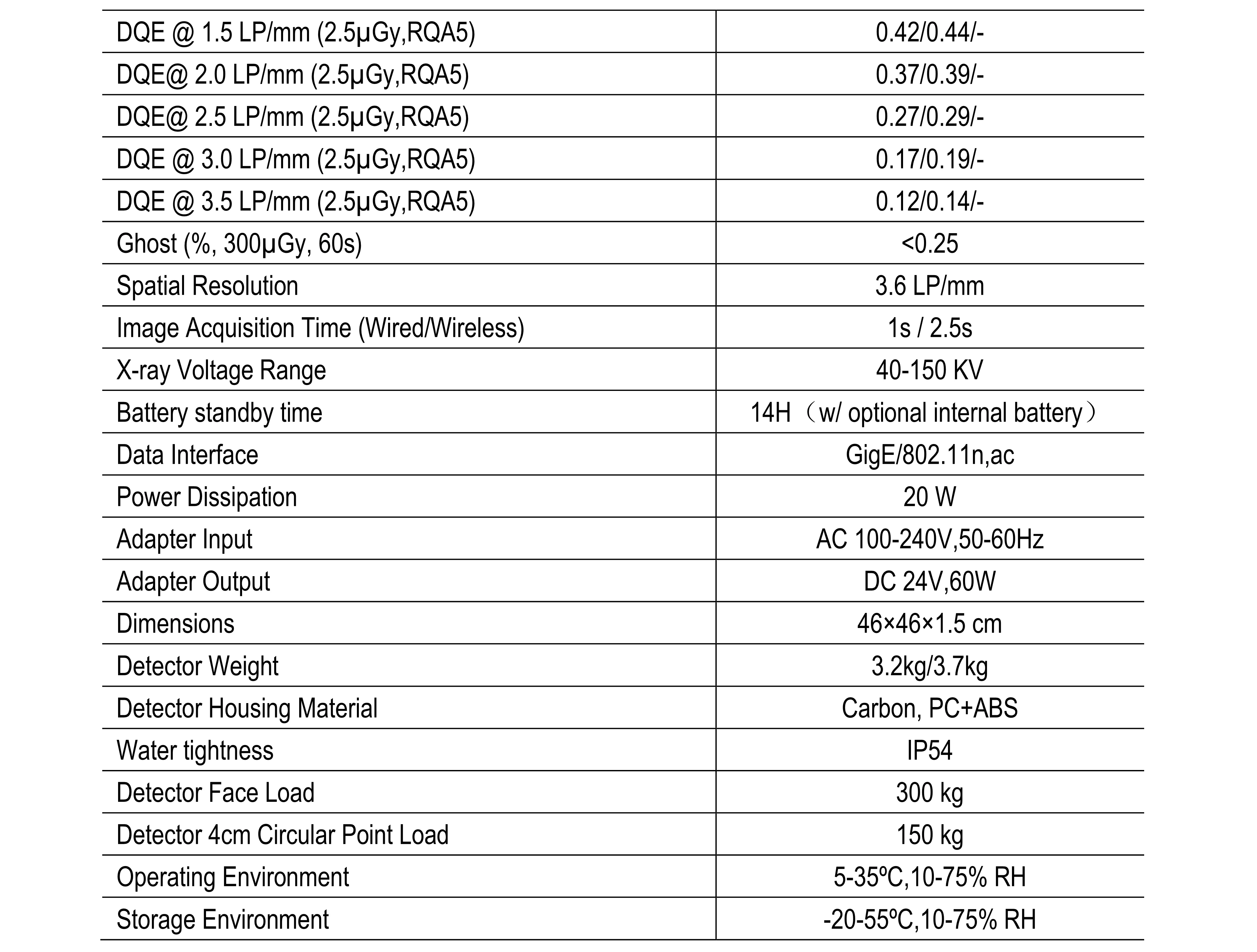

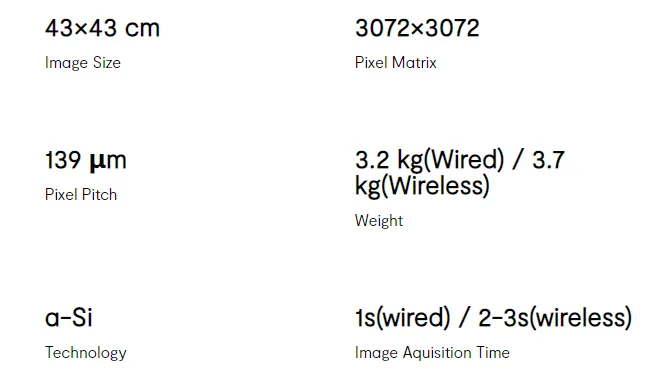

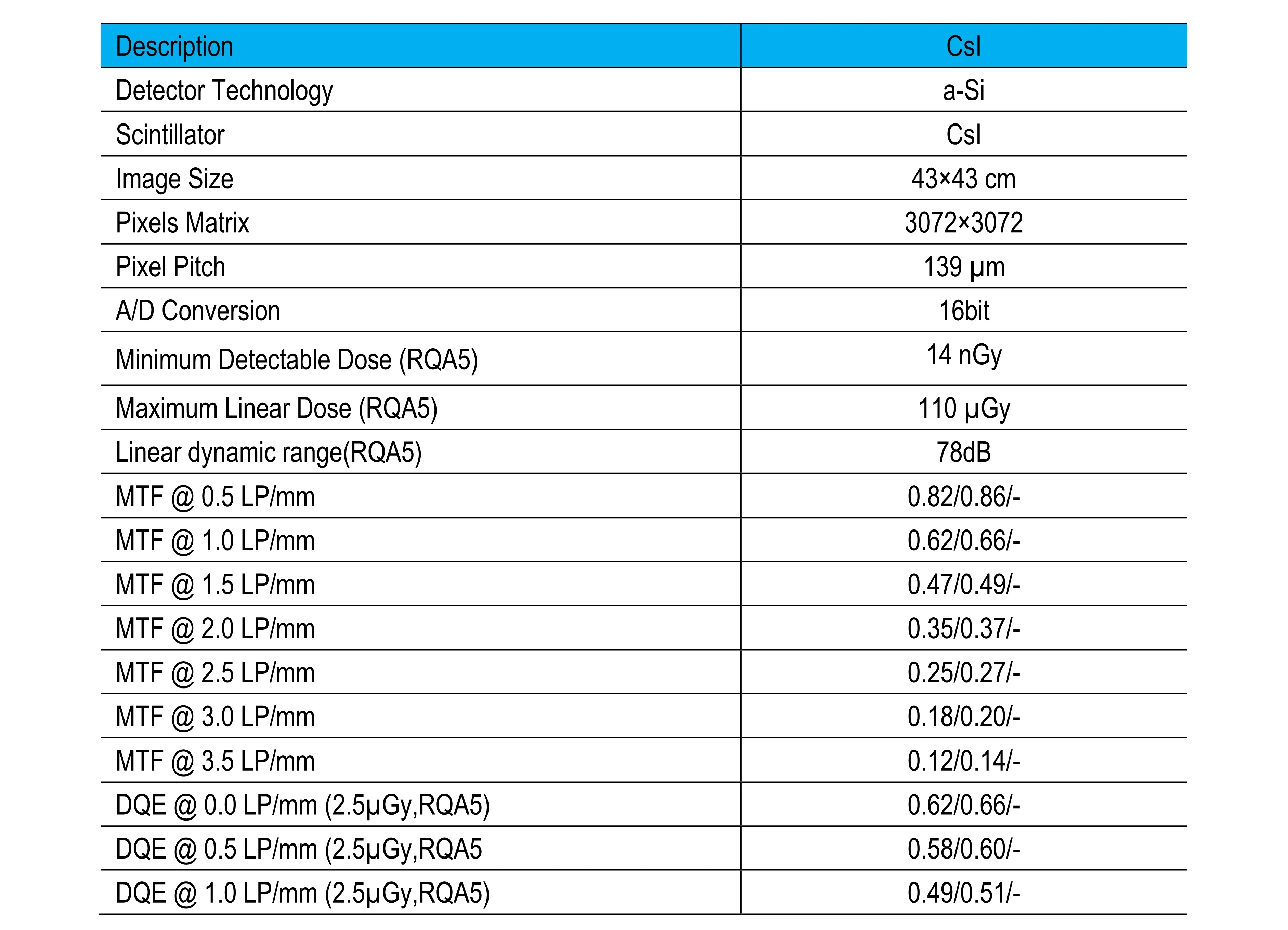

Specification
