THR-FM460
0.00
0.00
Usage：

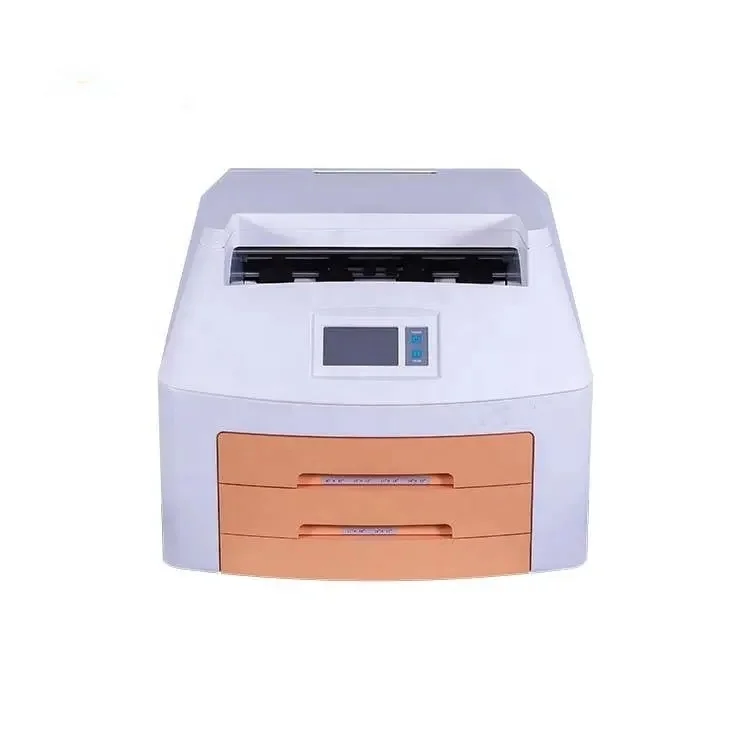

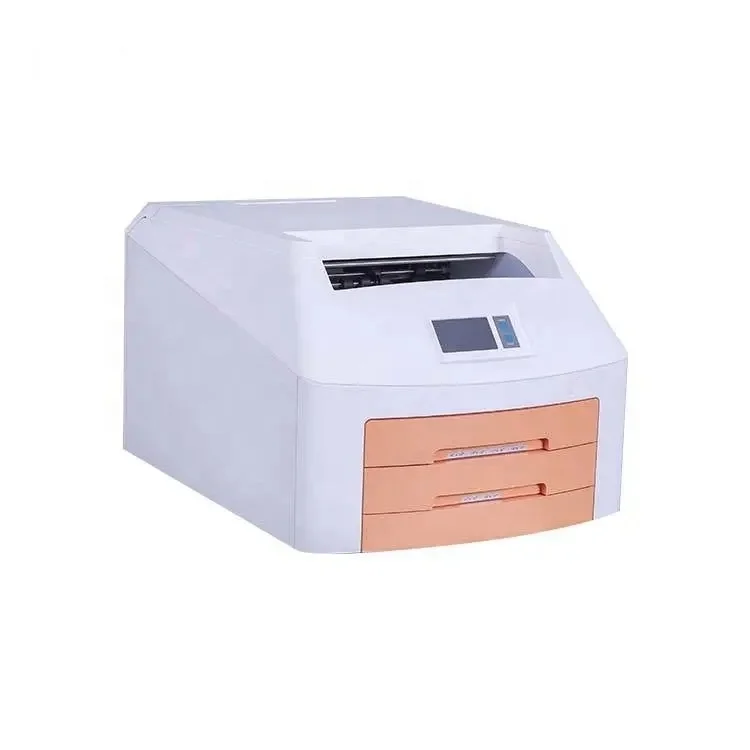

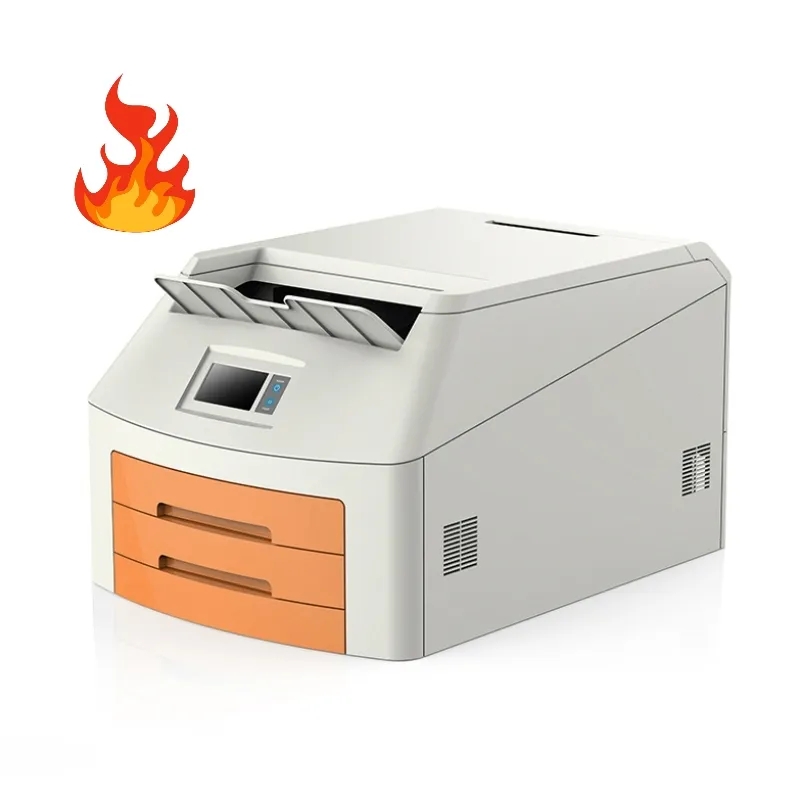

The dry imager is a medical imaging output device. Different from the old method of film processors, our dry imager can be operated under daylight condition. With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.Features：
It is the one and only domestically engineered medical dry thermal imager. The Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Orthopaedics, Dental Imaging and more. The Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
- Dry thermal technology
- Daylight load film cartridges
- Double tray, supports 4 film sizes
- Speed printing, higher efficiency
- Economical, stable, reliable
- Compact design, easy installation
- Straight forward operation, user-friendly
Specifications | |
Print Technology | Direct thermal (dry, daylight-load film) |
Spatial Resolution | 320dpi (12.6 pixels/mm) |
Grayscale Contrast Resolution | 14 bits |

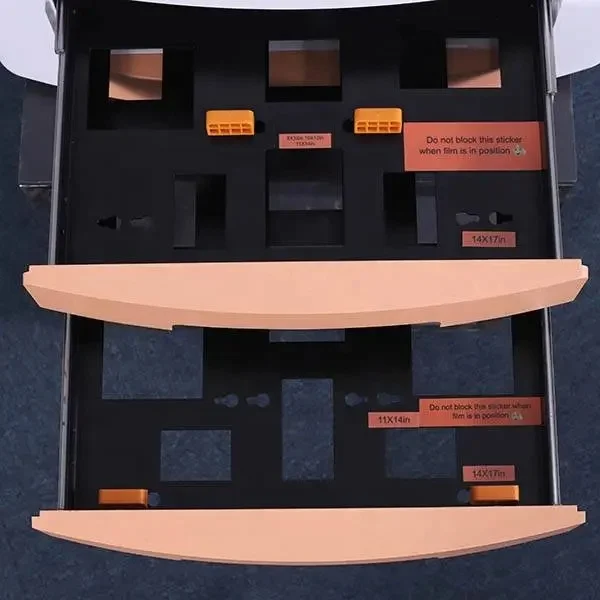

Film Tray | Two supply trays, 200-sheet capacity total |
Film Sizes | 8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’ |
Applicable film | Medical Dry Thermal Film (blue or clear base) |
Interface | 10/100/1000 Base-T Ethernet (RJ-45) |
Network Protocol | Standard DICOM 3.0 connection |
Image Quality | Automatic calibration using built-in densitometer |
Control Panel | Touch Screen, Online Display, Alert, Fault and Active |
Power Supply | 100-240VAC 50/60Hz 600W |
Weight | 50Kg |
Operating Temperature | 5℃-35℃ |
Storage Humidity | 30%-95% |
Storage Temperature | -22℃-50℃ |
