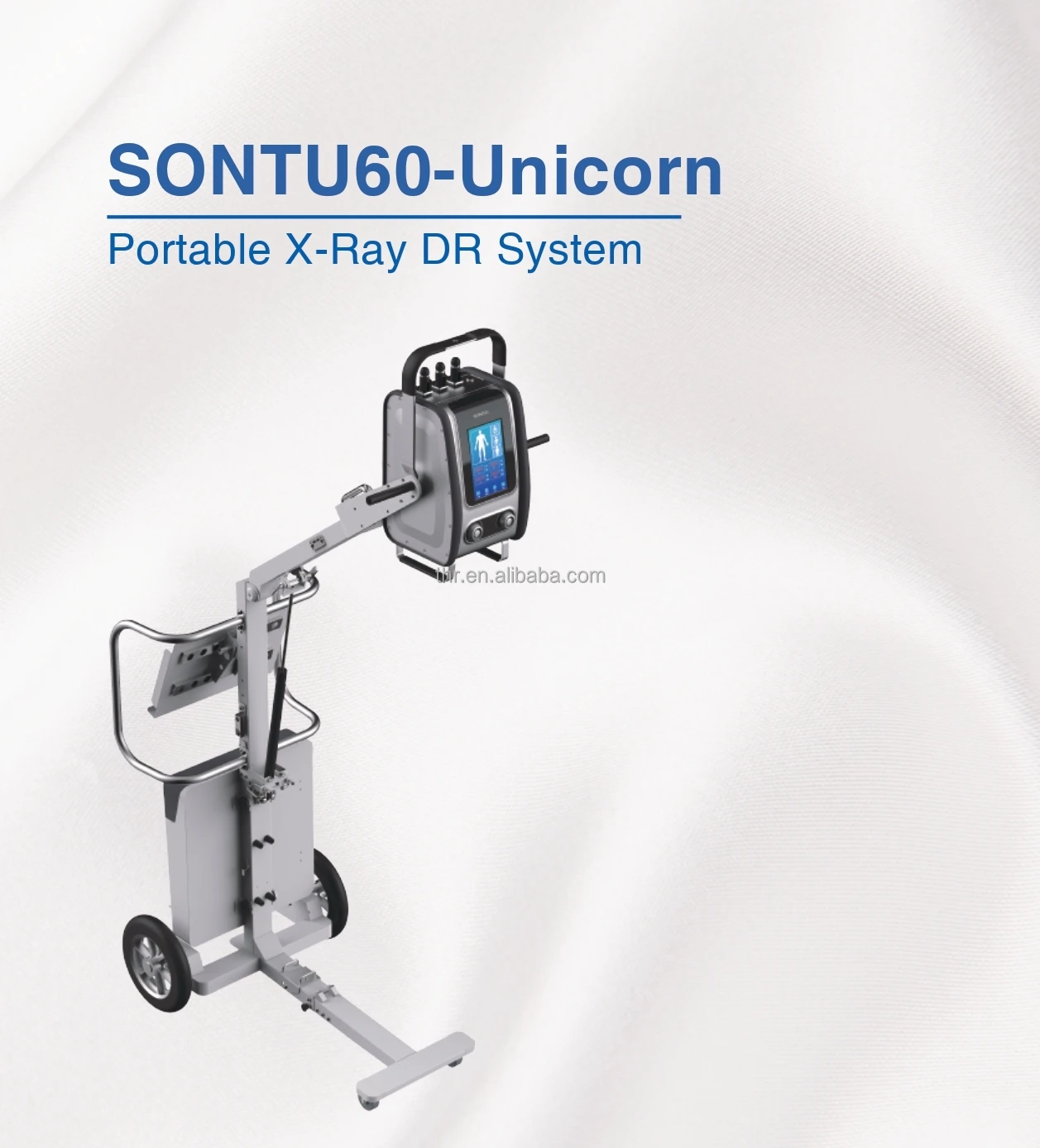

SONTU 60
0.00
0.00
Wired flat panel detector Wireless flat panel detector

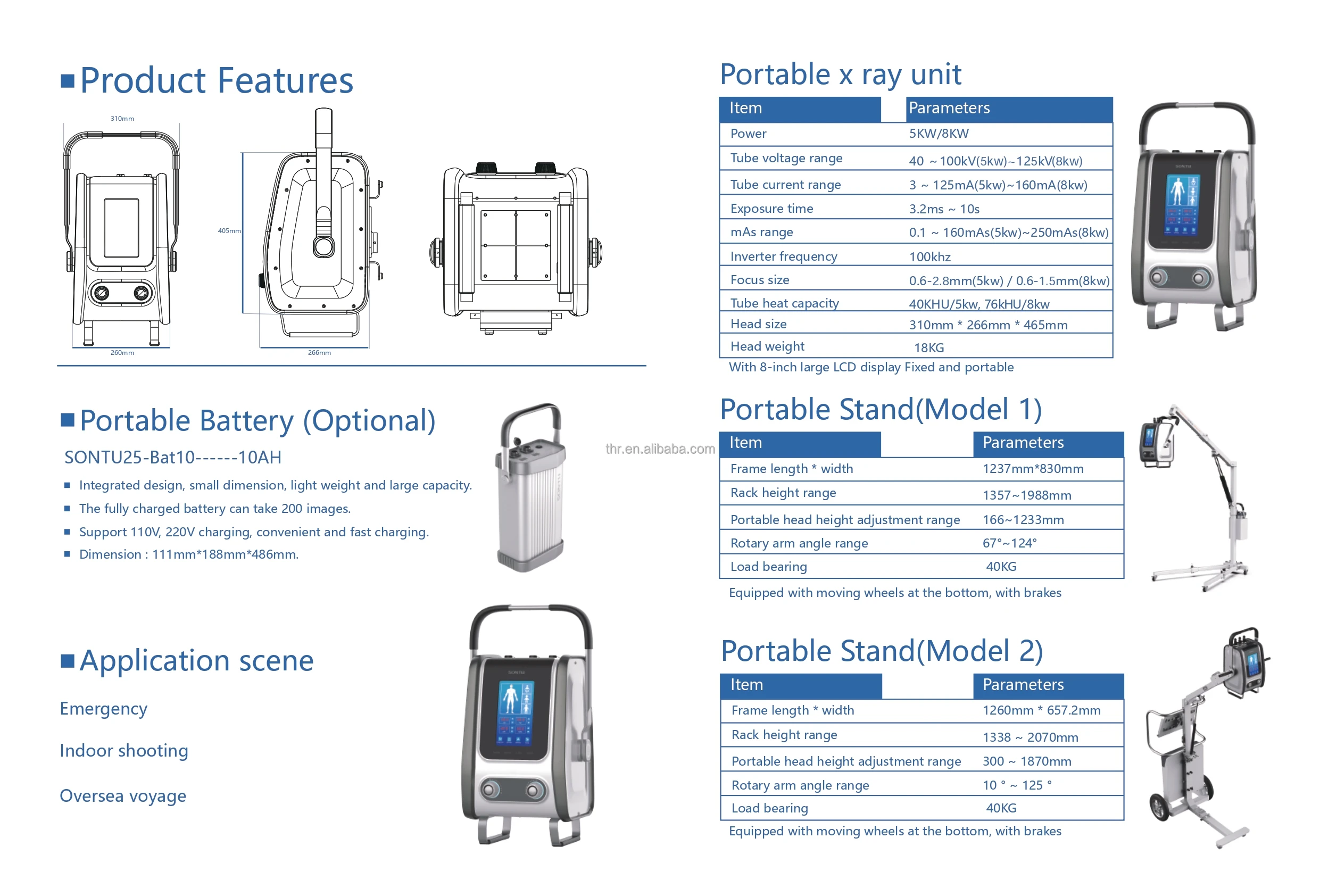

Specification

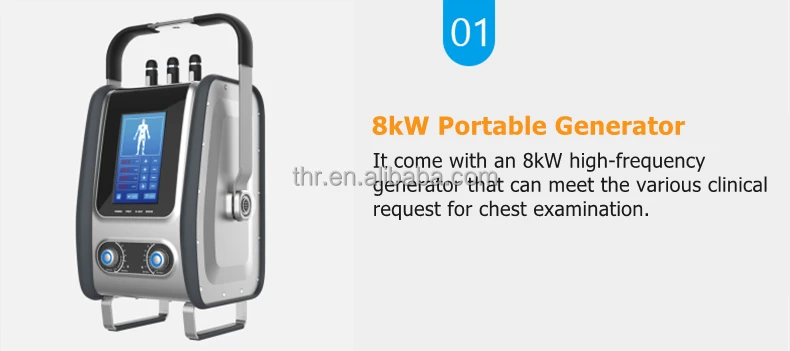

Power | 5KW/8KW |
Tube voltage range | 40 ~ 100kV(5kw) ~ 125kV(8kw) |
Tube current range | 3-125mA(5kw) ~160mA(8kw) |
Exposure time | 3.2ms~10s |
Inverter frequency | 100khz |
mAs range | 0.1 ~ 160mAs(5kw) ~250mAs(8kw) |
Focus size | 0.6-1.5mm(8kw) / 0.6-2.8mm(5kw) |
Tube heat capacity | 40KHU/5kw,76kHU/8kw |

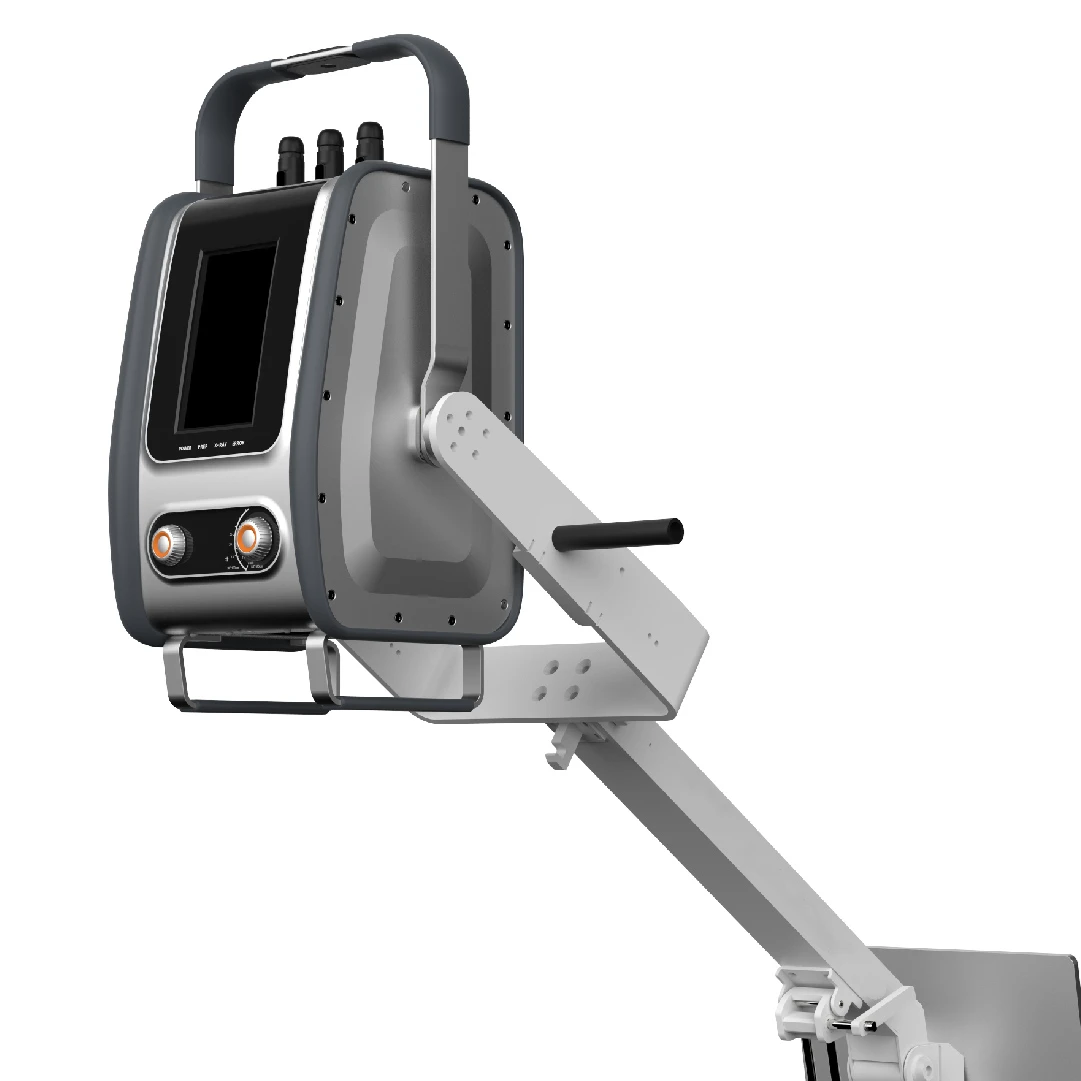

Head size | 310mm*266mm*465mm |
Head weight | 18KG |

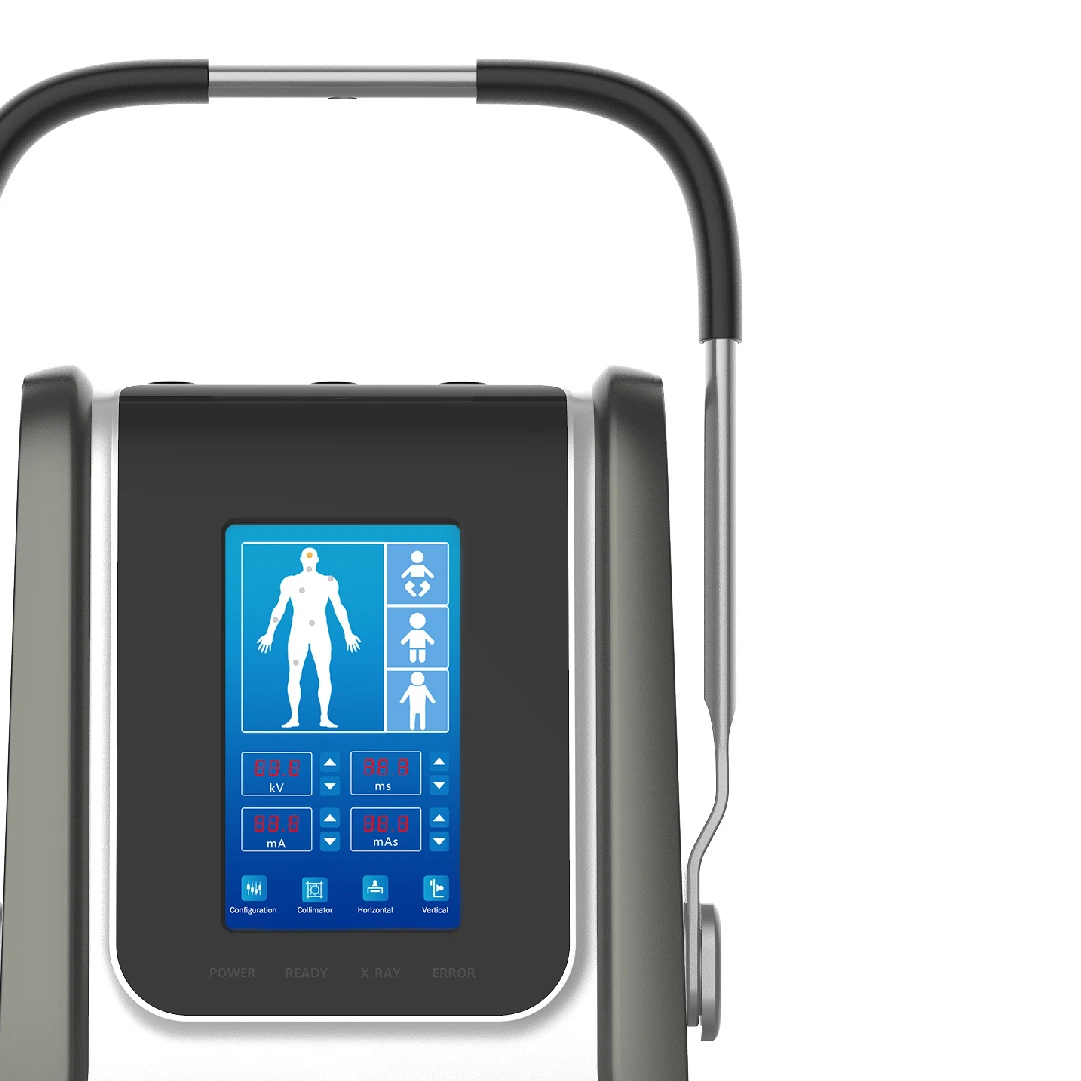

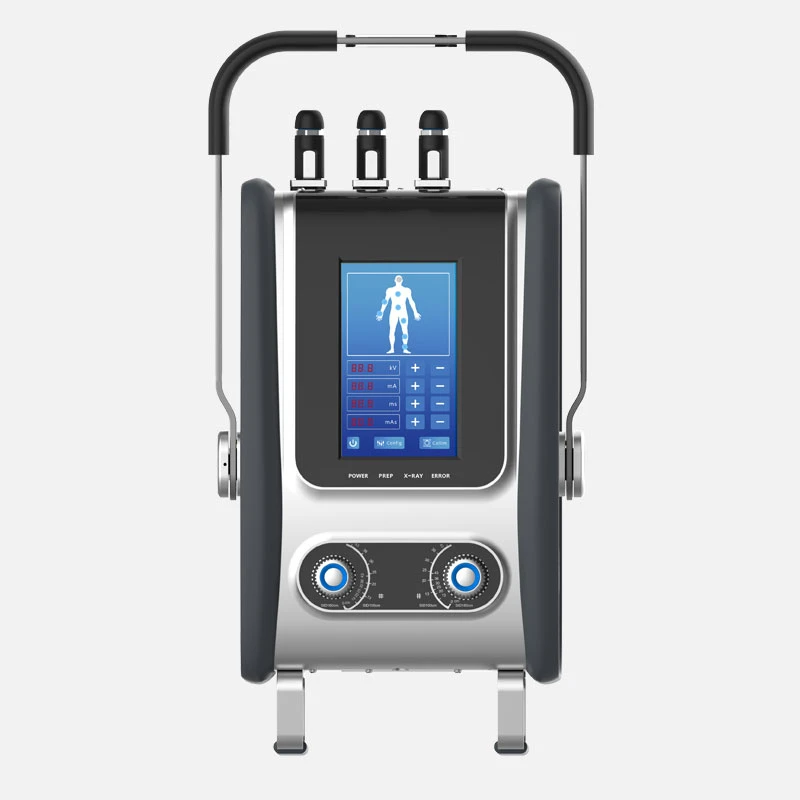

With 8-inch large LCD display Fixed and portable | |

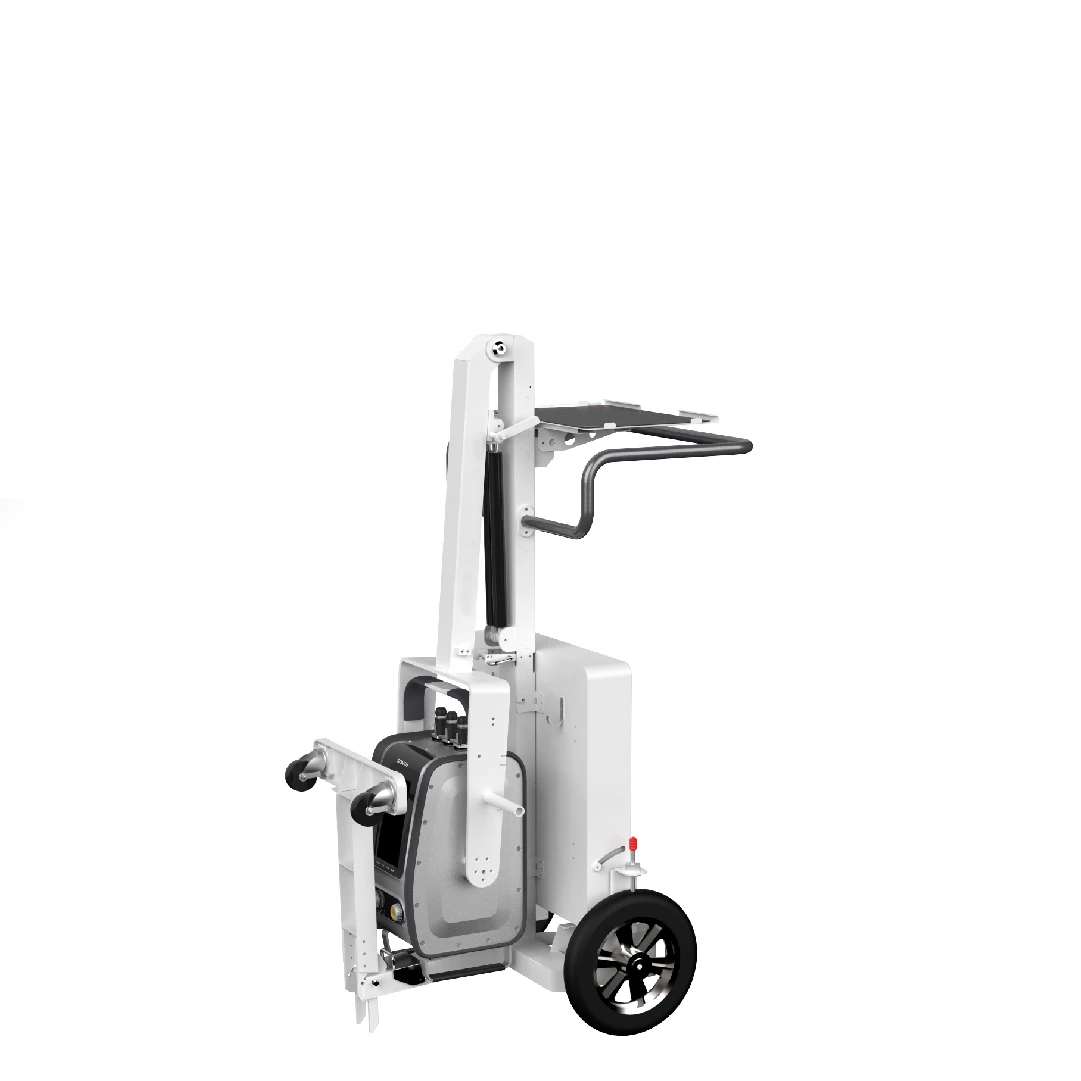

Frame length * width | 1260mm*657.2mm |
Rack height range | 1338-2070mm |

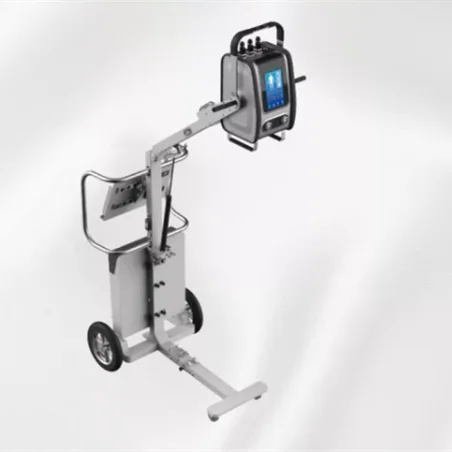

Portable head height adjustment range | 300-1870mm |
Rotary arm angle range | 10°- 125° |
Load bearing | 40KG |

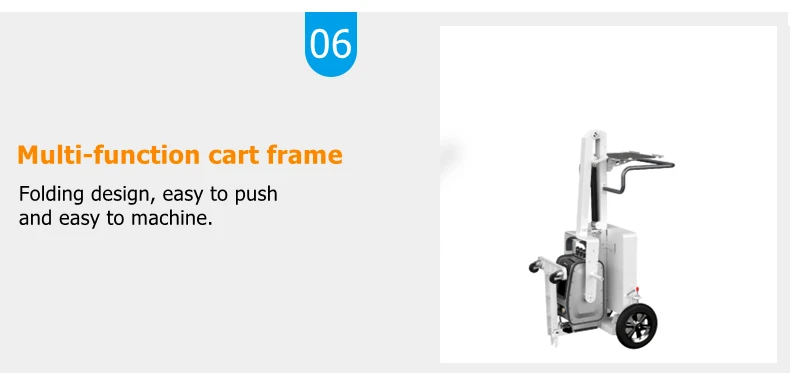

Equipped with moving wheels at the bottom, with brakes | |

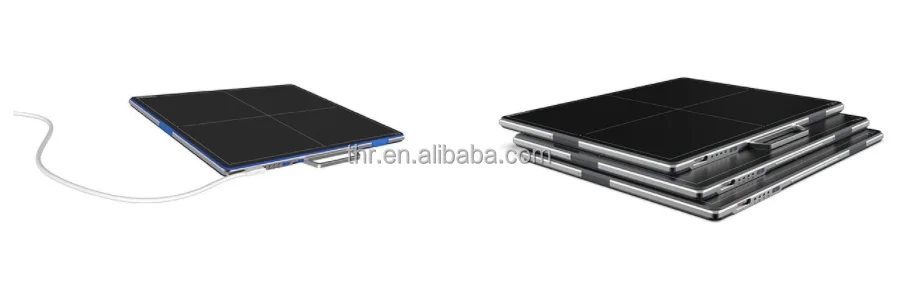

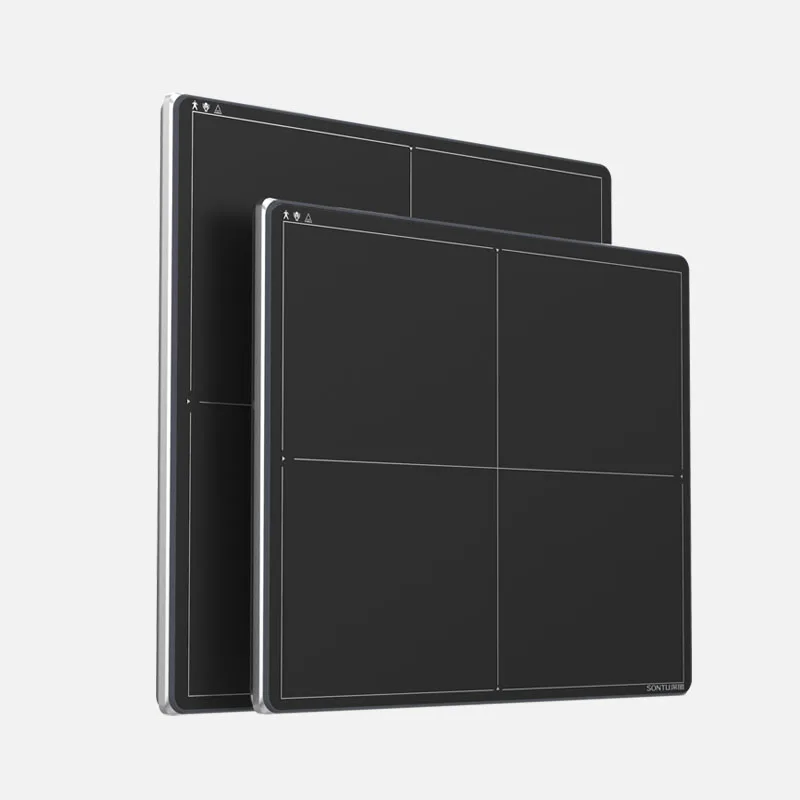

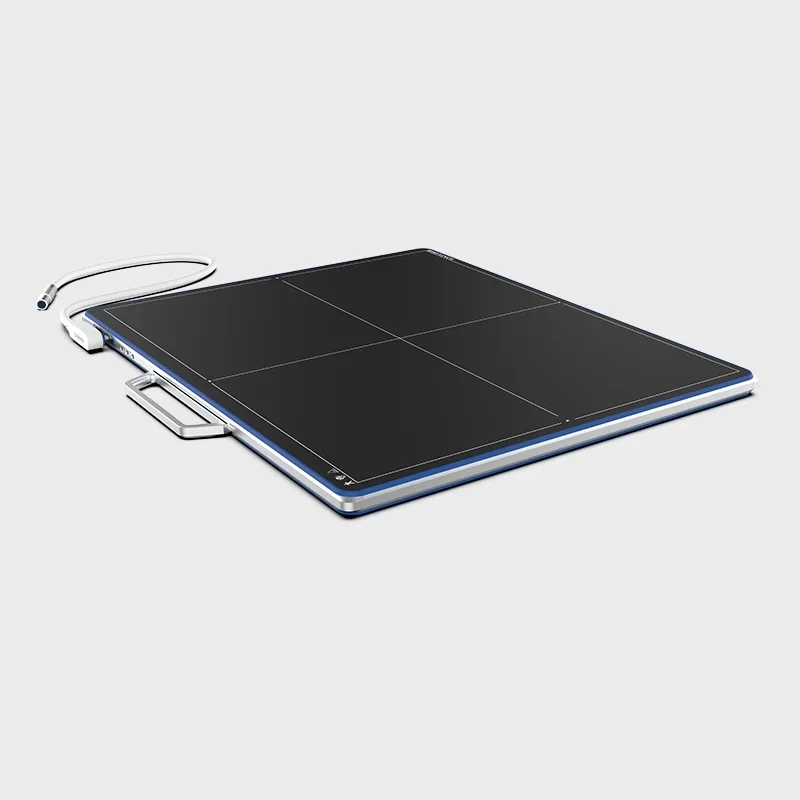

The 14*17 and 17*17 inch wired flat panel detectors from are lightweight and simple in design with Cesium Scintillators and Gadolinium options available.

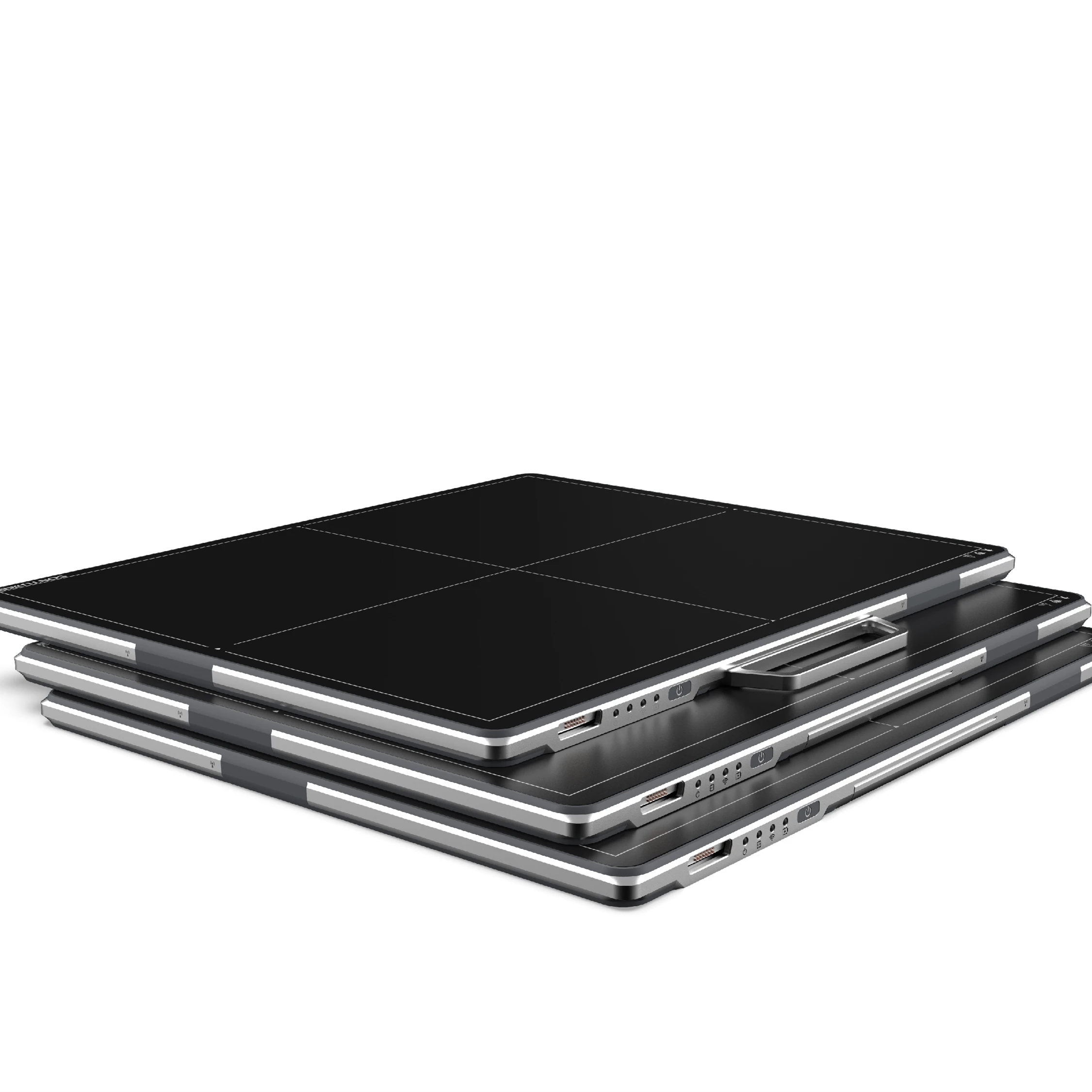

The wireless flat panel detectors is a lightweight and user-friendly design. The superior image quality from its high spatial resolution
and excellent DQE empowers the doctors to provide accurate diagnoses with lower-dose radiation.
and excellent DQE empowers the doctors to provide accurate diagnoses with lower-dose radiation.
