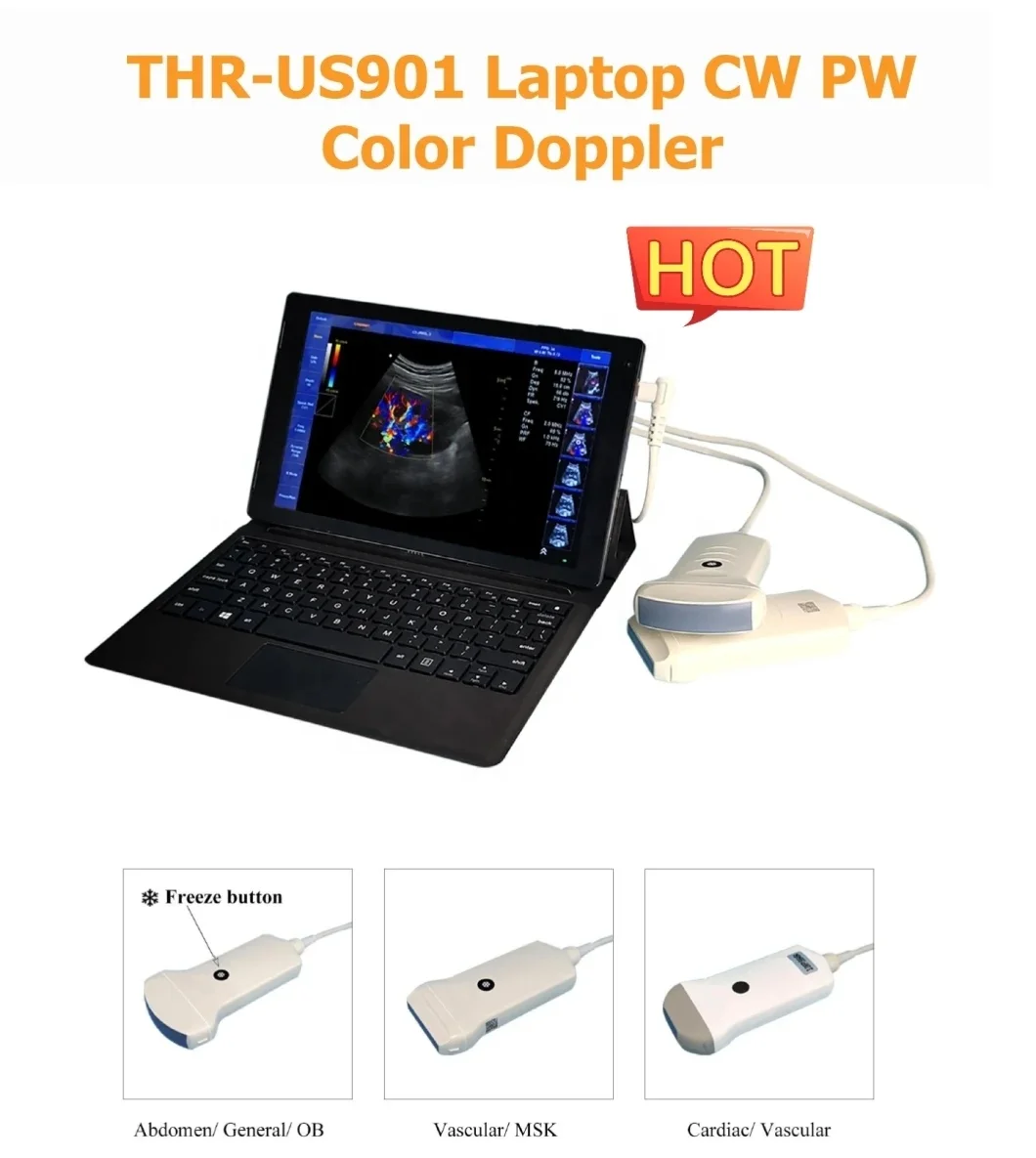

Description:

-Size of host:125×50*20mm,weight 125-160g,easy to carry around. -In china ,it is the first handheld color Doppler ultrasound system which supports phased array probe.

-Adopts USB3.0 high-speed interface to data transmission, which cause the image has no stutter, no frame loss, and smooth display.

-In China, it is the first handheld color Doppler ultrasound system that can obtain real-time RF data, as its data transmission rate is up to 3.2Gbps.

-Support puncture enhancement and contrast agent imaging functions to meet the requirements of more specialized clinical ultrasound applications. -Compatible with Windows, Android system tablets and mobile phones.

-Probe element: 96 elements-Muti-language software -Waterproof  ultrasonic transducer

Specifications

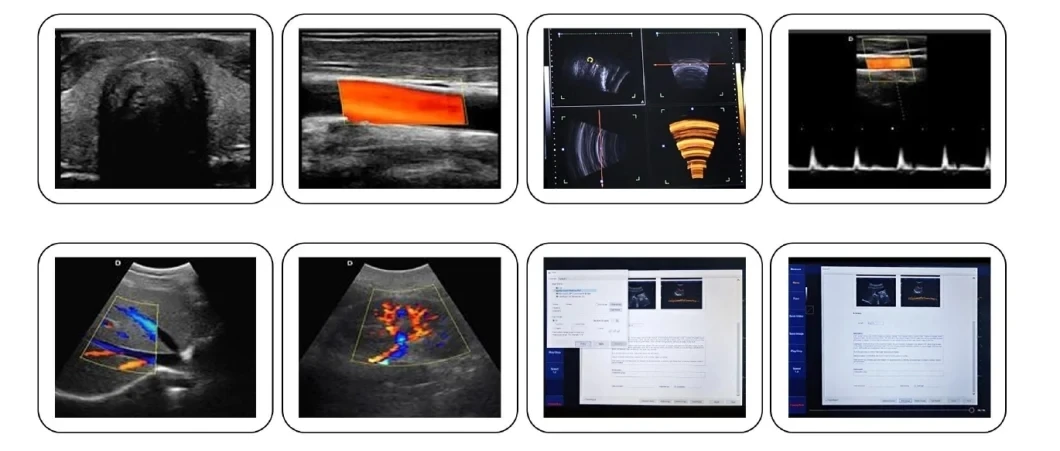

1)Imaging mode

B, B/B, 4B, B/M, M Color flow (CF), Power Doppler (PDI), Directional Power Doppler (DPDI) Pulse Doppler (PW) Continuous Doppler (CW) B+CF color double-frame real-time imaging Color M type Anatomical M type B+PW (Real Duplex),B+CF/PDI/DPDI+PW (Real Triplex) High pulse repetition frequency (HPRF) Tissue Harmonic Imaging (THI), Pulse Inverse Harmonic Imaging (iTHI) Tissue Specific Imaging (TSI) Convex array expansion imaging Linear array deflection/ Trapezoidal imaging Space composite imaging Wide-view imaging Contrast agent imaging Tissue Doppler(TDI)Optional

2)Scanning mode

linear array, convex array, micro convex, phased array Scanning depth:2-30cm

3)Color doppler blood flow

PRF repetition frequency range:0.6-20 kHz Wall filter range:≥ 5 Groups Linear array probe angle deflection:±5°,±10°,±15° Real-time spatial filter:≥ 4 Groups CFM Color :≥ 10 kinds PDI Color :≥ 10 kinds Color threshold control CFM Baseline control Adjustable Doppler frequency:≥ 4 Groups Color frame related Color transparency control (TCM)

4)Pulse Doppler:

PRF Repetition frequency range:0.6-20 kHz Wall filter range:≥ 10 Groups Linear array probe angle deflection:±5°,±10°,±15° Real-time tracking spectrum and real-time calculation of spectrum parameters Stereo output Spectrum pseudo color Adjustable Doppler frequency:≥ 4 Groups

5)Image Processing:

High line density scanning (adjustable) Dynamic Range :≥120 dB Automatic gain control M scanning speed adjustable PW scanning speed adjustable Adjustable sound power Controllable frame related Gamma correction Adjustable scanning range Up&down / left & right / black & white flip Image enhancement, edge enhancement Puncture enhancement Noise suppression Spot suppression

6)Image and video storage format:

AVI, JPG, BMP, PNG, DCM (DICOM)etc.

7)Routine measurement and calculation:

distance, depth, area, circumference, volume, angle, stenosis ratio, ratio, speed, gradient (PG), acceleration, resistance index (RI), heart rate, velocity time integral (VTI), etc.

8)Measurement and calculation software package:

obstetrics, gynecology, abdomen, urinary, endocrine, blood vessel, heart, etc.
