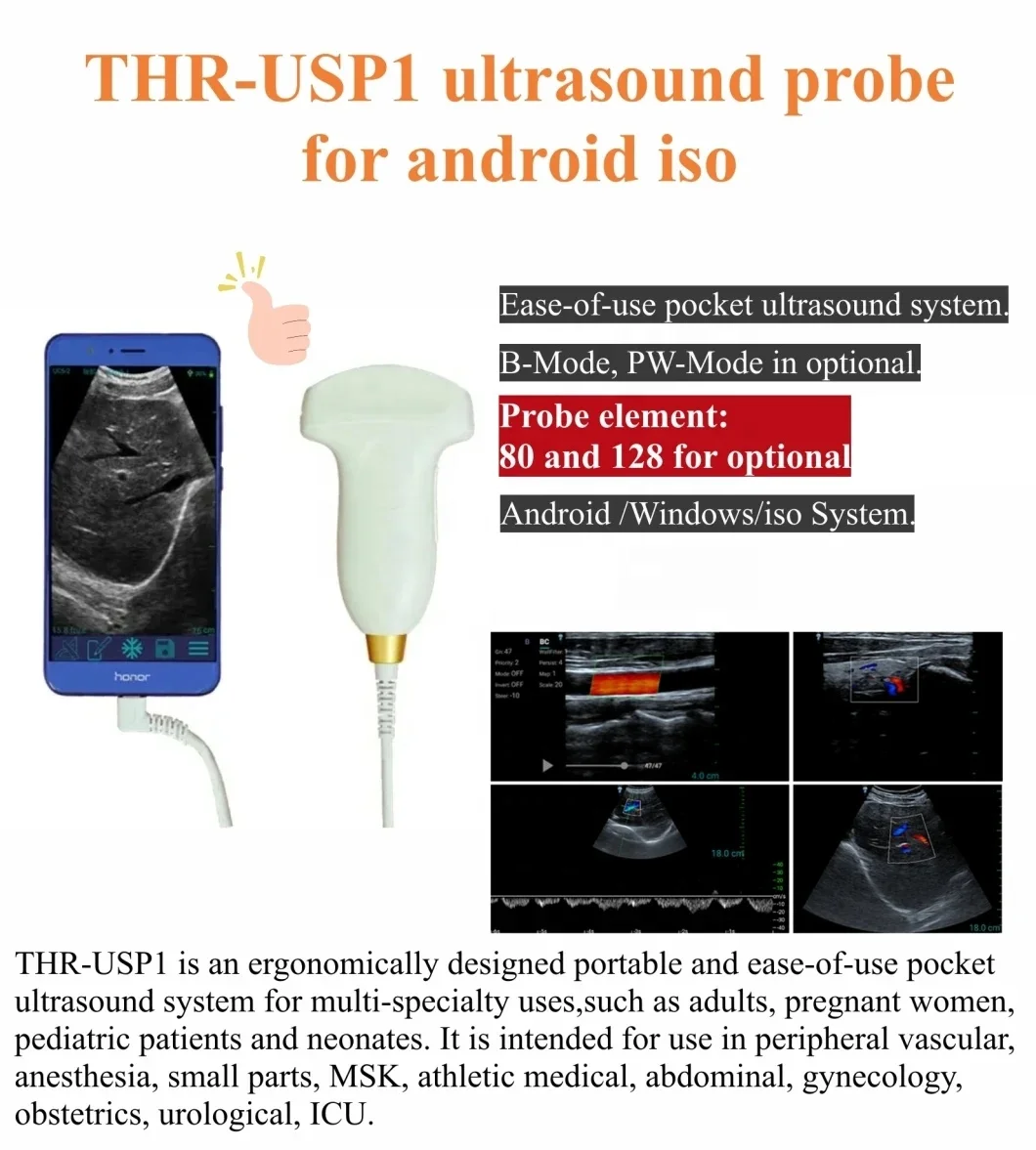

THR-USP1

THR-USP1

0.00
0.00

Dimensions and Weight:
Width: < 135mm
Depth: < 80mm
Height: < 30mm
Weight: < 150g

Operating Environment:
Ambient temperature: 10~30 deg
Relative humidity: <80%
Atmospheric pressure: 700 hPa~1060 hPa

Storage & Transportation Environment:
Ambient temperature: -20~55 deg
Relative humidity: <95%
Atmospheric pressure: 700 hPa~1060 hPa

Transducer Types & Scanning Methods:

Transducer Types

1.Linear array transducer

2.Convex array transducer

3.Phased array transducer(coming soon)


Scanning Methods

1.Electronic linear

2.Electronic convex

3.Electronic sector


System software application

Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology


Measure

Distance,Area ,Volume ,Ratio (distance or area),OB measure package,Body mark


Annotations

Text Arrow Ellipse Rectangle

Arrow Ellipse

Rectangle


Technical Parameter:

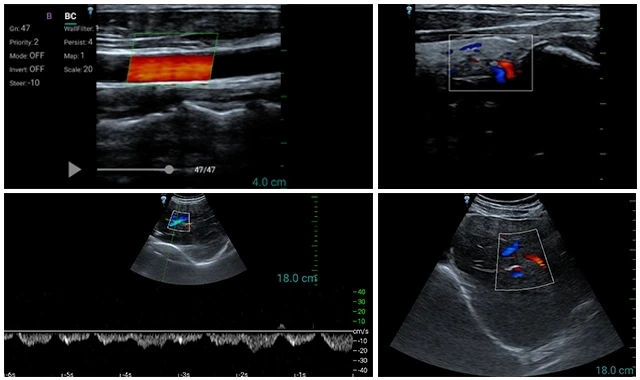

Power consumption:1W Imaging mode: B-Mode, M-Mode,PW-Mode Frequency: Convex (3-5Mhz) Probe element: 80 and 128 for optional Gray scale level: 256 Dynamic range:>120dB Maximum frame rate: 20 FPS (probe dependent) Cine review: 100 frames System scanning depth: linear probe: ≤70mm Convex probe: ≤240mm Image Save: JPG, DICOM Port: micro USB3.0/2.0

Imaging mode: B-Mode, M-Mode,PW-Mode Frequency: Convex (3-5Mhz) Probe element: 80 and 128 for optional Gray scale level: 256 Dynamic range:>120dB Maximum frame rate: 20 FPS (probe dependent) Cine review: 100 frames System scanning depth: linear probe: ≤70mm Convex probe: ≤240mm Image Save: JPG, DICOM

Port: micro USB3.0/2.0


Compatible Device:

Android System: Huawei P10, Honor 9, Mate 9... Samsung S8, S9, Note8... LG:V20, G6...

Huawei P10, Honor 9, Mate 9... Samsung S8, S9, Note8...

LG:V20, G6...

Windows:OS≥windows 8.1, CPU≥Intel CoreM


Standard Configuration

Probe + Ultrasound software package
