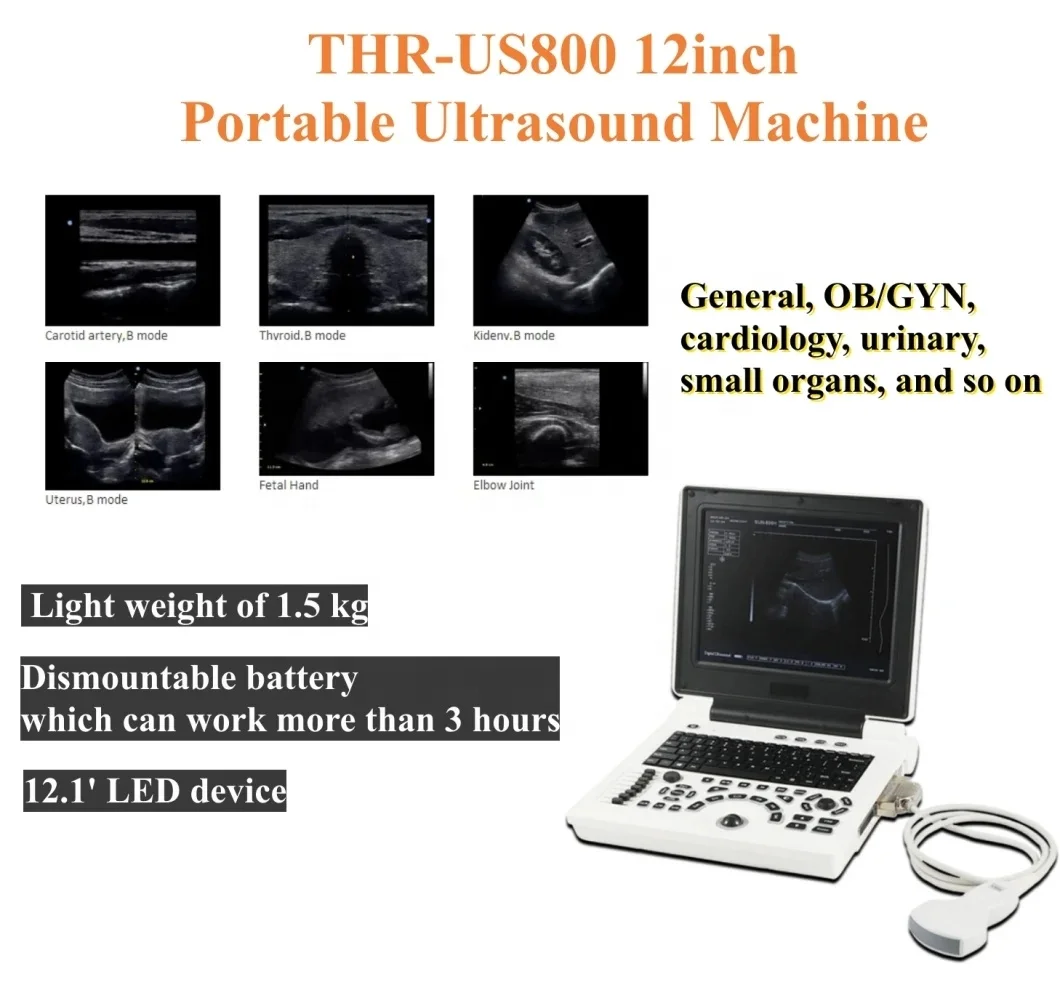

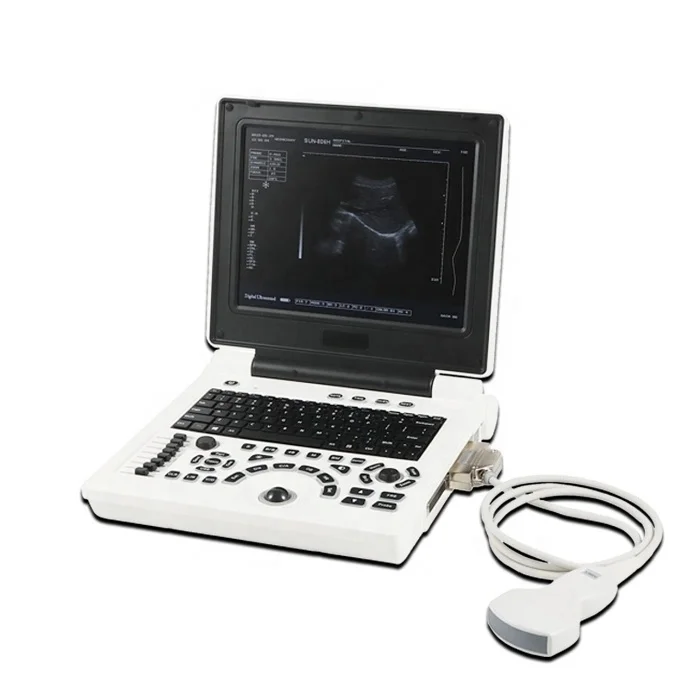

THR-US800
This Ultrasonic diagnostic instrument (here in after referred as instrument) using 3.5 MHz electronic convex array probe, adopts full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering; dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.;
Product Description
1. Light weight of 1.5 kg, very convenient to carry out.
2. Crystal clear with high resolution image display
3. Dismountable battery which can work more than 3 hours.
4. With 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer
5. Realized read-write function through USB connection and SD connection 6. Other performance is as the same as the laptop computer, such as power save mode, touch mouse and so on.
7. Professional software: General software, Obstetrics software, Cardiac software.
8. Video-out port, connect with computer, external monitor and HP printer directly 9. Supports the colored surface, the ultrasonic area pseudo-color of 16 kinds.
Softwares
General measurement: distance, circumference, volume, angle, heart rate and etc. Obstetrics measurement software: BPD, GS, CRL, AD, AC, FL, HC, FTA, APTD, TTD and calculating fetus' weight, pregnancy week, fetal physiological rating according to the previous measurements. Cardiac measurement software: The measurement result could be shown automatically.
Specificarion
Imaging mode | B, B/B, 4B, B+M and M |
Gray Scale | 256 levels, four selectable gamma curve |
Transducer frequency | 2.5-8.5 MHz |
Magnification | ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 |
Permanent storage | 256 |
Cine loop | 128 a large memory and offers permanent storage, cine loop in real time |
Sound power | 8 grades from 0-7 |
Dynamic Range | Adjustable from 30-75 |
USB ports | 2 |
Annotation function | hospital name, patient's name, age and gender; |
Body marks | 64 kinds |
Pseudo color | 16 kinds |
Image processing | γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
Measurements | distance, area, circumference, heart rate, gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on |
Focus | Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus, the focus can be moved. Receive: receive real-time dynamic focus by focus |
Puncture | 3.5MHz convex array probe can display puncture guide line in B mode. |
TGC | 8 segments TGC and overall gain can be adjusted respectively. |
Output interface | SVGA video output offers connection to SVGA color display; workstation, etc. PAL video output offers connection to PAL display, video image recorder and image |
USB interface | Only for U disk storage image, image format is BMP. |
Frequency | convex array probe real-time scan: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; cavity probe/linear array probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion. |
Item | Model |
1 | Host machine +2 probe connectors |
2 | convex array probe |
3 | Battery Adaptor |
4 | Power Line |
