PRODUCT DETAILS
PPRODUCT DETAILS

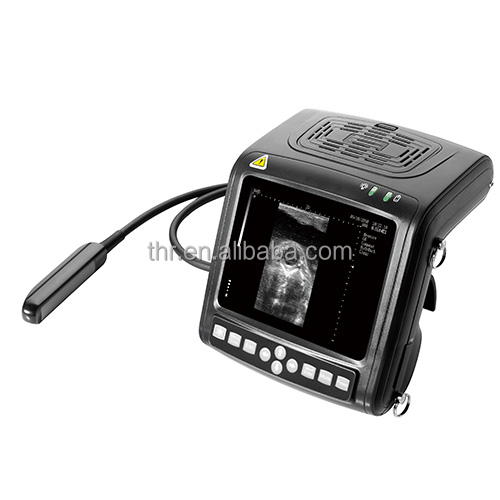

THR-V5200
0.00
0.00
Application of veterinary ultrasound in animal husbandry
1. Regular pregnancy monitoring and early identification of empty sows reduce feeding waste and improve production efficiency.
2. Measure the backfat thickness of pigs and calculate the eye muscle area to improve the scientificity and accuracy of breeding. 3. Pregnancy analysis of transgenic sheep and cloned sheep 4. B-type ultrasound guides the collection of bovine oocytes, which causes little damage to bovine vagina and ovary, and has no adverse effect on bovine health and reproductive function.Veterinary Ultrasound Function
-Detect pregnancy and litter size; -Detect the gestational age and expected date of delivery, distance, circumference, area, heart rate, and fetal weight of pigs, cattle, dogs, horses, cats, goats, camels, and sheep. -Detect pig backfat thickness and eye muscle area; -Detection of obstetric diseases (including endometritis, pyometra, ovarian cysts, etc.)

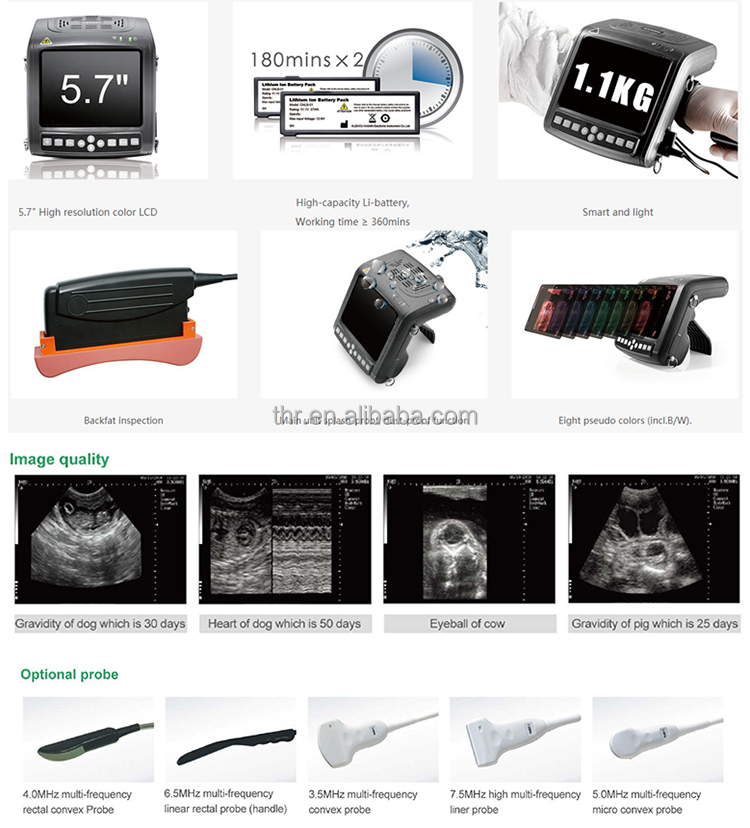

-Detect the gestational age and expected date of delivery, distance, circumference, area, heart rate, and fetal weight of pigs, cattle, dogs, horses, cats, goats, camels, and sheep. -Detect pig backfat thickness and eye muscle area; -Detection of obstetric diseases (including endometritis, pyometra, ovarian cysts, etc.)-5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
-Menu operation，Language: Chinese/English.
-100 frames permanent storage, 256 frames cine loop.
-Eight pseudo colors (incl.B/W).
-High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple。
-Optional mouse to operate easier.
-Freeze or unfreeze image by shutter release.
-Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
-Freeze or unfreeze image by shutter release.
-Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
More Classic Practical Function
1. Scanning mode: B. 2B. 4B . B/M. M
2. Full field image with 8 levels depth adjustment
3. Dynamic range: 27-90dB, visual adjustment
Local Zooming Function
1. Image storage: 100 frames permanent storage, without loss of the image when powered off. Cine loop: 256 frames
2. High-speed USB-A port: Supporting Large-capacity USB flash disk and mouse
3. High-speed USB-B port: for image transfer to PC (Optional Case Report Processing Software)
Professional Measuring Software for Veterinary
1. Common measurement: distance, circumference, area, volume, etc.
2. OB measurement: Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, gestational weeks and expected date.
3. Cardio measurement: depth, slope, heart rate, cycle.
1. Scanning mode: B. 2B. 4B . B/M. M
2. Full field image with 8 levels depth adjustment
3. Dynamic range: 27-90dB, visual adjustment
Local Zooming Function
1. Image storage: 100 frames permanent storage, without loss of the image when powered off. Cine loop: 256 frames
2. High-speed USB-A port: Supporting Large-capacity USB flash disk and mouse
3. High-speed USB-B port: for image transfer to PC (Optional Case Report Processing Software)
Professional Measuring Software for Veterinary
1. Common measurement: distance, circumference, area, volume, etc.
2. OB measurement: Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, gestational weeks and expected date.
3. Cardio measurement: depth, slope, heart rate, cycle.
Specification
Standard Configuration | Optional Configuration |
Main Unit :1pc | 4.0MHz multi-frequency rectal convex Probe |
6.5MHZ Rectal Vet Probe (Multi Frequency, without Handle): 1 pcs | 6.5MHz multi-frequency linear rectal probe (handle) |
Internal Litium Battery: 2 pcs | 3.5MHz multi-frequency convex probe |
Charger: 1pc | 7.5MHz high multi-frequency liner probe |
Belt: 1pc | 5.0MHz multi-frequency micro convex probe |
Bracket: 1pc | Car charger |
Leather Case: 1pc | Goggle |
Handle Freeze Switch |
