PRODUCT DETAILS
PPRODUCT DETAILS
THR-K10
0.00
0.00
Application:
Designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.
Application of veterinary ultrasound in animal husbandry
1. Regular pregnancy monitoring and early identification of empty sows reduce feeding waste and improve production efficiency.
2. Measure the backfat thickness of pigs and calculate the eye muscle area to improve the scientificity and accuracy of breeding.
3. Pregnancy analysis of transgenic sheep and cloned sheep
4. B-type ultrasound guides the collection of bovine oocytes, which causes little damage to bovine vagina and ovary, and has no adverse effect on bovine health and reproductive function.
Features:
1. With high quality image resolution & powerful veterinary software package.
2. B mode ultrasound and backfat measuring function two-in-one, which can meet veterinarians’ most daily demands.
3. A mode ultrasound gets accurate backfat and lean rate measurement.
4. TV/VGA/Freeze, three-in-one, easy to operate.
5. 10 kinds grid for quick measurement, make the diagnosis more efficient.
6. 6 kinds of operation backgrounds for different visual habits.
7. 5.8GHz RFID connection with external wireless monitor for display under real time, facilitate information sharing and remote consultation.
8. Wifi connection with Android system Phone/Pad and PC ultrasound working station to get image & data transfer & management easily.
9. OB record：detailed record the diagnosis results.
10. Diagnosis List: record diagnosis quantity, easy for batch management.
2. B mode ultrasound and backfat measuring function two-in-one, which can meet veterinarians’ most daily demands.
3. A mode ultrasound gets accurate backfat and lean rate measurement.
4. TV/VGA/Freeze, three-in-one, easy to operate.
5. 10 kinds grid for quick measurement, make the diagnosis more efficient.
6. 6 kinds of operation backgrounds for different visual habits.
7. 5.8GHz RFID connection with external wireless monitor for display under real time, facilitate information sharing and remote consultation.
8. Wifi connection with Android system Phone/Pad and PC ultrasound working station to get image & data transfer & management easily.
9. OB record：detailed record the diagnosis results.
10. Diagnosis List: record diagnosis quantity, easy for batch management.
·Wifi connection
Wifi connection with Phone/Pad,Android system and PC ultrasound working station to get image & data transfer & management easily.
Wifi connection with Phone/Pad,Android system and PC ultrasound working station to get image & data transfer & management easily.
Can Connect with external wireless monitor
5.8GHz RFID connection with external wireless monitor for display under real time, facilitate information sharing and remove consultation.
5.8GHz RFID connection with external wireless monitor for display under real time, facilitate information sharing and remove consultation.

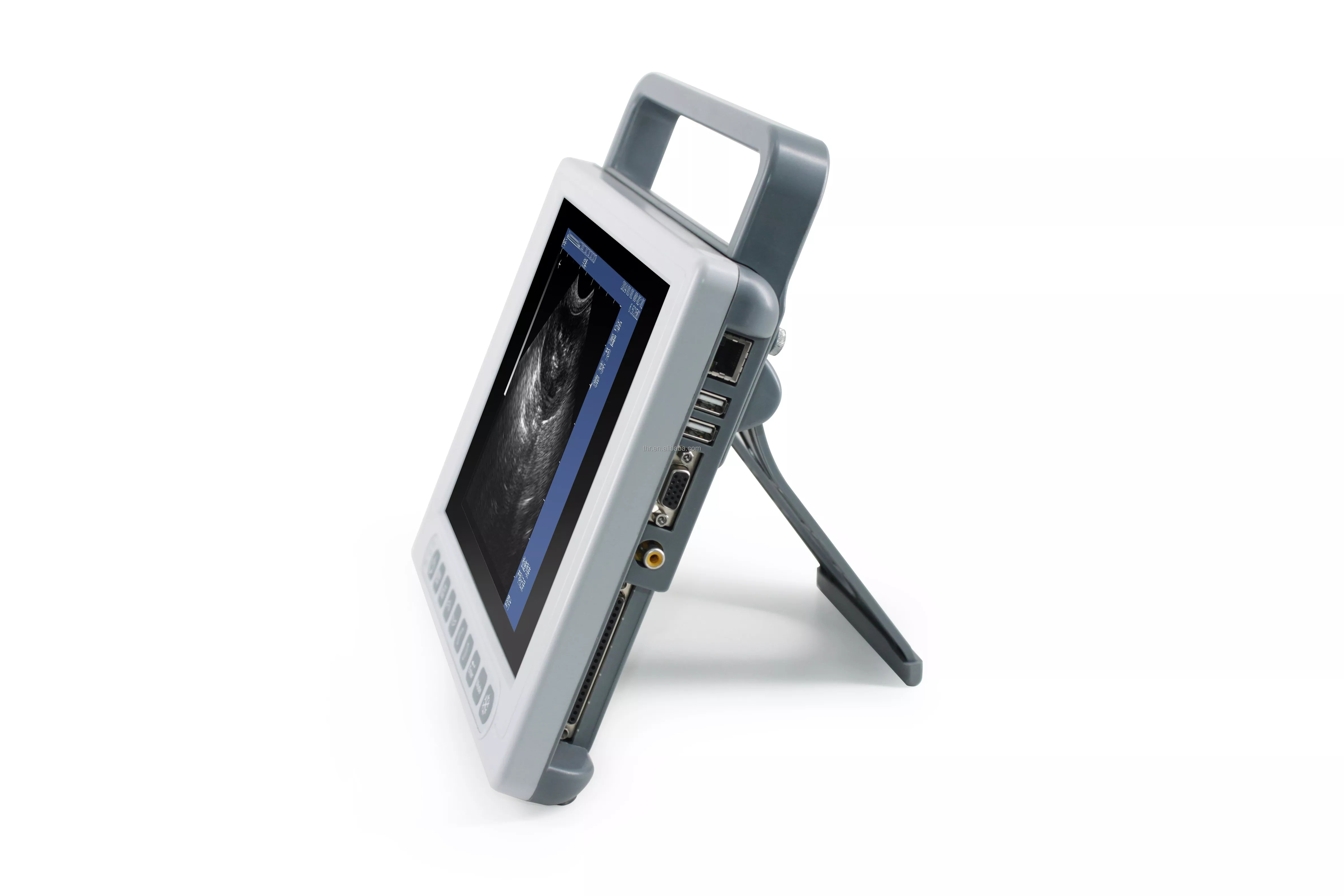

Light & Portable
Weight of main unit is light with large capacity built-in Li battery.
Weight of main unit is light with large capacity built-in Li battery.

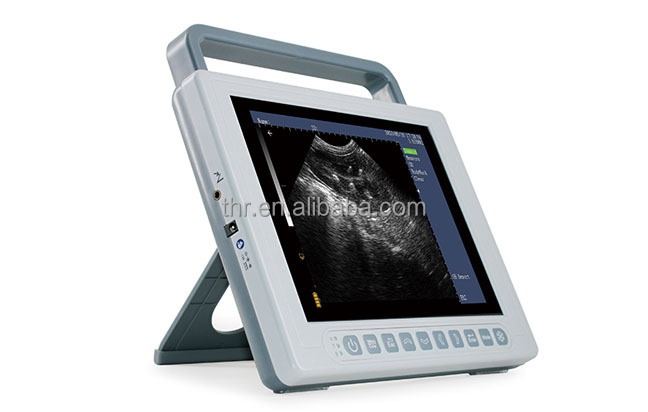

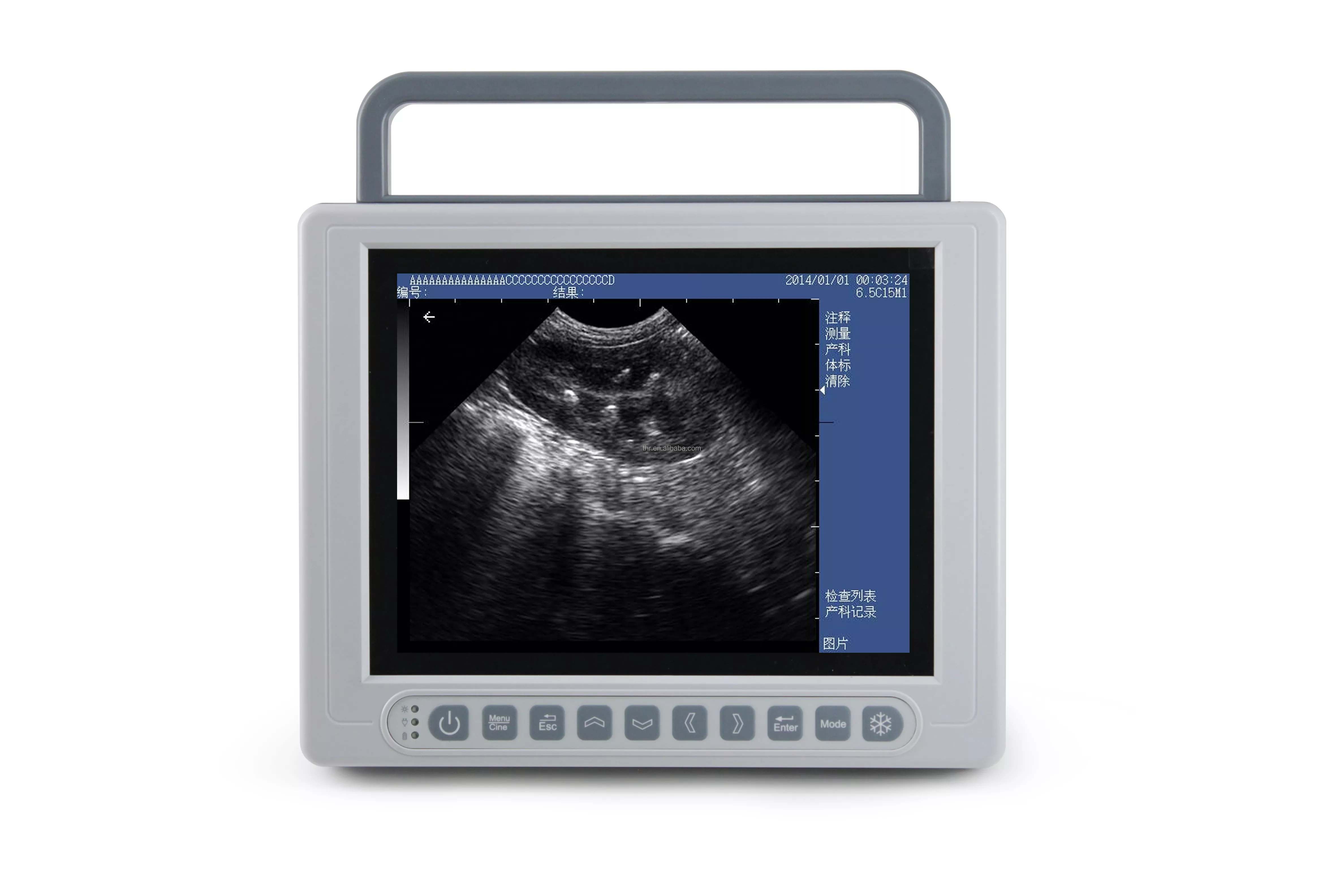

10.4' LCD Display
With high quality image resolution.
With high quality image resolution.
Standard Configuration
1.Main unit: 1 pc
2.6.5MHz linear rectal probe : 1 pc
3.Power adapter: 1 pc
4.Internal lithium battery: 1pc
5.Soft rubber coat: 1pc
6.Sunshine cover : 1 unit (A,B,C three sections adjustable)
7.Black plastic suitcase : 1 pc
8.Base Charger, belt, probe socket spatula: 1 pc for each
1.Main unit: 1 pc
2.6.5MHz linear rectal probe : 1 pc
3.Power adapter: 1 pc
4.Internal lithium battery: 1pc
5.Soft rubber coat: 1pc
6.Sunshine cover : 1 unit (A,B,C three sections adjustable)
7.Black plastic suitcase : 1 pc
8.Base Charger, belt, probe socket spatula: 1 pc for each
Optional configuration
1.4.0Mhz multi-frequency convex rectal Probe
2.6.5MHz multi-frequency micro-convex probe
3.3.5MHz multi-frequency convex probe
4.7.5MHz multi-frequency linear probe 7.5MHz multi-frequency linear probe
5.3.5MHz Backfat probe
6.Thermal printer (P93W-S)
7.Lithium Battery (5200mAH)
8.Leather Case saddlebag
2.6.5MHz multi-frequency micro-convex probe
3.3.5MHz multi-frequency convex probe
4.7.5MHz multi-frequency linear probe 7.5MHz multi-frequency linear probe
5.3.5MHz Backfat probe
6.Thermal printer (P93W-S)
7.Lithium Battery (5200mAH)
8.Leather Case saddlebag
Specification
Product name: | veterinary ultrasound machine |
Scanning mode: | electronic convex & linear |
Measurement: | distance, area, OB, backfat, lean rate, etc |
Battery driving time: | about 4 hours |
Dimension: | 269*40*266 mm |
N.W: | 2 kg |
Scanning mode | electronic convex & linear |
Mode | B、B/B、B/M、M、A |
Main frequency | 3.5/6.5/7.5MHz |
Measurement | distance, area, OB, backfat, lean rate, etc |
Battery driving time | about 4 hours |
Wifi type | 802.11g/20MHz/2.4G |
APP support | Android、Windows |
Vector | PAD/Phone/PC |
