PRODUCT DETAILS
PPRODUCT DETAILS
THR-AC200B
0.00
0.00

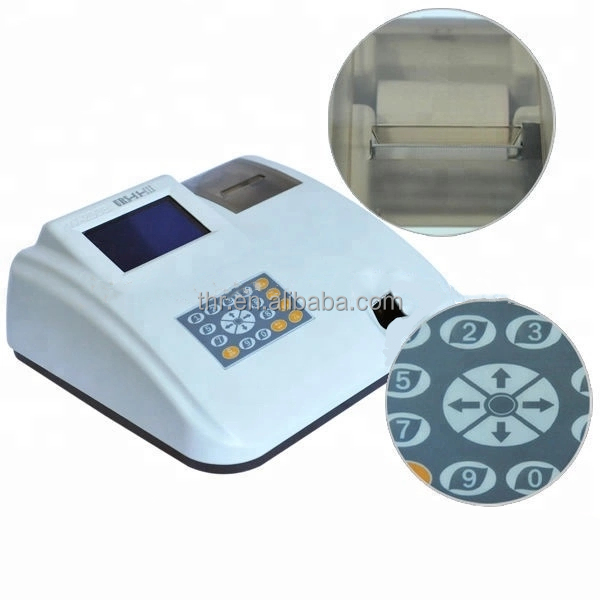

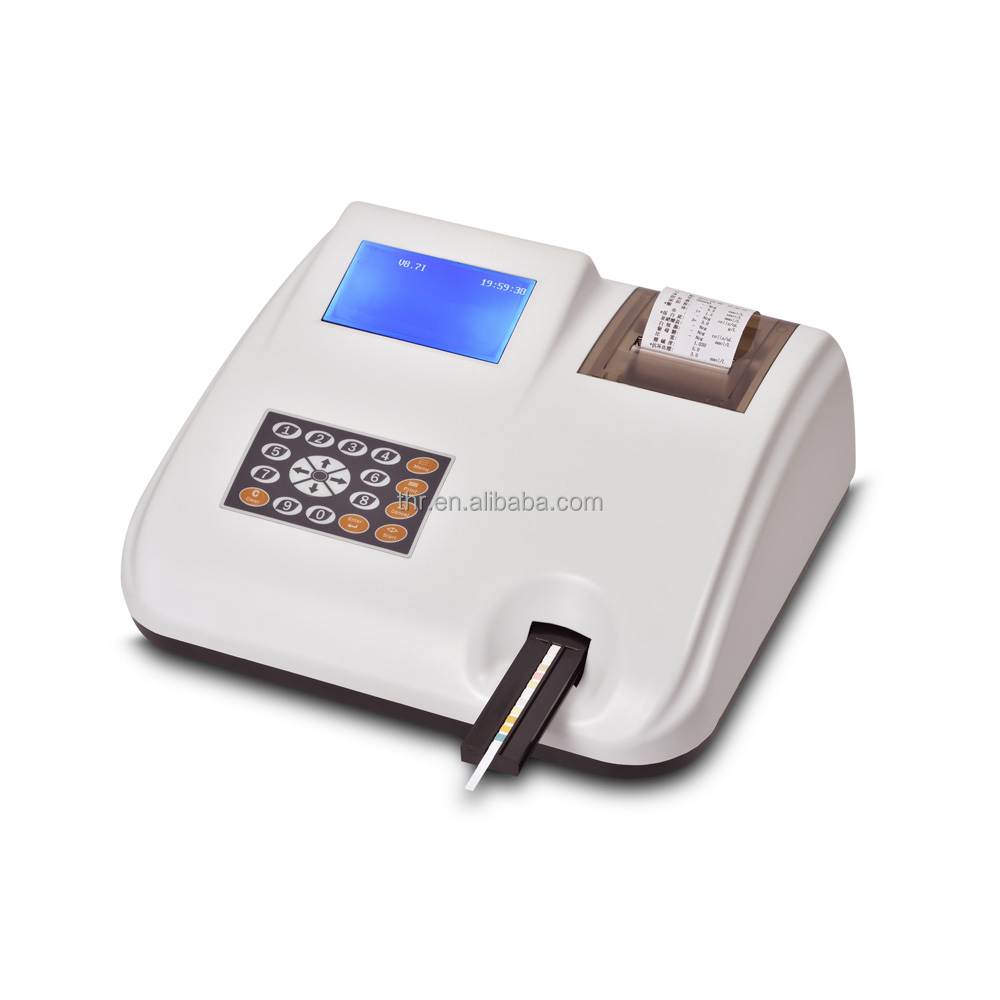

THR-AC200B Semi-Automatic Urine Analyzer Clinical Analyzer Analysis Instrument
Testing Items: Leucocyte (LEU) Nitrite(NIT) Urobilinogen(URO) Protein (PRO) pH Blood (BLD) Specific Gravit (SG) Ascorbate( VC)
Ketone(KET) Bilirubin (BIL) Glucose (GLU) Micro Albumin(MALB)
Light Wavelength : 420nm, 525nm, 560nm, 610nm, 660nm, 950nm
Testing Speed: 60 times/h for single testing, 120 times/h for continuous testing.
Environment Condition 0~40ºC
Power Supply AC 220V(±15%),50~60Hz
Fuse wire specification: 250V 2A
Power:about 60W
Net: 4Kg
Vol. 355mm×300mm×145mm
6. Absorb the excess urine automatically, prevent from cross-inflection of urine
7. Thermal Printer Inside, with outer stylus Printer interface
8. PC connected with RS232
How to use:
Remove a test strip, taking care not to touch the reaction fields.Immediately close the container again.
This protects the remaining test strips from humidity and guaranteesstrip integrity up to the expiry date indicated.
Users simply insert the strip into the measurement slot and press start.

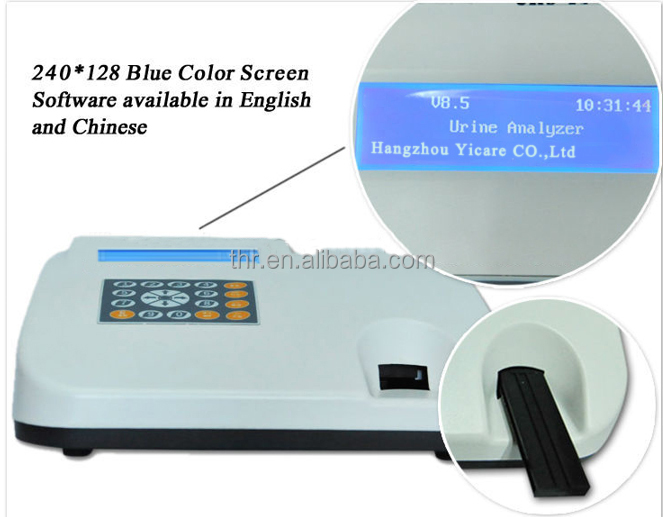

Results are displayed instantly on the LCD screen.
The operation panelallows selection of various desired results.
Ketone(KET) Bilirubin (BIL) Glucose (GLU) Micro Albumin(MALB)
Light Wavelength : 420nm, 525nm, 560nm, 610nm, 660nm, 950nm
Testing Speed: 60 times/h for single testing, 120 times/h for continuous testing.
Environment Condition 0~40ºC
Power Supply AC 220V(±15%),50~60Hz
Fuse wire specification: 250V 2A
Power:about 60W
Net: 4Kg
Vol. 355mm×300mm×145mm
6. Absorb the excess urine automatically, prevent from cross-inflection of urine
7. Thermal Printer Inside, with outer stylus Printer interface
8. PC connected with RS232
How to use:
Remove a test strip, taking care not to touch the reaction fields.Immediately close the container again.
This protects the remaining test strips from humidity and guaranteesstrip integrity up to the expiry date indicated.
Users simply insert the strip into the measurement slot and press start.
Results are displayed instantly on the LCD screen.
The operation panelallows selection of various desired results.

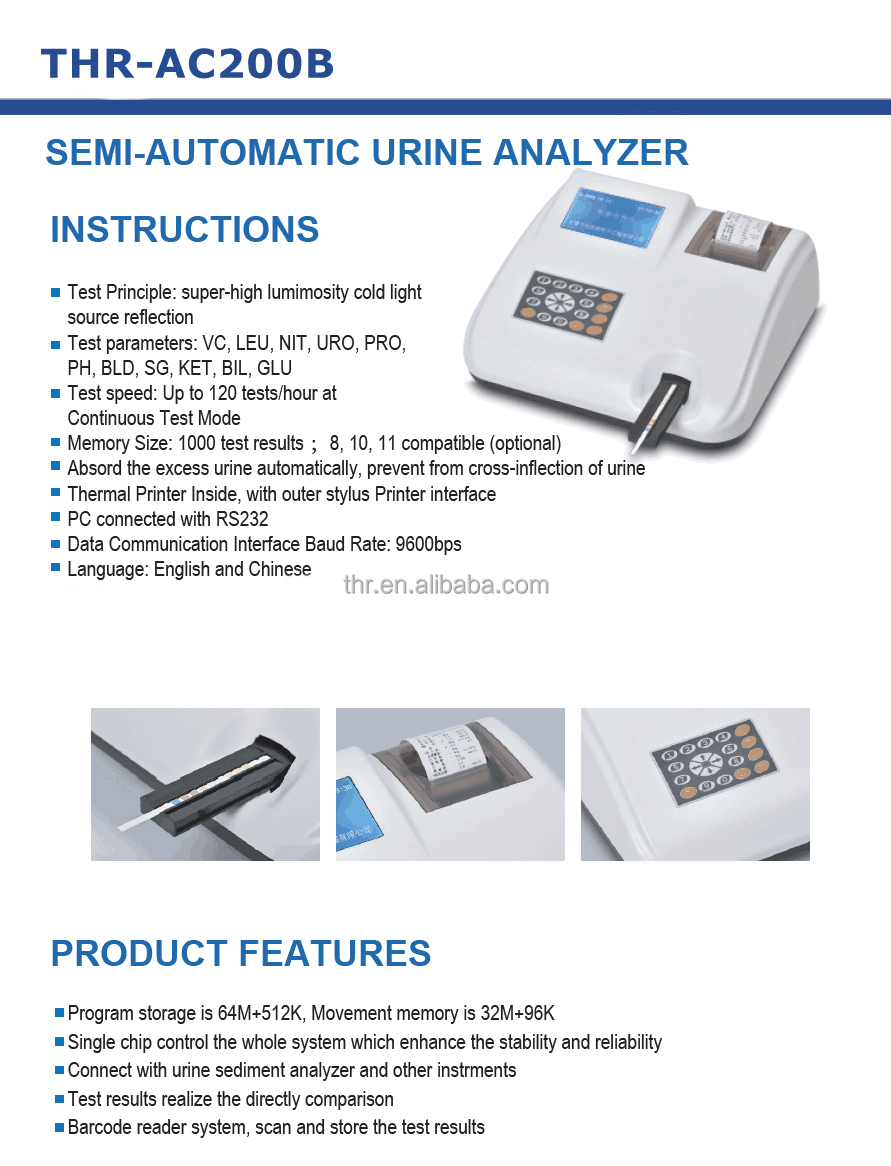

Specification:
Test Principle | super-high luminosity cold light source reflection |
Test parameters | VC, LEU, NIT, URO, PRO, PH, BLD, SG, KET, BIL, GLU |
Memory Size | 1000 test results, 8, 10, 11 compatible (optional) |
Environment Condition | 0-40 Room Temperture RH< 85% |
Data Communication Interface Baud Rate | 9600bps |
