THR-AC600
0.00
0.00
THR-AC600 Urine fertility test urine test analyzer machine urine 11 parameter test
1. medical rapid auto urine test machine Touch Screen
2. medical rapid auto urine test machine Large Color Screen, 7" Screen
3. medical rapid auto urine test machine High Test Speed, 522 tests/h
4. medical rapid auto urine test machine Test 12 Parameters
Features:
Specifications:
Test principle: Photoelectric colorimetric
Visible wavelength: all the visible wavelengths
Display screen:6.1-inch real color LCD screen
Touch screen input, more humanized man-machine exchange interface
Test items: Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose,
Microalbumin.
Reaction principle: High luminosity cold light source reflection determination
Test items: Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose,
Micro Albumin.
Wavelength: 400nm,520nm,560nm ,610nm,660nm,940 nm
Test speed: 300-600, 522 specimens /hour (affected by human factors and software version)
Data Memory: 1000 patient results
Language: Chinese, English
Environment requirements: Temperature 10ºC-30ºC, optimal temperature 18 ºC-25ºC
Relative humidity: ≤80%
Communication interface: RS-232serial port, parallel printing interface
Power supply: 220 VAC(±15%), 50/60Hz
Fuse: 250V 2A
Power: ≤60w
Net weight: 7.5 kg
Dimensions: 350mm×320mm×150mm
Data communication interface baud rate:
1200bps,2400bps,4800bps,9600bps,19200bps,38400bps,57600bps,115200bps(options)
Printer internal thermal printer, outer needle printer port
Standard RS232C output port: Connect with computer.
1. medical rapid auto urine test machine Touch Screen
2. medical rapid auto urine test machine Large Color Screen, 7" Screen
3. medical rapid auto urine test machine High Test Speed, 522 tests/h
4. medical rapid auto urine test machine Test 12 Parameters
Features:
1. Real color display, program storage is 8M+512K, movement memory is 32M+96K.
2. Single chip control the whole system which enhance the stability and reliability.
3. Color identify: no gray or dyeing recognition. Avoid the interference of dark color urine.
4. Printer inside: small and big format printing.
5. Touch screen input, more humanized operating.
6. Barcode reading system, scan and store the testing results.
7. OEM the display screen, put cutomer's own logo and information on screen.
2. Single chip control the whole system which enhance the stability and reliability.
3. Color identify: no gray or dyeing recognition. Avoid the interference of dark color urine.
4. Printer inside: small and big format printing.
5. Touch screen input, more humanized operating.
6. Barcode reading system, scan and store the testing results.
7. OEM the display screen, put cutomer's own logo and information on screen.
Specifications:
Test principle: Photoelectric colorimetric
Visible wavelength: all the visible wavelengths
Display screen:6.1-inch real color LCD screen
Touch screen input, more humanized man-machine exchange interface
Test items: Leukocytes, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose,
Microalbumin.
Reaction principle: High luminosity cold light source reflection determination
Test items: Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose,
Micro Albumin.
Wavelength: 400nm,520nm,560nm ,610nm,660nm,940 nm
Test speed: 300-600, 522 specimens /hour (affected by human factors and software version)
Data Memory: 1000 patient results
Language: Chinese, English
Environment requirements: Temperature 10ºC-30ºC, optimal temperature 18 ºC-25ºC
Relative humidity: ≤80%
Communication interface: RS-232serial port, parallel printing interface
Power supply: 220 VAC(±15%), 50/60Hz
Fuse: 250V 2A
Power: ≤60w
Net weight: 7.5 kg
Dimensions: 350mm×320mm×150mm
Data communication interface baud rate:
1200bps,2400bps,4800bps,9600bps,19200bps,38400bps,57600bps,115200bps(options)
Printer internal thermal printer, outer needle printer port
Standard RS232C output port: Connect with computer.

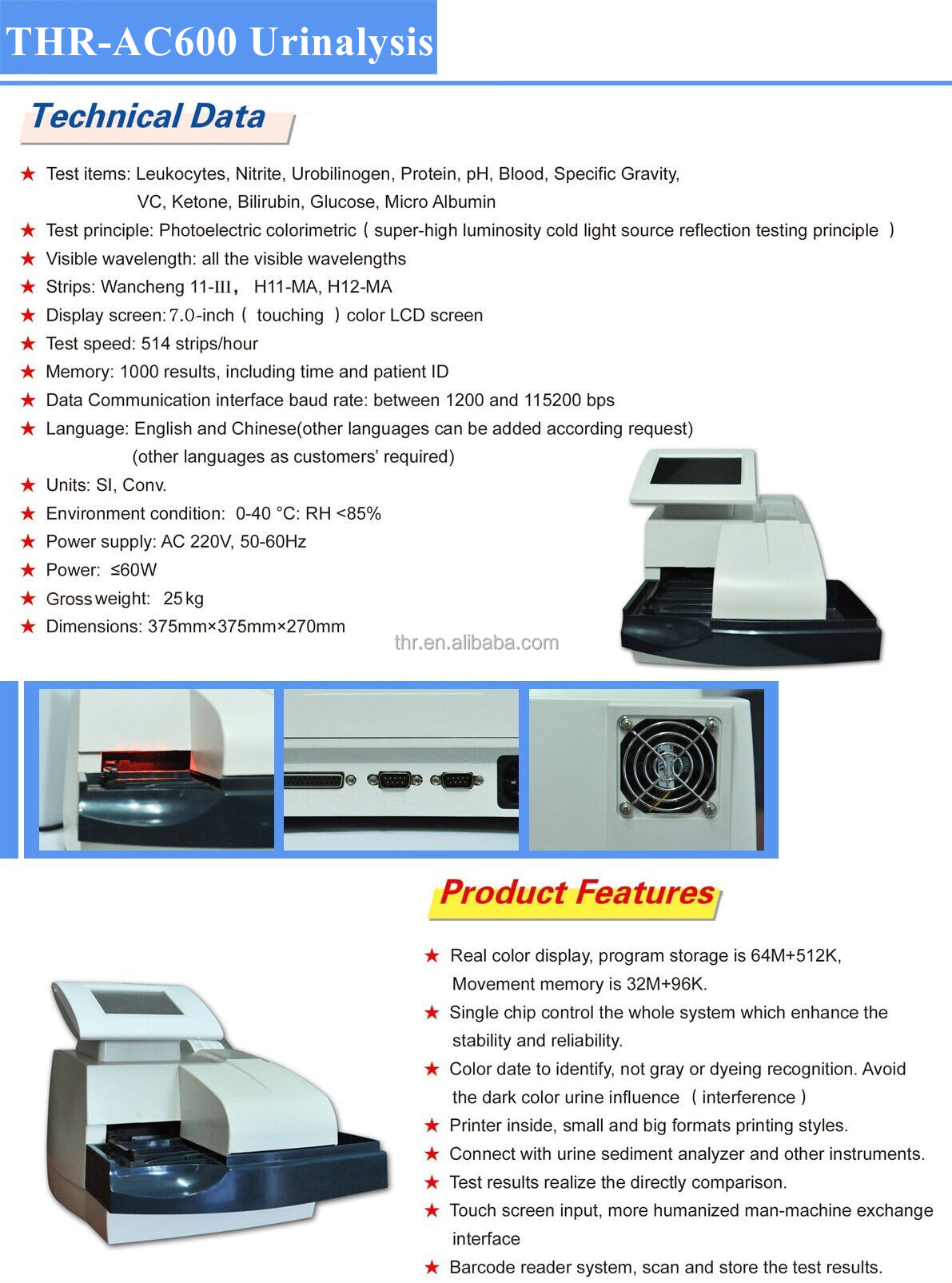

Visible wavelength: | all the visible wavelengths |
Testing principle: | photoelectric colorimetric ( super-high luminosity cold light source reflection testing principle) |
Display screen: | 7 inch (touching) color LCD screen |
Testing speed: | 514 strips/ hour |
Memory: | 1000 results, including time and patient ID |
Data communication interface baud rate: | between 1200 and 115200 bps |
Units: | SI, Conv |
Environment condition: | 0-40 °C; RH<85% |
Power supply: | AC 220V, 50-60Hz |
Power: | ≤60W |
Net Weight: | 7.8 kg |
Dimensions: | 375mm*375mm*270mm |
