THR-AC120 Semi Automatic Reflectance Photometry Urinalysis Diagnostic Urine Analyzer
Features:
1.Support bar code scanning
2.Core detector, more accurate detection
Monochrome cold light source detector ensures the accuracy of data measurement and the service life of the machine
3.ABS + PC shell material, durable and safe
ABS + PC shell material, improve the strength of the shell and use of security, quality assurance
4.Large capacity storage 2000 samples are availble
5.support date transmission

Specifications:
Analyzer Type
Semi-Automatic
Model
THR-AC120
Methodology
Reflectance Photometry
Throughput
Last 2,000 results;
Memory
1 Minute
Strip Incubation Time
470nm,525nm,625nm
Wavelength
1-14 Parameters(125mm×5mm); see URS Parameters


Strips Available

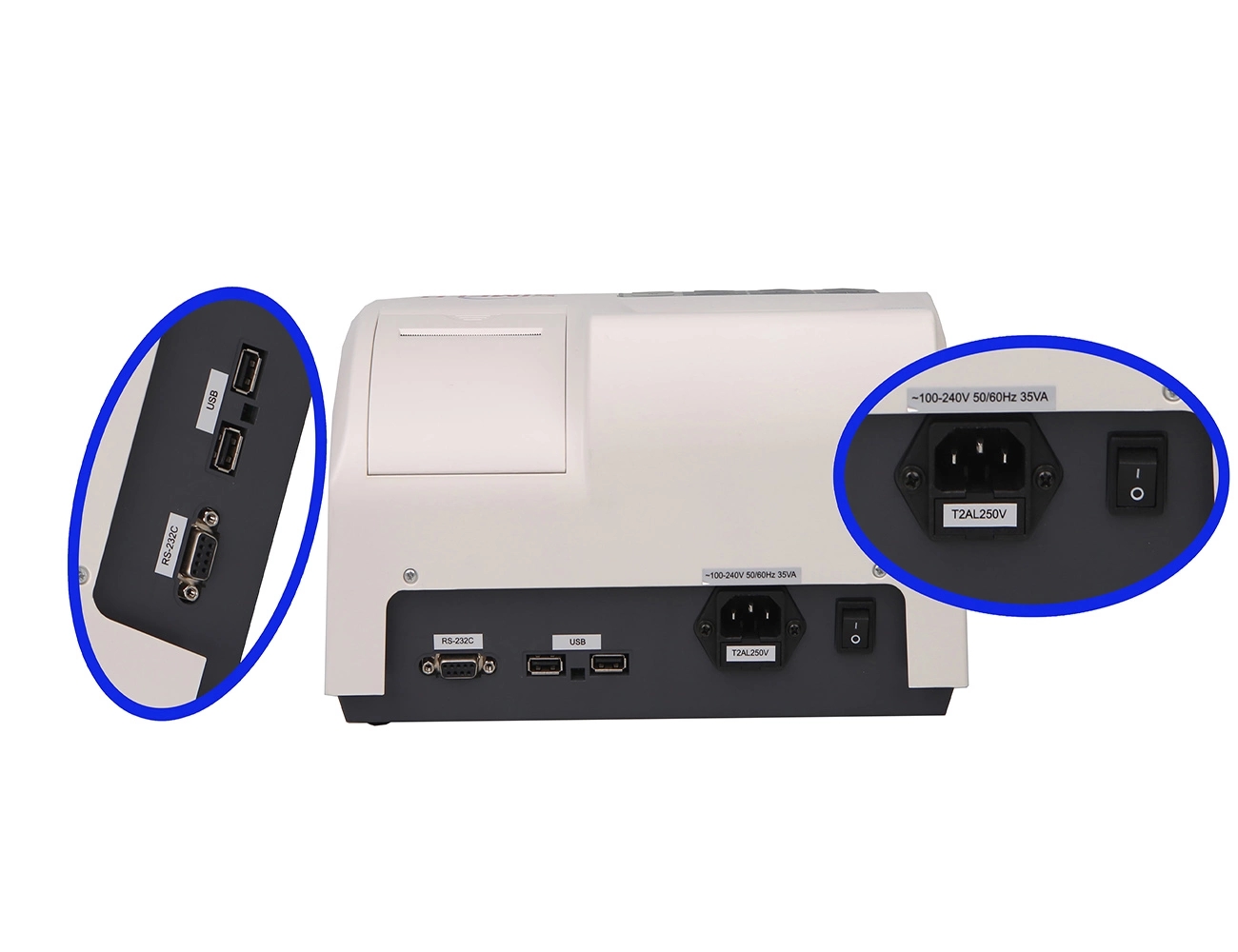

RS232 Port for Barcode Reader, Data Transfer, and Software Update
USB Port for Data Transfer
25 Pin Parallel Port for External Printer
Analyzer Ports
Data for single entry, all the data in database, data from specific date


Connection Capabilities
Internal Thermal Printer (included)
Optional External Printer (not included)RS232 Barcode Reader (optional)
USB or RS232 Data Transfer Cable (optional)
Screen Type
LCD capacitive color touch screen
10mm×3.5mm
LIS Interface
Formatted and compatible with HL -7 compliant, and other interfaces
Calibration
Automatic
Available Languages on the Screen
More than 8 languages available, including English
Operating Conditions
0-40ºC(32-104ºF); ≤80% RH
Storage Conditions
0-40ºC(32-104ºF); ≤80% RH
Power Source
220VAC 50Hz
Dimensions (L×W×H)
120: 260×230×130mm (10.2" ×9.1''×5.1'')
Weight
3.5kg (13.2 lbs.) without batteries or power supply
Power cable
1.5m
