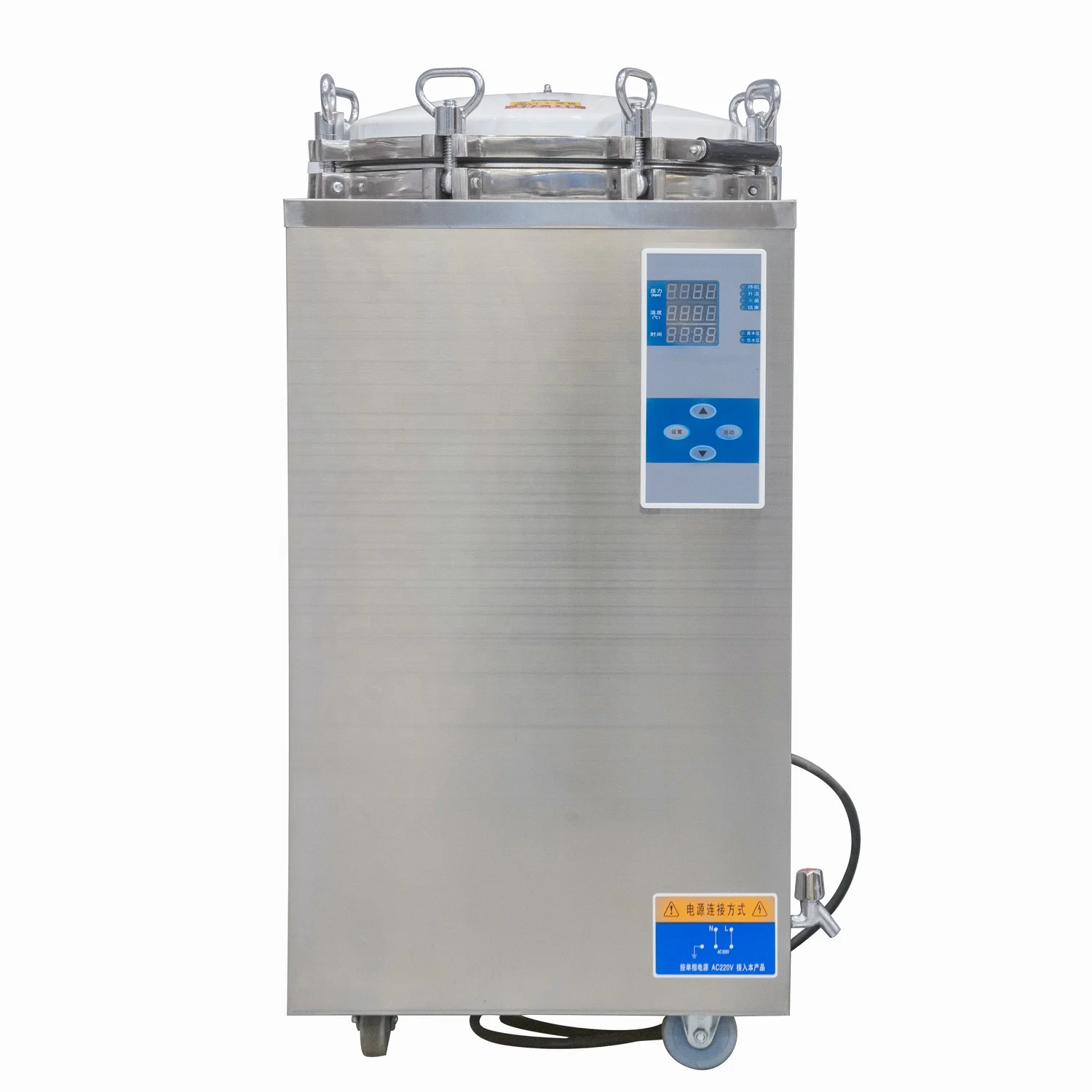

High Quality 35L 50L 75L 100L 120L 150L Vertical Medical Pressure Steam Autoclave sterilization
35/50/75/100L/120L/150L
Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Fully stainless steel structure.

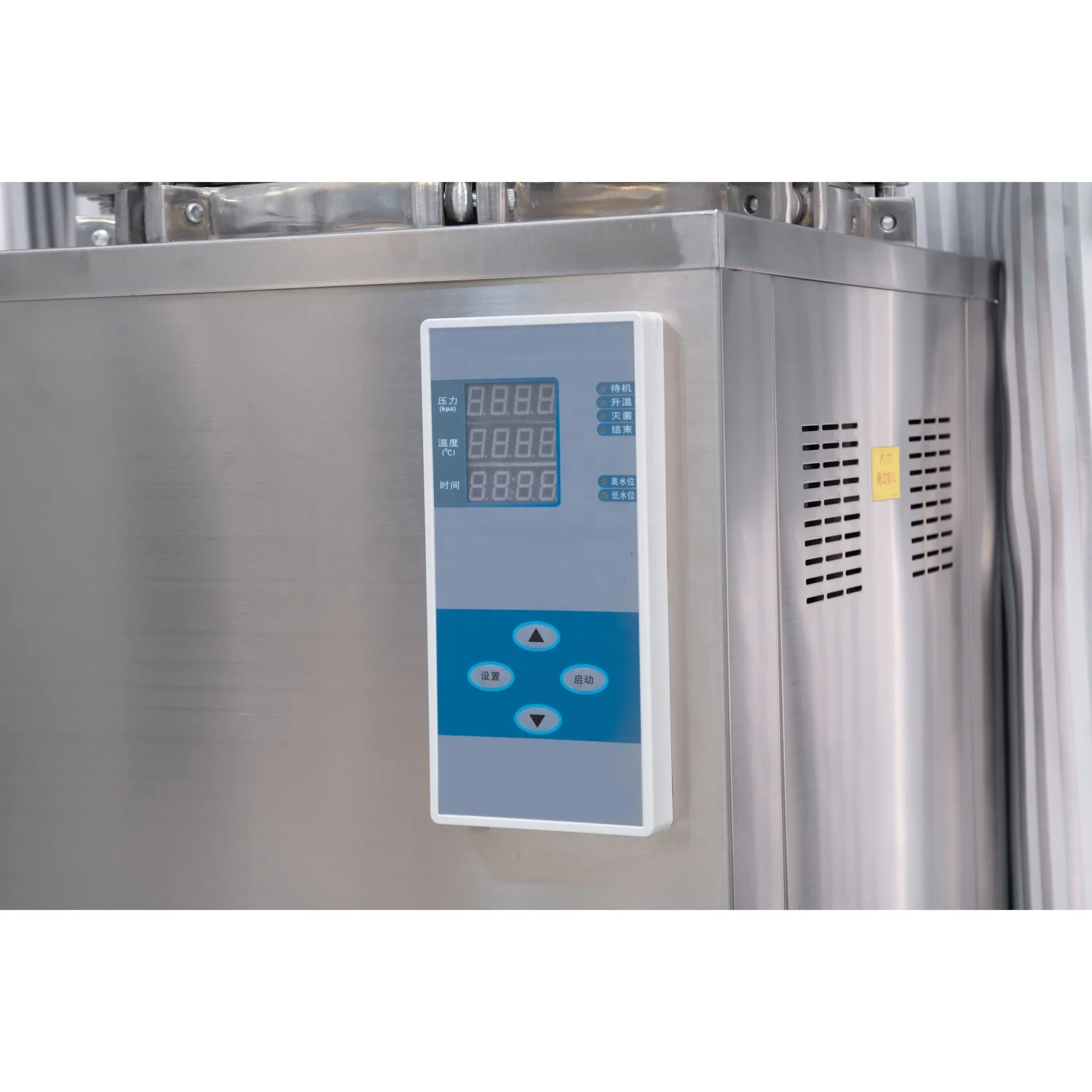

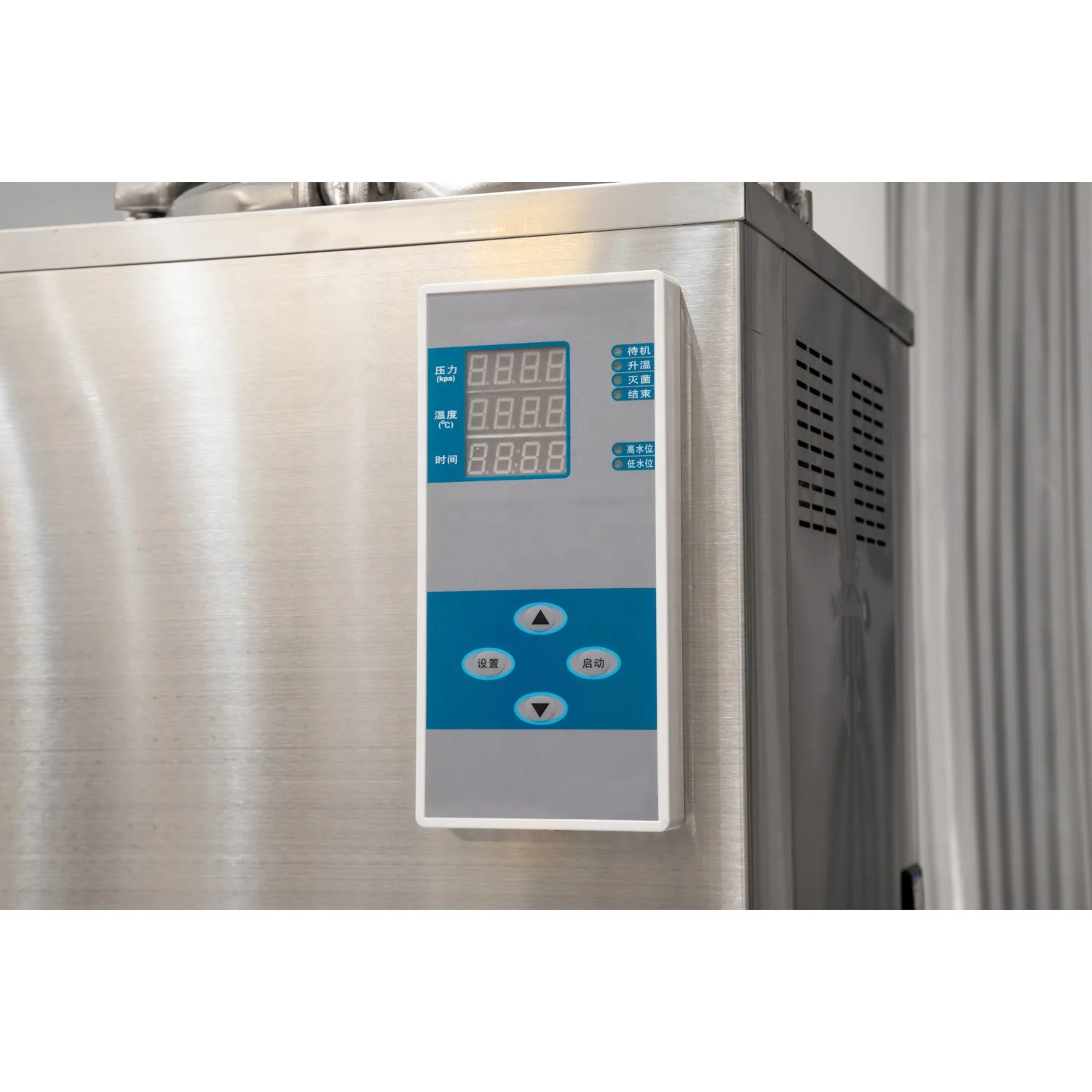

• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Fully stainless steel structure.
• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.
MODEL | THR-B35L | THR-B50L | THR-B75L | THR-B100L | THR-B120L | THR-B150L | |
Technical Data | |||||||
Chamber volume | 35L φ318×450mm | 50L φ340×550mm | 75L φ400×600mm | 100L φ440×650mm | 120L φ480×660mm | 150L φ510×740mm | |
Working pressure | 0.22Mpa | ||||||
Working temperature | 134℃ | ||||||
Max.working pressure | 0.23Mpa | ||||||
Heat average | ≤±1℃ | ||||||
Timer range | 0-99min/0-99hour59min | ||||||
Temperature adjust range | 105-134℃ | ||||||
THR-B35L | THR-B50L | THR-B75L | THR-B100L | THR-120L | THR-B150L | |
Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 7KW/AC220V 50HZ |
Overall dimension(mm） | 480×460×850 | 520×520×980 | 560×560×980 | 590×590×1080 | 600×640×1140 | 670×690×1130 |
Transport dimension（mm） | 570×550×970 | 590×590×1110 | 650×630×1150 | 680×650×1220 | 730×730×1270 | 760×760×1270 |
G.W/N.W | 56Kg/42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg | 125Kg/100Kg | 135Kg/110Kg |
