THR-XR-217
0.00
0.00

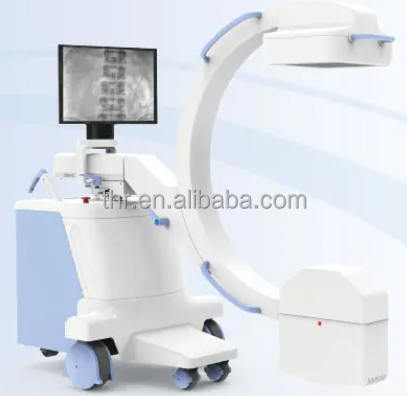

THR-XR-217 High Frequency Digital Mobile medical c arm surgical x-ray machine
The equipment consists of a C-shaped frame, a tube for generating x-rays, an image intensifier and a CCD camera for collecting images, and a workstation for image processing. Mainly used for imaging, photography and other work in various operations.
Clinical application:
1. Examination of the vascular system of the head and neck: It can provide a basis for diagnosis of craniocerebral space-occupying lesions, arteriovenous malformations, cerebral vascular occlusion, carotid artery stenosis, occlusion, atherosclerosis and ulcers.
2. Examination of the thoracic vascular system: DSA is quite satisfactory for the display
of the heart and great vessels, and is used for the diagnosis of congenital heart disease, valvular disease, cardiomyopathy, and coronary heart disease.
of the heart and great vessels, and is used for the diagnosis of congenital heart disease, valvular disease, cardiomyopathy, and coronary heart disease.
3. Examination of abdominal vascular system: for angiography of stomach, intestine, liver, spleen, pelvis, etc.
4. Examination of the vascular system of the extremities: it can diagnose the stenosis, occlusion, hemorrhage, aneurysm, and arterial malformation of the blood vessels of the extremities.
5. Application in interventional radiotherapy: It is the most ideal interventional radiotherapy technology, and is widely used in percutaneous transluminal angioplasty, transcatheter drug infusion therapy, transcatheter embolization therapy and other interventional radiotherapy.
Features:
1、With a compact appearance,light design, easy to operate
2、Unique base electric auxiliary support arm design, it's more security for using.
3、A unique hand-held controller design, convenient to operate working mode.
4、With a high-quality knockdown X-ray generator to reduce radiation.
5、With the Perspective KV，MA automatically track fluoroscopy to make the image brightness and clearness optimum
6、imported FPD 9*9inch acquisition,ensure sharp image .
1、With a compact appearance,light design, easy to operate
2、Unique base electric auxiliary support arm design, it's more security for using.
3、A unique hand-held controller design, convenient to operate working mode.
4、With a high-quality knockdown X-ray generator to reduce radiation.
5、With the Perspective KV，MA automatically track fluoroscopy to make the image brightness and clearness optimum
6、imported FPD 9*9inch acquisition,ensure sharp image .
Three units 19" 1M medical use LCD Monitor can ensure image details show .
7、Workstation:
Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image Open silhouette, edge enhancement, recursive noise reduction Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service , Dicom3.0 interface to connect with PACS, OR HIS SYSTEM, and dry film printer
8.Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
9.Human graphic interface on workstation for select different body parts ;like children, or adult, lateral or formal standing to do exposure.
10.3 sets synchronous monitors to help doctor have a great observing experience.
11.Error Code alarming for overloading of current, kv, or power and any problems.
12.Equipped with emergency stop button tosuddenly failureor wrong operation.
7、Workstation:
Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image Open silhouette, edge enhancement, recursive noise reduction Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service , Dicom3.0 interface to connect with PACS, OR HIS SYSTEM, and dry film printer
8.Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
9.Human graphic interface on workstation for select different body parts ;like children, or adult, lateral or formal standing to do exposure.
10.3 sets synchronous monitors to help doctor have a great observing experience.
11.Error Code alarming for overloading of current, kv, or power and any problems.
12.Equipped with emergency stop button tosuddenly failureor wrong operation.
The state-of-art dynamic flat panel detector
* Larger view
* Higher resolution
* Lower noise
* Higher resolution
* Lower noise
* bigger than normal C-arm image intensifier .

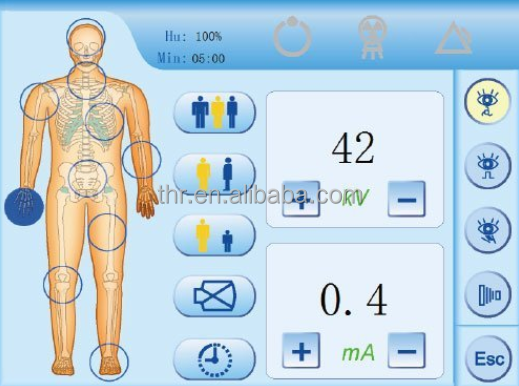

Friendly user interface
Human graphic LCD touch-screen with accurate APR parameters setting realizes convenient operation.
Lower dose Sharper image.
* Digital pulse mode to ensure lower dose and sharper image.
* Intelligent variable-frequency pulse technology ensures high quality X-ray at efficient dose.
* Intelligent variable-frequency pulse technology ensures high quality X-ray at efficient dose.

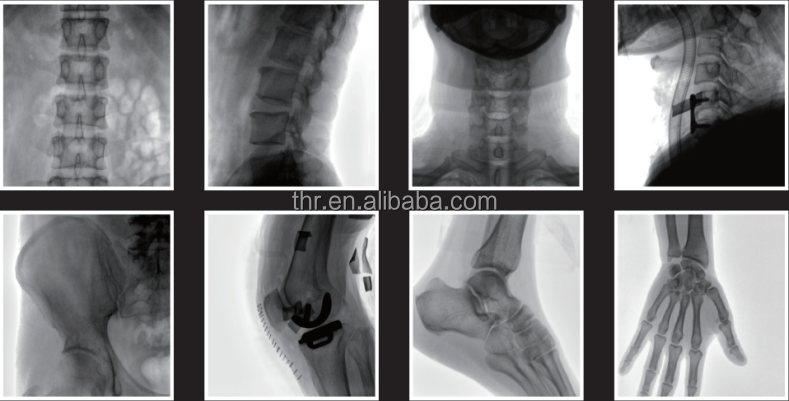

*show bone and meat clearly
Faster positioning Higher efficiency Free rotation without dead space
*Unique design of electric auxiliary support arm make the movement of machine more stable.
* lighter and smaller size than normal C-arm , more suitable for operate room .
Specification
Category | Items | Content |
Generator | Power supply High frequency inverter | Power output: 5.0kW Main inverter frequency: 110 kHz |
Automatic fluoroscopy | tube voltage 40 kv~120kv,adjust automatically tube current : 0.3mA~~4mA adjust automatically | |
Manual fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 0.3mA~~4mA continuous | |
Pulse fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 0.3mA~~30mA continuous | |
Photography tube voltage, mA | 40KV~120KV, 25mA~100mA, 1.0mAs~280mAs | |
X-ray tube | X-ray tube special for high frequency | Dual focus:0.3/1.5mm thermal capacity: 650kJ (867kHu) |
Imaging system | Detector | Imported 9*9 inch Dynamic flat panel detector |
Monitor | 19”medical LCD monochrome display *3 sets | |
Workstation software | Image W/L adjust, grayscale conversion, interest area balance, turn, noise reduction, enhancement, smoothing, sharpening, compression, zoom, measure, mark, print layout, Dicom image sending, Dicom image print and movie playback, etc. | |
Structure and performance | Direction wheel and main wheel | Direction wheel can rotate in any direction, and main wheel can rotate in ±90°. |
C-arm movement | The up and down(motorized): 400mm. Forward and backward movement: 200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, Distance from focus to screen: 1000 mm; C-arm open distance: 800mm C-arm arc depth: 660mm; Slipping on orbit : 135° |
C-arm new design mainframe | 1 |
Combined high-frequency high-voltage X-ray generator monoblock (5.0kW, 110 kHz,40-120kV) | 1 |
Thales Imported 9*9 inch Dynamic flat panel detector | 1 |
Medical using ultra-low illumination digital radiography | 1 |
Digital acquisition workstation software | 1 |
Imported dense grain grid | 1 |
Electrical adjustable beam (collimator) | 1 |
19 inch IM medical LCD monochrome monitor | 1 |
Unique hand-held controller | 1 |
Footbrake exposure | 1 |
