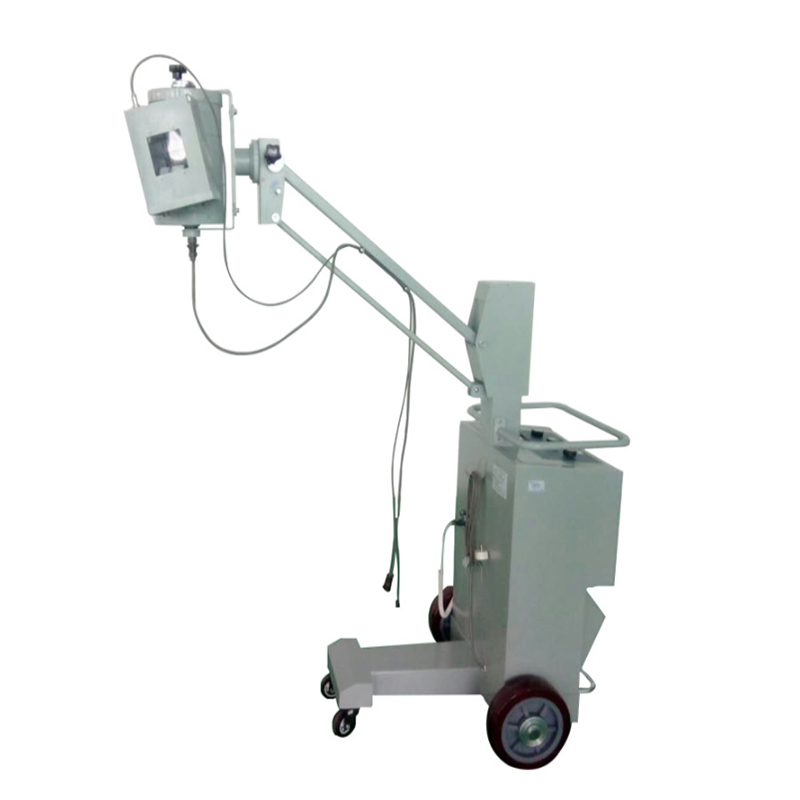

Mobile x ray digital machine equipment, veterinary x ray equipment

Features:
(1)For the clinic ward photography
(2)Flexible mobility performance
(3)Wireless remote exposure, greatly reduce the radiation dose of doctors

Main technical parameters:

1.Power supply conditions:
   Power voltage: 220V ac +22V;
   Power frequency: 50hzt0.5hz;
   Power capacity :24kVA;
   Maximum internal resistance allowed by power supply :1

2 photography conditions:
  Tube voltage: 40-90kv, 11 grades, 5kV each grade;
  Tube flow: 30, 50mA, 2;
  Time :0.05s-6s, 20 files in total.

3 mechanical properties:
  When the X-ray generator window is down, the distance between the focus and the ground is 450mm~1770mm
  The rotation Angle of X-ray generator around the horizontal axis is ±1800.
  The Angle of X-ray generator around the vertical axis is 190.
4 overall dimension of the machine: 1290 (length) ×630 (width) ×1935 (height) (mm)
