THR-XR-228 Professional Manufacturer Hospital Digital
Mobile C-arm X-ray Machine
Also known as C-arm, C-arm X-ray machine, as the name implies, the device consists of a C-shaped frame, a tube for generating x-rays, an image intensifier and a CCD camera for collecting images, and a workstation for image processing . Mainly used for imaging, photography and other work in various operations. In addition, it is also different from other x-ray equipment such as: U-arm, G-arm and so on.
THR-XR-228 is a HIGH FREQUENCY MOBILE DIGITAL C-ARM SYSTEMClinical application:
1. Examination of the vascular system of the head and neck: It can provide a basis for diagnosis of craniocerebral space-occupying lesions, arteriovenous malformations, cerebral vascular occlusion, carotid artery stenosis, occlusion, atherosclerosis and ulcers.
2. Examination of the thoracic vascular system: DSA is quite satisfactory for the display of the heart and great vessels, and is used for the diagnosis of congenital heart disease, valvular disease, cardiomyopathy, and coronary heart disease.
3. Examination of abdominal vascular system: for angiography of stomach, intestine, liver, spleen, pelvis, etc.4. Examination of the vascular system of the extremities: it can diagnose the stenosis, occlusion, hemorrhage, aneurysm, and arterial malformation of the blood vessels of the extremities.5. Application in interventional radiotherapy: It is the most ideal interventional radiotherapy technology, and is widely used in percutaneous transluminal angioplasty, transcatheter drug infusion therapy, transcatheter embolization therapy and other interventional radiotherapy.
Features:
1. High quality combined high-frequency and high-voltage X-ray generator, greatly reducing the X-ray exposure;
2. It has the function of automatic tracking of perspective kV and Ma, which makes the image brightness and clarity in the best state automatically;
3. The real-time and continuous pulse perspective mode has small ray dose, but the image is clearer, which can meet the needs of gh-precision and difficult minimally invasive surgery, and can effectively protect medical care Safety of personnel and patients;
4. The host operation interface of the human graphical LCD touch screen is adopted to make the operation more intelligent and convenient;
5. The design of the hand-held controller makes the operation of the instrument more convenient;
6. The 9-inch three field image intensifier is used, with stable and reliable quality and good image definition;
7. The ultra-low illumination digital camera is used, with clearer image;
6. Standard workstation and advanced image software processing technology make the image clearer, convenient for doctors'operation and diagnosis, standard DICOM interface and easy to link with hospital information system;
7. Electric auxiliary support arm design, safer use;
8. New frame design, small and beautiful appearance;
9. Realize the function of digital photographing, make the photographing operation more convenient and the image digital processing more efficient.
1. High quality combined high-frequency and high-voltage X-ray generator, greatly reducing the X-ray exposure;
2. It has the function of automatic tracking of perspective kV and Ma, which makes the image brightness and clarity in the best state automatically;
3. The real-time and continuous pulse perspective mode has small ray dose, but the image is clearer, which can meet the needs of gh-precision and difficult minimally invasive surgery, and can effectively protect medical care Safety of personnel and patients;
4. The host operation interface of the human graphical LCD touch screen is adopted to make the operation more intelligent and convenient;
5. The design of the hand-held controller makes the operation of the instrument more convenient;
6. The 9-inch three field image intensifier is used, with stable and reliable quality and good image definition;
7. The ultra-low illumination digital camera is used, with clearer image;
6. Standard workstation and advanced image software processing technology make the image clearer, convenient for doctors'operation and diagnosis, standard DICOM interface and easy to link with hospital information system;
7. Electric auxiliary support arm design, safer use;
8. New frame design, small and beautiful appearance;
9. Realize the function of digital photographing, make the photographing operation more convenient and the image digital processing more efficient.

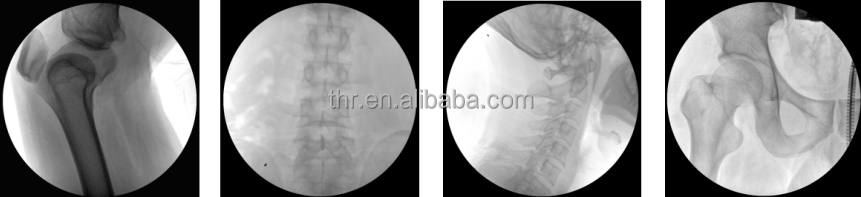

Clinical images
Specification
1、Monoblock
1.1 Focus:0.6/1.8
1.2 Anode capacity：35.5kJ（47kHu）
1.3 Tube Heat capacity：650kJ（867kHu）
1.4 Power output：5kW
1.5 Inverter Frequency：≥40kHz
1.6Continous Fluoroscopy (Manual/ automatic)
1.6.1 Tube voltage：40kV～120kV
1.6.2 Tube current：0.3mA～4mA
1.6.3 Automatic brightness tracking function
1.7Pulse fluoroscopy
1.7.1 Tube voltage：40kV～120kV
1.7.2 Tube current：0.3mA～30mA
1.7.3 Pulse frequency: intelligent control reduces the radiation dose, improves the quality of single frame image and improves the continuous working time
1.8 Radiography mode
1.8.1 Radiography：40kV～120kV
1.8.2 Radiography tube current：25mA～100mA
1.8.3 Radiography mAs：1.0mAs～180mAs
1.9 Beam limiter: Electric iris + linear symmetrical rotatable
1.10 Working environment conditions
1.10.1 Environment temperature ：10°C—40°C
1.10.2 Relative humidity：30%—75%
1.10.3 Atmospheric pressure：700hpa—1060hpa
1.11 Operating power condition
1.11.1 Power supply voltage and phase number: single-phase 220V ± 22V
1.11.2 Power frequency：50Hz±1Hz
1.11.3 Internal resistance of power supply: no more than 1 Ω
2、 Imaging system
2.1 image intensifier: 9 ″ three field e5764sd-p3, center resolution 4.8lp/mm
2.2 camera: ultra-low illumination, one million pixel black and white progressive scanning
2.3 LCD: 24 inch ordinary LCD, resolution 1920x1200, working frequency: 60Hz
2.4 image acquisition and processing workstation
2.4.1 Registration: Registration preservation, medical record query, worklist
2.4.2 Acquisition: start acquisition, prepare recording, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image, edge
1.1 Focus:0.6/1.8
1.2 Anode capacity：35.5kJ（47kHu）
1.3 Tube Heat capacity：650kJ（867kHu）
1.4 Power output：5kW
1.5 Inverter Frequency：≥40kHz
1.6Continous Fluoroscopy (Manual/ automatic)
1.6.1 Tube voltage：40kV～120kV
1.6.2 Tube current：0.3mA～4mA
1.6.3 Automatic brightness tracking function
1.7Pulse fluoroscopy
1.7.1 Tube voltage：40kV～120kV
1.7.2 Tube current：0.3mA～30mA
1.7.3 Pulse frequency: intelligent control reduces the radiation dose, improves the quality of single frame image and improves the continuous working time
1.8 Radiography mode
1.8.1 Radiography：40kV～120kV
1.8.2 Radiography tube current：25mA～100mA
1.8.3 Radiography mAs：1.0mAs～180mAs
1.9 Beam limiter: Electric iris + linear symmetrical rotatable
1.10 Working environment conditions
1.10.1 Environment temperature ：10°C—40°C
1.10.2 Relative humidity：30%—75%
1.10.3 Atmospheric pressure：700hpa—1060hpa
1.11 Operating power condition
1.11.1 Power supply voltage and phase number: single-phase 220V ± 22V
1.11.2 Power frequency：50Hz±1Hz
1.11.3 Internal resistance of power supply: no more than 1 Ω
2、 Imaging system
2.1 image intensifier: 9 ″ three field e5764sd-p3, center resolution 4.8lp/mm
2.2 camera: ultra-low illumination, one million pixel black and white progressive scanning
2.3 LCD: 24 inch ordinary LCD, resolution 1920x1200, working frequency: 60Hz
2.4 image acquisition and processing workstation
2.4.1 Registration: Registration preservation, medical record query, worklist
2.4.2 Acquisition: start acquisition, prepare recording, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image, edge
Edge enhancement, recursive noise reduction
2.4.2 processing: four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
2.4.3 report: save, preview, expert template
2.4.4 DICOM function: DICOM browsing, network service
2.5 image definition index
2.5.1 gray level: ≥ 11
2.5.2 line pair resolution: ≥ 2.0lp/mm
2.4.2 processing: four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
2.4.3 report: save, preview, expert template
2.4.4 DICOM function: DICOM browsing, network service
2.5 image definition index
2.5.1 gray level: ≥ 11
2.5.2 line pair resolution: ≥ 2.0lp/mm
3. Mechanical part
3.1 forward and backward movement: 200mm
3.2 rotation around horizontal axis: ± 180 °
3.3 rotation around vertical axis: ± 15 °
3.4 focal screen distance: 1000mm
3.5 C-arm opening: 760mm
3.6 arc depth of C arm: 670mm
3.7 sliding along the track: 120 ° (+ 90 ° ～ - 30 °)
3.8 electric lifting of column: 400mm
3.9 guide wheel and main wheel: the guide wheel can rotate in any direction, and the main wheel can rotate ± 90 °
3.10 with electric auxiliary support arm
3.11 full balance: when the mechanical movement of the equipment is unlocked, the C-arm is balanced at any position and angle without sliding
3.1 forward and backward movement: 200mm
3.2 rotation around horizontal axis: ± 180 °
3.3 rotation around vertical axis: ± 15 °
3.4 focal screen distance: 1000mm
3.5 C-arm opening: 760mm
3.6 arc depth of C arm: 670mm
3.7 sliding along the track: 120 ° (+ 90 ° ～ - 30 °)
3.8 electric lifting of column: 400mm
3.9 guide wheel and main wheel: the guide wheel can rotate in any direction, and the main wheel can rotate ± 90 °
3.10 with electric auxiliary support arm
3.11 full balance: when the mechanical movement of the equipment is unlocked, the C-arm is balanced at any position and angle without sliding
Configuration:
1, | New (with electric auxiliary support arm) C-arm Frame |
2, | High-frequency high-voltage X-ray generator and high-frequency inverter power supply |
3, | 4 inch ordinary LCD, resolution 1920x1200 |
4, | 9 inch ordinary LCD, resolution 1280 * 1024 |
5, | 9 Inch three field image intensifier |
6. | Megapixel ultra-low illumination digital camera, Camera pixel matrix description: 1024x1024 |
7, | Digital acquisition and processing workstation |
8, | Dense grid 40L / cm grid ratio: 8:1 focal length: 90C |
9, | Electric adjustable beam collimator |
10. | handheld controller |
11. | Laser cross positioner |
12, | Digital work station |
