PRODUCT DETAILS
PPRODUCT DETAILS

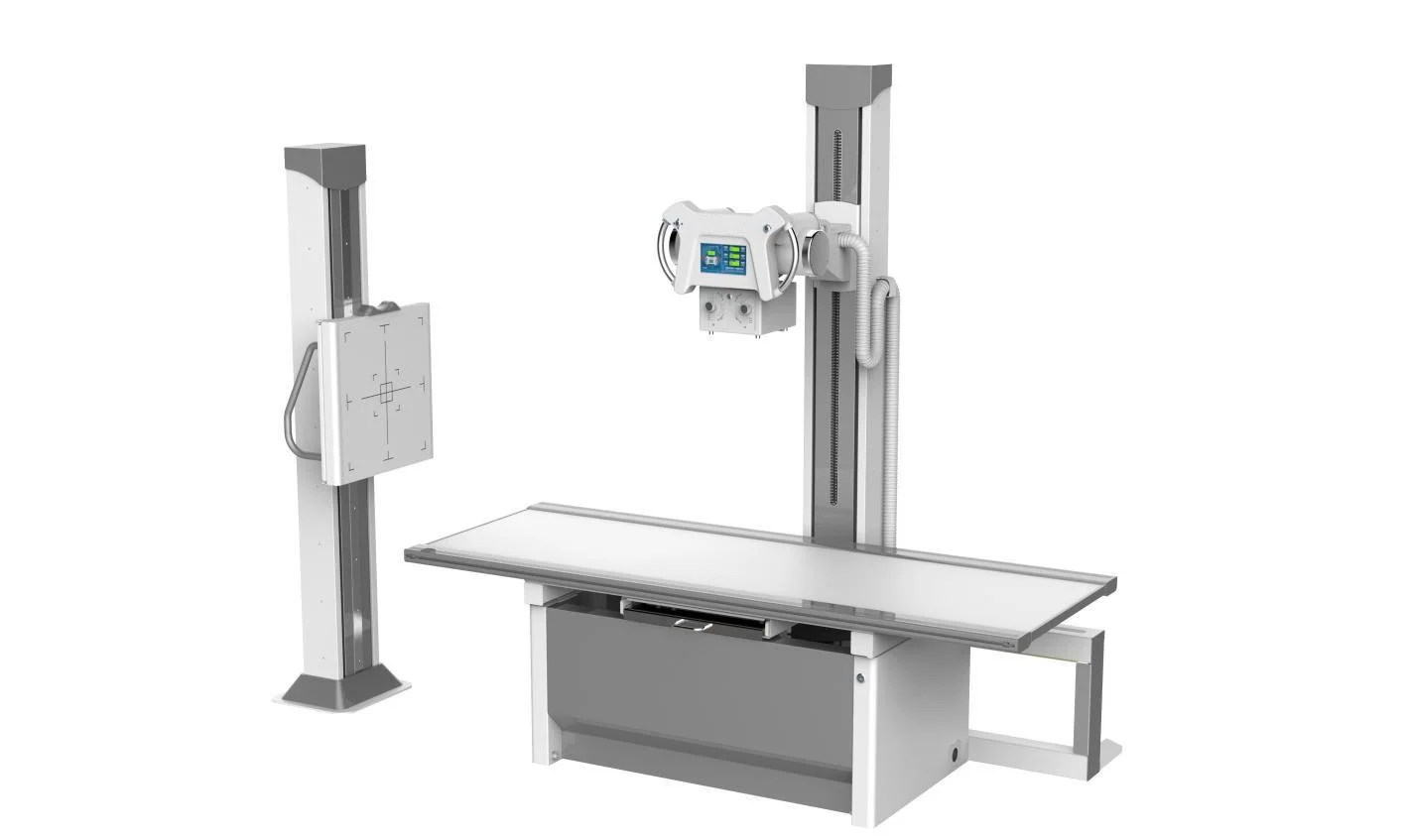

THR-XR-50KW
0.00
0.00

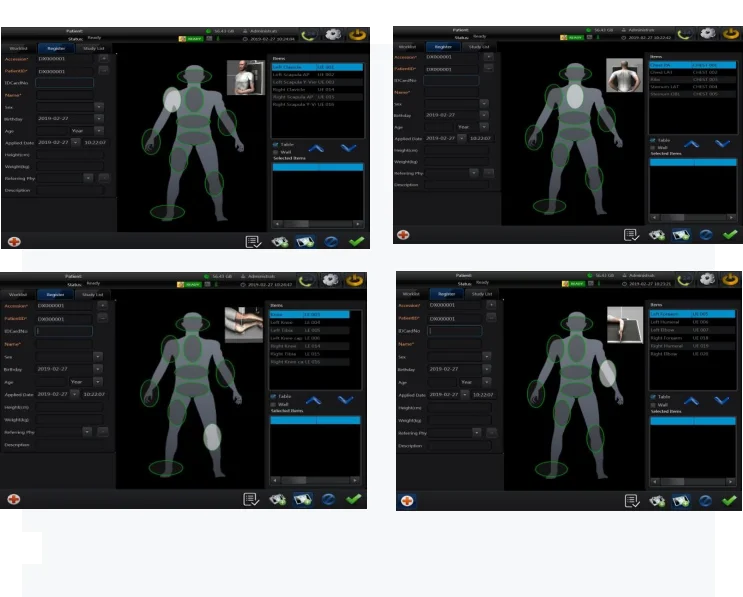

Profession Acquisition Software
Support Multi-languages
Support professional tools
Support different brand of X-ray generators
Support RIS/PACS/DICOM Printer connecttion

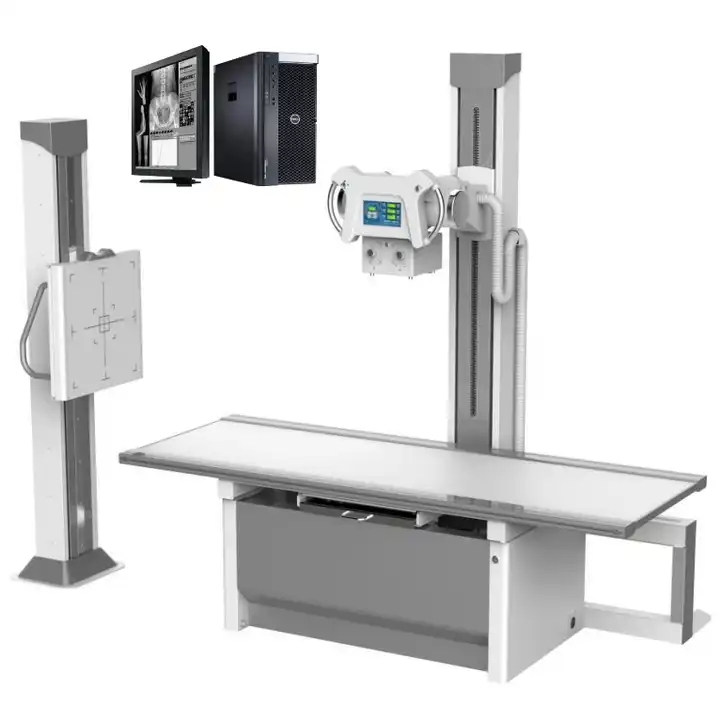

Professional DR workstation
Image capture
Print and storage
Image post-processing
Patient management
Product Paramenters
Technical Spe. | |
X-ray Generator (include console) | Output Power:50KW Power Voltage:380V±38V kV range:40~150kV mA range:10~630mA mAs range:0.1 ~630mAs Exposure time:0.002~6.3S |
X-ray Tube | Small focus:0.6 Large focus:1.2 Anode speed:3000r/min |
Collimator | Inherent filtration :1.0mm Al /75kV Light Source :LED |
Radiographic Table | Top Table Size :2100X800X650mm Bucky Size :18X18inch Cassette Movement Distance : ≥500mm Table longitudinal movement ≥900mm |
Vertical Chest Stand | Vertical moving range ≥1200mm Bucky Size :18X18inch |
Wire Flat Panel Detector | Size :17X17inch Scintillator :CSI Pixels :3072*3072 Resolution :3.6 AD Conversion :16 |
Computer& LCD | CPU ≥2.8GHz Memory ≥8GB Disk Capacity ≥1000GB Medical LCD :23inch |
