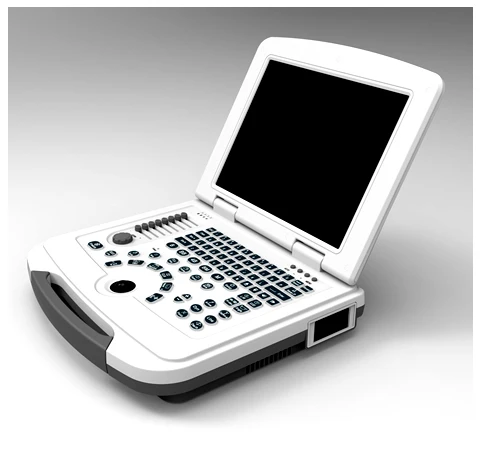

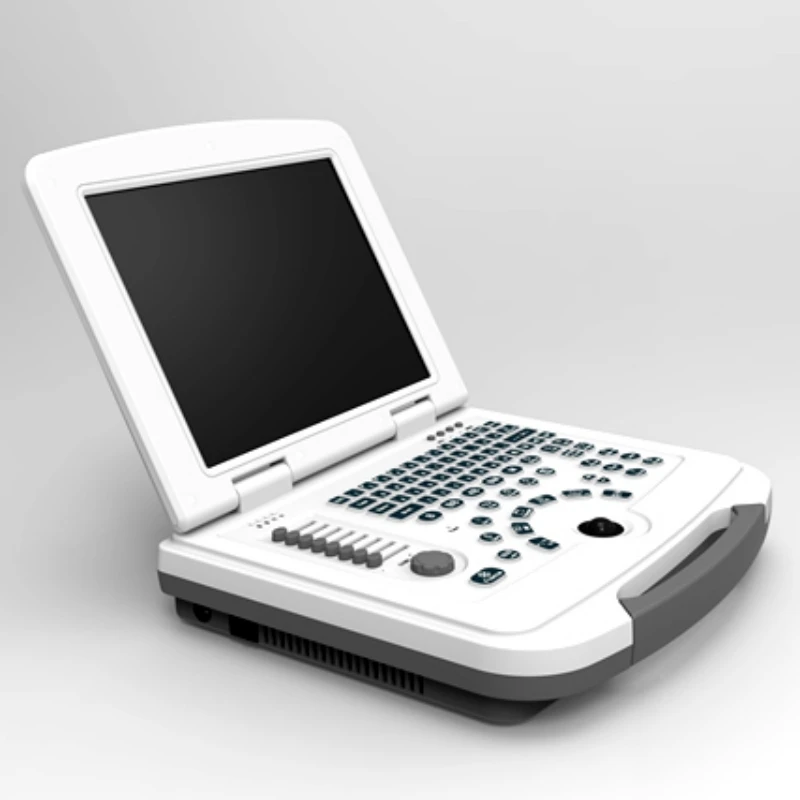

THR-US500
0.00
0.00
Multi-rate display, Diagnosis of lesions is more accurate.
*12.1 inch LCD display
*Depth range：126-307mm
*Thin and light notebook design
*Built-in rechargeable battery (4-8H)
*Multiple languages can be selected*Intelligent 8-segment TGC adjustment
*Display mode: B, B + B, 4B, B + M, M
*Applications:OB,GYN,Urology,Vascular,MSK and so on.
*Tissue Harmonic Imaging(THI)
*Stable operation system
Basic Parameters:
* Probe Depth: 16 levels
* Probe Frequency: 5 levels
* Main gain: 0-100%
* 8 TGC: adjustable
* Focus: 4
* Image storage: 4920 images
* Pseudo color: 0-7
* Scanning area(angle): 3 levels
* Edge enhancement: 0-3
* Linear correlation: 0-5
* Gamma correction: 0-7
* Frame correlation: 0-3
* Dynamic range: 0-135
* Cine loop: 512 frames
* Body mark: 97 kinds
* U Disk support: FAT32 format
* Image reversal: up/down, left/right, black/white
* Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement
* OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
* OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
* Probe Depth: 16 levels
* Probe Frequency: 5 levels
* Main gain: 0-100%
* 8 TGC: adjustable
* Focus: 4
* Image storage: 4920 images
* Pseudo color: 0-7
* Scanning area(angle): 3 levels
* Edge enhancement: 0-3
* Linear correlation: 0-5
* Gamma correction: 0-7
* Frame correlation: 0-3
* Dynamic range: 0-135
* Cine loop: 512 frames
* Body mark: 97 kinds
* U Disk support: FAT32 format
* Image reversal: up/down, left/right, black/white
* Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement
* OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI
* OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve
1.Intelligent 8-segment TGC adjustment
2.External USB storage, image upload more convenient
3.Large-capacity movie playback
4.Small size and easy to operate
Product packaging
Standard | Optional | Package |
*Aluminum plastic multi-layer package *Rechargeable battery *USB port | *convex probe *Trans-vaginal probe *Linear probe *Rectal Probe *Micro convex probe *probe extention socket | *47*22*40cm *9.5kg |
