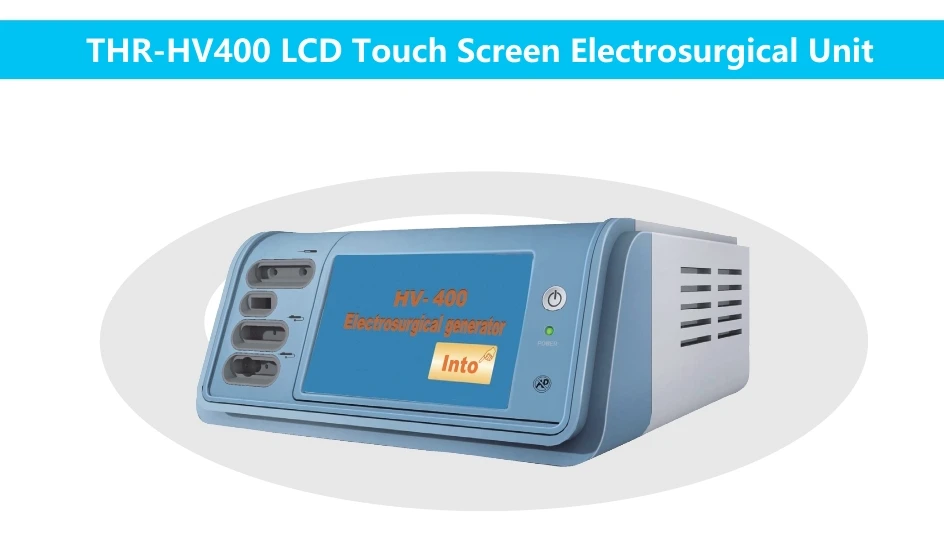

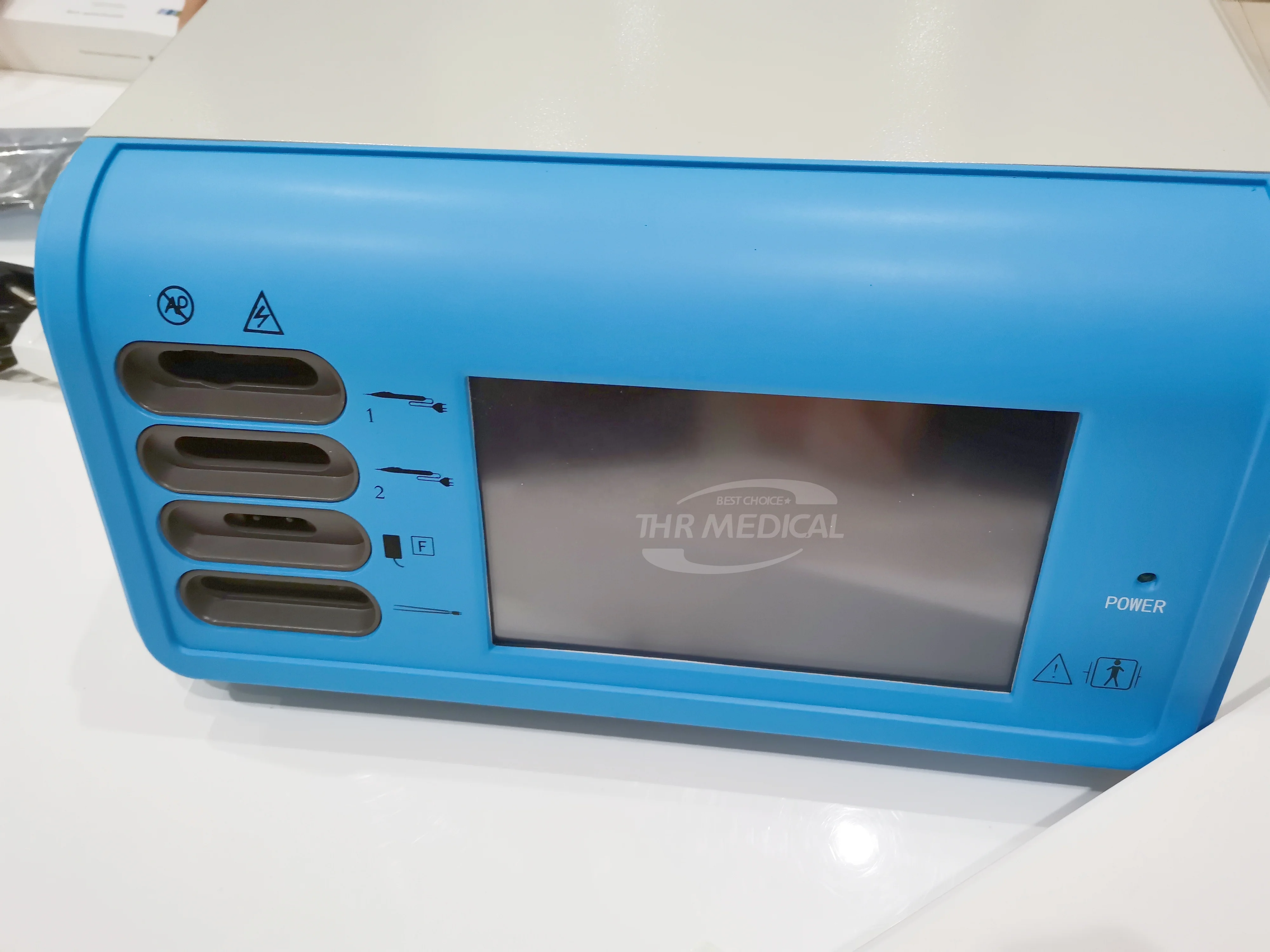

THR-HV400 LCD
The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for us in the modern operating room, it features both monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
Technical Features:

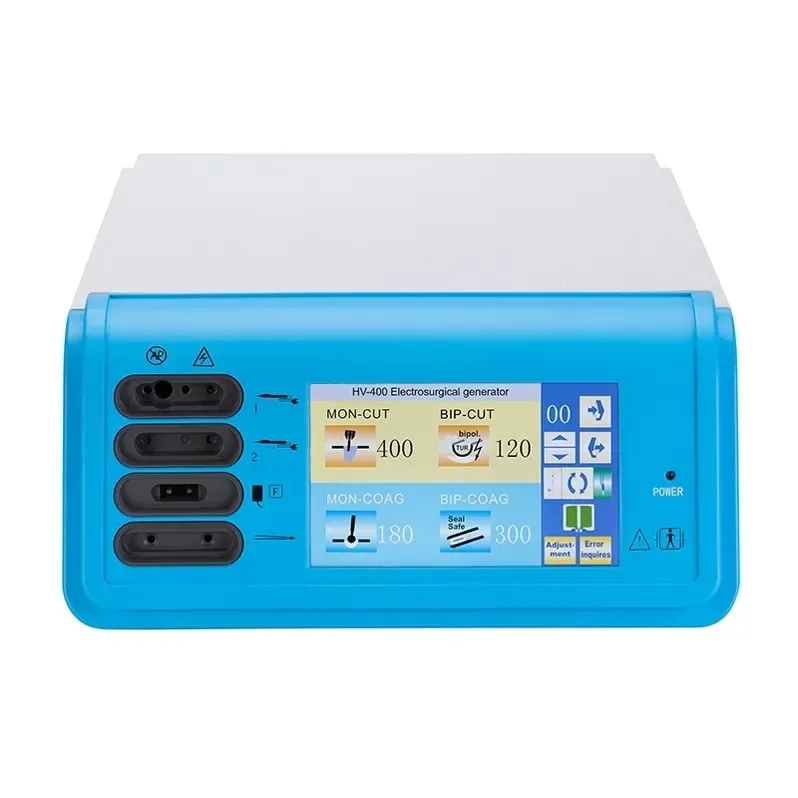

Touch Screen
This electrosurgical system is controlled with a wide TFT LCD touch screen (8 inch), clean and shaper image quality, which provides the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.
REM (Return Electrode Monitoring)

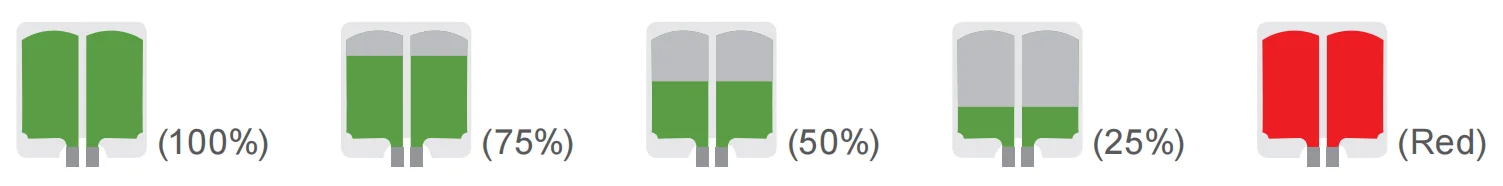

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Automatic Self-Test
Once switched on,it has a comprehensive internal test
Real-time Monitoring and Instance Response System for Tissue Density
This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second which enables it to respond to tissue impedance changes in less than 10 milliseconds, which ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.
Ligasure Vessel Sealing (Seal-Safe)
With above mentioned Real-Time and instance response system, it enables permanent sealing up blood vessels with a diameter up to 7mm with this technology under bipolar coagulation (Seal-safe modes).
Endoscopic Vessel Sealing (Endo-Safe)
Vessel sealing under water with endoscopic instrument
Automatic Start /Stop
Under Bipolar cut and coagulation modes, user can choose Pedal control or Automatic control, under Automatic control.
Memory Records Features (Optional)
Memory program that allows customize settings for different interventions and surgeons. Now total from 0-10 memory locations can be available for user defined settings, which make it a versatile, indispensable companion in HF surgery.
Compatible with Argon Plasma Coagulation System
Compatible with Argon Generator, non-contact tissue, which can have very good effect for digestive surgery.
Optimum Smoke Evacuation System
Electrosurgical unit can be integrated with smoke Evacuation system, which will automatically trigger the smoke evacuation when energy is activated.
Application of Use
General Surgery; Ligation Surgery; Gastroenterology
Dermatology; Vascular Surgery; Obstetrics and Gynecology Heart/Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI) Cerebral surgery; Neurosurgery, Orthopedics & Plastic Surgery; Trans Urethral Resection (TUR) and etc.

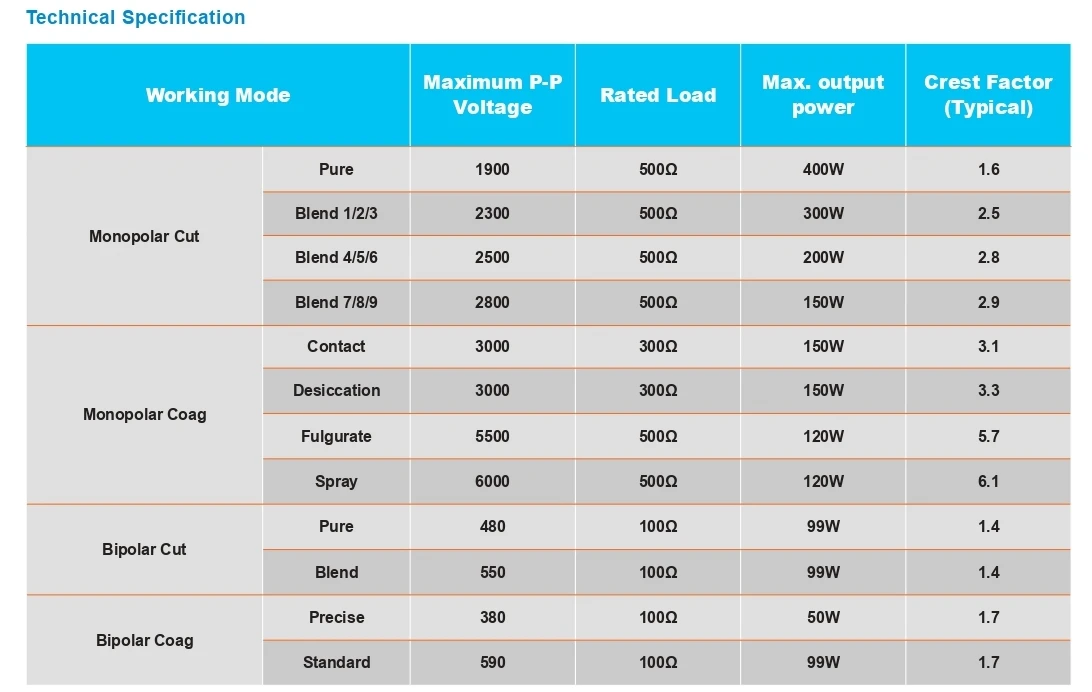

Technical Specification | Main Frequency: | 512 KHz |
Power Supply | 100-240V / 50-60Hz | |
Dimension | 34*16*47 | |
Weight | 8kg | |
High Frequency Leakage | Monopolar | < 150mA |
Bipolar | < 60mA | |
Low Frequency Leakage | Normal Polarity, Intact Chassis Ground | <10μA |
Normal Polarity, Ground Open | <50μA | |
Reverse Polarity, Ground Open | <50μA | |
Sink Current, 140V Applied, All inputs | <50μA |

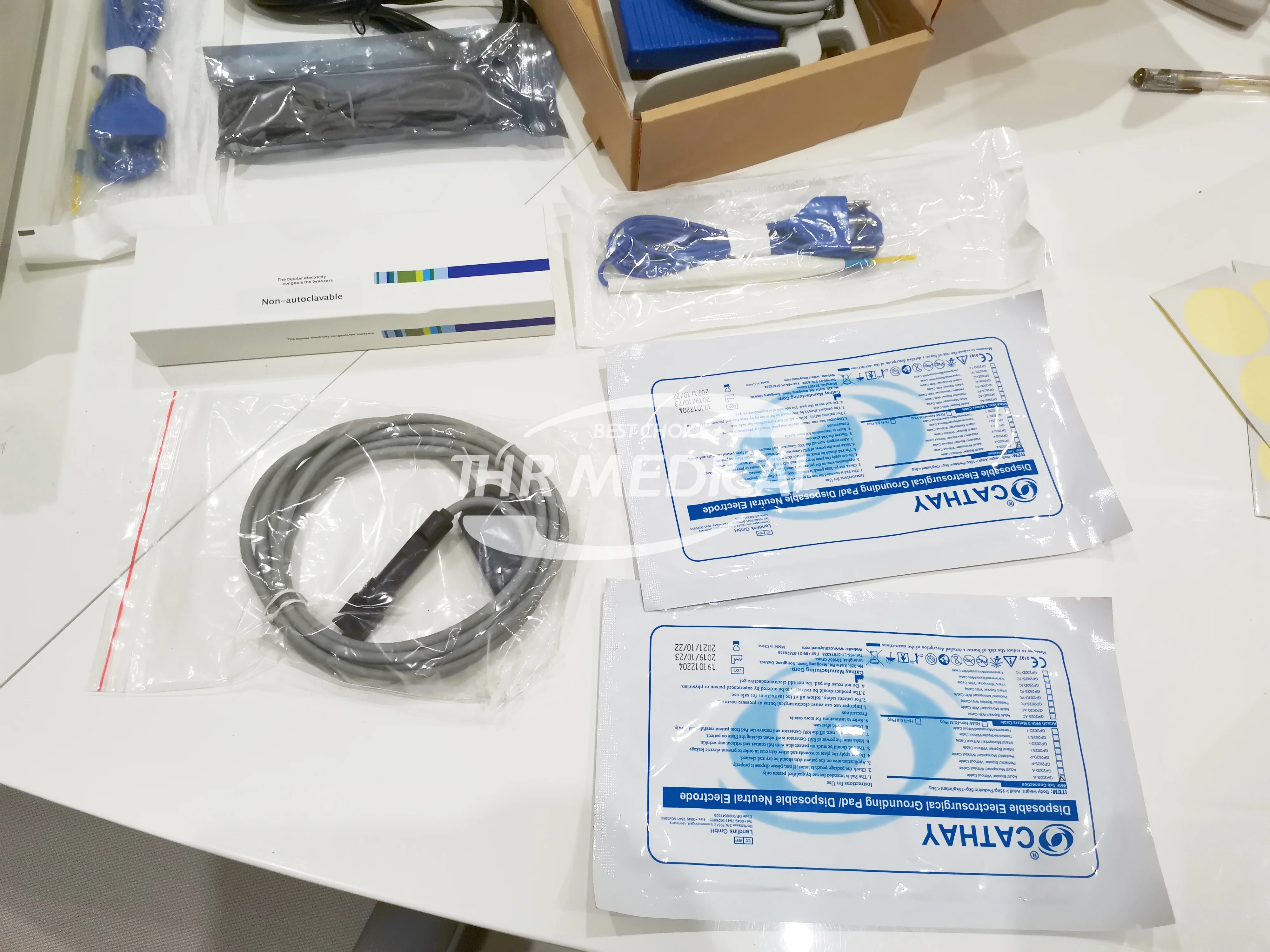

Accessory
1 Power cable plug
2 Disposable ESU pencil 3 Disposable ESU plate 4 Reusable plate cable 5 Two Button Footswitch 6 Reusable Bipolar forceps 7 Reusable Bipolar cable 8 Laparoscopic Vessel Sealing instrument 9 Laparoscopic instrument cable
