THR-HV400
Main features
1) Digital display of output power, and sound signal given when the minimum or maximum power limit is reached; 2) Ten Mono-polar cut modes: pure, blend 1/2/3/4//6/7/8/9; 3) Four Mono-polar coag modes: contact, desiccate, fulgurate and spray; 4) Two bipolar cut modes: pure cut and blend cut; 5) Two bipolar coag modes: precise coag and standard coag; 6) Memory function could store up to 10 records; 7) Time-control Bipolar Coag output mode; 8) Two Pencil simultaneous working mode; 9) Designed with patient plate continuity monitoring circuit, this can effectively prevent electrical burns to patients;
2) Ten Mono-polar cut modes: pure, blend 1/2/3/4//6/7/8/9; 3) Four Mono-polar coag modes: contact, desiccate, fulgurate and spray; 4) Two bipolar cut modes: pure cut and blend cut; 5) Two bipolar coag modes: precise coag and standard coag; 6) Memory function could store up to 10 records; 7) Time-control Bipolar Coag output mode; 8) Two Pencil simultaneous working mode; 9) Designed with patient plate continuity monitoring circuit, this can effectively prevent electrical burns to patients;10) Isolated RF output; 11) Output controlled by pencil switch or footswitch; 12) Adjustable output sound volume; 13) Functions expandable: for use in combination with endoscope or argon trolley;14) Top-quality components and devices employed, and high reliability ensured.
Intended use
During the surgery, the operator sets the work mode and output power, operator controls the high frequency current, with the thermal effect generated by the high frequency current to cut and coagulate biological tissues in surgical operations.
±1Hz, stabilized power supply is recommended.
Definition of functions
1) Mono-polar pure cut: similar to the cutting effect of surgical knife blade, with no coag function, generally used for cutting tissues where there are less blood vessels (such as fat) or for the surgeries in liquid; 2) Blend 1-9: with coag effect at the same time of cutting, the coag degree increases gradually from blend 1-blend 9. 3) Contact coag: provide rapid contact coag for cavity mirror surgery as well as other delicate tissue 4) Desiccate coag: provide desiccation for tissue. 5) Fulgurate coag: suitable for most tissue coagulation. 6) Spray Coag: Suitable for Large tissue exudation, it will only form very shallow eschar. In combination with Argon Electro tome, it can reach rapid, large area coagulation and less eschar. 7) Bipolar Pure cut: suitable for delicate pure cut surgery. 8) Bipolar blend cut: suitable for delicate blend cut surgery. generally used for cutting tissues where there are less blood vessels (such as fat) or for the surgeries in liquid;

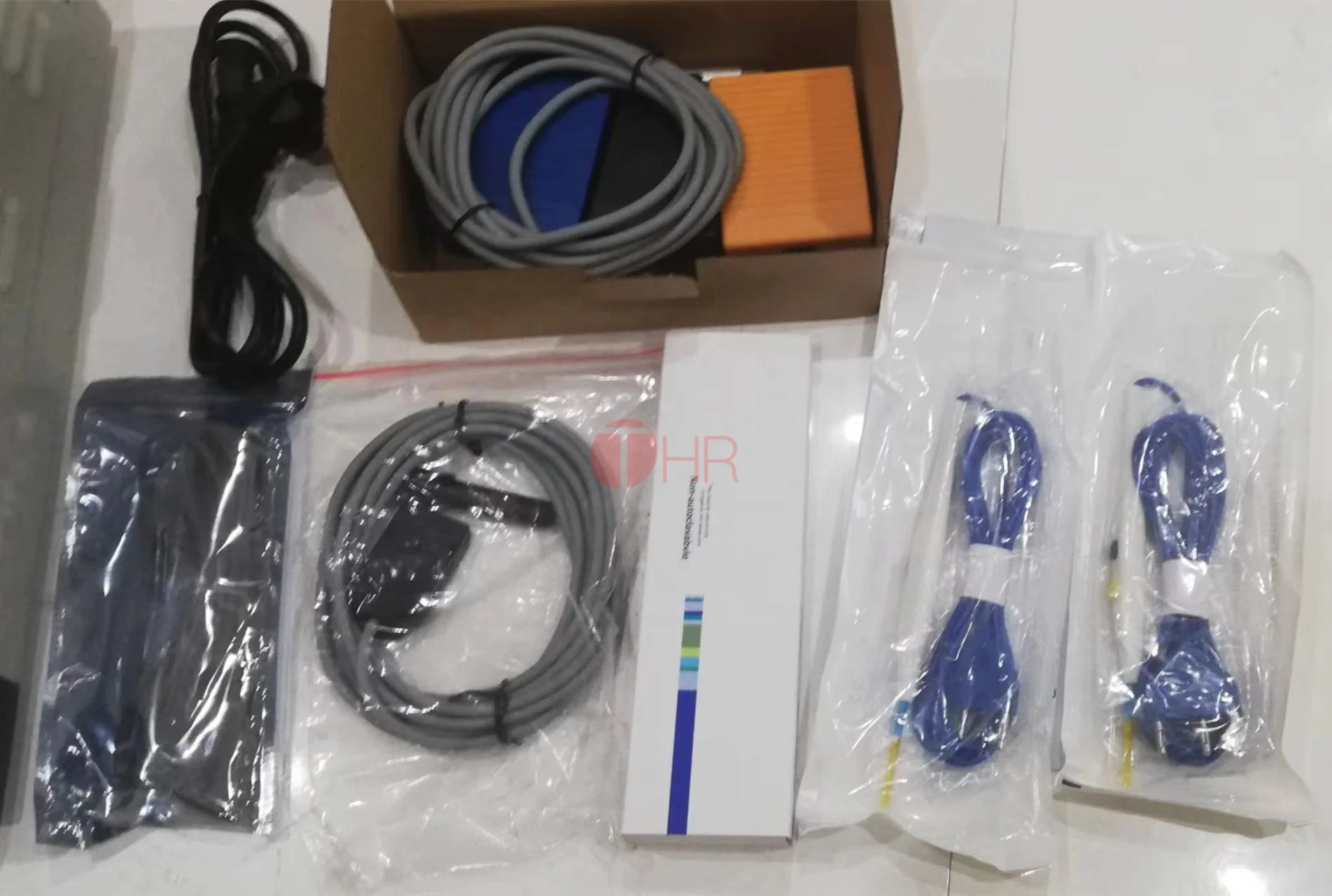

Electrosurgical Accessories |
3.Disposable ESU plate
4.Reusable plate cable
5.Two Button Footswitch
6.Reusable Bipolar forceps
7.Reusable Bipolar cable
