China portable Ophthalmic ultrasound machine A/B Scan with CE ISO certificate
Product Description

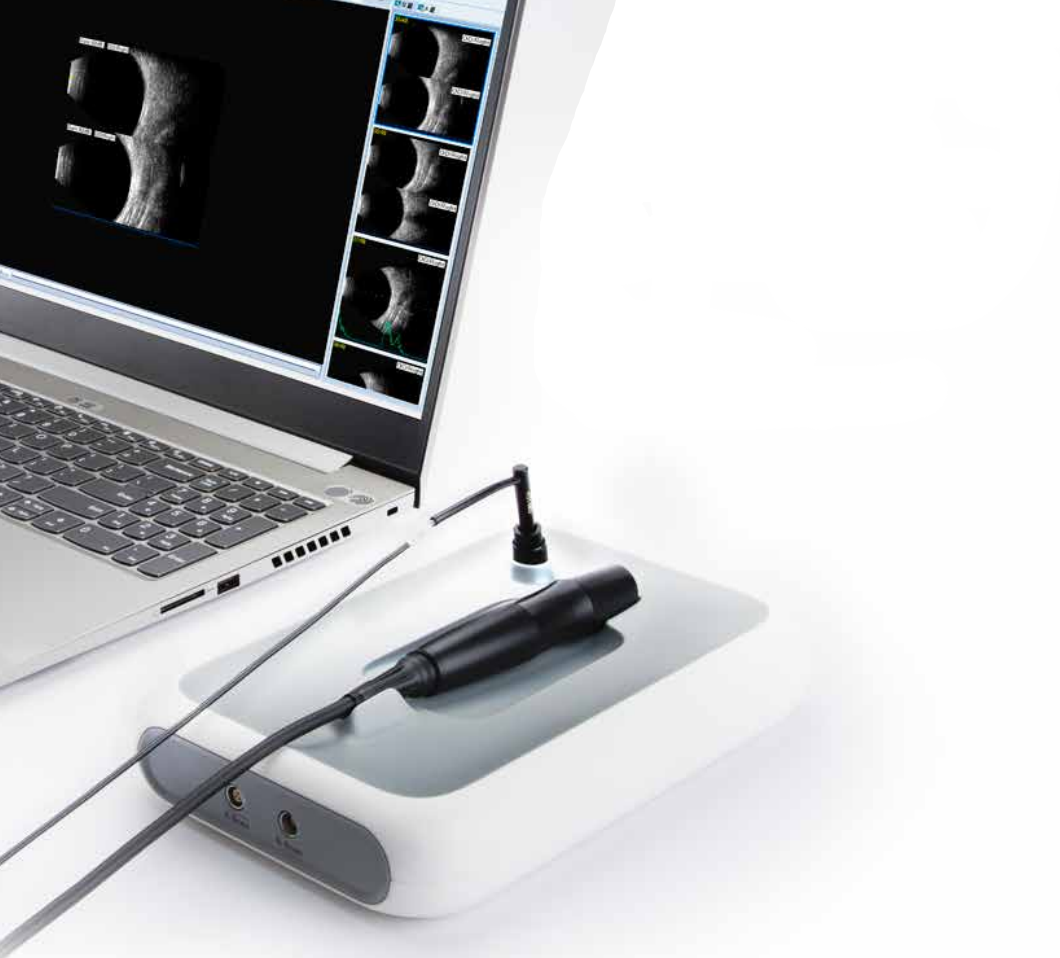

Portable (THR-SW2100s) is an ophthalmic Ultrasound Bio-Microscope with the characteristics of high portability, wide scanning range, high resolution, high accuracy of geometric position, clear image and with many post-processing functions.
Suitable for various screening scenarios.Features:

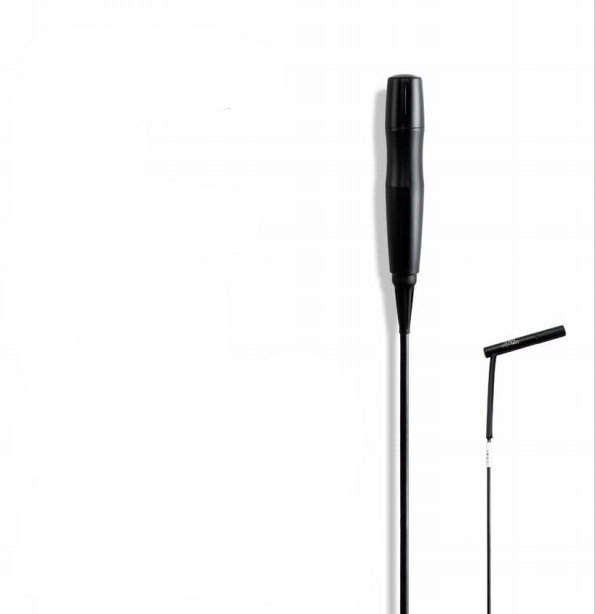

-Linear scan and handheld probe-Sulcus to sulcus measurement
-Full image mode and angle image mode display
-AOD and ACA measurement
-PDF report output
Specification:
A Scan
. Frequency: 10MHz, with LED
. Depth: 40mm
.Precision: ±0.04mm
. Measurement parameters: Anterior chamber depth,
Lens thickness, Vitreous thickness, Axial length
. Adjustable gain: 30dB ~ 105dB
. Time gain control (TGC): -15dB ~ +15dB
. Record up to 10 measurement results, automatic calculation of average,
standard deviation, maximum and minimum of the results
. Eye types: phakic, aphakic, PMMA, silicone, acrylic
.IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,
BINKHORST-II, HAIGIS

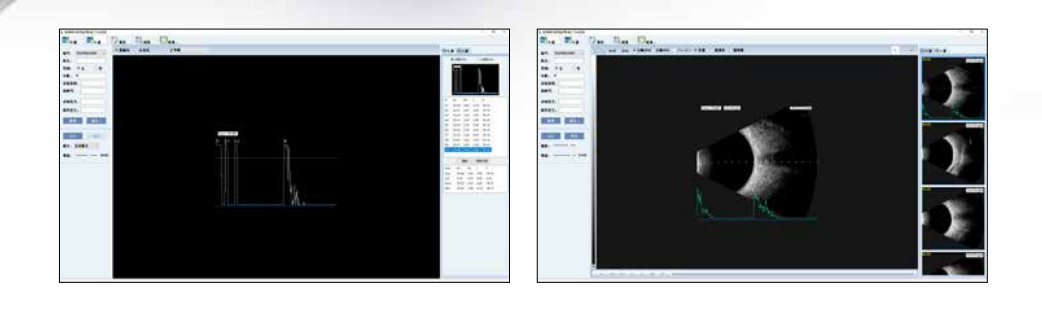

B Scan
. Frequency: 10MHz, Magnetic driven, noiseless
.Scanning Mode: Sector Scanning
. Scanning angle: 53°
. Resolution: Axial ≤ 0.2mm, Lateral ≤ 0.3mm
. Geometry position precision: Horizontal ≤ 3%, Vertical ≤ 2%
. Depth: 60mm
. Gray levels: 256
. Adjustable gain: 30dB ~ 105dB
. Time gain control (TGC): -15dB ~ +15dB
. Up to 100 images playback, support video export in AVI format
. Magnification function:
Multi-stage continuous magnification, real-time magnification
.Image analysis tools: false colors, areas, angles,
lengths, markers, comments
