THR-SW6000 China portable
Ophthalmic Equipment corneal topographic
Product Description

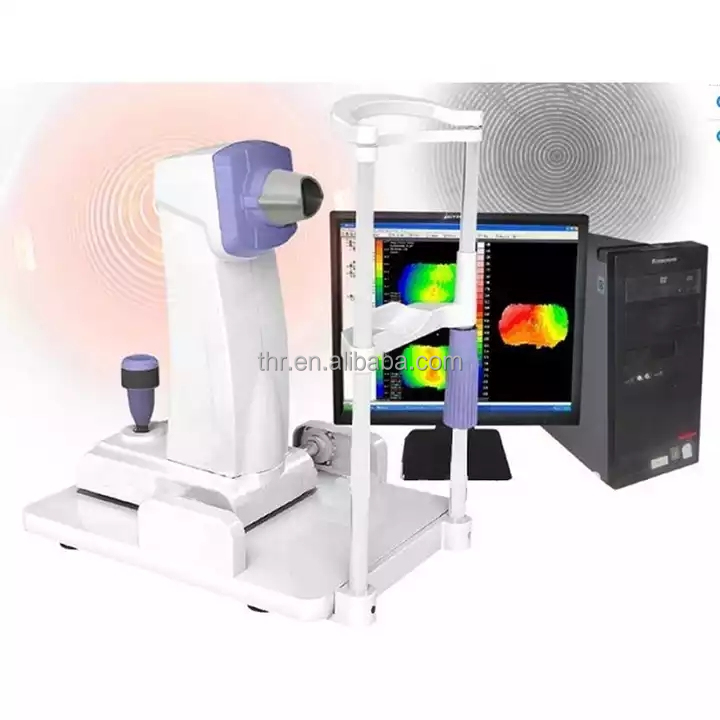

Corneal Topographer (THR-SW6000): using PLACIDO cone, 31 rings and a total of 7936 points, to measure and obtain analysis of corneal shape and corneal refraction data. THR-SW6000 has included readings such as: axial curvature, tangential curvature,altitude map, simulated keratoscopy and corneal 3D map.
corneal map, corneal topographer THR-SW6000
Through calculation and analysis, used in the clinical diagnosis of corneal astigmatism, quantitative analysis of corneal shape, display the corneal curvature by data or different colors, can display axial curvature map, tangential curvature map, height map, simulated corneal lens map and corneal 3D map. Can be used in preoperative examination and postoperative effect evaluation of corneal refractive surgery, can guide wearing contact data lens, to improve the accuracy of adaptive contact lens.
Through calculation and analysis, used in the clinical diagnosis of corneal astigmatism, quantitative analysis of corneal shape, display the corneal curvature by data or different colors, can display axial curvature map, tangential curvature map, height map, simulated corneal lens map and corneal 3D map. Can be used in preoperative examination and postoperative effect evaluation of corneal refractive surgery, can guide wearing contact data lens, to improve the accuracy of adaptive contact lens.
Product Paramenters

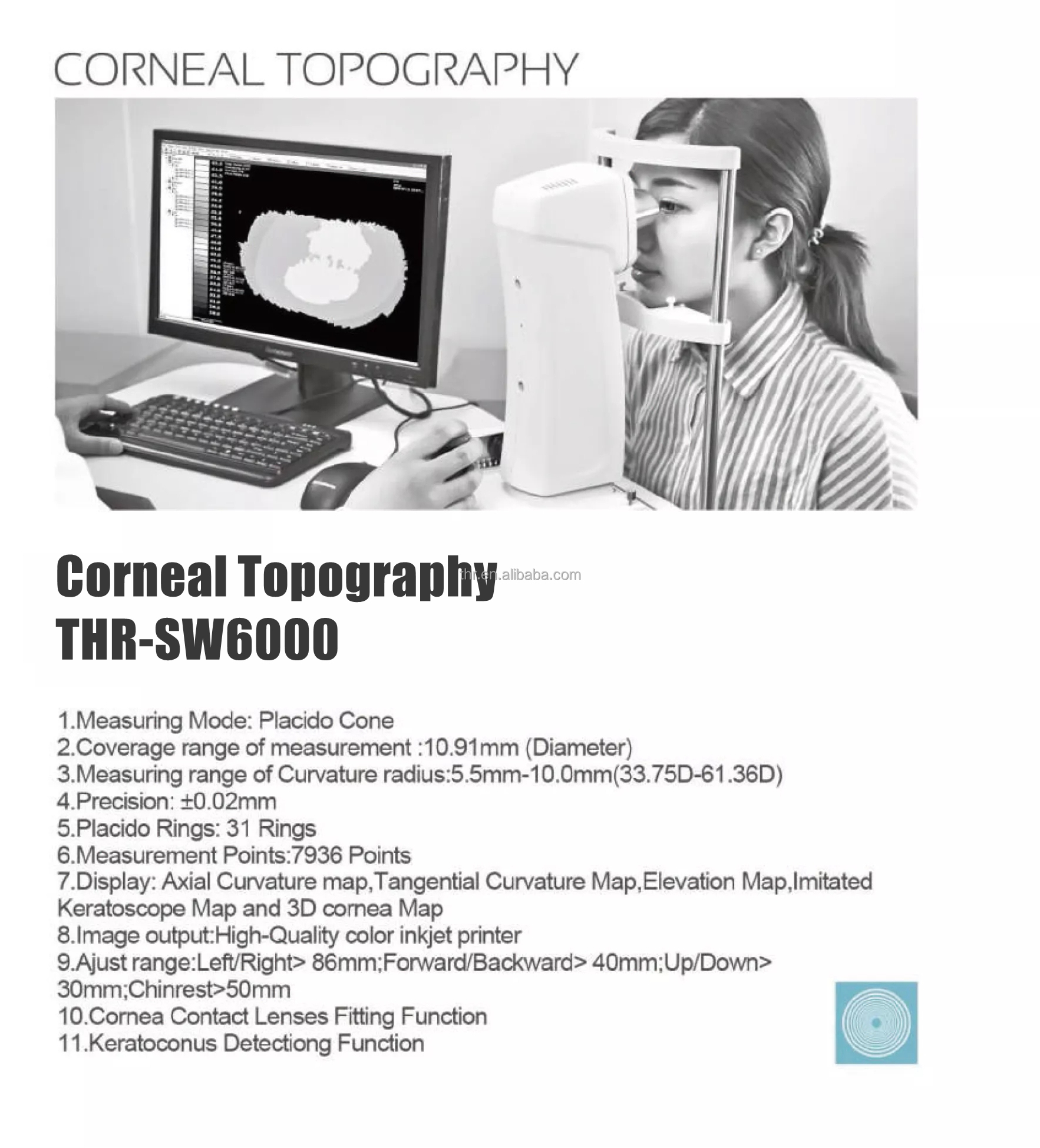

1.Measuring Mode: Placido Cone
2.Coverage range of measurement :10.91mm (Diameter)
3.Measuring range of Curvature radius:5.5mm-10.0mm(33.75D-61.36D)
4.Precision: ±0.02mm
5.Placido Rings: 31 Rings
6.Measurement Points:7936 Points
7.Display:Axial Curvature map,Tangential Curvature Map,Elevation Map,Imitated Keratoscope Map and 3D cornea Map
8.Image output:High-Quality color inkjet printer
9.Ajust range:Left/Right> 86mm;Forward/Backward> 40mm;Up/Down> 30mm;Chinrest>50mm
10.Cornea Contact Lenses Fitting Function
11.Keratoconus Detectiong Function
