PRODUCT DETAILS
PPRODUCT DETAILS
THR-XR-17
0.00
0.00

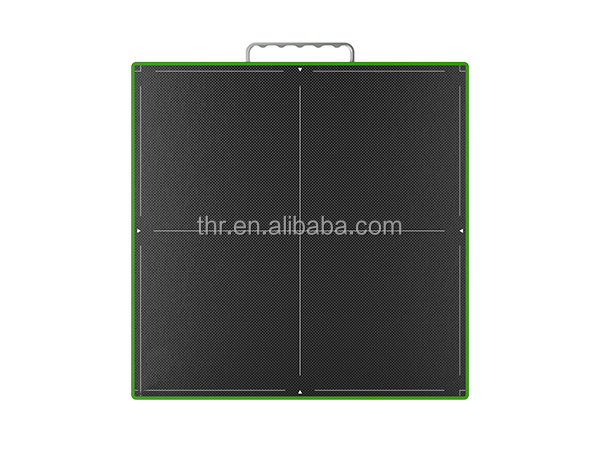

17*17 inch wireless digital flat panel panel for x-ray machine
Key benefit of THR-XR-17

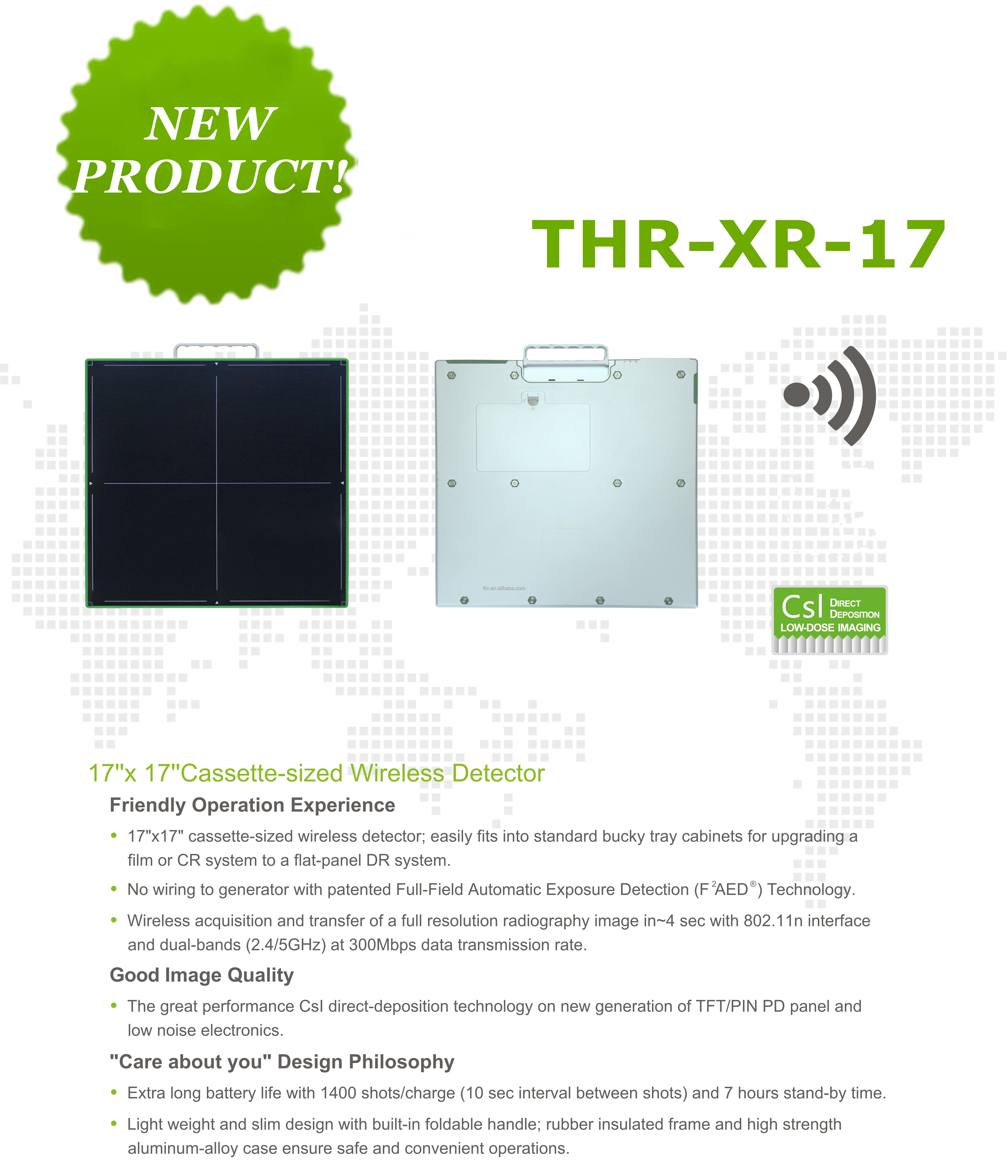

17"x 17"Cassette-sized Wireless Detector:
1.Friendly Operation Experience
(1)17"x17" cassette-sized wireless detector; easily fits into standard bucky tray cabinets for upgrading a film or CR system to a flat-panel DR system.
(2).No wiring to generator with patented Full-Field Automatic Exposure Detection(F°AEDR)Technology.
(3)Wreless acquisition and transfer of a full resolution radiography image in~4 sec with 802.11n interface and dual-bands (2.4/5GHz) at 300Mbps data transmission rate.
2.Good lmage Quality
The great performance Csl direct-deposition technology on new generation of TFT/PIN PD panel and low noise electronics.
3.Care about you" Design Philosophy
(1)Extra long battery life with 1400 shots/charge (10 sec interval between shots) and 7 hours stand-by time.
(2)Light weight and slim design with built-in foldable handle;rubber insulated frame and high strength aluminum-alloy case ensure safe and convenient operations.

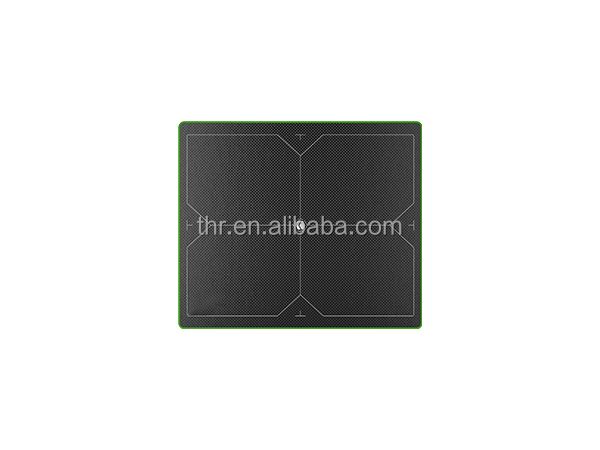

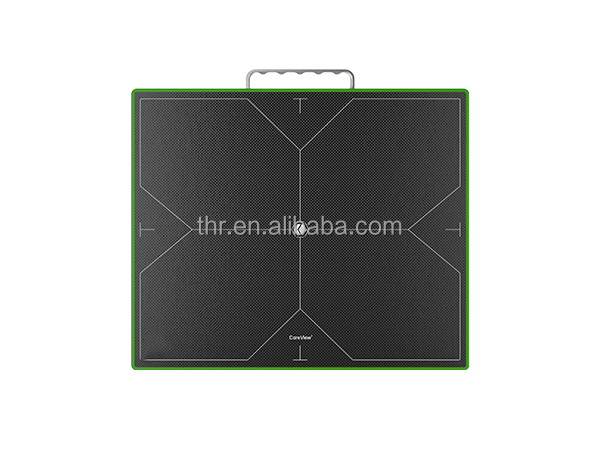

We have 3 or more different size for you to choose from:
10″ x 12″ 14″ x 17″ 17″ x 17''

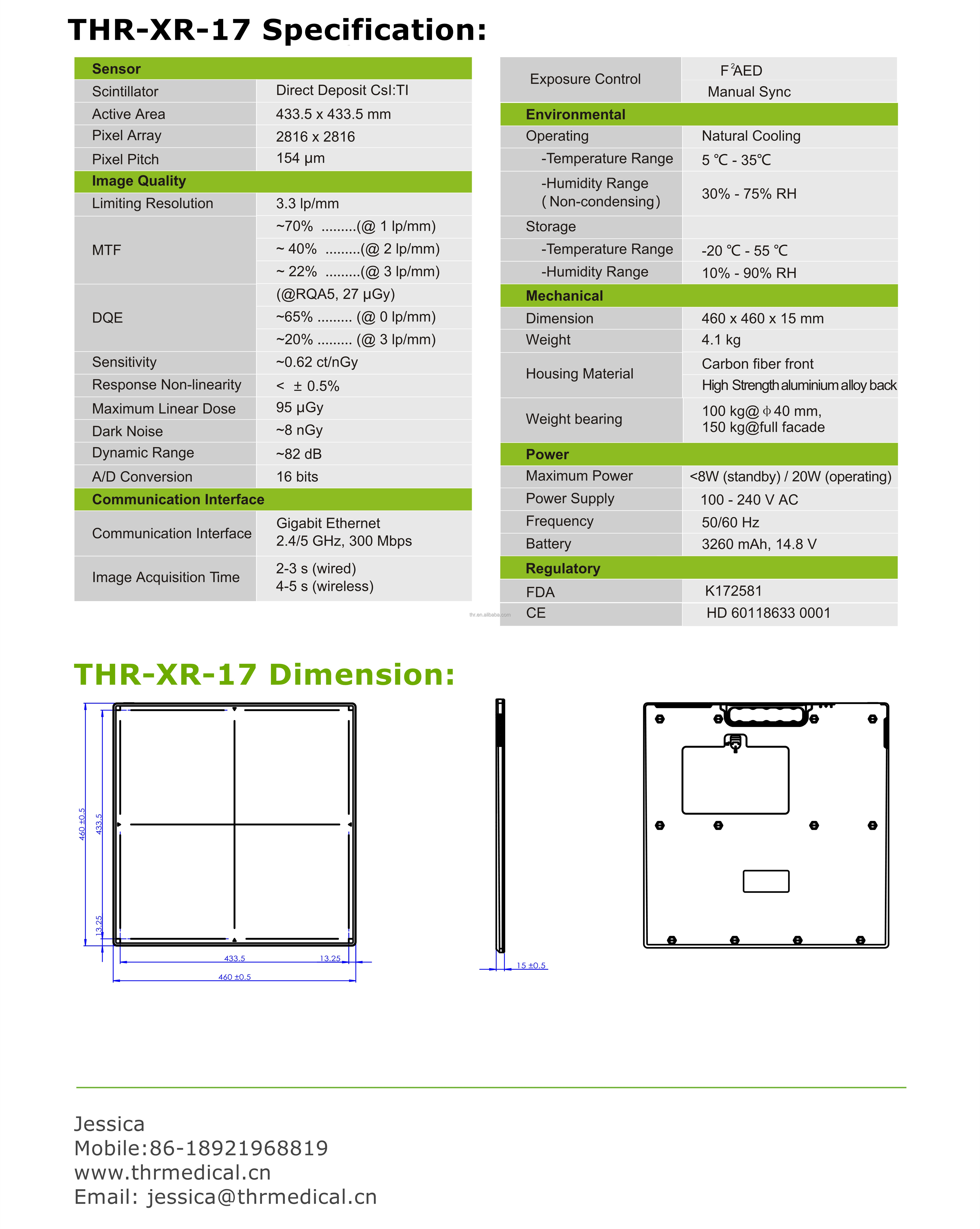

Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | THR |
Model Number | THR-XR-17 |
Instrument classification | Class II |
Battery | 3260 mAh,14.8 V |
Power Supply | 100- 240 V AC |
Frequency | 50/60 Hz |
Maximum Power | <8W(standby)/ 20W(operating) |
Weight | 4.1KG |
Dimension | 460x 460x 15 mm |
Housing Material | Carbon fiber front;High Strength aluminium alloy back |
