THR-XR-4KW
0.00
0.00
Features:
1. 6 periods of digital LED display
2. Failure self-protection, self-diagnosi,High precision control of tube voltage, tube current
3. 48 kinds of presupposed anatomy memory pattern choice
4. Accuracy control method of simulation and double digital loops
5. X-ray tube complete surrender by lead for protect X-ray leaking
Application:
for extremities check, especially for rescues or diagnosis in Field operation sites, battlefields, stadiums, etc.
1. 6 periods of digital LED display
2. Failure self-protection, self-diagnosi,High precision control of tube voltage, tube current
3. 48 kinds of presupposed anatomy memory pattern choice
4. Accuracy control method of simulation and double digital loops
5. X-ray tube complete surrender by lead for protect X-ray leaking
Application:
for extremities check, especially for rescues or diagnosis in Field operation sites, battlefields, stadiums, etc.

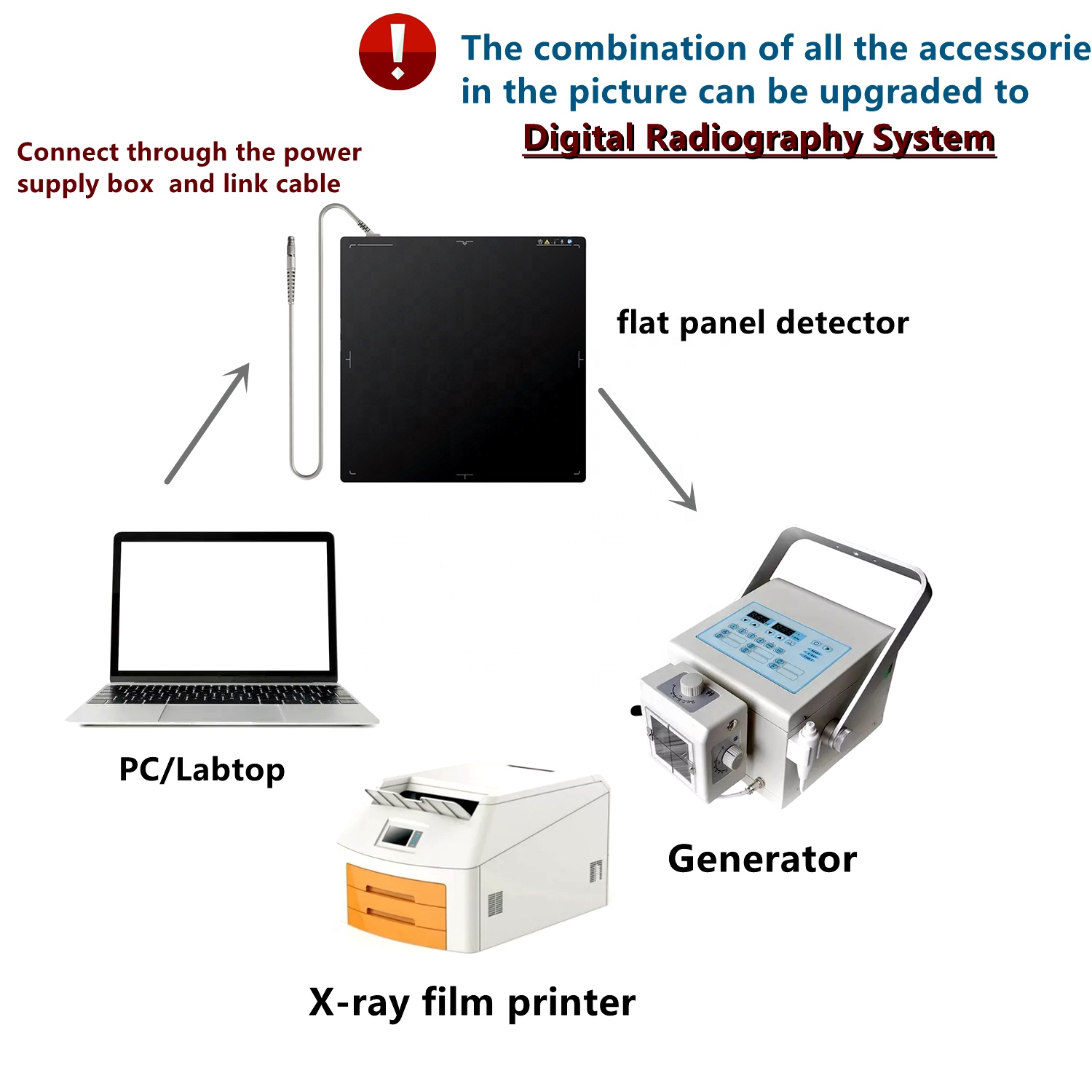

Flat panel detector

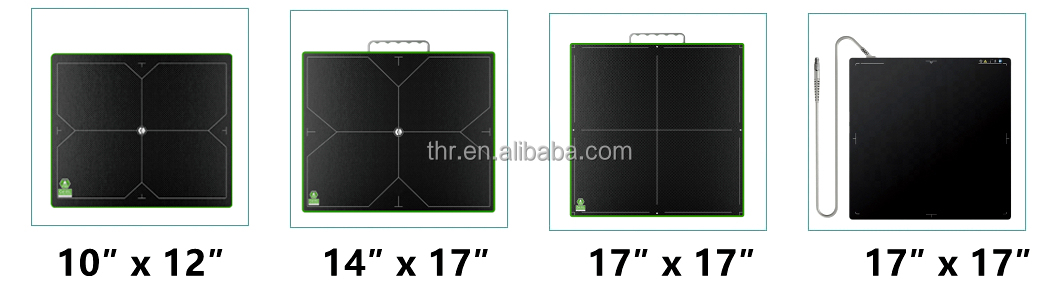

We have 3 or more different size for you to choose from:
We have 3 or more different size for you to choose from:
Specification
Main Component Tech Spe. | ||
Voltage | AC220V ± 22V | |
Generator | Power | 4kW |
kV Range | 40~110kV | |
mA Range | 36~60mA | |
mAs Range | 1-190mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 0.04S~3.2S | |
X-ray tube(Toshiba tube) | Anode heat storage | 56KHU |
Focus | 0.5/1.6m | |
Inherent filtration | 1mm Al/75Kv | |
Light source | LED | |
Key Console | Dimension | 10.4inch |
Acquisition Software | ||
Wire Flat Panel Detector 17*17inch | Scintillator | CsI |
Pixel Pitch | 139 | |
Limit resolution | 3.6 | |
Pixels | 3072*3072 | |
Laptop | CPU | Intel Core i5 |
Memory capacity | 4GB | |
Physical Spe. | ||
Main Unit | Weight | 19 kg |
Dimension | 290×265×230 mm | |
