THR-ECG-E3
0.00
0.00

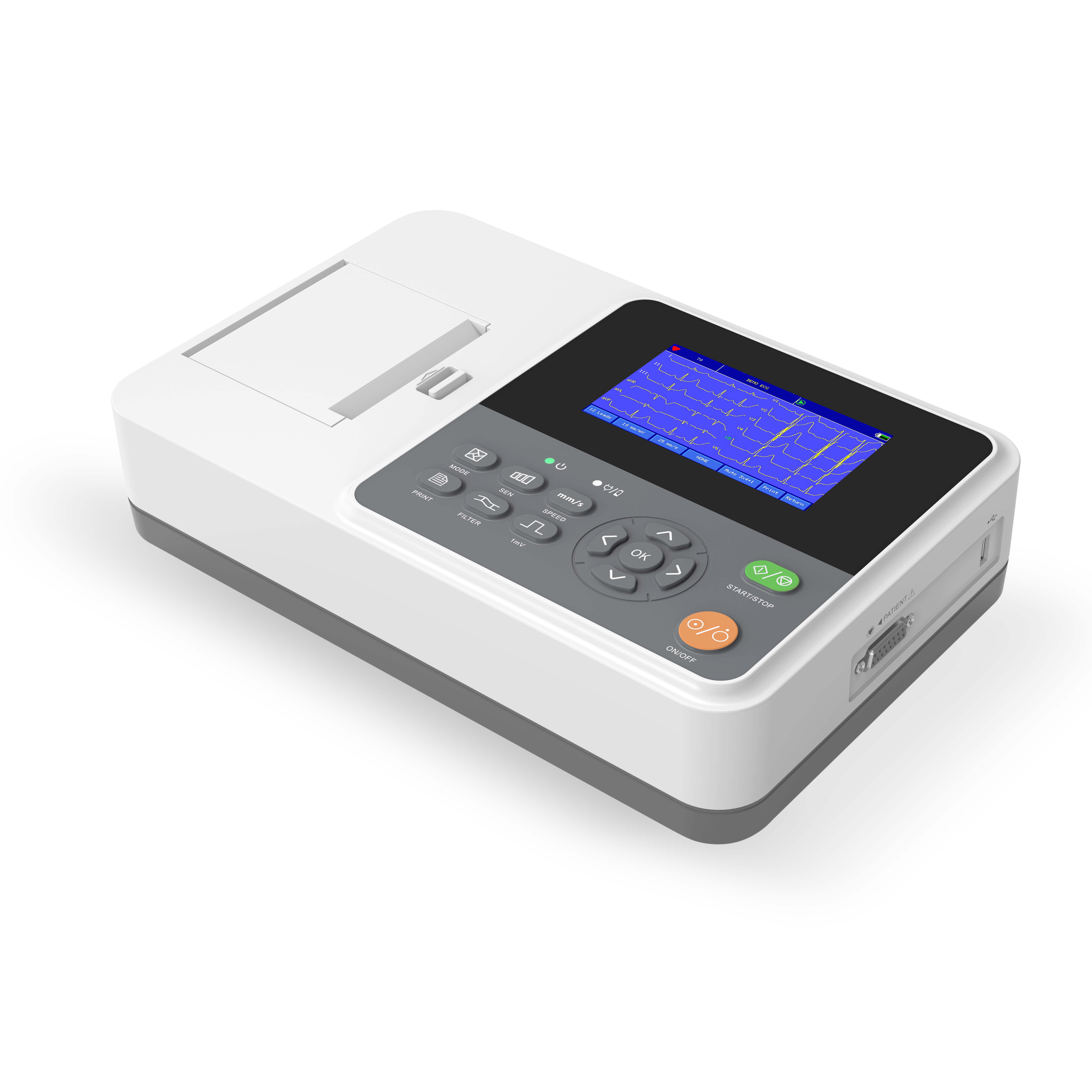

THR-ECG-E3 EKG monitor Touch screen Free Software
Introduction:
THR-ECG-E3 is a kind of electrocardiograph, which is able to sample 12 leads ECG signals simultaneously and print out the ECG waveform with thermal printing system.
Its functions are as follows: recording and displaying ECG waveform in auto/manual mode; measuring ECG waveform parameters automatically, and automatic analysis and diagnosis; pacing ECG detection; prompt for electrode-off and out of paper; optional interface languages(Chinese/English, etc.); built-in lithium battery, powered either by AC or DC; arbitrarily select the rhythm lead to conveniently observe abnormal heart rhythm; case database management, etc.
Introduction:
THR-ECG-E3 is a kind of electrocardiograph, which is able to sample 12 leads ECG signals simultaneously and print out the ECG waveform with thermal printing system.
Its functions are as follows: recording and displaying ECG waveform in auto/manual mode; measuring ECG waveform parameters automatically, and automatic analysis and diagnosis; pacing ECG detection; prompt for electrode-off and out of paper; optional interface languages(Chinese/English, etc.); built-in lithium battery, powered either by AC or DC; arbitrarily select the rhythm lead to conveniently observe abnormal heart rhythm; case database management, etc.

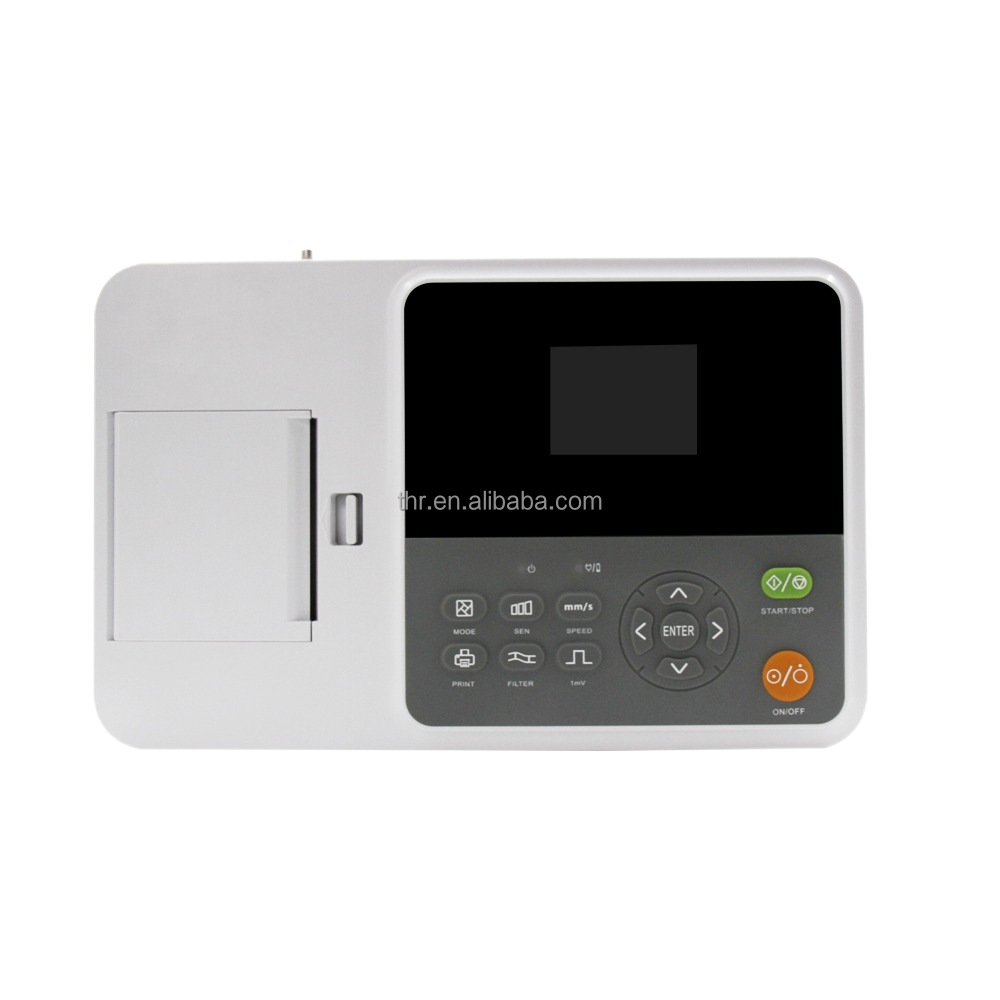

Colorful HD Display screen
This product uses a high-definition colorful LCD screen to provide users with good visual effects, clearer waveforms, and more reliable results.
Key operation
Realize fast, intuitive and concise operation, truly let users experience the "what you want is what you get" experience, using soft silicone buttons, experience a comfortable touch.
Powerful data management
Built-in large-capacity memory can store at least 1000 medical records.
High precision measurement
With 24-bit sampling accuracy and 32kHz sampling frequency, more accurate waveforms and more reliable analysis results can be obtained.
This product uses a high-definition colorful LCD screen to provide users with good visual effects, clearer waveforms, and more reliable results.
Key operation
Realize fast, intuitive and concise operation, truly let users experience the "what you want is what you get" experience, using soft silicone buttons, experience a comfortable touch.
Powerful data management
Built-in large-capacity memory can store at least 1000 medical records.
High precision measurement
With 24-bit sampling accuracy and 32kHz sampling frequency, more accurate waveforms and more reliable analysis results can be obtained.
Function:
1)High resolution thermal-array output system(8 dots/mm), no adjustment required. Frequency Response is up to 150Hz.
2)Sync collection for 12-lead ECG, support routine 12-lead and Cabrera-lead waveform display. Get high-quality ECG waveform via AC filter, DFT filter, EMG filter and Low-pass Filter of ECG signal.
3)Display 3/6/12 - lead ECG waveform, print mode, sensitivity, paper speed, filter status, etc. on one screen, convenient for contrastively diagnosing.
4)Support for auto 1×12, auto 1×12+1, auto 2×6, auto 2×6+1, auto 3×4, auto 3×4+1, auto 4×3, auto 3-2+1, auto 3-2, rhythm 4, rhythm 3, rhythm 2 and manual. The printed content contains time, paper speed, sensitivity, calibration signal, name of lead, filter state and patient's information. Information including printed waveform length, output measurement parameter, diagnostic conclusion, superposition QRS waveform, histogram, trend chart and interval list, can be set, and with time print function, which
meets different requirements.
5)With the functions of auto-measurement and auto-interpretation for routine ECG parameters, provide measurement results for HR, PR interval, P Duration, QRS Duration, T Duration, QT/QTc interval, P/QRS/T Axis, R(V5), S(V1) and R(V5)+S(V1), etc. and auto-diagnosis conclusion, which reduces the doctor's burden.
6)Rhythm lead can be selected freely, convenient to observe abnormal heart rhythm.
7)The subject's clinical information (such as, ID, Name, Age, Sex, Height, Weight, etc.) can be entered.
8)1000 cases can be stored by the built-in memory, convenient for case review and statistic.
9)Multi-language (Chinese, English, Turkish, Portuguese, German, Russian and Kazakh, etc.) interface and report.
1)High resolution thermal-array output system(8 dots/mm), no adjustment required. Frequency Response is up to 150Hz.
2)Sync collection for 12-lead ECG, support routine 12-lead and Cabrera-lead waveform display. Get high-quality ECG waveform via AC filter, DFT filter, EMG filter and Low-pass Filter of ECG signal.
3)Display 3/6/12 - lead ECG waveform, print mode, sensitivity, paper speed, filter status, etc. on one screen, convenient for contrastively diagnosing.
4)Support for auto 1×12, auto 1×12+1, auto 2×6, auto 2×6+1, auto 3×4, auto 3×4+1, auto 4×3, auto 3-2+1, auto 3-2, rhythm 4, rhythm 3, rhythm 2 and manual. The printed content contains time, paper speed, sensitivity, calibration signal, name of lead, filter state and patient's information. Information including printed waveform length, output measurement parameter, diagnostic conclusion, superposition QRS waveform, histogram, trend chart and interval list, can be set, and with time print function, which
meets different requirements.
5)With the functions of auto-measurement and auto-interpretation for routine ECG parameters, provide measurement results for HR, PR interval, P Duration, QRS Duration, T Duration, QT/QTc interval, P/QRS/T Axis, R(V5), S(V1) and R(V5)+S(V1), etc. and auto-diagnosis conclusion, which reduces the doctor's burden.
6)Rhythm lead can be selected freely, convenient to observe abnormal heart rhythm.
7)The subject's clinical information (such as, ID, Name, Age, Sex, Height, Weight, etc.) can be entered.
8)1000 cases can be stored by the built-in memory, convenient for case review and statistic.
9)Multi-language (Chinese, English, Turkish, Portuguese, German, Russian and Kazakh, etc.) interface and report.
10)Power supply: AC/DC (which can adapt AC 50/60Hz), with built-in rechargeable lithium battery, charging circuit, perfect over-current and over-voltage protection circuit.
11)External USB keyboard, code scanner, printer and USB storage device can be connected.
Performance:
Input way: Floating and defibrillation protection
Lead: Standard 12 leads
Patient leakage current: <10µA
Input impedance: ≥100MΩ(1Hz)
Frequency response: 0.01Hz~300 Hz(-3dB)
Time constant: ≥3.2s
CMRR: >123dB
Filter: AC Filter(AC50/60 Hz), EMG Filter (25 Hz/35 Hz (-3 dB)), DFT Filter, Low-pass Filter
Recording way: Thermal printing system
Specification of recording paper: 80 mm(W)×20 m(L) high-speed thermal paper
Time base selection(paper speed):
5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s, error: ±5% within 0.2s~2.0s
Gain control(sensitivity):2.5, 5,10, 20, 40, 10/5, 20/10mm/mV, accuracy is ±5%; Standard sensitivity: 10 mm/mV±0.2 mm/mV
Auto record: record setup according to auto record format and mode, automatically change leads, automatically measure and analyze.
Rhythm record: record setup according to rhythm record format and mode, automatically measure and analyze. Manual record: record according to manual record format.
Measurement parameters: HR, PR interval, P Duration, QRS Duration, T Duration, QT/QTc interval, P/QRS/T Axis, R(V5) amplitude, S(V1) amplitude, R(V5)+S(V1) amplitude
Product safety type: Class I type CF defibrillation-proof applied part
Polarization resistance voltage: ±950 mV
Noise level: ≤12 µVp-p
ECG signal input sampling frequency: 32 kHz
Waveform data processing sampling frequency: 1 kHz
Sampling precision: 24-bit
The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected
Pacing detection channel: all leads
Accuracy of input signal: ±5%.
Amplitude quantization: ≤5µV/LSB
Interchannel time deviation: <100 µs
Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/5000mAh rechargeable lithium battery
Degree of protection against ingress of liquid: IPX0
Working mode: continuous working
11)External USB keyboard, code scanner, printer and USB storage device can be connected.
Performance:
Input way: Floating and defibrillation protection
Lead: Standard 12 leads
Patient leakage current: <10µA
Input impedance: ≥100MΩ(1Hz)
Frequency response: 0.01Hz~300 Hz(-3dB)
Time constant: ≥3.2s
CMRR: >123dB
Filter: AC Filter(AC50/60 Hz), EMG Filter (25 Hz/35 Hz (-3 dB)), DFT Filter, Low-pass Filter
Recording way: Thermal printing system
Specification of recording paper: 80 mm(W)×20 m(L) high-speed thermal paper
Time base selection(paper speed):
5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s, error: ±5% within 0.2s~2.0s
Gain control(sensitivity):2.5, 5,10, 20, 40, 10/5, 20/10mm/mV, accuracy is ±5%; Standard sensitivity: 10 mm/mV±0.2 mm/mV
Auto record: record setup according to auto record format and mode, automatically change leads, automatically measure and analyze.
Rhythm record: record setup according to rhythm record format and mode, automatically measure and analyze. Manual record: record according to manual record format.
Measurement parameters: HR, PR interval, P Duration, QRS Duration, T Duration, QT/QTc interval, P/QRS/T Axis, R(V5) amplitude, S(V1) amplitude, R(V5)+S(V1) amplitude
Product safety type: Class I type CF defibrillation-proof applied part
Polarization resistance voltage: ±950 mV
Noise level: ≤12 µVp-p
ECG signal input sampling frequency: 32 kHz
Waveform data processing sampling frequency: 1 kHz
Sampling precision: 24-bit
The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected
Pacing detection channel: all leads
Accuracy of input signal: ±5%.
Amplitude quantization: ≤5µV/LSB
Interchannel time deviation: <100 µs
Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/5000mAh rechargeable lithium battery
Degree of protection against ingress of liquid: IPX0
Working mode: continuous working
Accessories Standard configuration:
1)A lead cable

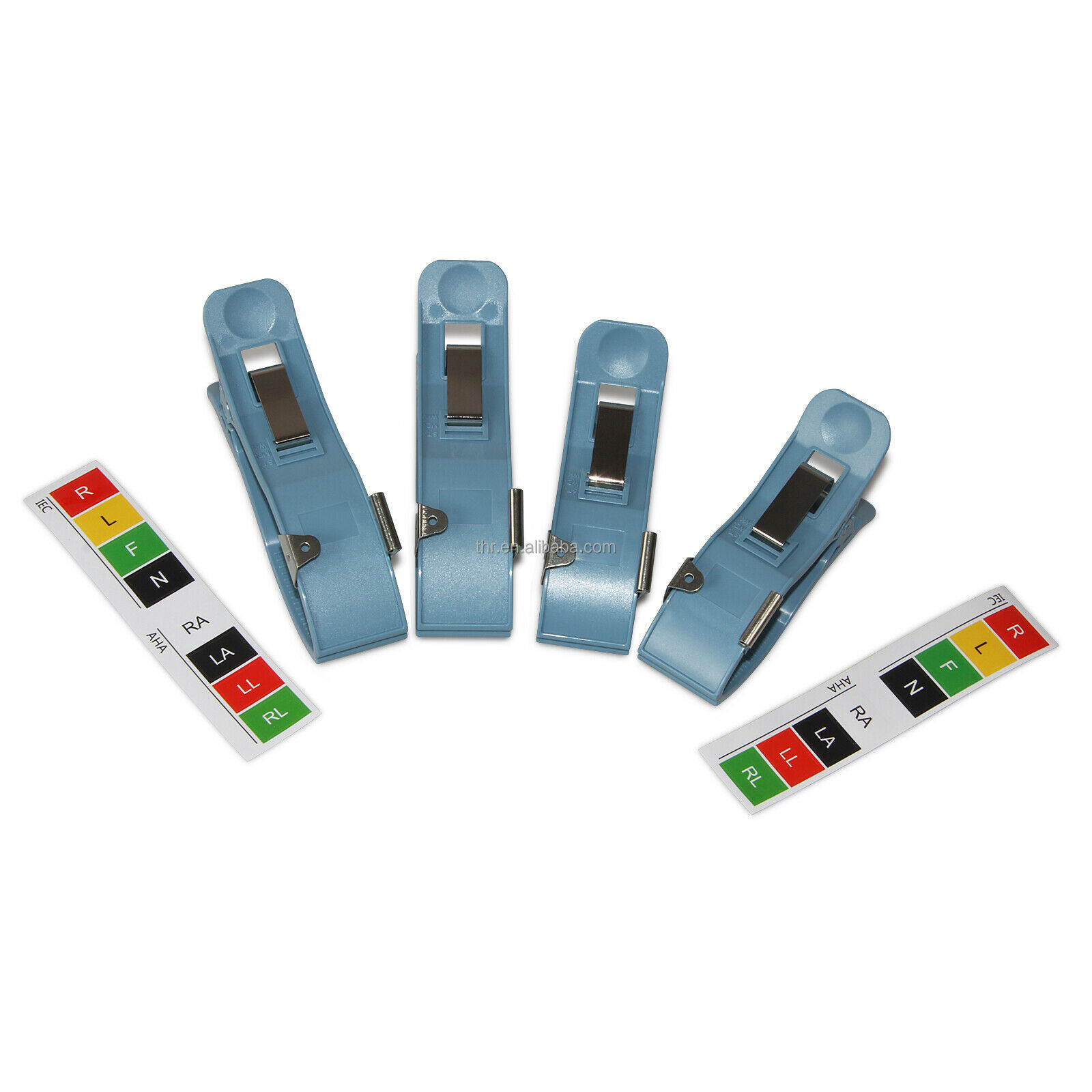

2)A limb electrode
3)A chest electrode
4)A thermal recording paper
5)A power cord
6)An earth wire
7)A user manual Physical characteristic Working environment Temperature: 5ºC~40ºC
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700 hPa~1060 hPa
Transport and storage environment Temperature: -20 ºC~+55 ºC
Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa
Dimension: 315mm(L)×200mm(W)×77mm(H)
Weight: 1.6Kg
1)A lead cable
2)A limb electrode
3)A chest electrode
4)A thermal recording paper
5)A power cord
6)An earth wire
7)A user manual Physical characteristic Working environment Temperature: 5ºC~40ºC
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700 hPa~1060 hPa
Transport and storage environment Temperature: -20 ºC~+55 ºC
Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa
Dimension: 315mm(L)×200mm(W)×77mm(H)
Weight: 1.6Kg
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | THR |
Model Number | THR-ECG-E3 |
Safety standard | None |
Product name | ECG Machine |
Certificate | CE/ISO |
Dimension | 315mm(L)X200mm(W)X77mm(H) |
Relative Humidity | ≤95% |
Time Constant | ≥3.2s |
weight | 1.6kg |
lead | Standard 12 Leads |
dc | 7.4V/5000mAh Rechargeable Lithium Battery |
Application | Hospital Clinic Laboratory |
Function | Detecting Body Health |
