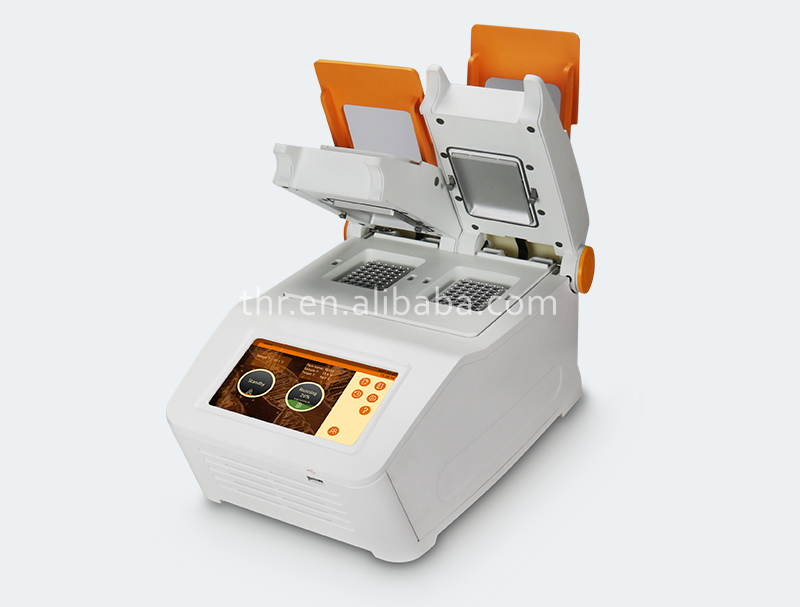

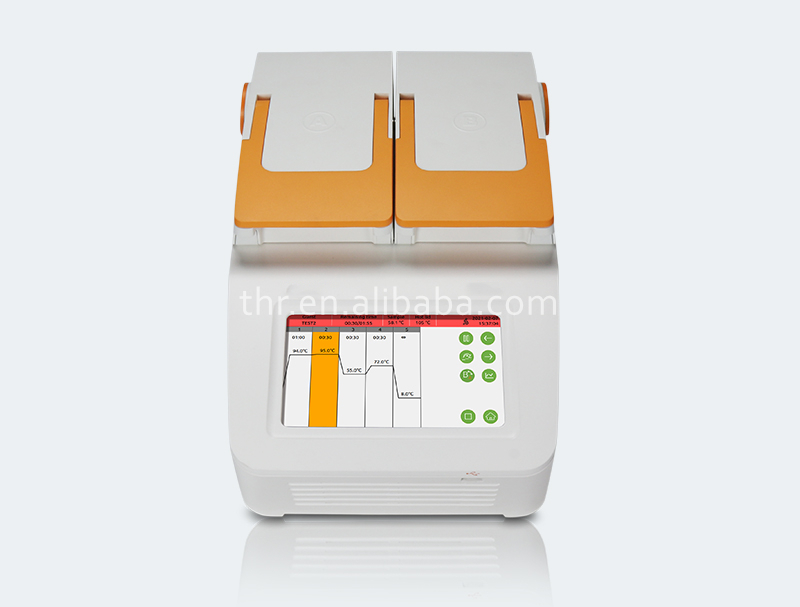

THR-T821D is a Double-block model meticulously built on the basis of the classic THR-T821 model. The instrument adopts a Double-block module design and can run two different PCR programs independently. It is especially suitable for small throughput such as teaching and scientific research PCR experiment.
One machine with multiple uses
Two 48-well*0.2ml modules can be set up separately to run programs, independently and in parallel, flexible to meet the various needs of users for PCR experiments.
Ultra-long life Peltier
◆Using Marlow series Peltier , higher quality and longer life.
◆The early warning function of the working status of the Peltier, which automatically evaluates the health status of Peltier, and provides maintenance recommendations, so that you will be confident in the smooth completion of the experiment and will know the reliable use of the instrument.
◆The early warning function of the working status of the Peltier, which automatically evaluates the health status of Peltier, and provides maintenance recommendations, so that you will be confident in the smooth completion of the experiment and will know the reliable use of the instrument.
Minimal software interface, powerful system functions
◆Windows style operation interface, easy to use for software operation.
◆One-click data import and export, U disk upgrade, efficient and convenient conversion between stations.
◆Personal file management system, separate protection of program data.
◆A variety of interfaces can be switched at needs for browsing, observation, maintenance to research.
Inherited classic features
Professional temperature control, excellent performance

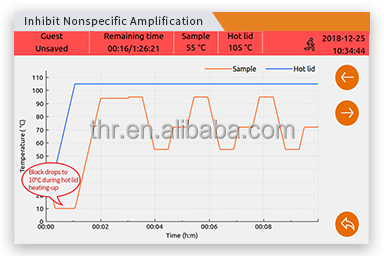

◆Intelligent suppression of non-specific amplification
◆Perfect constant rate temperature change

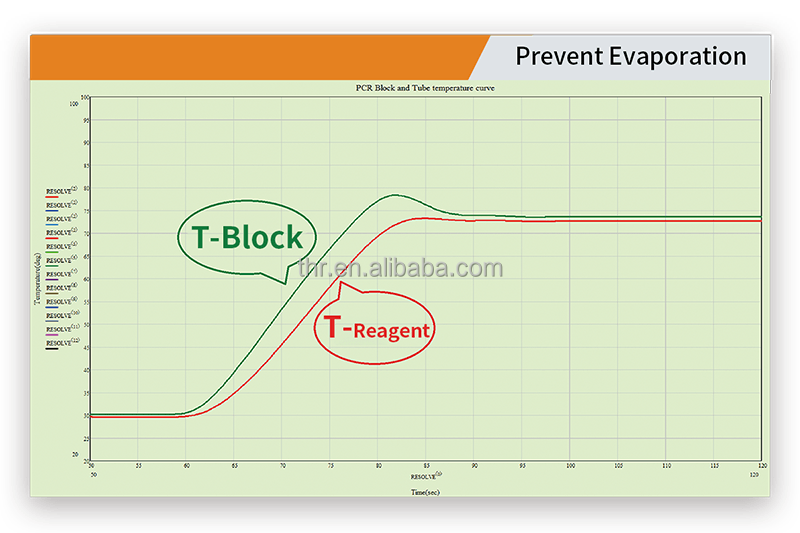

◆Intelligent suppression of reagent evaporation in small volumes
Professional temperature control, excellent performance
◆Intelligent suppression of non-specific amplification
◆Perfect constant rate temperature change
◆Intelligent suppression of reagent evaporation in small volumes
Specification：
item | value |
Brand Name | THR |
Model Number | THR-T821D |
Blocks | 2*0.2ml*48 wells,Aluminum |
Matching Consumables | 2*48 wells, single tube, 8-strip tubes, non-skirt, semi-skirt. |
Input power | 100-240V~50/60Hz,60OVA |
Dimension L*W*H | 427*288*227 mm |
Net Weight | 9.5kg |
Temperature control accuracy | ≤±0.1°℃ |
Block temperature precision | ≤±0.1°C |
Block temperature uniformity | ≤±0.3°C@55°℃ |
Max. ramp rate | ≥5°C/s |
Block control mode | Tube (Reagent volume setting) / Block |
Block temperature range | 0-105℃ |
Hot lid temperature range | 30-105℃,ON/OFF |
cycles setting range | 1-150X, Non cross dual nest loops available. |
Memory capacity | Max 1000 folders, each folder includes max 1000 files. |
Double-block independent operation | Yes, Double-block display, independent operation. |
