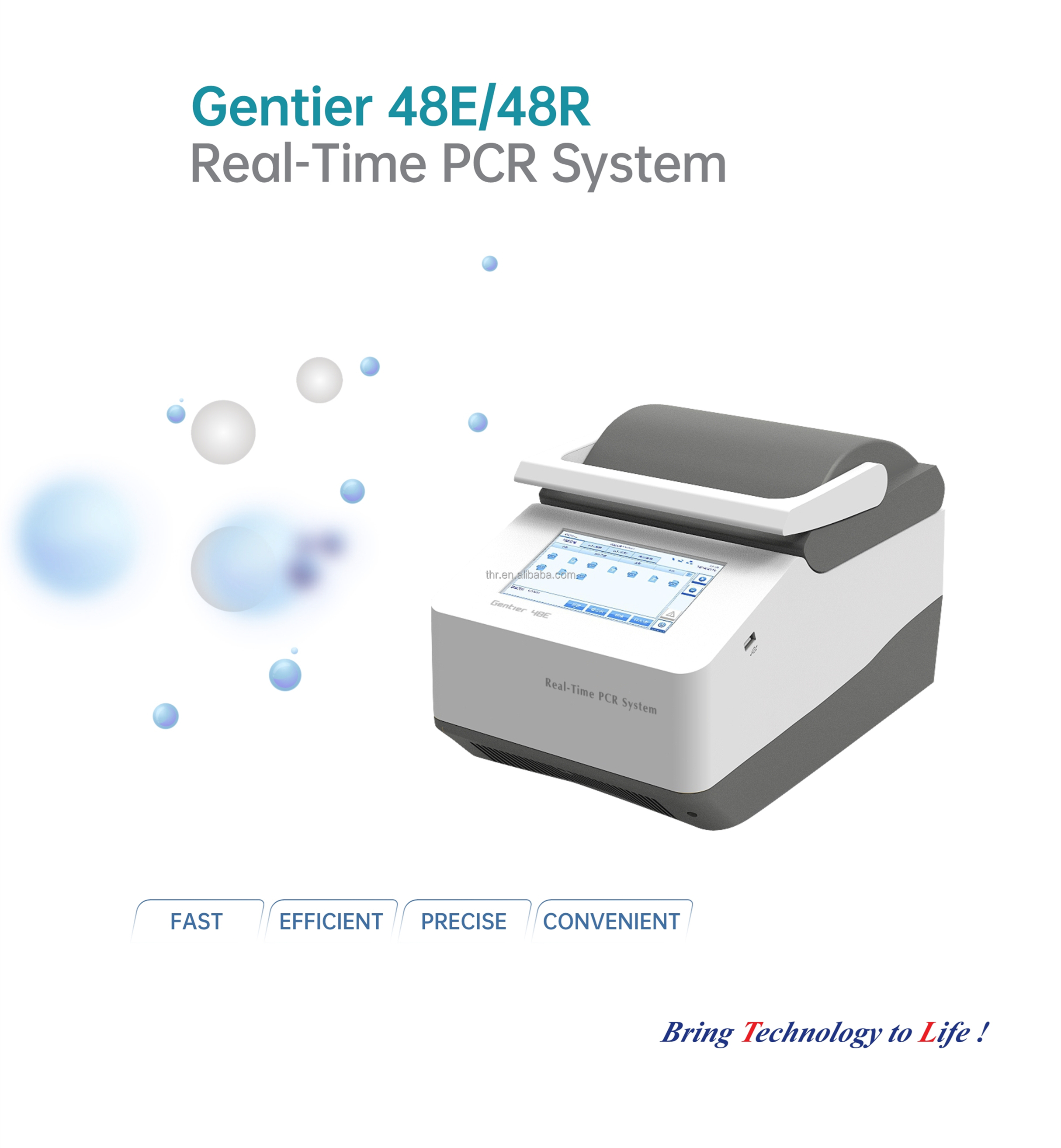

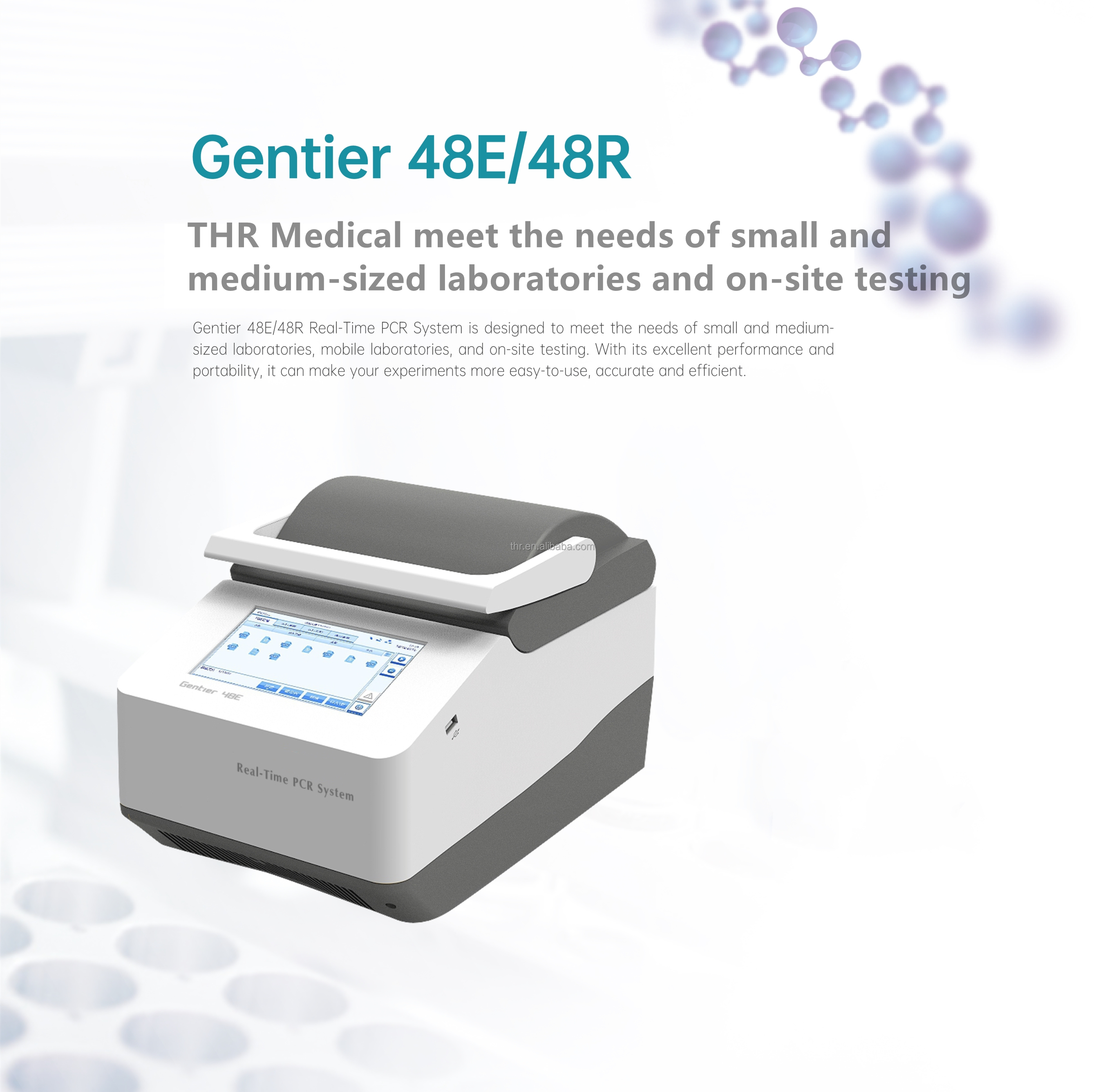

THR-gentier48E/48R
0.00
0.00
Features:
1. 48 sample positions can realize high-throughput detection of multiple samples;
2. Efficient temperature control: temperature accuracy and module temperature control accuracy are both ≤ 0.1ºC, and temperature uniformity is ≤±0.1ºC;
3. Two types of fluorescence detection modules can realize multiple detection of a single sample;
4. Complete the 2-color fluorescence scanning of the whole hole in 2 seconds, shorten your experiment time;

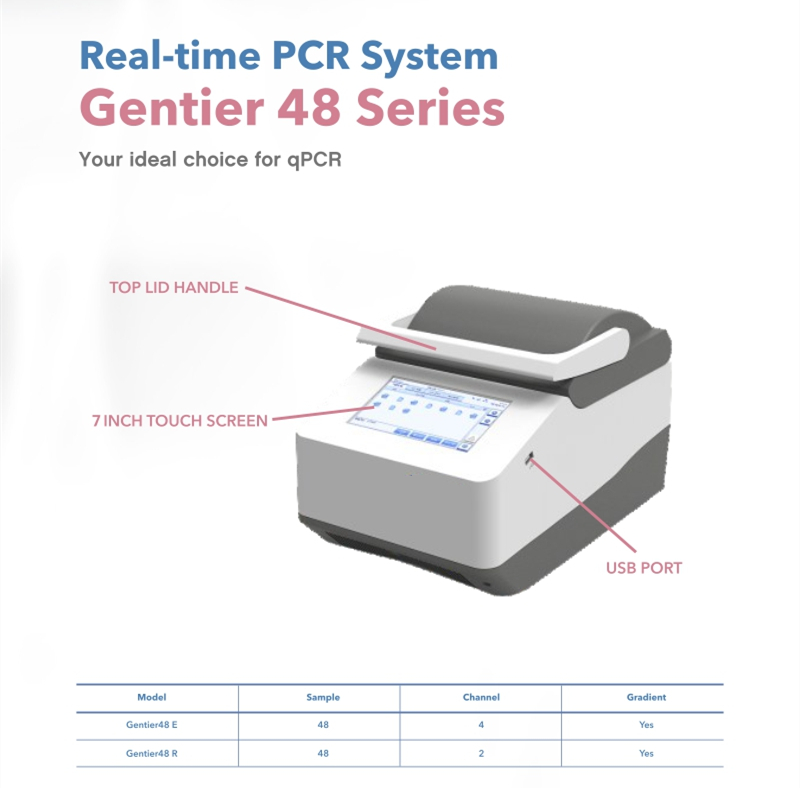

5. 7-inch full-color touch screen, intuitive operation, easy to learn;
6. High-brightness maintenance-free LED light source, without any calibration work after moving;
7. With power-off protection function, the experiment will continue to run automatically after power-on;
8. The software can be upgraded, with multiple analysis functions such as HRM and SNP after the upgrade.
1. 48 sample positions can realize high-throughput detection of multiple samples;
2. Efficient temperature control: temperature accuracy and module temperature control accuracy are both ≤ 0.1ºC, and temperature uniformity is ≤±0.1ºC;
3. Two types of fluorescence detection modules can realize multiple detection of a single sample;
4. Complete the 2-color fluorescence scanning of the whole hole in 2 seconds, shorten your experiment time;
5. 7-inch full-color touch screen, intuitive operation, easy to learn;
6. High-brightness maintenance-free LED light source, without any calibration work after moving;
7. With power-off protection function, the experiment will continue to run automatically after power-on;
8. The software can be upgraded, with multiple analysis functions such as HRM and SNP after the upgrade.
Specification
Model | THR-gentier48E |
Thermal block | |
Sample capacity(wells) | 48 |
Reaction volume | 5-100ul |
Consumables | 0.2ml 8-strip tubes,0.2ml PCR single tube(Optical flat cap. Clear tube) |
Temperature range | 0ºC-100ºC |
Heating/cooling system | Peltier |
Max heating rate | 8.0ºC/sec |
Average heating rate | 6.0ºC/sec |
Max cooling rate | 5.5ºC/sec |
Average cooling rate | 4.0ºC/sec |
Temperature accuracy | ±0.1ºC |
Temperature uniformity | ±0.1ºC |
Gradient range | 1ºC-40ºC |
Gradient block | 8row |
Special temperature protocol | Gradient PCR, Long PCR, Touch Down PCR |
Heat Lid | |
Temperature range | Room temperature-110ºC |
Optical system | |
Excitation Source | 4LEDs |
Detector | Photodiode |
Detection position | Excitation and scan from lateral |
Detection method | 4 channels scanning at the same time, no edge effect |
Detection time | 2 seconds for 48 wells for all channels |
Range of excitation/emission wavelengths(nm) | 1. 465/510(FAM,SYBR Green I,SYTO9,Eva Green,LC Green) 2. 527/563(HEX,VIC,TET,JOE) 3. 580/616(ROX,Texas Red) 4. 632/664(Cy5) |
Probe | Taqman Probe,Molecular beacons probe, scorpion probe |
Multiplexing | Up to 4 targets |
Fluorescence Linearity | r≥0.990 |
Fluorescence Dynamic Range | Adjustable |
Performance | |
Sample Linearity | /r/≥0.999 |
Sample repeatability | Ct value CV≤0.5% |
Sample dynamic Range | 1-1010 copies |
Software Functions | |

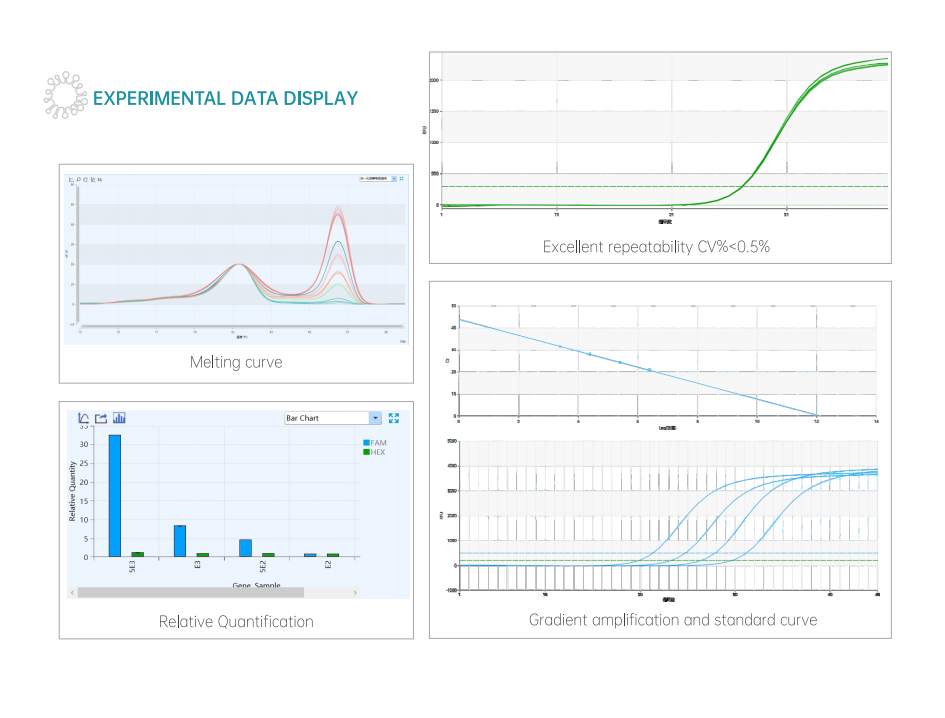

Data Analysis Modes | Qualitative analysis, Absolute quantification, Relative quantification, Genotyping analysis, Endpoint analysis, Melt curve analysis, High Resolution Melting |
Control Modes | 1. 1. 7inch touch screen 2. PC direct control 3.WLAN control(one PC can control max 10 unis, and device can be controlled by any PC in the WLAN) |
Data Storage | Upload and download through USB disk, 1000 results can be stored in machine |
Power failure protection | Automaticly start running experiments after power supply, no need wait PC software |
Customize Report | Templetes reserved, report can customized |
Administration Management | Administratior can set functions limits for users |
Fault Management | Fault report and analysis,solution instruction |
LIS connection | CSV,Excel,TXT format data output, open port for LIS connection |
Others | |
PC operating system | Win7, Win 10 |
Communication Port | 1 ethernet and 2 USB |
Foot print(WxDxH) | 260mmX400mmX260mm |
Weight | 11kg |
Power usage | AC100 to 125V/200to 240V(50/60HZ) |
Power consumption | 600VA |
Work environment | Temperature:10ºC~30ºC Humidity:20%~85% |
