THR-GENTIER 96R

THR-GENTIER 96R

0.00
0.00

Features:
DESIGN FOR FLEXIBLE USE

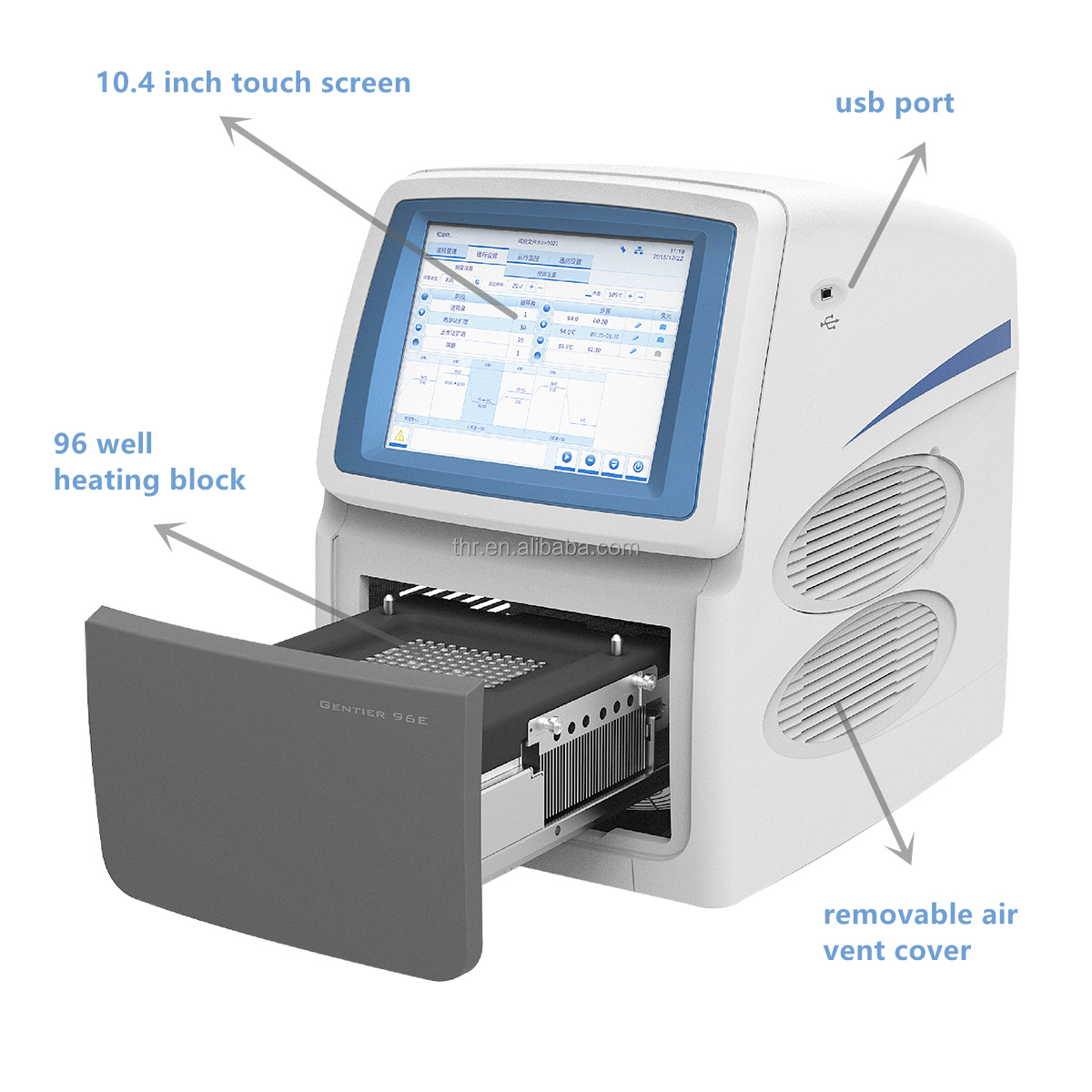

>Standard with 10.4' or 7”LCD touch screen, functions , quickly , accessible through simple, one-touch commands
>Wizard operation to lock and unlock the transport locker.
>Message alarm indicate the status of the machine
> USB port update software and firmware
>Unique power-off protection function can save all the setted configurations for sudden power outages, and allow the experiment continues whenpower supply is restored.

System can be installed in three distinct configurations, providing unmatchedflexibility and convenience.
>1.Co-located configuration(PC control)
>2.Standalone (PC-free) configuration(Data can be export by USB and analysis on PC)
>3.Networked configuration (PC software automatically detect all systems in LAN and allow to remote monitoring one of experimental progress and downloading of the completed run file to the PC at yourdesk,one PC can max control 10 instuments)

FAST AND UNIFORM HEATING SYSTEM
> Concealed lid with constant temperature and isopiestic pressure
>Electrical controlled elevating & automatic locked platform
>Thermo block is based on improved heat pipe technology，leading to extraordinary lintra-welltemperature homogeneity and maximized inter-well, inter-cycle reproducibility.
>Highly efficient PID&DSP control algorithm ensures faster respond and stronger interference resistance, fast and uniform heating and heat sinking
THR-gentier48E/48R
Max heating rate: 8.0°C/s
Avg heating rate: 6.0°C/s
Max coolting rate: 5.5°C/s
Avg cooling rate: 4.0°C/s
Temperature accuracy: ±0.1℃
Temperature uniformity: ±0.1°℃
THR-96R
Max heating rate: 6.1°℃/s
Avg heating rate: 4.5°C/s
Max coolting rate: 5.0C/s
Avg cooling rate: 2.8°C/s
Temperature accuracy:土0.1°C
Temperature uniformity:±0.1°℃
HIGH SENSITIVE AND PRECISE OPTICAL SYSTEM
>High-sensitivity and wide dynamic range of fluorescence detection system, sample dynamic range could be from 10' to 101 copies
>Fast and precise mechanical scanning structure ensures the illumination uniformity of 96 wells,Eliminate edge effects, no need for ROX calibration
>Fluorescence excitation by a high-intensity and long-life LED, Bulb Luminance will not attenuation over time, free maintenance optical system through the entire life
>Professional designed fluorescence filters realize the highly fluorescence transmittance and meanwhile minimize the fluorescence channel crosstalk.
Specification
Product Model
THR-GENTIER 96E
THR-GENTIER 96R
Fluorescence Channels
6
4
Sample Throughput
96
Authoritative Certifications
NMPA, CE, etc.
Compatible Fluorophores
Channel 1: FAM, SYBR Green I, SYTO 9, EvaGreen, LC Green.
Channel 2: HEX, VIC, TET, JOE.
Channel 3: ROX, Texas Red.
Channel 4: Cy5.
Channel 5: Alexa Fluor 680.
Channel 6: FRET.
Channel 1: FAM, SYBR Green I, SYTO 9, EvaGreen, LC Green.
Channel 2: HEX, VIC, TET, JOE.
Channel 3: ROX, Texas Red.
Channel 4: Cy5.
Lightsource
High-brightness, long-life, maintenance-free LED light source
Detector and Detection Position
Photodes (PDs), excitation and scan at top
Detection Method
Simultaneous well-by-well scanning of all fluorescent channels, without edge effects
Detection Duration
Detection of 96 wells of all channels completed in 7s.
Heating & Cooling Rates
Maximum heating rate of 6.1℃/s; Maximum cooling rate of 5.0℃/s.
Temperature Uniformity
±0.1℃
Temperature Accuracy
≤±0.1℃
Special Temperature Setting Function
Support PCR assays of up to 12 thermal gradients, Long PCR, Touch Down PCR.
Analytical Functions
Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, dissociation
curve analysis, and SNP analysis, etc.
Sample Linearity & Repeatability
Linearity: /r/≥0.999
Repeatability: cycle threshold (Ct) value CV≤0.5%
Control Method
Stand-alone operation: 10.4-inch touchscreen control;
Network operation: PC software control via direct connection or LAN (local area network)
Suitable Consumables
0.2 mL 96-well plate, 8-tube strips, single-tube strips (transparent, matte, and creamy)
Power Failure Protection
Automatic recovery of the experiment and other functions when the power is on again after cutting off, without waiting for the
power-on of the computer or software control.
Data Storage
> 1000 experimental data for stand-alone operation
Customized Reporting
Lab report templates of various industries pre-stored
Open and universal reporting function, user-definable report content and form
LIS Functions
Open data port, synchronized interconnection with LIS system
Size and Weight
355mm x 475mm x 484mm (W*D*H), 30kg
Power
AC 220 V, 50 Hz 900 VA.
