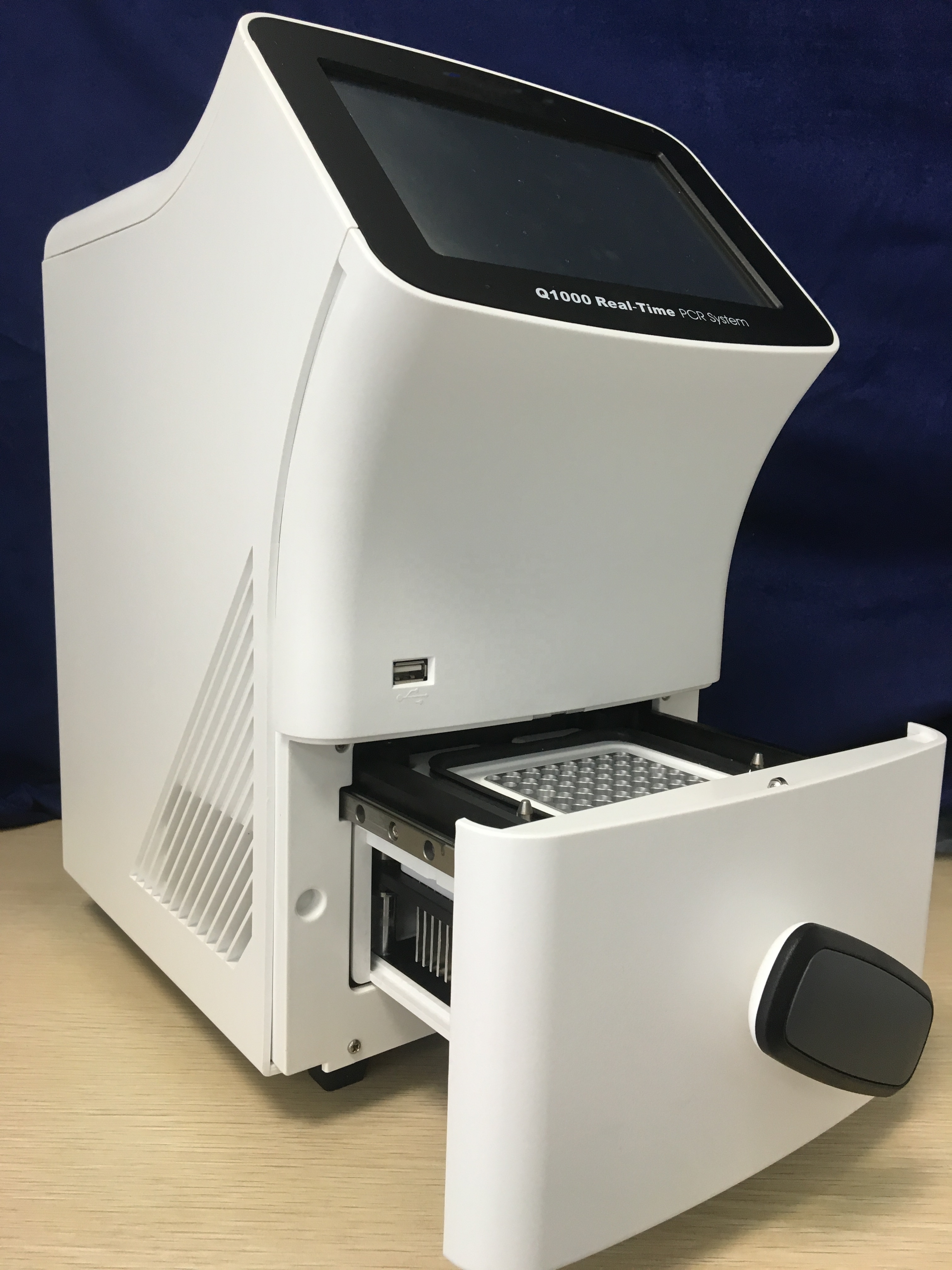

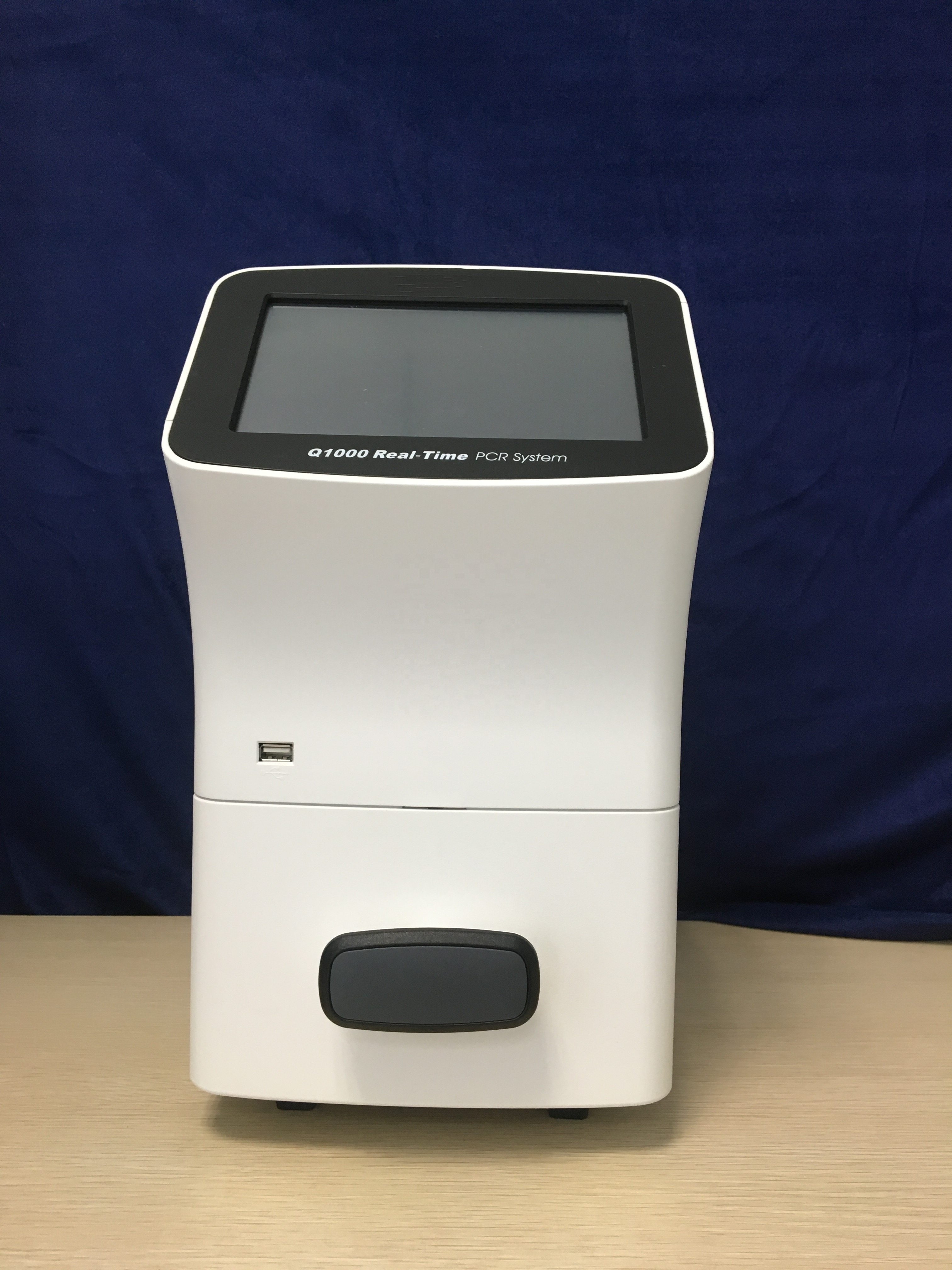

THR-Q1000/Q1000+
0.00
0.00
Specification
Model | Q1000+ |
PERFORMANCE | |
Sample Block Capacity | 48 wells *0.1ml |
Reaction Volume | 10-50ul |
Tubes Option | Low-profile white or clear 0.1 ml PCR tube/8-tube strips with optical flat cap |
Healing &Cooling Technology | New generation Peltier technology allow 1.000.000 cycles |
Control Methods | Operate via PC control or Iimited function on instrument |
Language | English |
Communication Ports | USE 2.0& LAN |
Display | 7”Color TFT Touch Screen |
TEMPERATURE | |
Block Temp.Range | 0℃—105℃ |
Max.Heating Rate | 7℃/sec |
Max.Cooling Rate | 5℃/sec |
Temp.Uniformity | ±0.2℃at90℃ |
Temp.Accuracy | ±0.1℃(10 seconds after reach 90℃) |
Display Resolution | 0.1℃ |
Heat Lid Temp.Range | 30℃—112℃ |
Temp.Control Mode | Block & Sim-tube mode |
Gradient Range | 30℃-100℃ |
Temp.Differential Range | 1℃-24℃ |

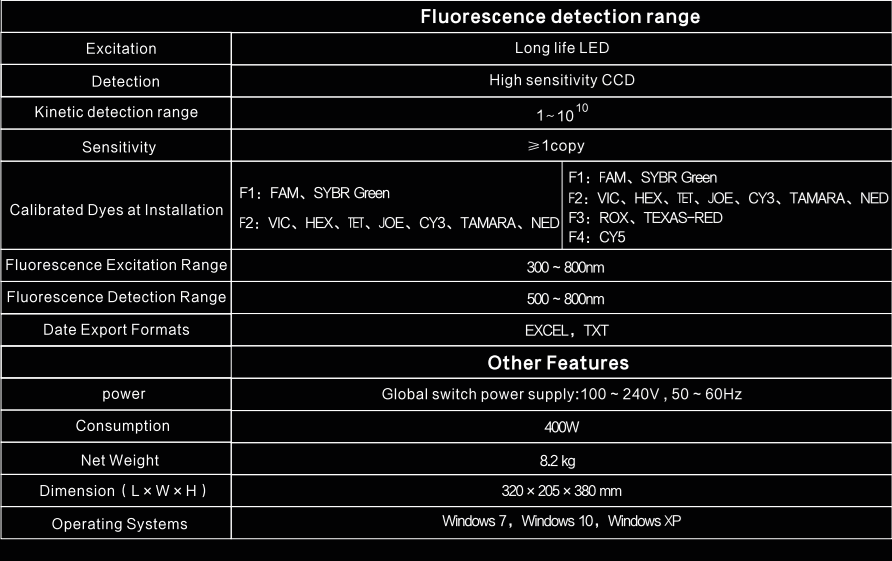

OPTICAL MODULE | |
Excitation | Long life LED |
Detection | High sensitivity photoelectric detector |
Dynamic Range | 1—10¹º |
Detection Sensitivity | ≥1 copy |
Calibrated Dyes at Installation | Channel 1:FAM,SYBR; |
Channel 2:VIC,HEX,TET,JOE,CY3,TAMARA,NED;Channel 3:ROX,TEXAS-RED; | |
Channel 4:CY5 | |
Fluorescence Excitation Range | 300-800nm |
Fluorescence Detection Range | 500-800nm |
Date Export Formats | Excel. TXT |
OTHER FEATURES | |
Power | Global switch power supply:100V-240V,50-60Hz |
Consumption | 400W |
Net Weight | 8.2kg |
Dimensions(L×W×H) | 320×205×380mm |
COMPUTER | |
Operating Systems | Windows7,Windows10,WindowsXP |
