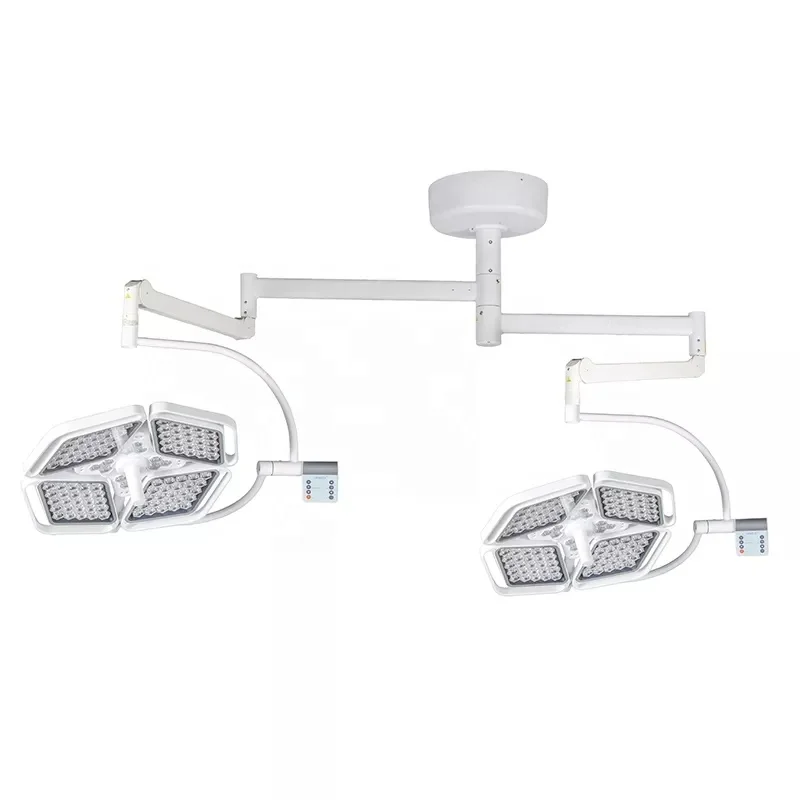

THR-L4+4C LED
0.00
0.00
Uniform,homogeneous lighting in surface and deep cavity procedures thanks to THR-L4+4C-LED´s innovative shadow control.Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
Environmentally proactive: low power consumptionn and durable LEDs minimize the impact on our precious resources.
◆Precise dimming control for various lighting request:
With 16-stage illuminance adjustment, 4-stage color temperature adjustment, 16-stage spot size adjustment by electrical control, endo mode, R9 mode.
◆Unique maintenance room for quick and easy maintenance:
◆Unique maintenance room for quick and easy maintenance:
The innovative design of photoelectric separation keeps the circuit board way from heat sources. It increases the services life time, also improves the simplicity, economy and timeliness of the maintenance. What’s more, the control box can also be easily opened and maintained.
◆With removable, sterilizable handle:
◆With removable, sterilizable handle:
The removable, sterilizable center handle makes it easy for doctors and nurses to control the direction and depth of the light.
◆Aluminum alloy precision casting modular design with flexible combination and durability:
◆Aluminum alloy precision casting modular design with flexible combination and durability:
The modular lamp boby is made of high-quality aluminum alloy, and the peripheral auxiliary handle can help the user with accurately position.
◆Superior laminar flow design:
◆Superior laminar flow design:
The streamlined lamp body design and careful assembly can increase the flow efficiency of the airflow and remove the dust and bacteria around the lamp body.
◆Original thermal management system to effectively reduce the temperature of chip core:
◆Original thermal management system to effectively reduce the temperature of chip core:
The cast high-heat-conducting aluminum alloy radiator increases the internal heat-dissipation area, which can instantly derive heat, and with high-efficiency LED bulbs, allow to effectively reduce the temperature of the lamp and improve the service life of the lamp.
◆High-density light mixing system makes for precise, handy dimming:
◆High-density light mixing system makes for precise, handy dimming:
Using Hfmed’s special high-density light mixing technology, it provides high brightness with great quality, and it’s with 16-stage illuminance adjustment form 40,000lux to 160,000lux and 4-stage color temperature adjustment from 3500K to 5000K.
Specification | |
Technical Parameters | THR-L4+4C LED |
Illuminance(Lux) | ≥160,000lux/≥160,000lux |
Color temperature | 3500±300K,4000±300K,4500±300K,5000±300K |
Colour reduction index(Ra) | 96 |
Total irradiance | 380W/㎡/380W/㎡ |
Size of light field | 120-250mm |
Service life of illuminant | ≥50,000h |
Power supply voltage | AC110-240V,50/60Hz |

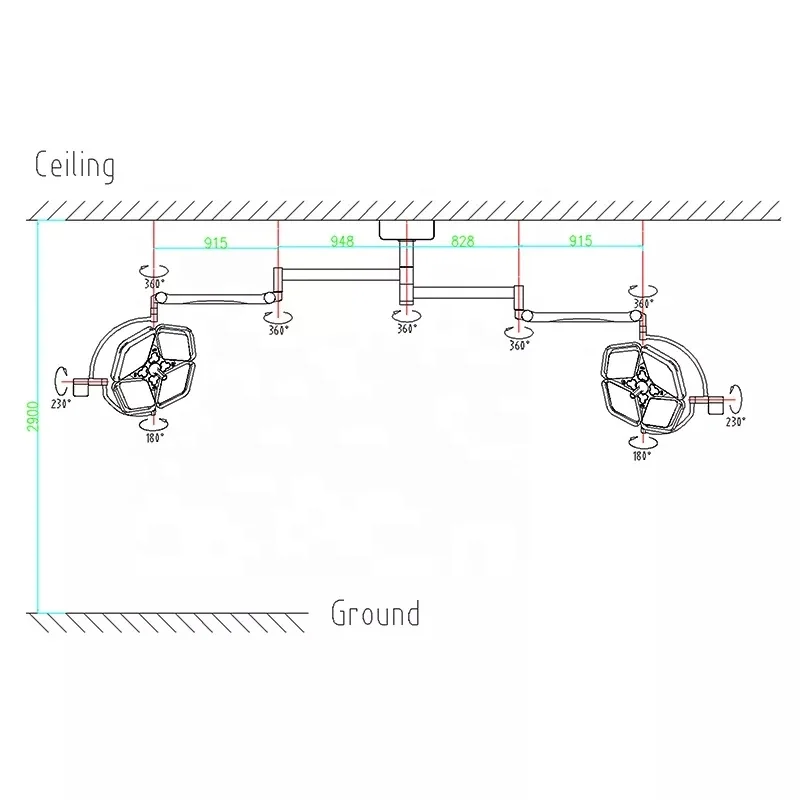

Best height of installation | 2900mm |
Total Power Consumption | 100W |
Total LED bulb quantity | 224pcs |
Green ENDO | YES |
Dimming Type | Analog dimming |
Depth Of Illuminance | 1000mm |
Light Focus adjustment System | Manual |
Terperature at surgeon's head | ≤ 1°C |
Color | White+dark gray |
LED brand | OSRAM |
Material | aluminium alloy+PC |
