THR-XR-110
0.00
0.00
I、Brief Introduction

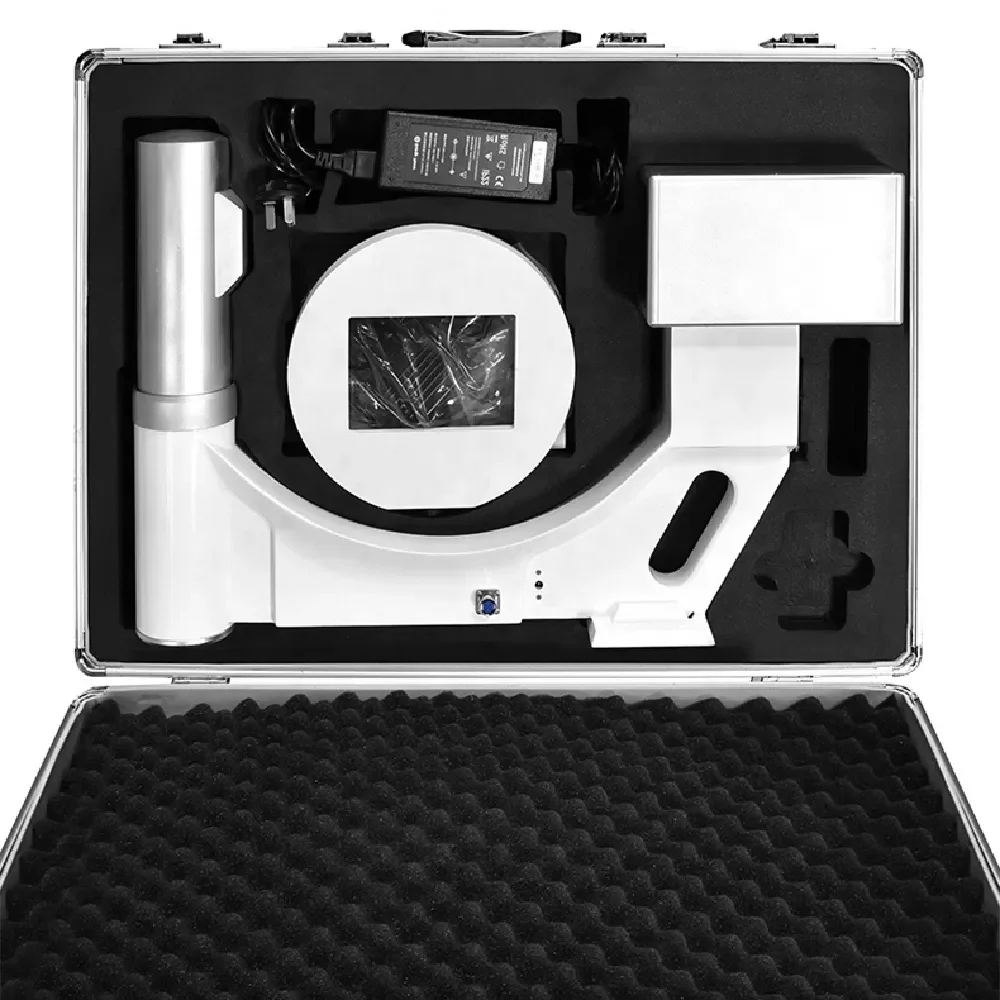

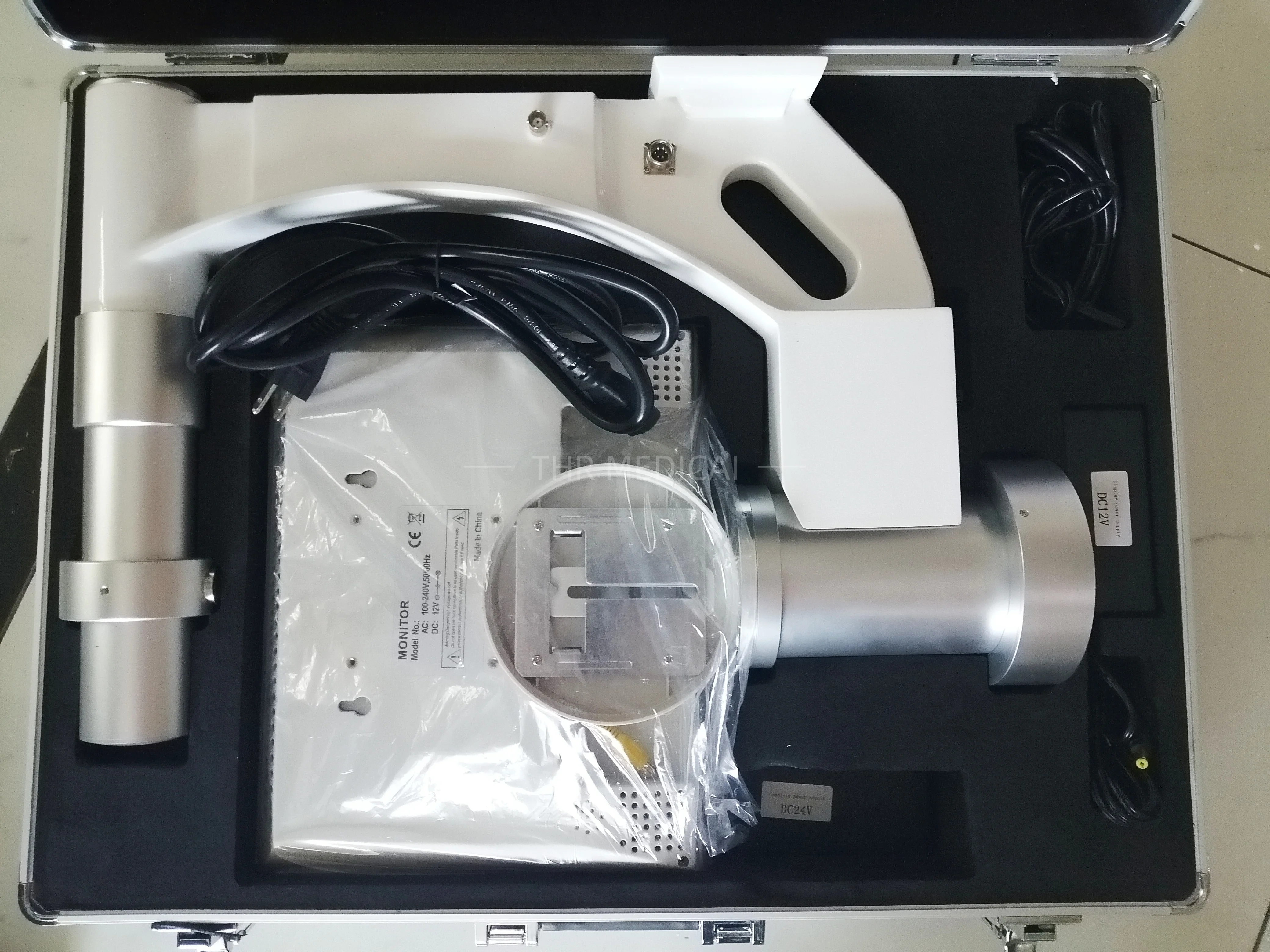

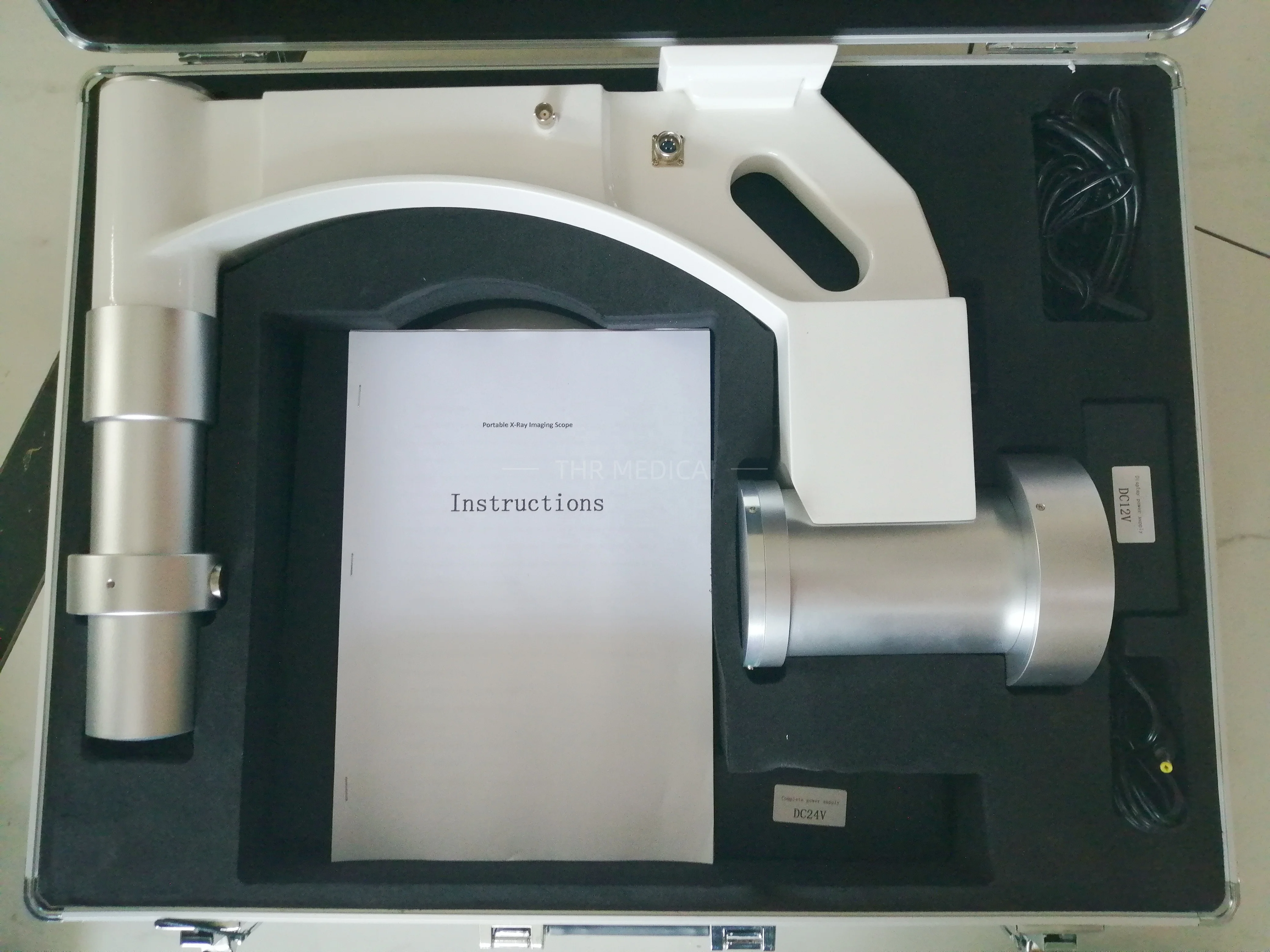

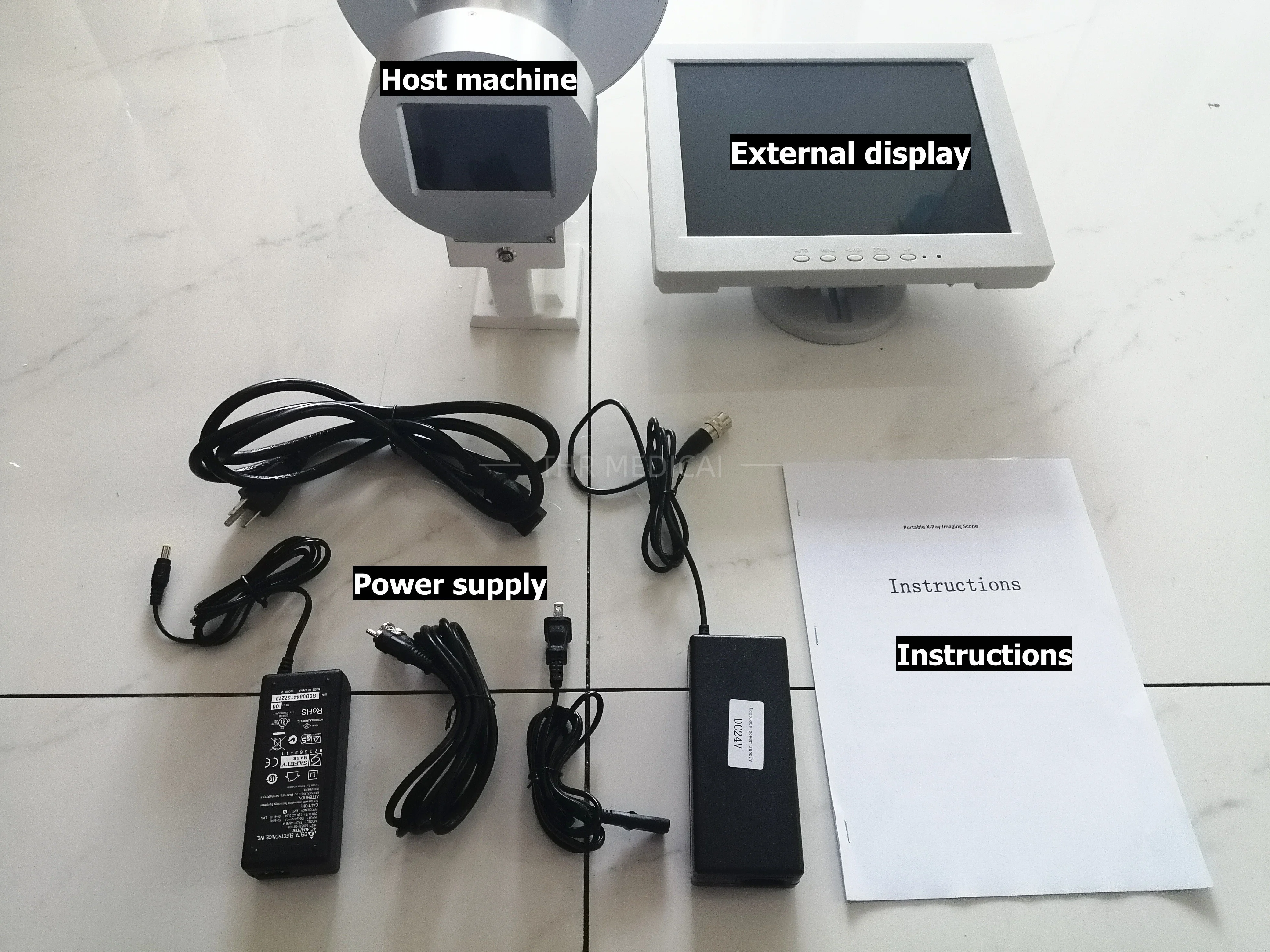

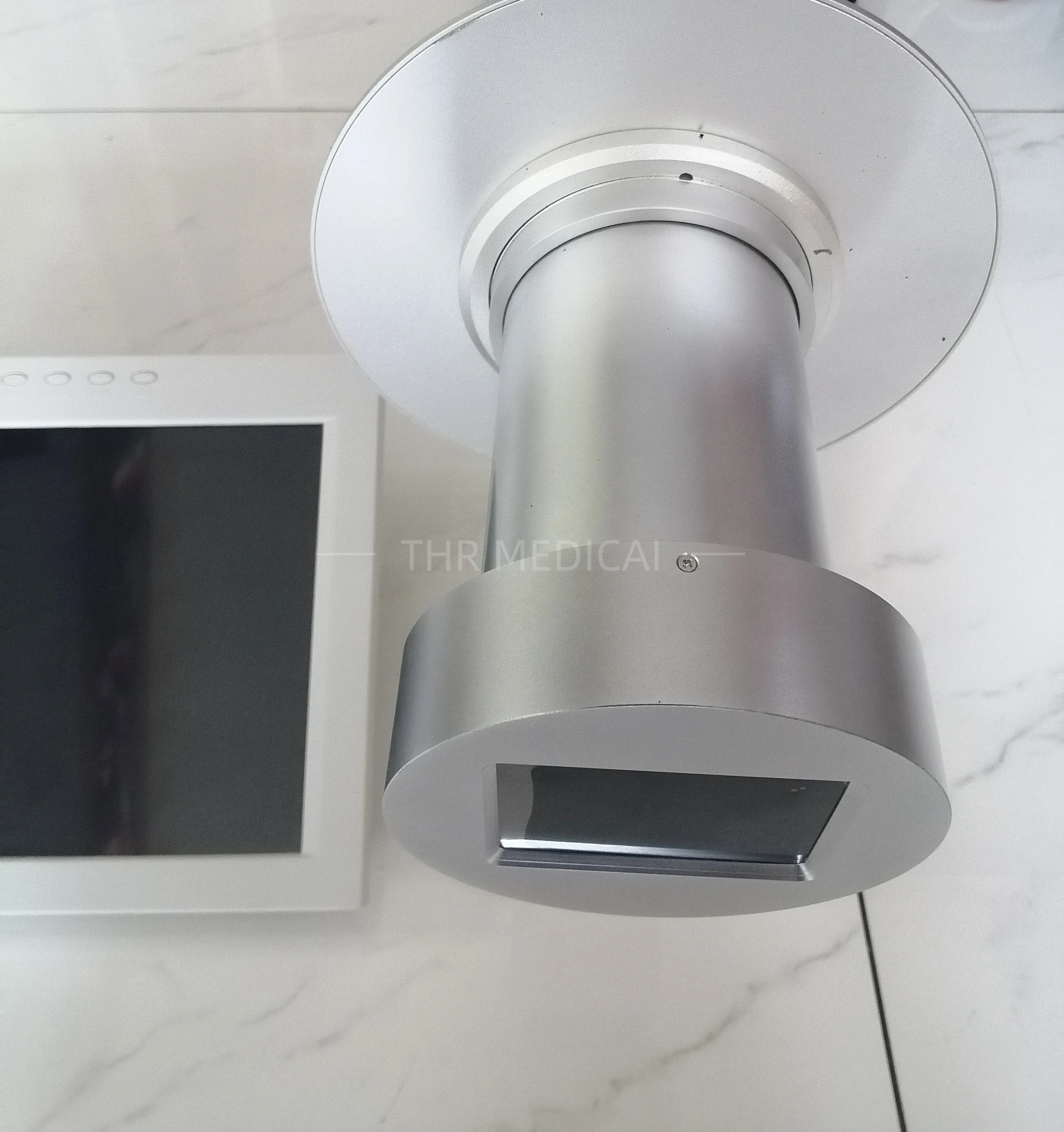

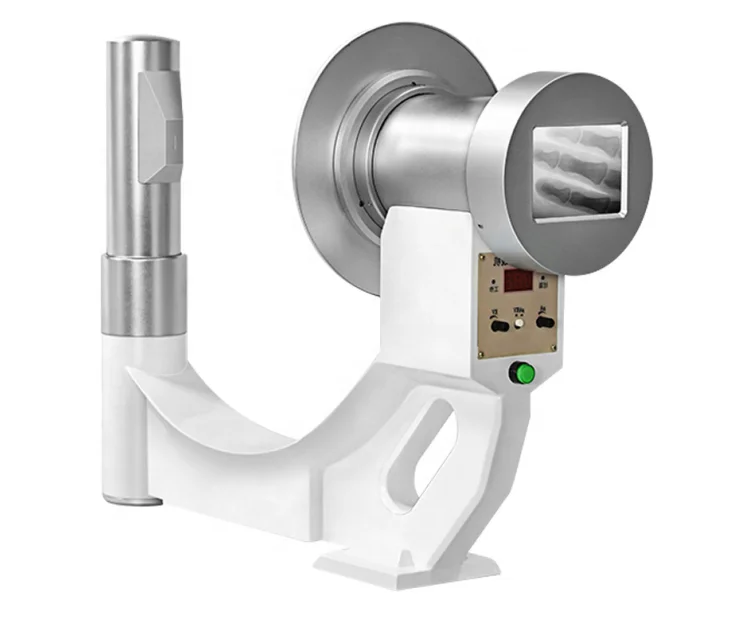

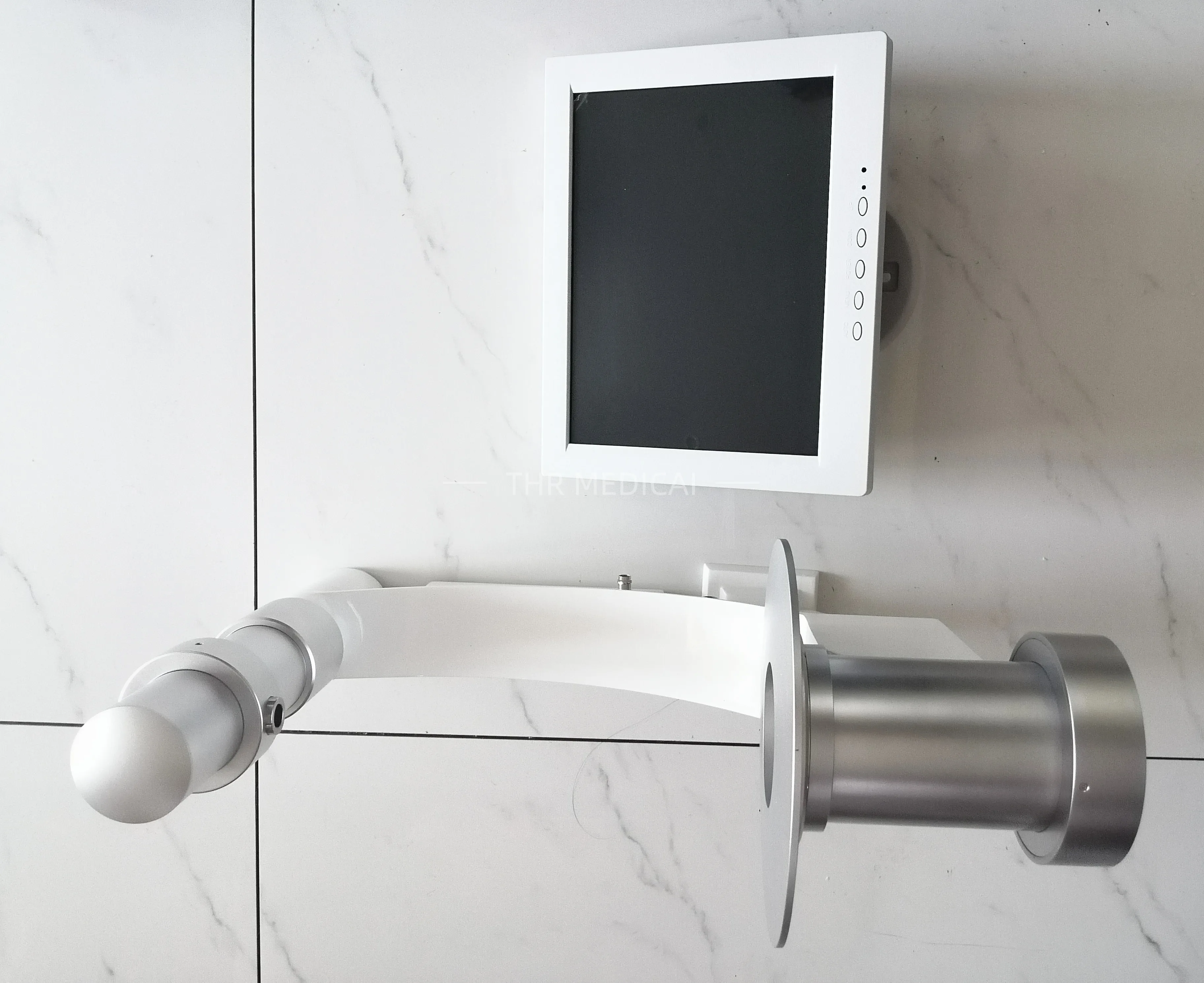

Low-Intensity Portable X-Ray Imaging Scope , a new type of X-Ray medical instruments in the world, consists of main engine and power supply. From the appearance, the main engine adopts the structure of C-Type-Arm, which amplfies the radius of observation. At the same time, the materials select ABS engineering plastics, heightening the insulation capacity.
Because of adopting MCP-X-Ray imagine strengthening device, having compact texture, high gain, high resolution, the scope can produce clear real-time images without darkroom. The advance technology of widening pulse is used to control electrical appliance of X-Ray tube, which has many measures to be protected, so it has high working stability and no noises.

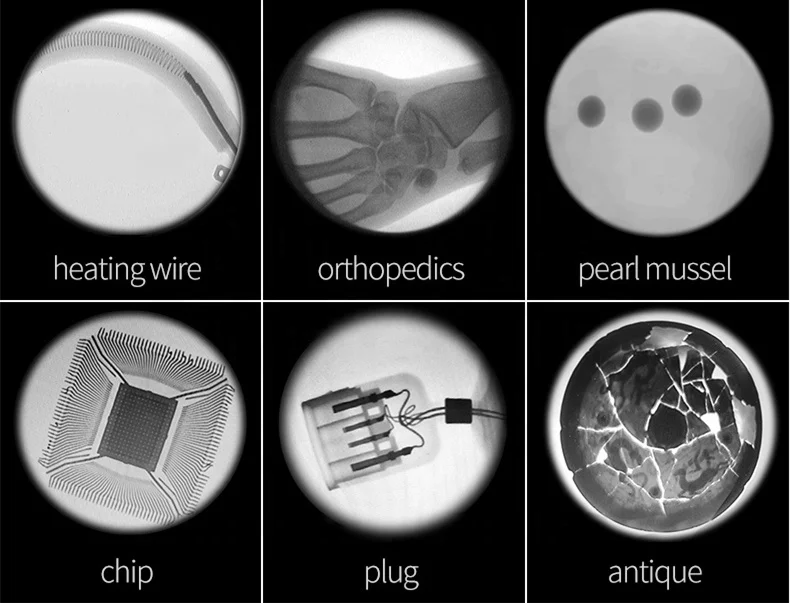

In addition, the scope takes strict precautions, the leak of X-Ray reducing, and then the operators do not need any protections. This scope applies to orthopedics and pediatrics in the hospitals，it applies to various field rescues in such as industry materials and apparatus quality inspection, athletes, armies, field working and safety checking, and So on.
2.Specifications and Conditions
Specification | |
output image size | 3.5inch |
survey thickness | ≤300mm |
resolution | ≥20LP/cm |
brightness | ≥60cd/㎡ |
mage luminance | ≥200lm |
x-ray tube voltage | 45-70kv continual adjust |
tube current | 0.25-0.5mA |
x-ray leakage rate | ≤1mGy/h |
power consumption | 200w |
power supply | 220v50Hz |
Conditions | |
Temperature | 10°C~40°C |
Relative humidity: | ≤75% |
Atmospheric pressure | 700~ 1060hpa |
