PRODUCT DETAILS
PPRODUCT DETAILS
THR-US800S

THR-US800S

0.00
0.00

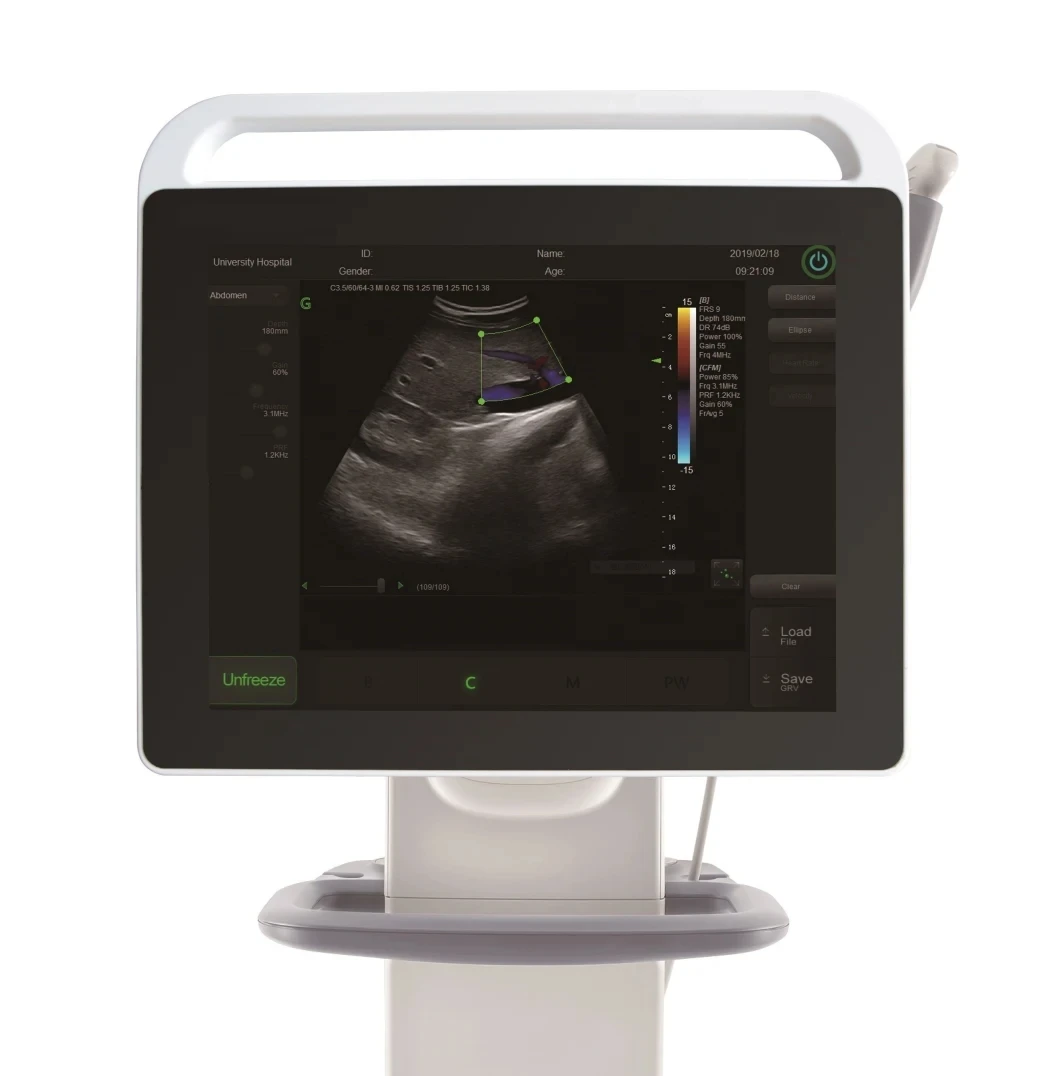

1. Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors. 2. Built-in battery,which can be contentiously worked at least 3 hours when power off. 3. Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics/Musculoskeletal and so on 4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color, Simultaneous2D/3D Color Compound, PW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode 5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc. 6. Built-in DICOM 3.0 protocol 7. Multi-languages function: English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian,German,Persian, Thai and so on.

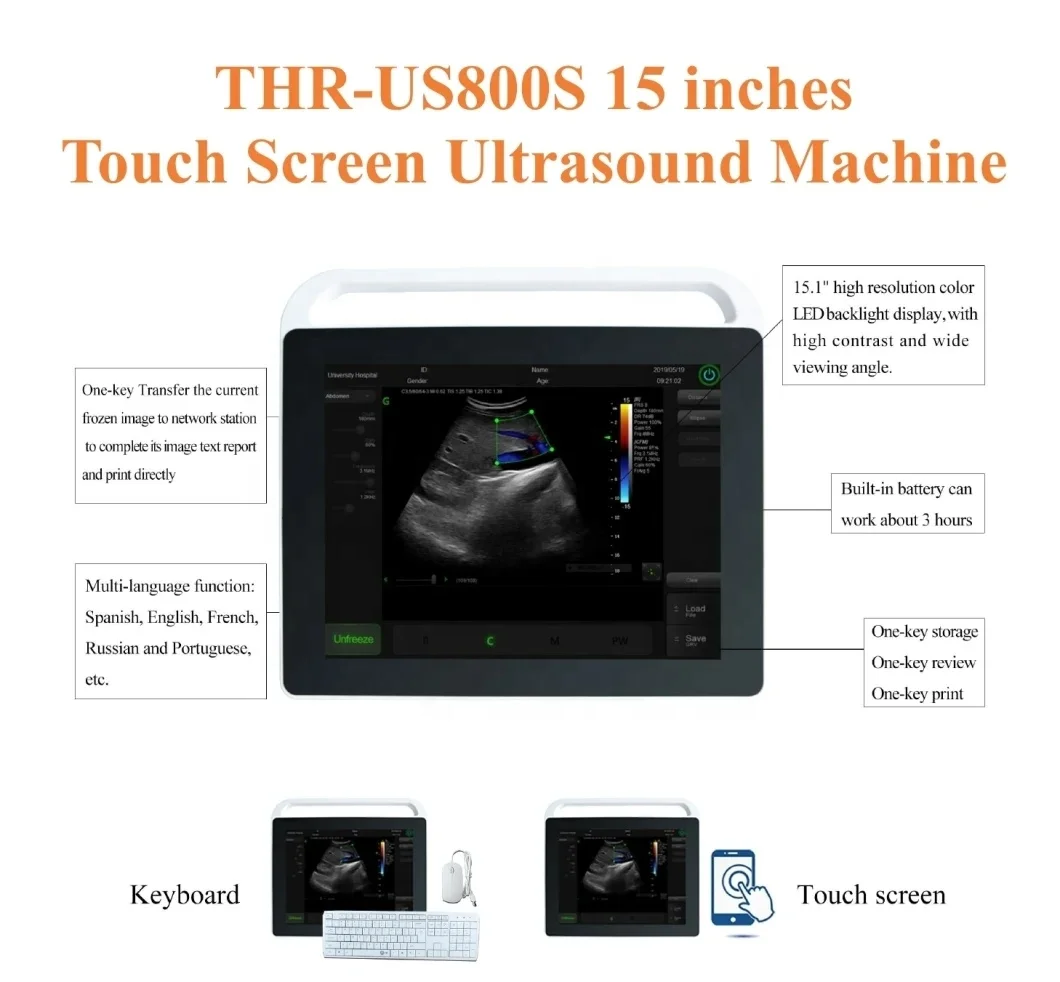

15.1' high resolution color LED backlight LED dispay, with high contrast  and wide viewing angle.

Adopt ARM7 embedded control system, +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.

Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;

Body marks: total 64 kinds body marks indicating probe position; Display mode: B, 2B, 4B, B/M, M; Adjustable depth: 10 grades, max depth to 236mm; Gain: 0~127dB; Contrast: 27~90dB; Gray scale: 256; 8 steps intelligent TGC; Frame frequency: 30 frames cond

8 kinds pseudo colors;

Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off.

Cine loop:256 frames;

Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);the gravel software package with real-time position line measurement

Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.

Cardio measurement: Depth, slope, heart rate, cycle;

Gynecology measurement and analysis: gynecology general measurement and gynecology report.

OB measurement including: 15 kinds of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.

Urology measurement and analysis: residual urine volume, prostate volume, and urology report.

One-key store: concise and practical;One-key review: fast, practical image review function; One-key Print;One-key Transfer the current frozen image to net workstation to complete its image text report and print directly; Concise and practical, easy operation. The system includes network workstation to complete data & report management;Display brightness adjustable; Dual TV output: PAL/NTSC, can connect video printer when necessary; Power supply: 100-240V~ 1.2-0.6A frequency:50-60Hz; Power supply adaptor output:DC12.8V 3.0A; Main unit weight: 2.9kg without accessories); Main unit dimension: 380×300×65mm(L×W×H);
Main basic configuration
Main unit 1pc;
3.5MHz convex probe 1pc;
Power supply adaptor 1pc;
Reticle 1pc;

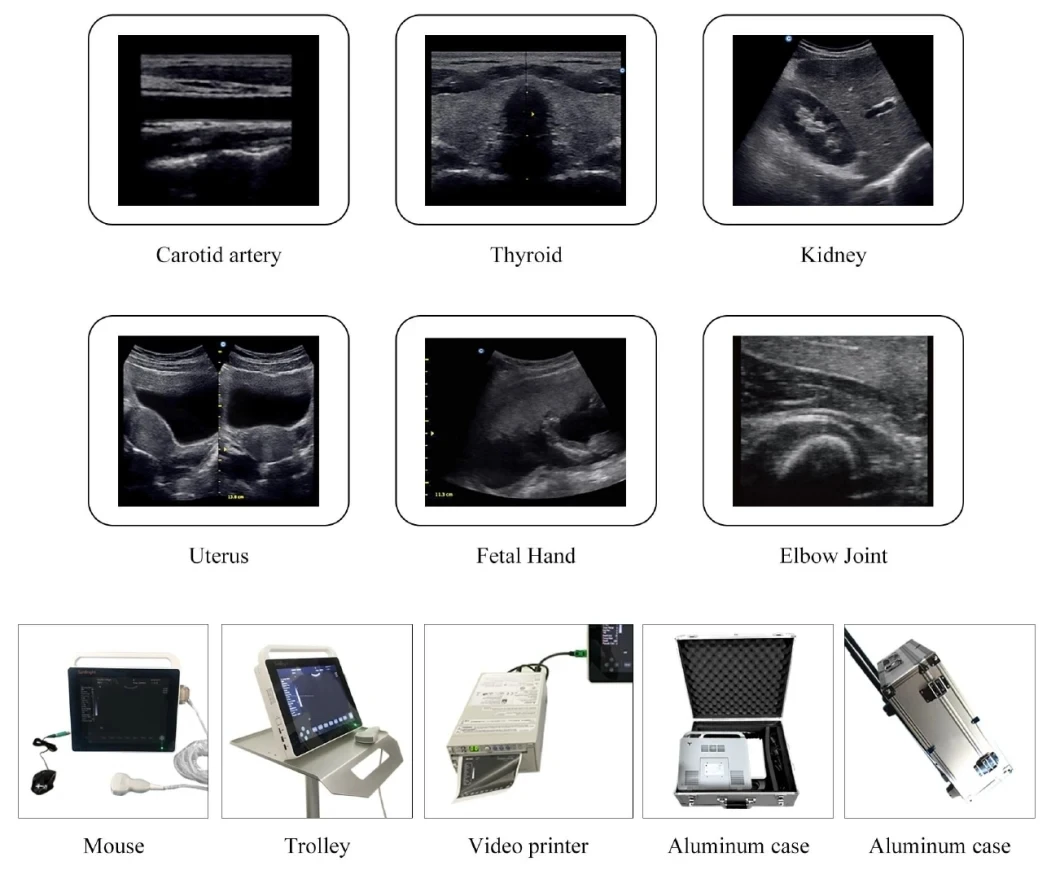

Optional parts
Optional probes
6.5MHz multi-frequency trans-vaginal probe(through vagina) 5.0MHz/ 6.5MHz micro-convex probe
7.5MHz multi-frequency linear probe
7.5MHz multi-frequency cavity probe (through anus)
Battery charger Li-battery: HYLB-1614 11.1V-4400mAh 48.84
Wh Touch screen
Trolley
Office printer
Ethernet Switch
