Product Description

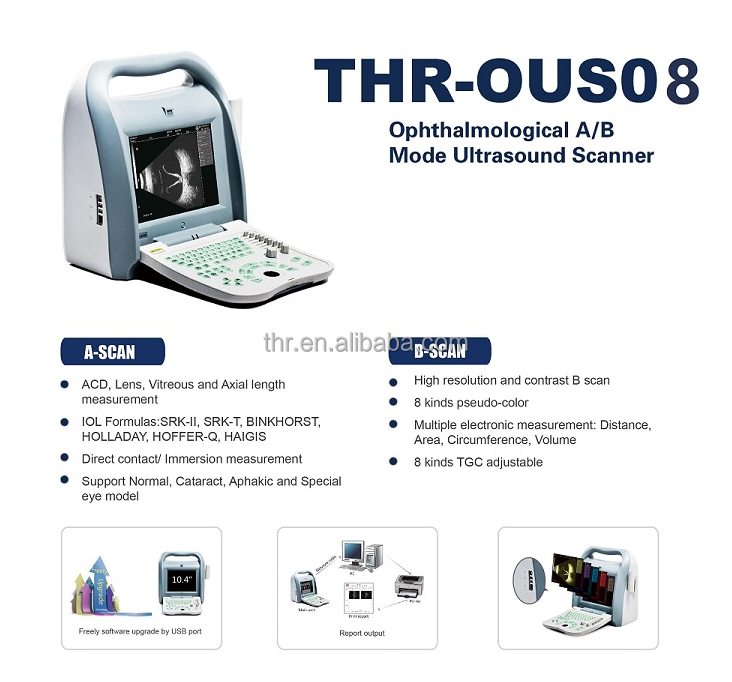

THR-OUS08 portable ophthalmic A/B ultrasound scanner

A scan parameter:
Measuring range:
15-35mm.
Measuring accuracy:
±0.02mm.
Measuring parameter:
ACD, LENS, body Length, axial length.
Eye mode:
normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.
Measuring Mode:
Contact and Immersion, automatic and manual.
Calculation:
std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
Measurement methods:
A single-point measurement(under A mode); five-point measurement(under A mode).
IOL Formula:
SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc.
And long term save 100 groups of measurement results of A scan.
Magnification:
×1.0,×2.0,x4.0.
Display Depth:
0~36mm , delayed depth: 0--36mm.
Measurement Way:
A single point measurement

B scan parameter:
Scan mode:
High accuracy stepping motor drive sector scan.
Scan Angle:
53°
Display Depth:
0~88mm(incl.delayed depth)
Delayed depth:
25--32mm
Gray:
256
Frame frequency:
30frames/s
Depth seletion:
8
Frame correlation:
4
Edge enhancement:
4
Compression Curve:
8
Post-processing:
8
Eight Pseudo colors:
8 kinds (incl. B/W)
Image storage
100 frames permanent image storage.
Cine loop:
256 frames,can measure the playback image.
Disk
Disk management.
General Measurement:
multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
