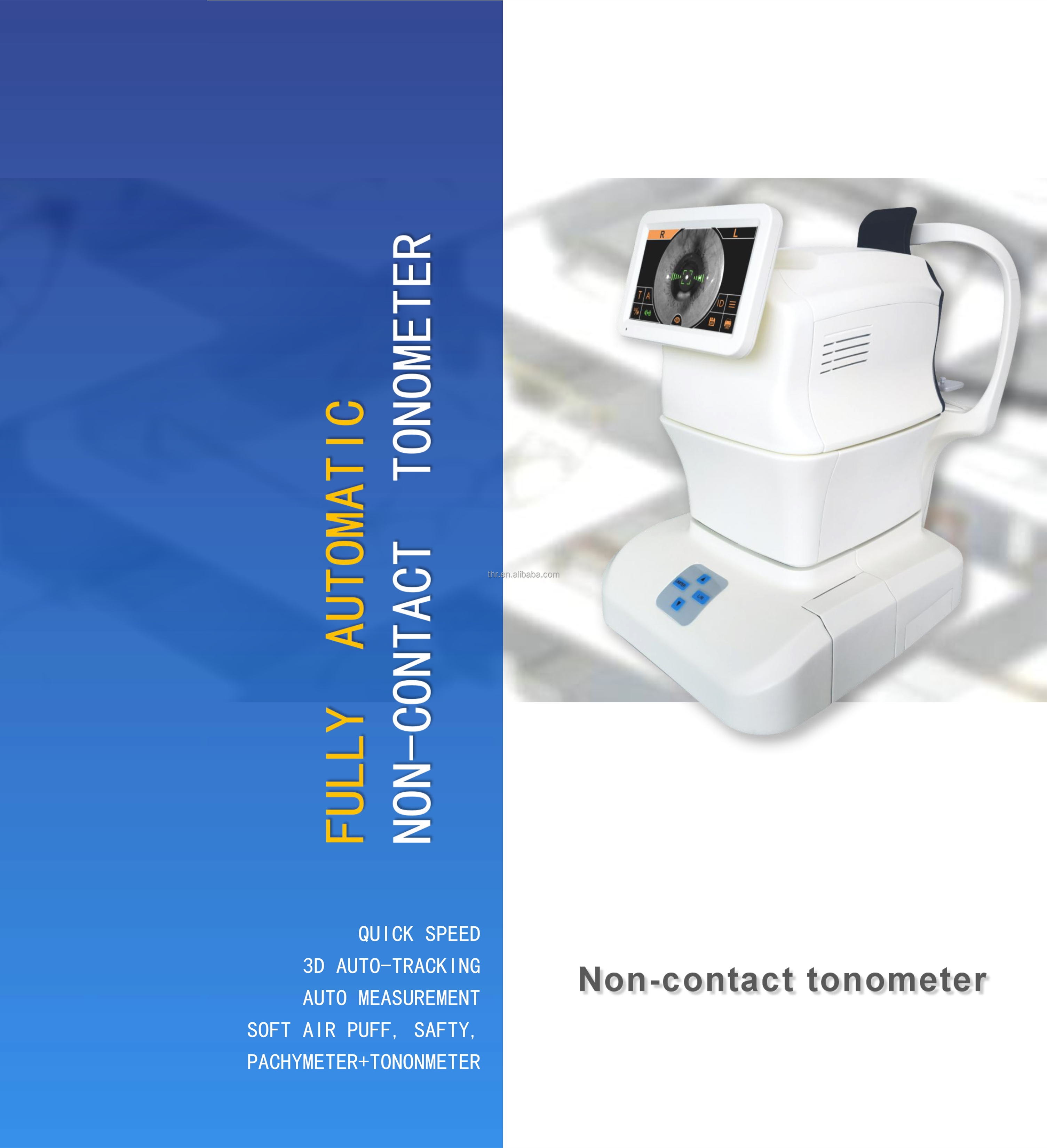

THR-OT500A/B

THR-OT500A/B

0.00
0.00

Product Description

Feature

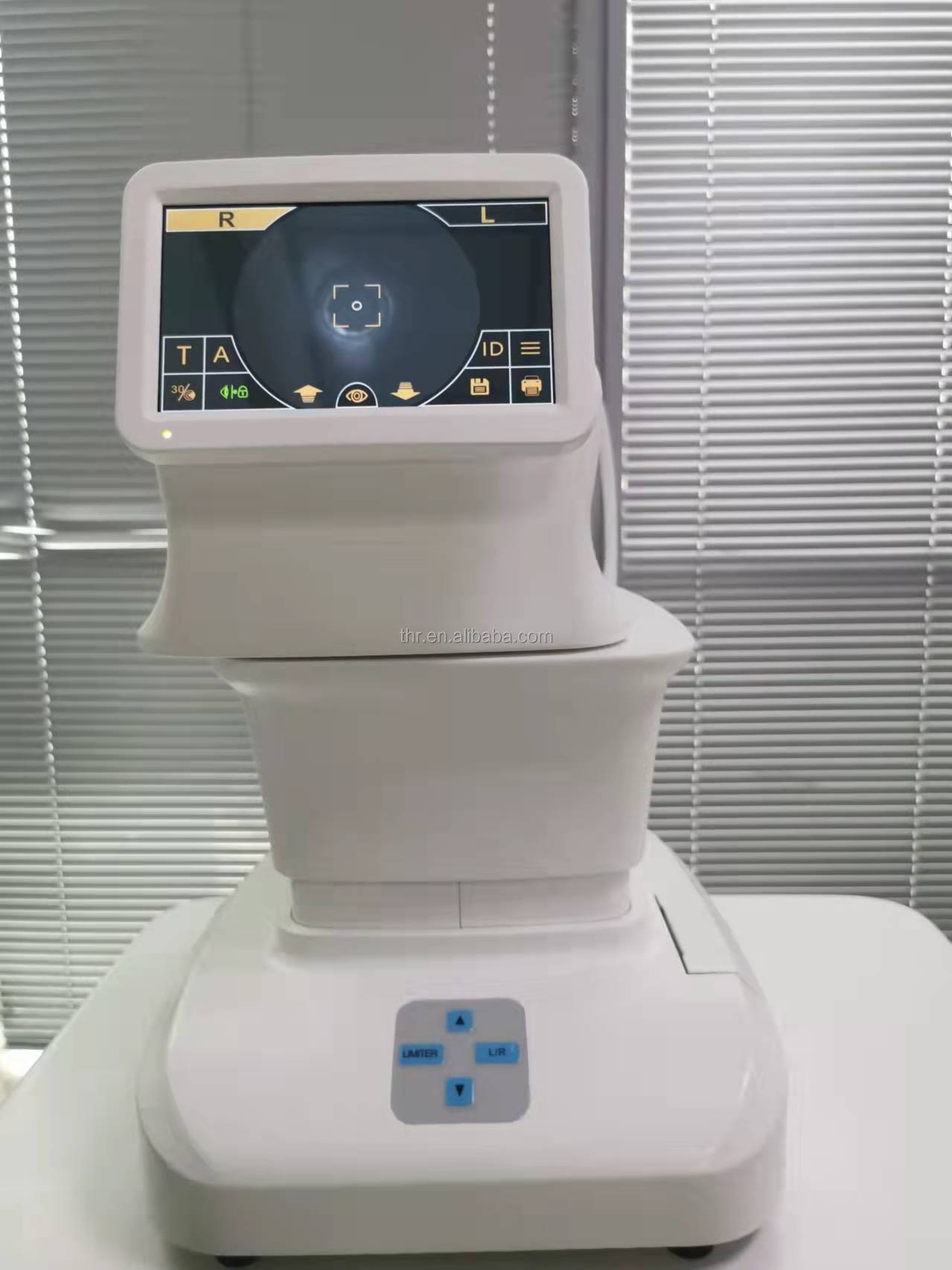

1. 7” Touch screen , can be turned 180°up and down, 60º left and right.

2. 3D tracking, motorized chinrest , full automatic,finished one eye will automatic move to another eye , till finish , do not need doctor do anything. 3. Auto print . 4. The accurate corneal thickness measurement function is provided to provide intraocular pressure. Compensation value and automatically calibrate the intraocular pressure value 5. The machine can be connected to the database system through DICOM3.0 to archive and read the dta , which conforms to new era hospital standard.

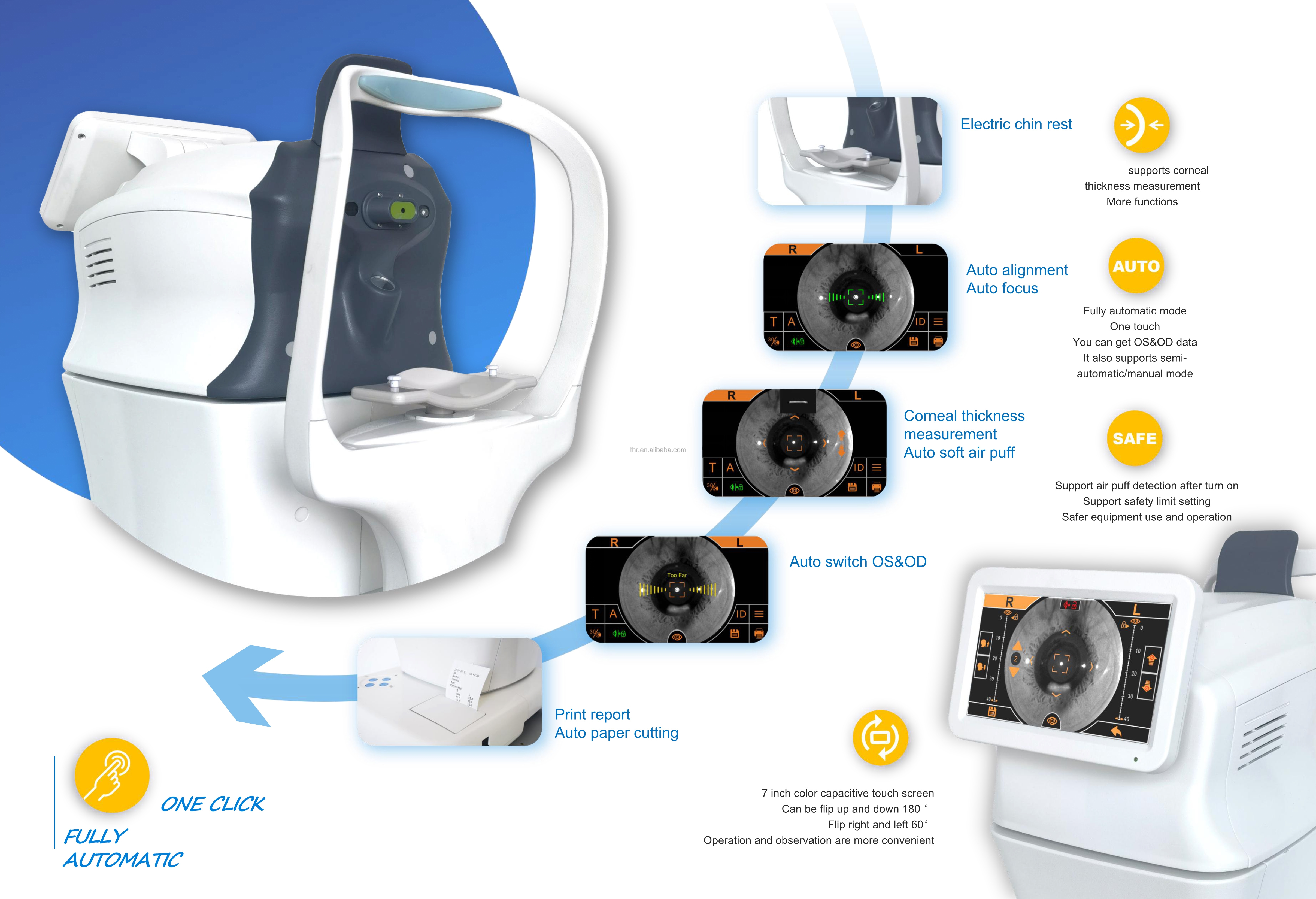

Fully automatic mode

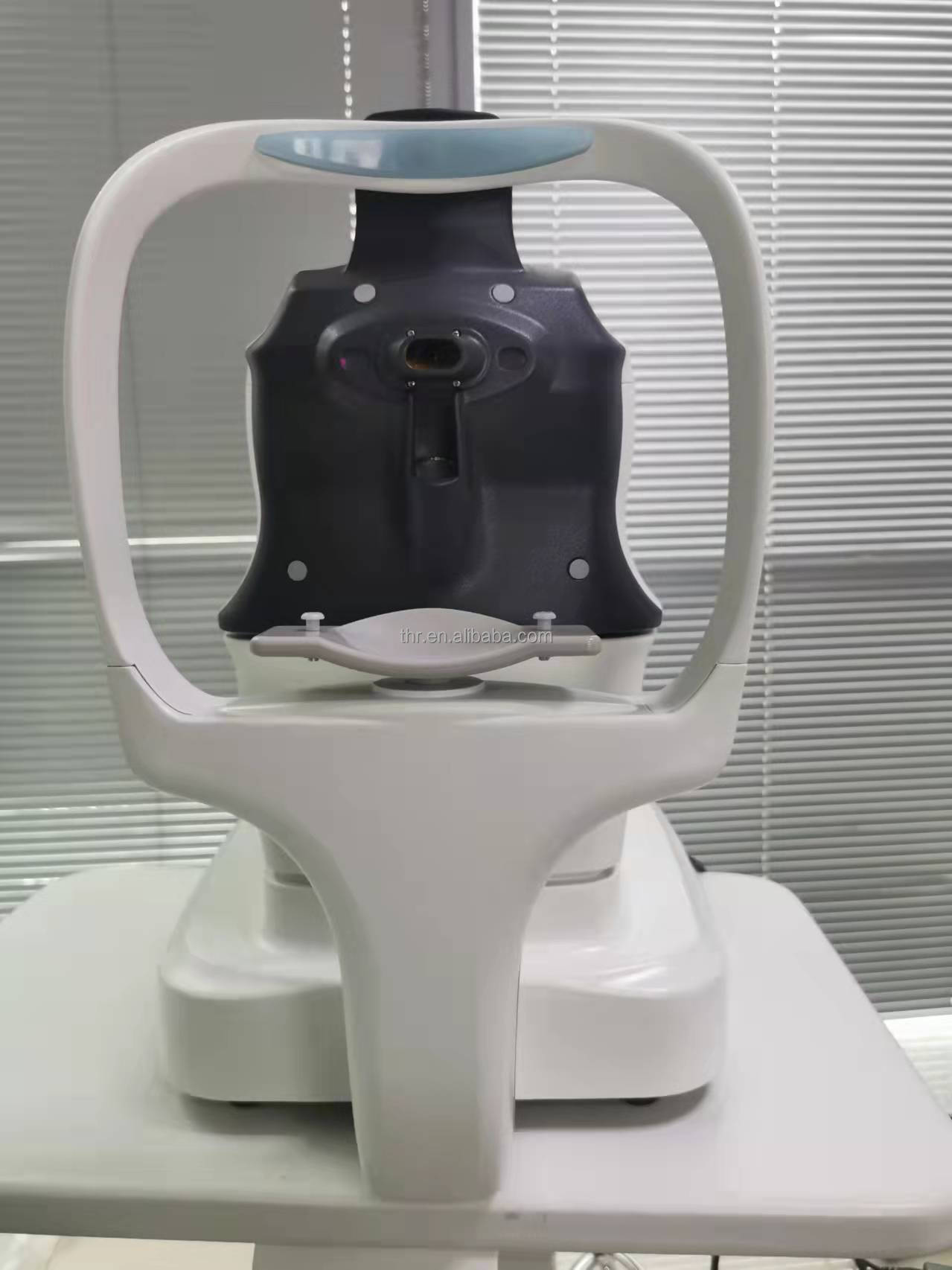

Electric chin rest,

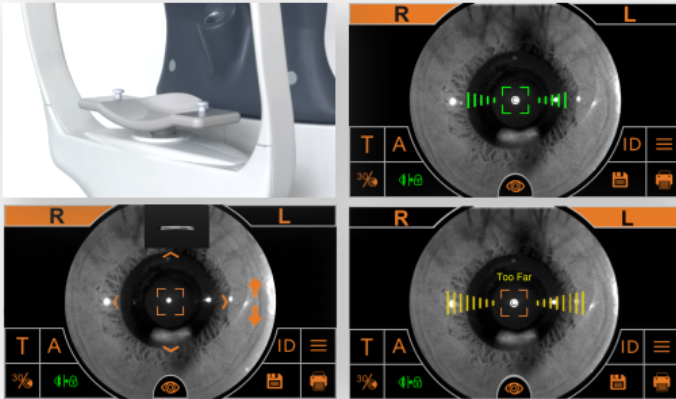

Auto alignment
Auto focus,
Auto soft air puff,
Auto switch OS&OD,
It also supports semi automatic/ manual mode

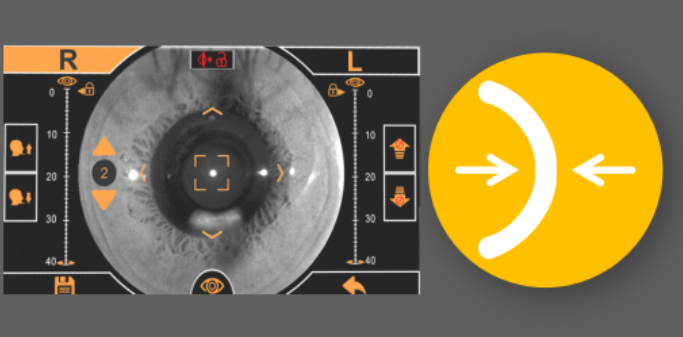

Corneal thickness measurement Supports corneal thickness measurement More functions

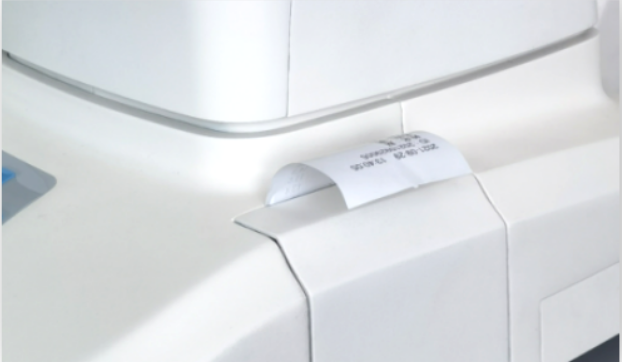

Print report Auto paper cutting

Built-in thermal pr inter,

automatic paper cutting
Specification
Display
7” color touch screen, support up and down 180°,60º left and right
Fixation lamp
1.internal fixation lamp (green LED);
2.external fixation lamps
Measuring head moving range
Uo and down stroke :45mm ,
left and right stroke:90mm,
front and back stroke:40mm
Lifting range of lower jaw drag
68mm
Working distance
11mm(calculated from the front of nozzle)
Measurement accuracy
1mm Hg(0.133Kpa)
Measuring range
0-60mmHg (0-8kpa)(including free switching between 30/60mmHg)
Power supply
AC100-240V, 50-60Hz
Ambient Temperature
50℃
Scope of operation
16mm x10mm
printer
Built-in thermal printer
Data storage
Internal memory card+optional external USB memory
Networking
DICOM3.0
Measurement mode
Full automatic/automatic/manual
Operating system
Embedded system
Mobile platform
Fully automatic platform/manual platform
Data input and output
Input:USB, output:LAN/RS232C
Focusing mode
3D full auto focus /manual focus
Jet detection
After power on , check whether the measuring system of the instrument works normally
Safety limit
Support
Intraocular pressure measurement
Each eye was measured three times continuously, and the average value was calculated
Normal intraocular pressure range :10-21mmHg(1.33kpa-2.80kpa)
Normal corneal thickness :about 550um
Full automatic measurement
Press the measurement button to complete the intraocular pressure test automatically
24 hour dynamic intraocular pressure measurement
It can monitor intracular pressure dynamically 24 hours , and print it on the same report sheet with intraocular pressure data
Printing
Data can be printed directly after measurement
storage
10 sts of measurement data can be stored
Data export
Can be exported to PDF or JPG format
Size and weight
500*300*500 mm      weight<25kg

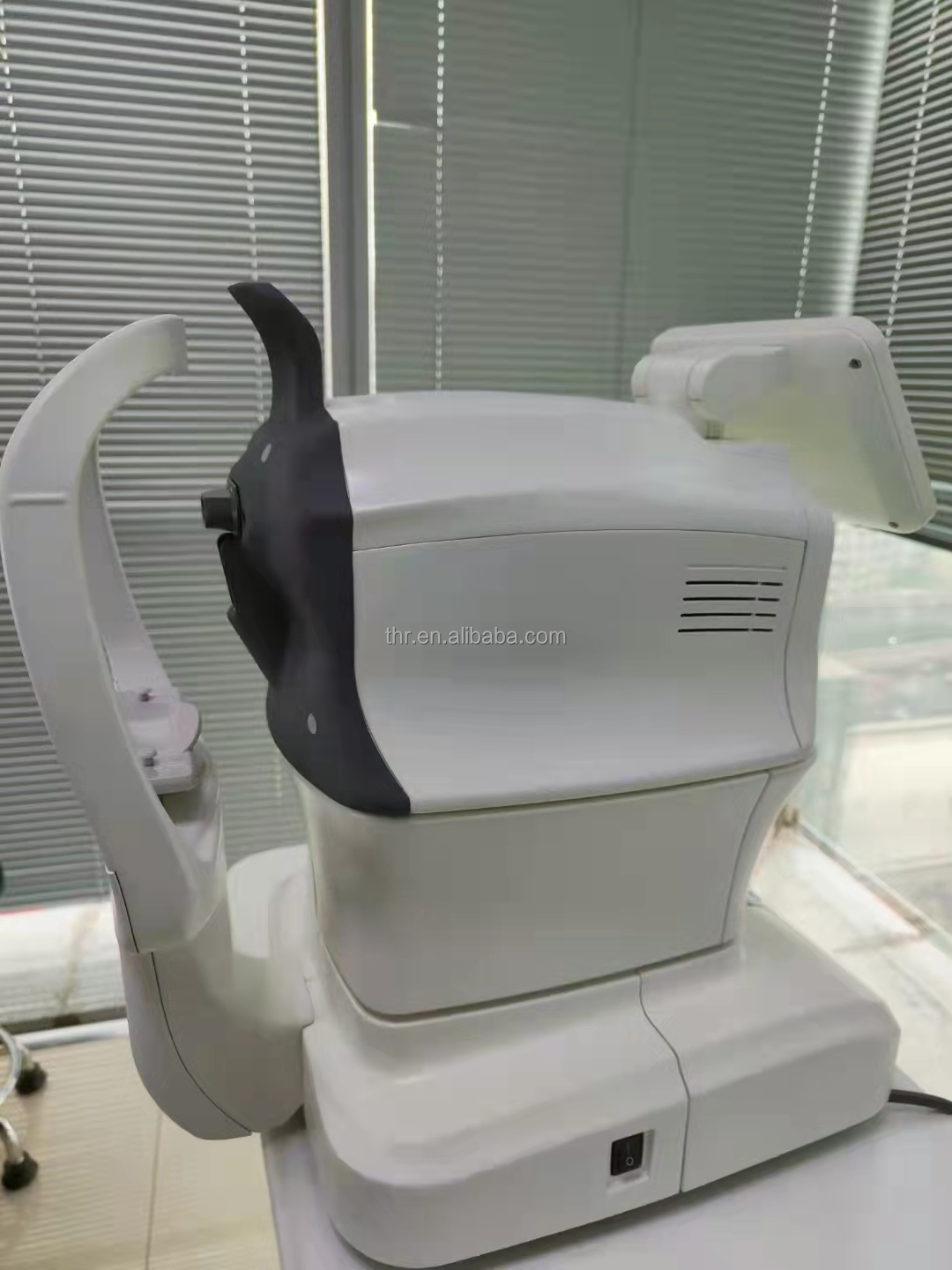

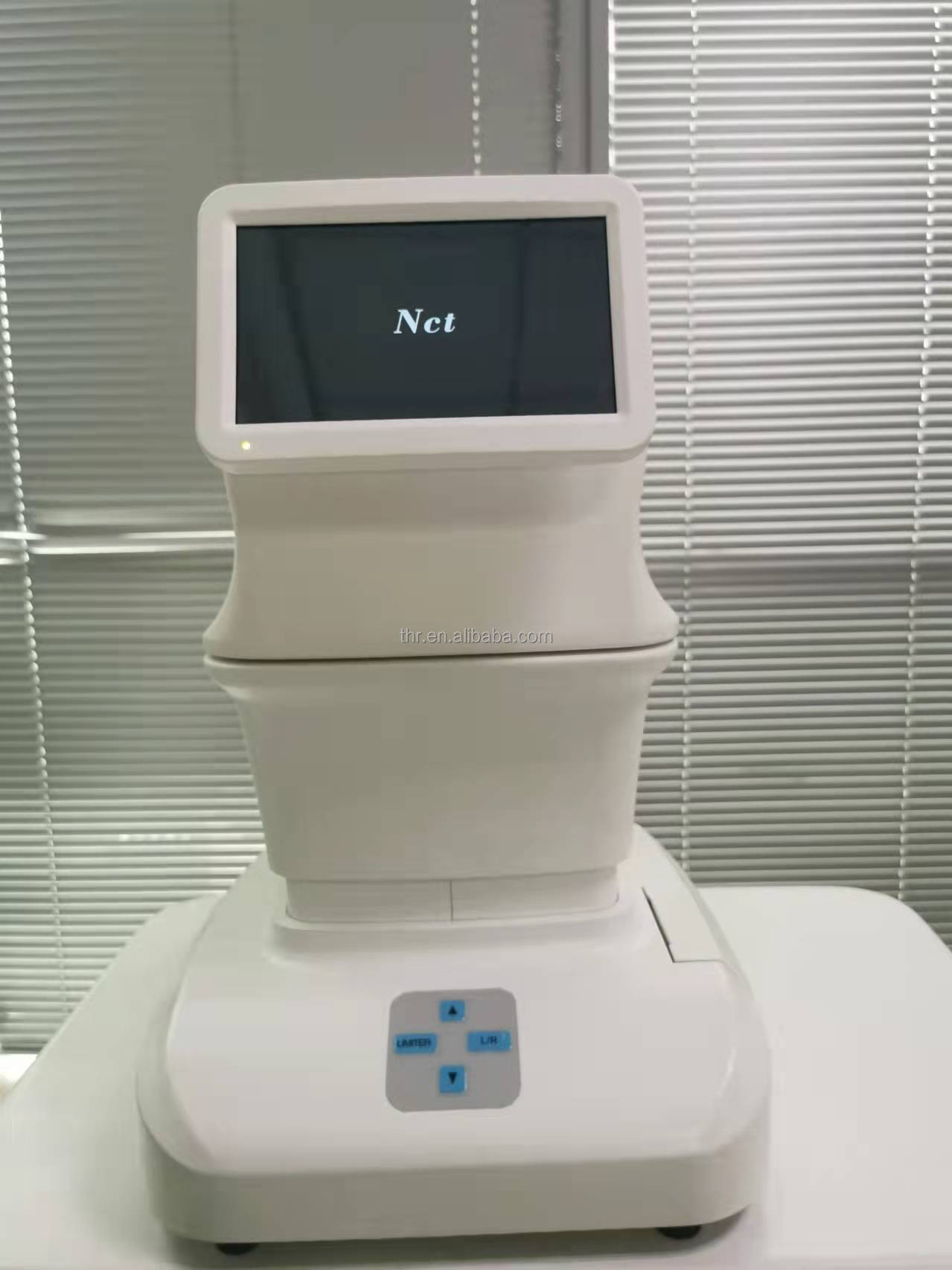

Detailed Images
