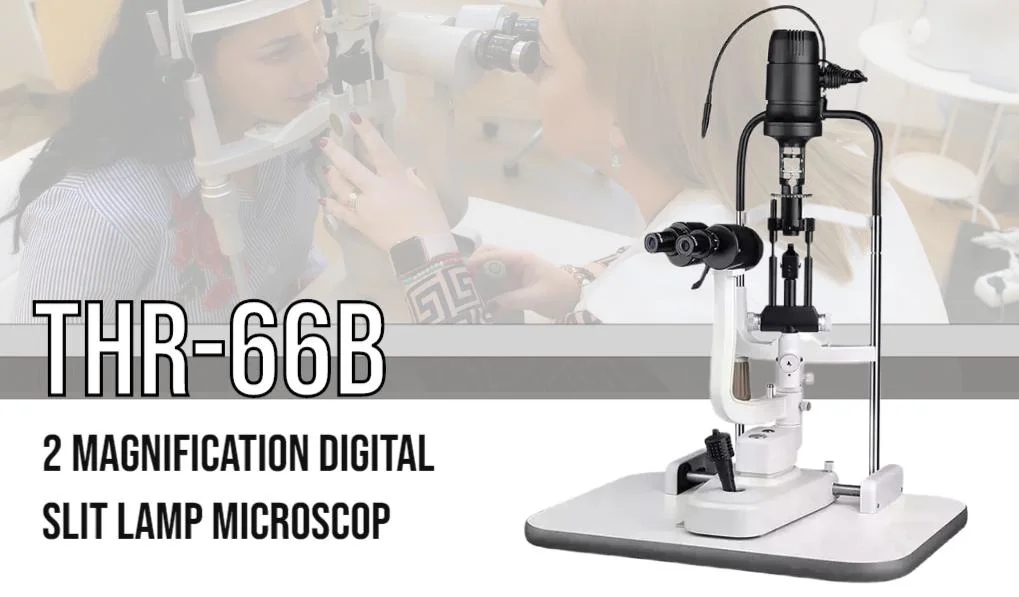

THR-66B
0.00
0.00
Slit lamp microscope is an essential and important instrument for ophthalmic examination. The slit lamp microscope is composed of an illumination system and a binocular microscope. It can not only observe the superficial lesions very clearly, but also adjust the focus and the width of the light source to make an "optical section", so that the lesions in the deep tissue can also be clearly displayed.
Clinical significance:
1. Diffuse illumination method: It can roughly inspect the anterior tissues such as the conjunctiva, cornea, sclera, etc.
2. Direct black spot illumination method: The lesions in the illuminated area can be carefully observed.
3. Posterior illumination method: It is mainly used for the inspection of transparent tissue by assisting the light reflected by
the posterior tissue to examine the anterior tissue of the eye.
4. Specular reflection illumination method.
5. Limbal spectroscopic illumination.
6. Indirect lighting method, etc.
Clinical significance:
1. Diffuse illumination method: It can roughly inspect the anterior tissues such as the conjunctiva, cornea, sclera, etc.
2. Direct black spot illumination method: The lesions in the illuminated area can be carefully observed.
3. Posterior illumination method: It is mainly used for the inspection of transparent tissue by assisting the light reflected by
the posterior tissue to examine the anterior tissue of the eye.
4. Specular reflection illumination method.
5. Limbal spectroscopic illumination.
6. Indirect lighting method, etc.

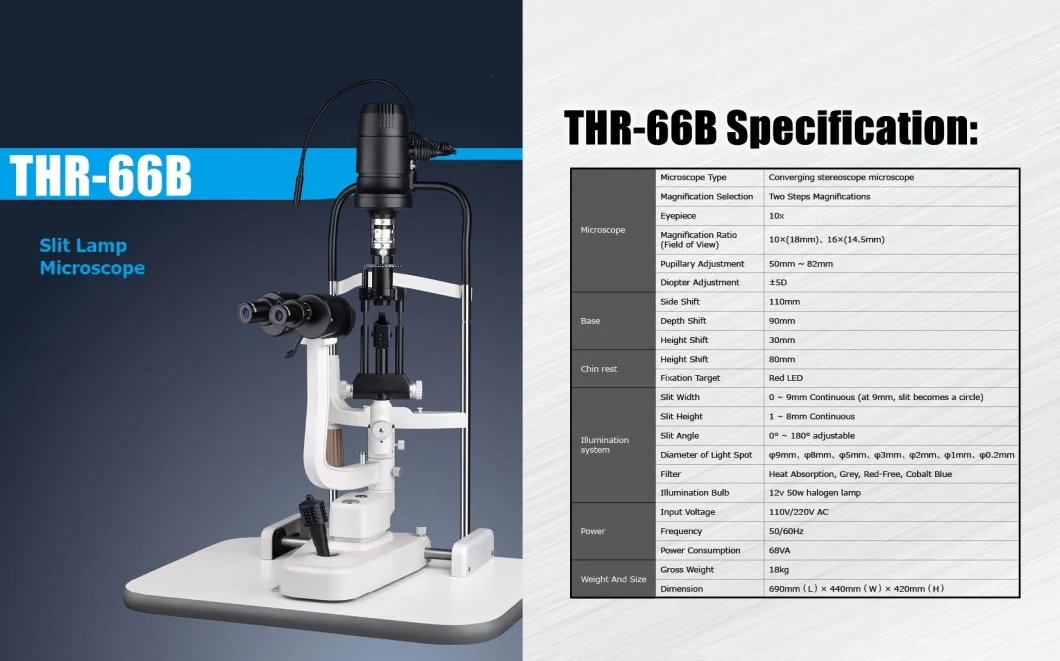

Specification
Property of slit lamp | Microscope Type | Converging Stereoscope |
Magnifications | 2 Steps magnification | |

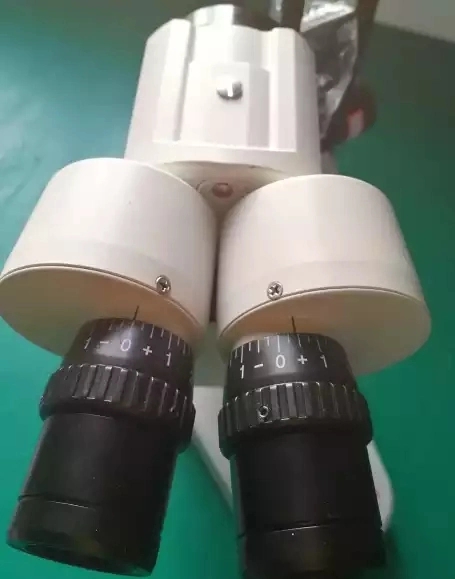

Eyepiece | 10x | |
Magnification Ratio (Field of View) | 16×(φ14.5mm),10×(φ18), | |
PD adjustment | 52mm ~ 80mm | |
Diopter adjustment | +5D ~ -5D | |

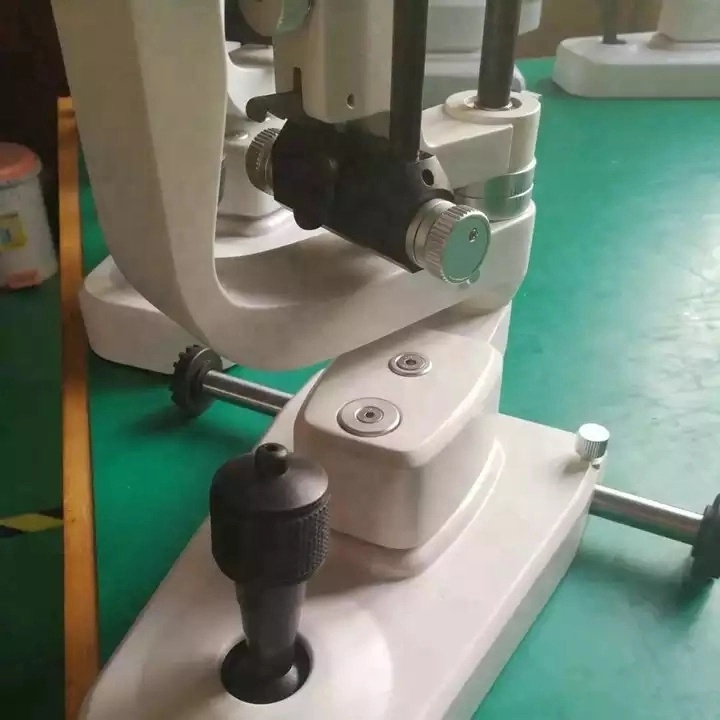

Base | Left and right move | 110mm |
Forward and back move | 90mm | |
Up and down move | 30mm | |
Chin rest | Up and down move | 80mm |
Fixation Lamp | Red LED | |
Property of illumination | Slit width | 0 ~ 10mm continuous(at10mm,slit becomes circle) |
Slit height | 1 ~ 10mm continuous | |
Slit angle Light spot diameter | 0~ 1800 continuous 10 ,7, 5 , 3, ,1 ,0.2mm | |
Filter | Heat absorption ,Grey ,Red-free ,Cobalt Blue | |
Illumination Bulb | 12V 50W halogen lamp | |
Power | Input voltage Frequency Power consumption | 220V 50H 68VA |
Weight and size | G.W N.W | 18kg 16kg |
Main dimension | 680mm(L)× 440mm(W)× 420mm(H) |
