Product Description

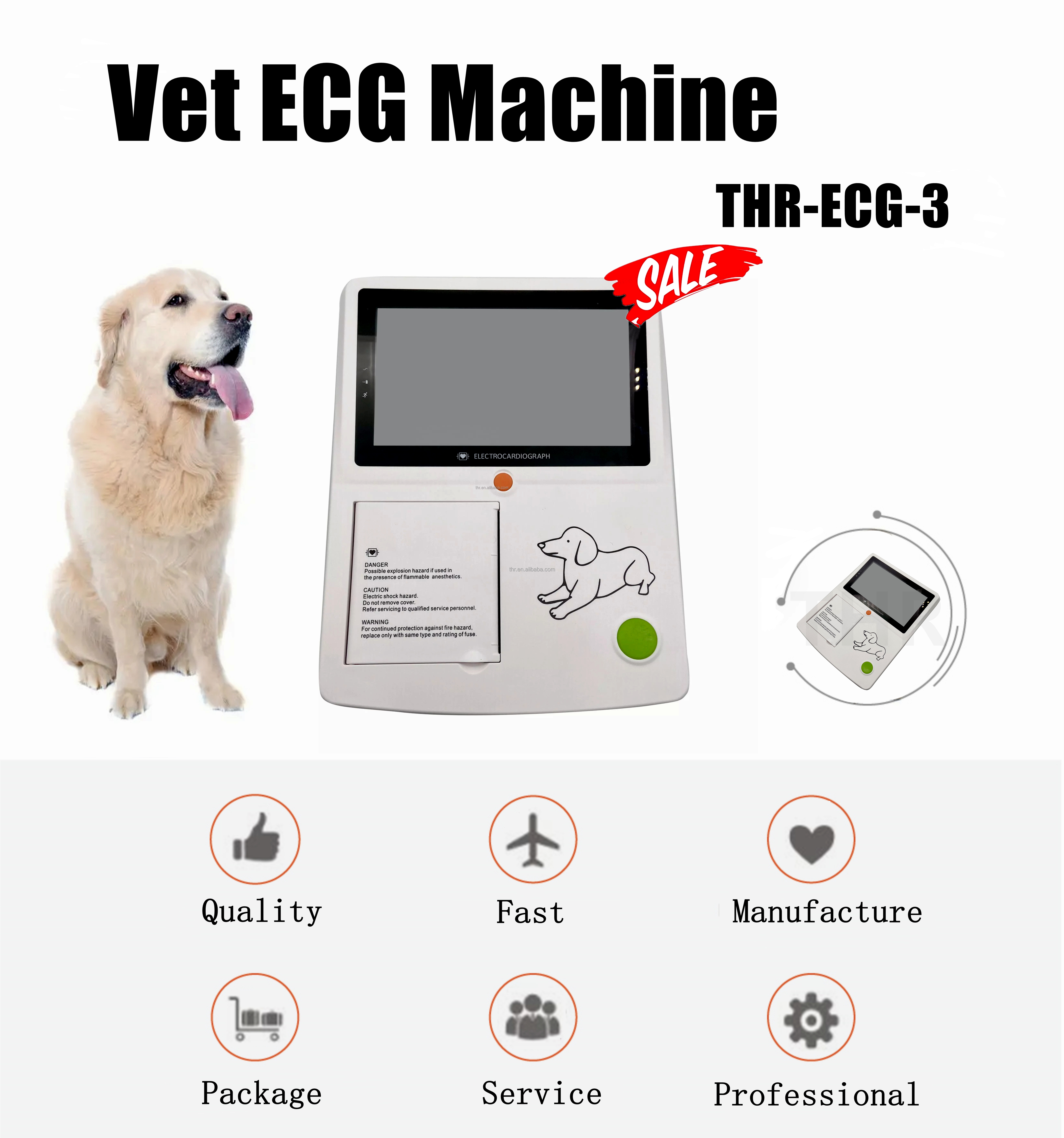

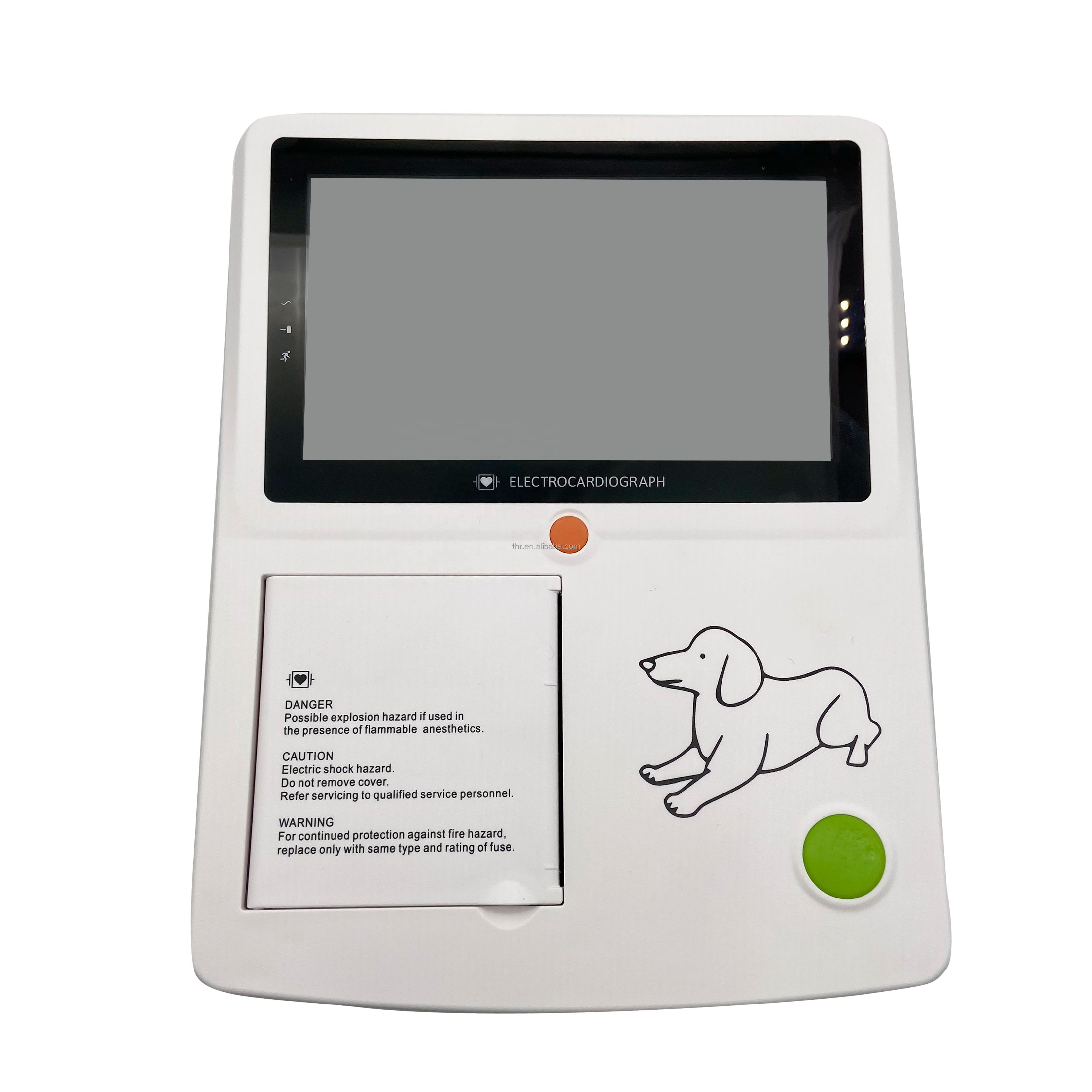

3 Channel Electrocardiograph Full Digital Portable Veterinary ECG Machine For Animal
Features of ECG Machine:-Modern in design, light in weight, compact in size.
-Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
-7'' color touch screen.
-Sensitive filters of ADS, HUM, and EMG.
-Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
-Automatic adjustment of baseline for optimal recording.
-Thermal printer with 80mm print paper, synchronization print
-Lead off & lack off paper detection function.
-Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
-Adapt to 100-240V, 50/60Hz AC power supply
-Historical data and patient’s information can be reviewed and printed.
-Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
-The machine can store over 400 ECG reports in its built-in flash.
-Sleep mode to save energy and extend LCD life
-The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
Specification：
CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
Input circuit | Floating | Voltage tolerance | ± 500mV |
Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
Input Impedance | > 50MΩ | Sensitivity | 5，10，20mm/mV |
Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
Customer Reviews

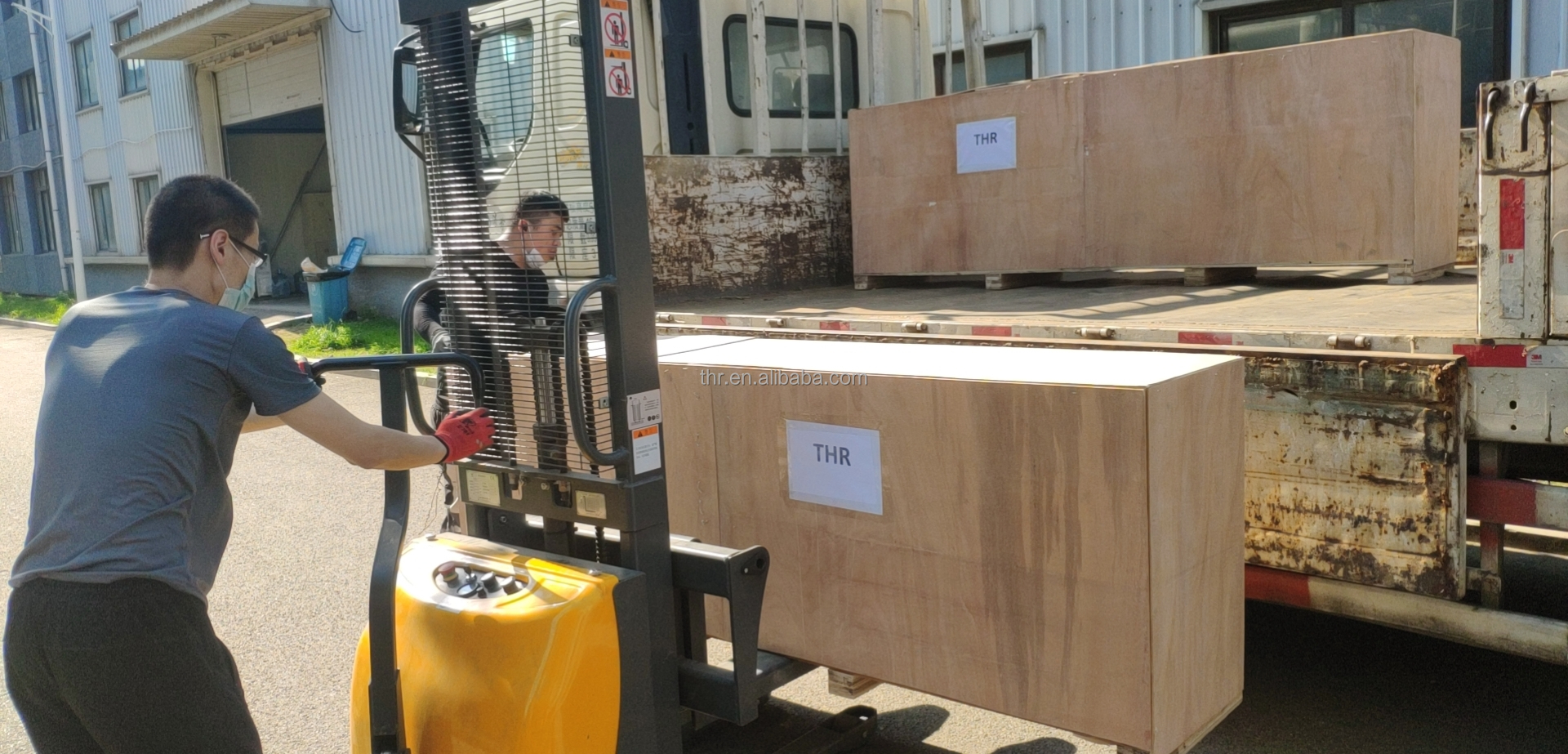

Packing & Delivery

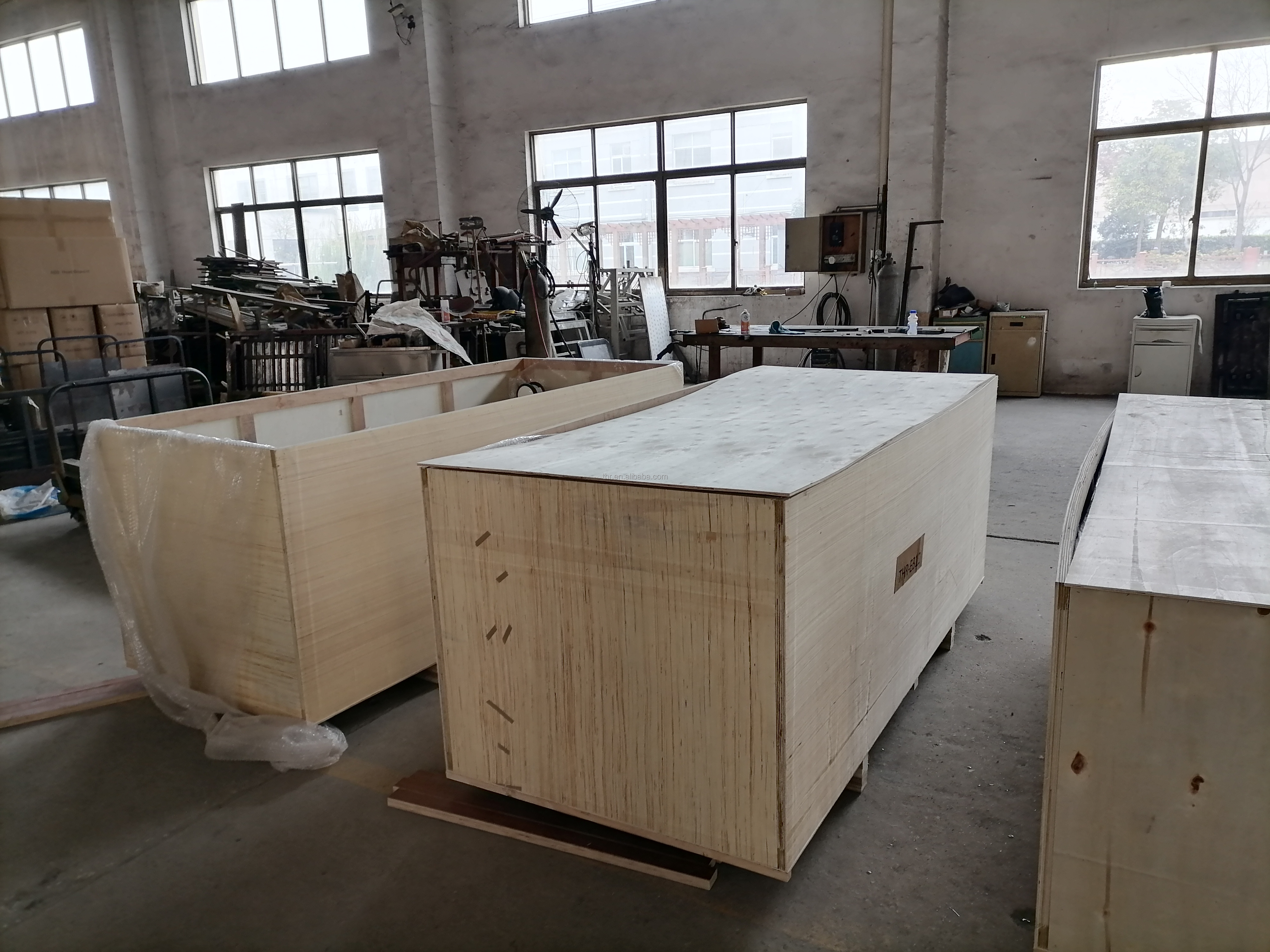

Packaging:
