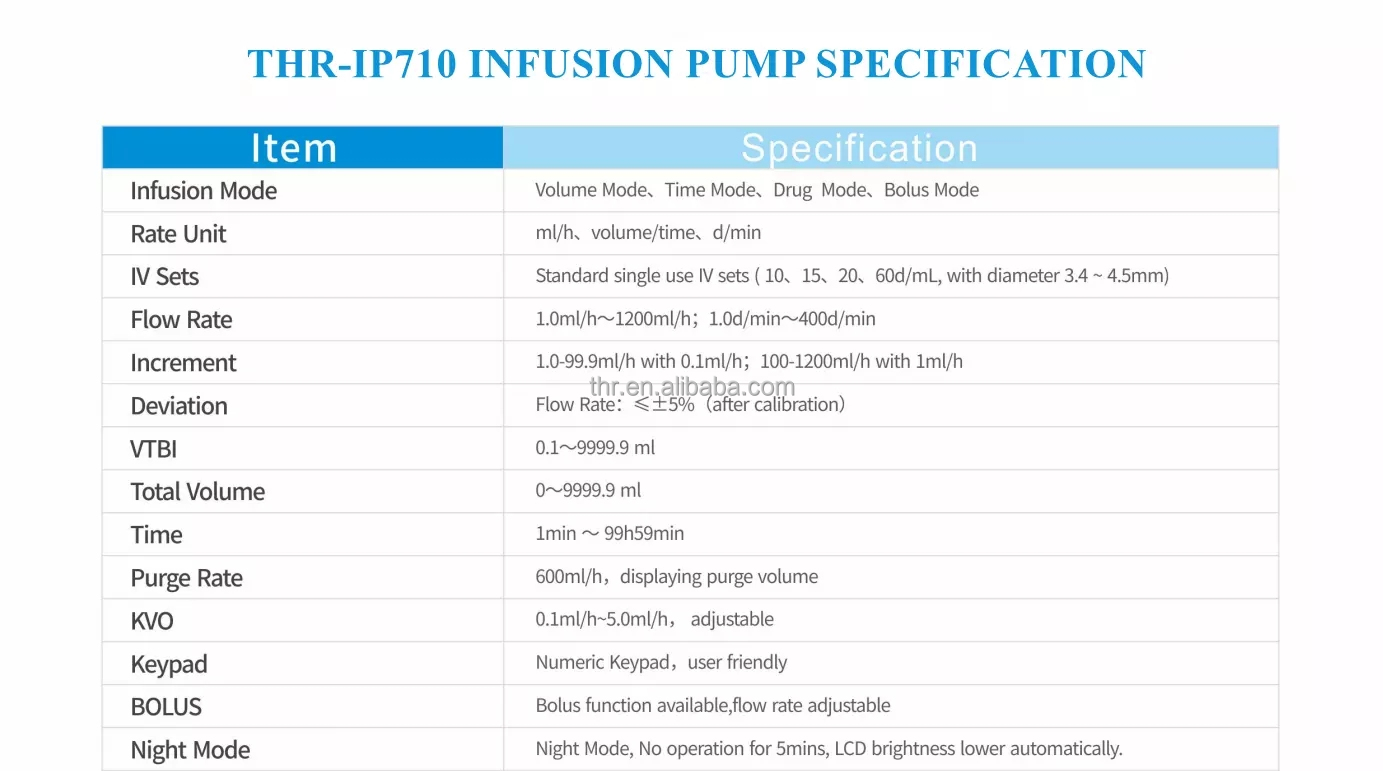

1

Infusion Mode

Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode

2

Rate Unit

Ml/h, volume/time, d/min

3

IV Sets

Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm)

4

Flow Rate

1.0ml/h~1200ml/h; 1.0d/min~400/min

5

Increment

1.0-99.9ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h

6

Flow Rate Deviation

<±5%(after calibration

7

VTBI

0.1~9999ml

8

Infused Volume

0~999ml

9

Time Setting

1 min to 99h59min

10

Purge Rate

600ml/h, displaying purge volume

11

KVO

0.1ml/h~5.0ml/h, adjustable

12

Keypad

Numeric Keypad, user friendly

13

BOLUS Mode

Available for Bolus mode, flow rate adjustable

14

Night Mode

Night mode, No operation for 5mins, LCD brightness lower automatically

15

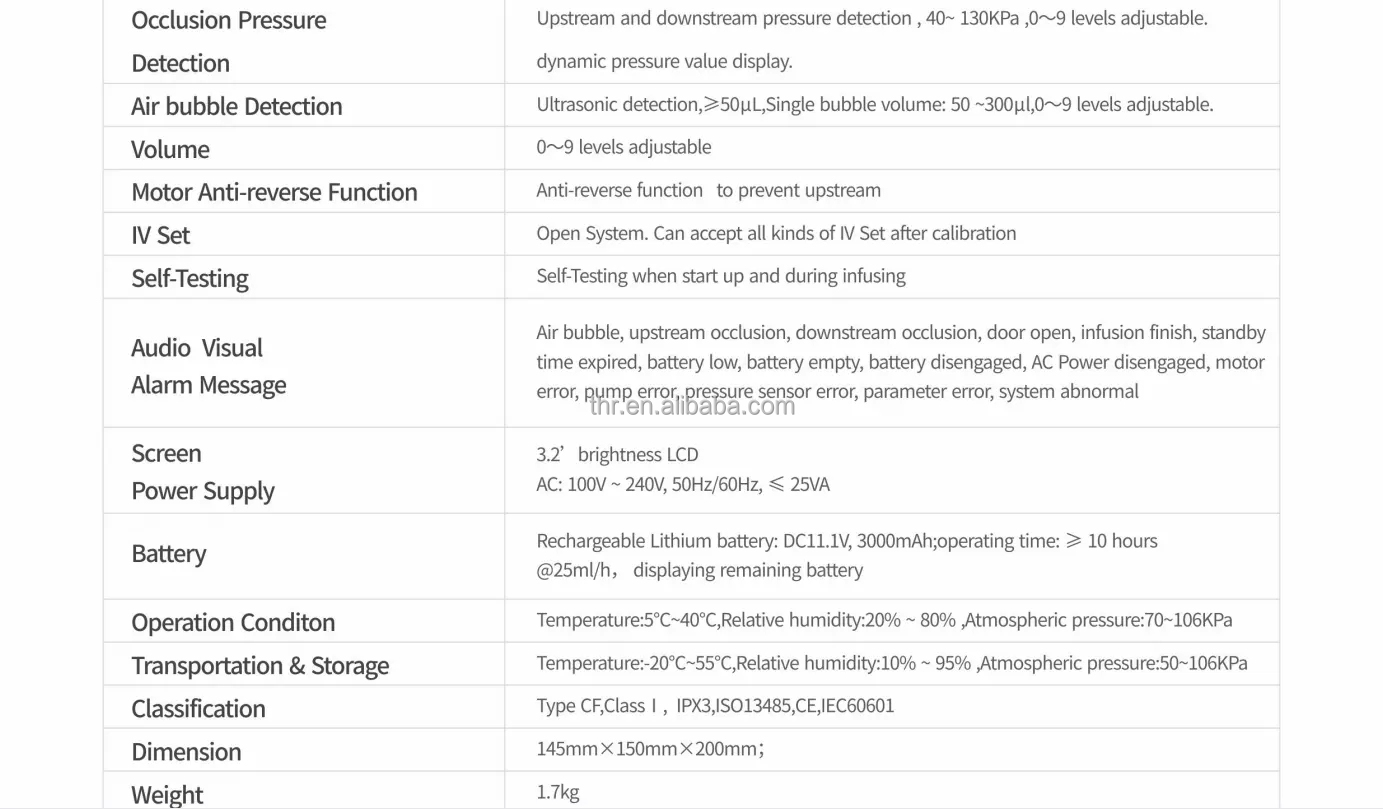

Occlusion Pressure Detection

Upstream and downstream pressure detection, detection range: 40-130Kpa, 0~9 levels adjustable, dynamic pressure value display

16

Air bubble Detection

Ultrasonic detection, ≥50μL , Single bubble volume: 50~300μL , 0~9 levels adjustable

17

Alarm &Volume

0~9 levels adjustable

18

Anti-reverse Function

Anti-reverse function on motor to prevent upstream

19

IV Set Management

Open System, Can accept all kinds of IV Set after calibration

20

Self-Testing

Self-Testing when start up and during infusing

21

Audio and Visual Alarms

Air bubble, upstream occlusion, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery low,
battery empty, battery disengaged, AC Power disengaged, Motor error, pump error, pressure sensor error, parameter error, system
abnormal.

22

Screen

3.2” Brightness LCD

23

Power Supply

AC:100V~240V, 50Hz/60Hz,≤25VA

24

Battery

Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours@25ml/h, displaying remaining battery

25

Operation Condition

Temperature: 5℃~40℃, Relative humidity:20%~80%, Atmospheric pressure:70~106Kpa
