THR-V15

THR-V15

0.00
0.00

Features：
●Using molecular sieve pressure swing adsorption principle, using air as raw material, physical oxygen production, eliminating the trouble of daily tank changing and inflation;

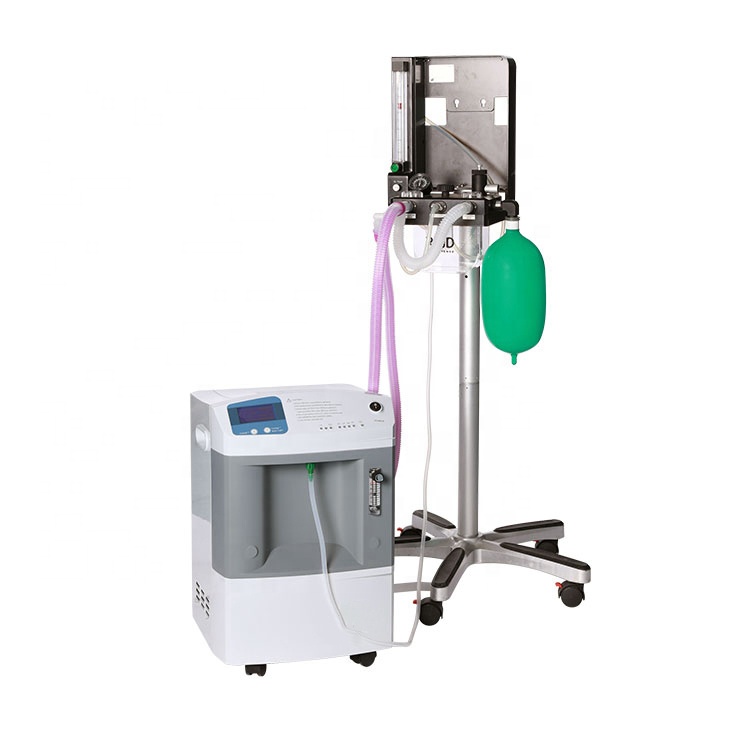

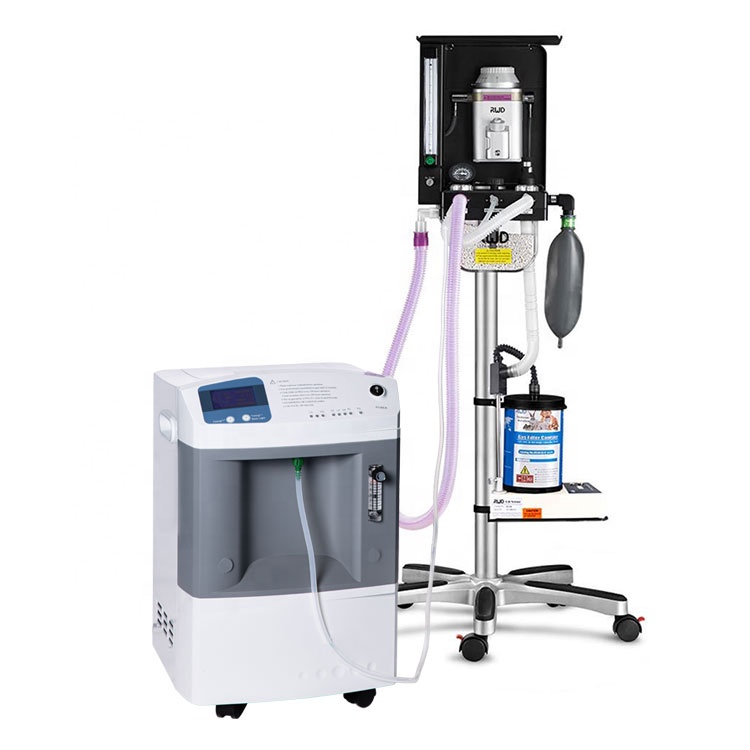

●One machine with multiple functions, to meet the needs of animal anesthesia machines for oxygen supply, postoperative oxygen supply, ICU oxygen supply, and emergency oxygen supply;

●With high outlet pressure, it can be connected to a cage and can be used as an anesthetic gas source for small animals less than 7kgs, such as cats and dogs;

●It meets the various clinical demands of veterinarians, and is widely applicable to the oxygen supply for veterinary clinic surgery, post-operation, ICU and emergency;

●Oxygen is supplied according to the time set by the user, and the oxygen production program is automatically stopped.

THR-V15     5L/10L
Flow Rate
0.5-- 5L/min ; 0.5--10L/min
Oxygen Concentration
93% (+3%)
Outlet Pressure
6-10 PSI (0.04-0.07 Mpa)
Sound Level
≤40dB;≤50dB
Net weight
15Kgs ; 27Kgs
Power Consumption
≤300W;≤880W
Input Frequency
50Hz; 60 Hz
Input Voltage
AC230V + 10%; AC110V +10%

THR-V15

5L

1. Swiss molecular sieve
2. Four-stage filtration system
3. Continuous oxygen supply for 24 hours
4. Configure intelligent
security alarm system
5. Configure medical grade pipeline
6. Configure medical cooling system (single layer)
Outlet pressure 0.6KG
1. It is suitable for direct use of oxygen by small animals.
2. Can be used with simple anesthesia machine.
3. Can be used for oxygen supply in pet cages. (two groups)

THR-V15

10L

1. American molecular sieve
2. Configure automatic water removal function 3. Four-stage filtration system
4. Continuous oxygen
supply for 24 hours
5. Configure intelligent security alarm system 6. Configure medical grade piping
7. Configure medical cooling
system (double layer)
Outlet pressure 0.6KG
1. Suitable for direct use of oxygen by animals.
2. Can be used with simple anesthesia machine.
3. Can be used for oxygen supply in pet cages. (Four groups)
