THR-K3
0.00
0.00

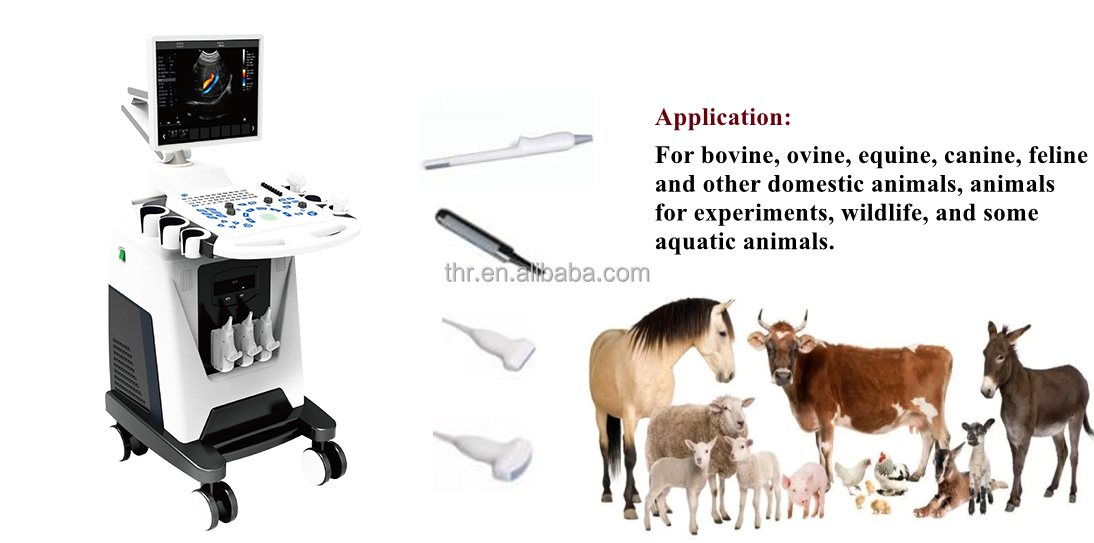

The cart-type color Doppler animal ultrasound diagnostic instrument can be used in pet hospitals, animal research institutes,animal laboratories, zoos, aquariums, etc. It can also be used for other aspects such as animal pregnancy physical examination and diagnosis.
THR-K3 integrates new equipment concepts and technological innovations to create a high-performance color Doppler animal ultrasound diagnostic instrument. Intelligent operation process, humanized appearance design and intimate human-computer interaction are integrated to provide a better solution for improving the accuracy of clinical diagnosis, which can not only meet the daily clinical diagnosis needs of pet doctors, but also take into account teaching and research, etc. aspect applications.
Features:
-Ultrasound diagnostic equipment for animals and pets
-Color Doppler Ultrasound for Animals
-Support color Doppler, spectral Doppler, energy Doppler and other imaging technologies
-Users can preset inspection conditions according to different animals and different applications
-Real-time display of menu parameters, easy to adjust and clear at a glance
-Tissue harmonic imaging technology
-Three probe interfaces, support more than 10 probe groups to work
-Multiple national languages available
-Probe automatic freezing function, effectively protect the service life of the equipment

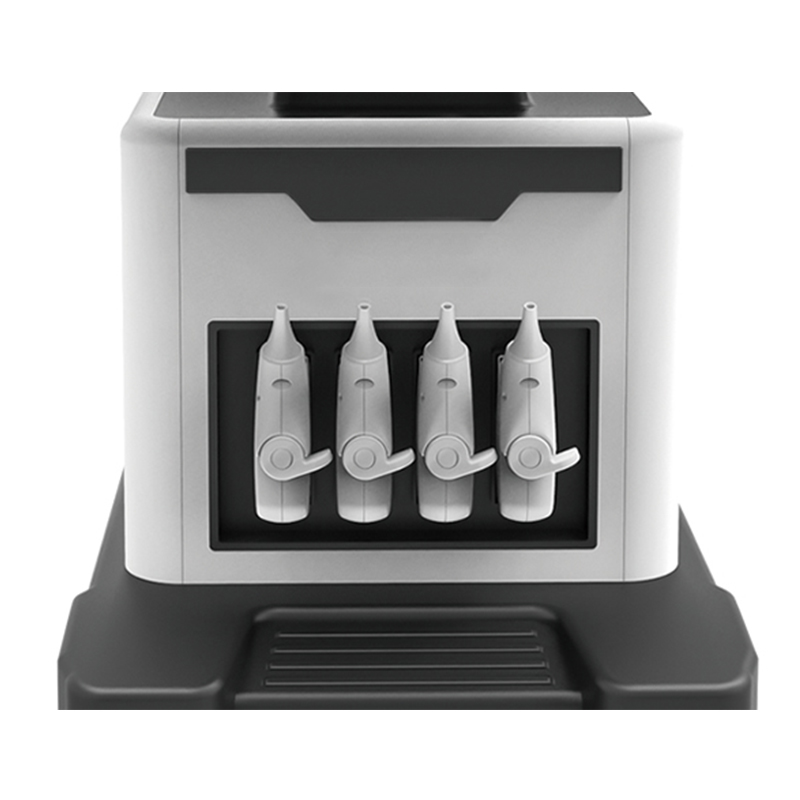

-Probe box--hook humanized design

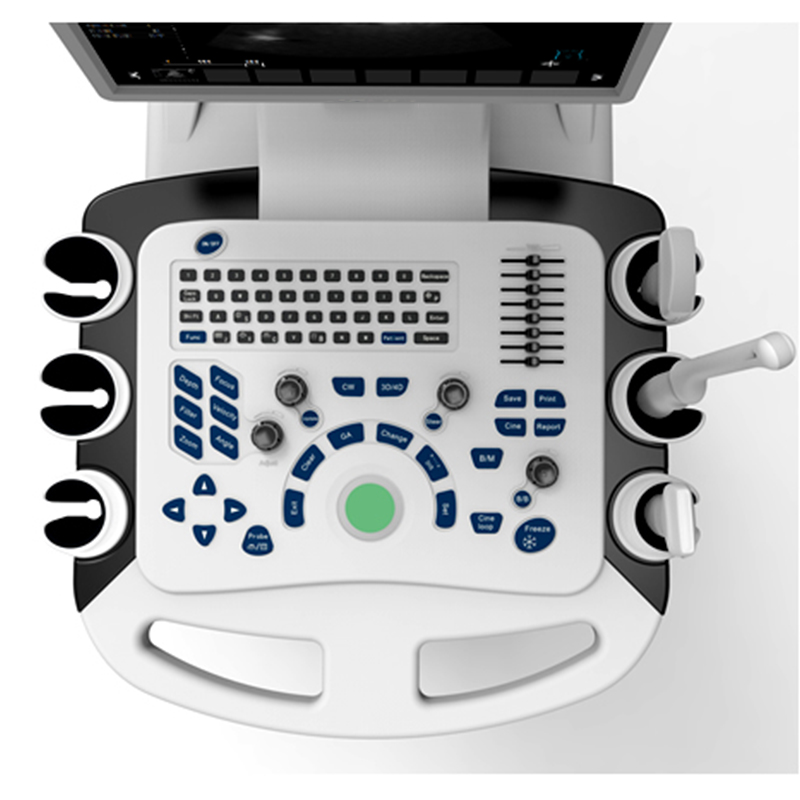

-Intuitive and concise operation panel, simple operation for complex inspection
-Adopt 17-inch high-brightness and high-resolution LCD display
1. 17 inch LCD display.
2. 3 probe connectors.
3. Professional veterinary software.
4. One key intelligent optimization.
5. Multiple languages can be selected.
6. Tissue harmonicimaging.
7. Multi-beam processing technology.
8. Display screen 360°adjustable.
2. 3 probe connectors.
3. Professional veterinary software.
4. One key intelligent optimization.
5. Multiple languages can be selected.
6. Tissue harmonicimaging.
7. Multi-beam processing technology.
8. Display screen 360°adjustable.
We provide Some ultrasound probes fit a variety of animals！！
We can choose the right probe for you！！
Tips：
Veterinary B-mode ultrasound probes are divided into 3.5 MHz mechanical probes, 3.5 MHz large convex array probes, and 6.5 MHz rectal probes. The frequency of the probes depends on the animals to be examined. For small animals such as pigs and sheep, mechanical probes or convex probes are generally selected.
A linear rectal probe is generally chosen for the pregnancy test of large animals such as cattle and horses.
The high frequency of 7.5 MHz has only a small penetration depth of 4-5 cm and a resolution of 2 mm, that is, good image quality. Correspondingly, the resolution decreases with frequency while the penetration depth increases, so at 5.0 MHz the penetration depth is 8-10 cm, and at 3.5 MHz the penetration depth is 12-15 cm with lower resolution.
Specification
Weight | 63kg |
Size | 600*100*1400mm |
Interface | HDMI, Video, S-Video, USB*2, LAN, Probe*4 |
Display | 17 inch LED medical display |
Display mode | B mode（B, B+B, 4B, B+M、M), C mode |
Language | Chinese, English, French, German, Russian, Spanish, Portuguese, Thai, Indonesian, Vietnamese, Arabic, Persian, Korean |
System | Win 7 |
Obstetric measurement | Bovine(BTD, BUD), Equine(EGSD、ESD), Swine(HLA、SLA), Ovine(SCRL), Canine(HD、BD、GSD、CRL), Feline(HD、BD) |
Optiona probes | Veterinary micro-convex probe;Convex probe;Linear array probe;Veterinary trans-rectal probe |
