THR-2022V
0.00
0.00

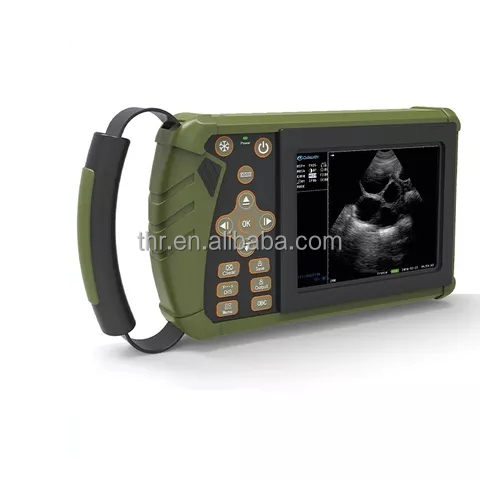

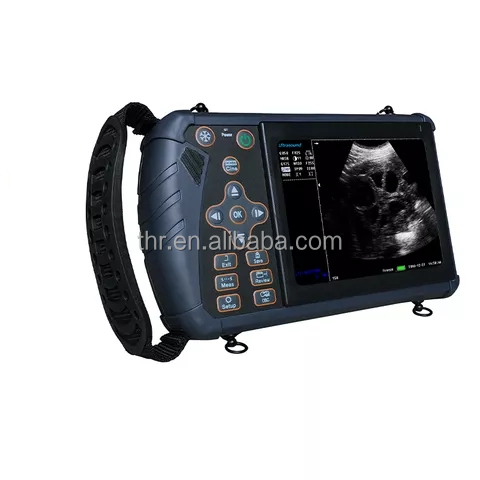

THR-2022V ultrasound system gathers the latest digital system architecture to provide high-quality two-dimensional images.
Compared with traditional desktop and portable b/w products, it has more compact body and convenient features which will make it play a greater role in the field of veterinary.
It is suitable for pigs, dogs, cats, sheep, cattle, horses and other animals.
Perfect Ergonomic Design
Compact, sophisticated, portable
5.6 inch LED display
Lightweight body
Soft switching on/off
User-friendly operation interface
Simple and beautiful operation panel
Fast, convenient and flexible touch-type keyboard operation
Compact, sophisticated, portable
5.6 inch LED display
Lightweight body
Soft switching on/off
User-friendly operation interface
Simple and beautiful operation panel
Fast, convenient and flexible touch-type keyboard operation
Advanced Technology and Function
Advanced digital signal processing technology
Leading digital beam former technology
NC dynamic frequency scanning technology
Real-time point by point dynamic focusing reception technology
Real-time dynamic aperture imaging
Advanced digital signal processing technology
Leading digital beam former technology
NC dynamic frequency scanning technology
Real-time point by point dynamic focusing reception technology
Real-time dynamic aperture imaging
Powerful System Functions
Display mode: B, B + B
HD video playback
Image storage function
Parameters optimization and pre-set
Screen protection to extend equipment life effectively
Suitable for veterinary use, can be used for diagnosis and measurement of cattle, horses, sheep and other large animals as well as
cats, dogs and other pets in abdomen, obstetrics and other subjects
Applications measurement:
Swine: HLA, SLA
Cattle: CTD, CHL, CCRL
Dog: HD, BD, GSD, CRL
Sheep: STD, SHD, SCRL
Equine: EEGD, ECD, ESD, EBD
Cat: HD, BD
Display mode: B, B + B
HD video playback
Image storage function
Parameters optimization and pre-set
Screen protection to extend equipment life effectively
Suitable for veterinary use, can be used for diagnosis and measurement of cattle, horses, sheep and other large animals as well as
cats, dogs and other pets in abdomen, obstetrics and other subjects
Applications measurement:
Swine: HLA, SLA
Cattle: CTD, CHL, CCRL
Dog: HD, BD, GSD, CRL
Sheep: STD, SHD, SCRL
Equine: EEGD, ECD, ESD, EBD
Cat: HD, BD
Excellent Human-Computer Interaction
Comfortable hand-held imaging, ultra-light weight, easy to carry
High-resolution LED display to improve diagnostic accuracy
USB, TF card ports are for convenient and fast image storage and playback
Integrated long life lithium battery ensure long power outages check, AC and DC dual-use
Real-time dynamic beam apodization
Comfortable hand-held imaging, ultra-light weight, easy to carry
High-resolution LED display to improve diagnostic accuracy
USB, TF card ports are for convenient and fast image storage and playback
Integrated long life lithium battery ensure long power outages check, AC and DC dual-use
Real-time dynamic beam apodization
Specification
Focus: three sections electronic focus, support point by point focus
Gain adjustment: main gain, near and far field adjustment can reach 255
15 levels contrast and brightness adjustment
Frame correlation: 15 adjustable
Probe: 3.5 MHz electronic convex array probe
Scan mode: convex array
Scanning depth: 57-230mm, 15 levels adjustable
Cine loop: 255 frames
Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 4 working hours
Display mode: B, B + B
Gray: 256 levels
Pseudo color: 8 kinds
Image magnification: 15 levels magnification
Screen size: 5.6-inch high-definition LED screen
Measurements: distance, perimeter, area, volume, gestational age
Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion
Gain regulation: Near field, far field, main gain dynamic adjustable continuously
Interfaces: Mini USB interface, TF card interface
Machine size: 240X120X45mm
Power consumption: 25W
Weight: 800g
Gain adjustment: main gain, near and far field adjustment can reach 255
15 levels contrast and brightness adjustment
Frame correlation: 15 adjustable
Probe: 3.5 MHz electronic convex array probe
Scan mode: convex array
Scanning depth: 57-230mm, 15 levels adjustable
Cine loop: 255 frames
Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 4 working hours
Display mode: B, B + B
Gray: 256 levels
Pseudo color: 8 kinds
Image magnification: 15 levels magnification
Screen size: 5.6-inch high-definition LED screen
Measurements: distance, perimeter, area, volume, gestational age
Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion
Gain regulation: Near field, far field, main gain dynamic adjustable continuously
Interfaces: Mini USB interface, TF card interface
Machine size: 240X120X45mm
Power consumption: 25W
Weight: 800g
Standard configuration: | machine (including a lithium-ion battery) 3.5MHZ electronic convex array probe User's Manual Adapter 8G TF memory card |
Optional: | 7.5MHz high-frequency linear array probe, 6.5MHz rectal probe 7.5MHz back fat probe 5.0MHz micro convex probe Lithium-ion battery Car adapter External charger Horseshoe converter |
