THR-US370
0.00
0.00

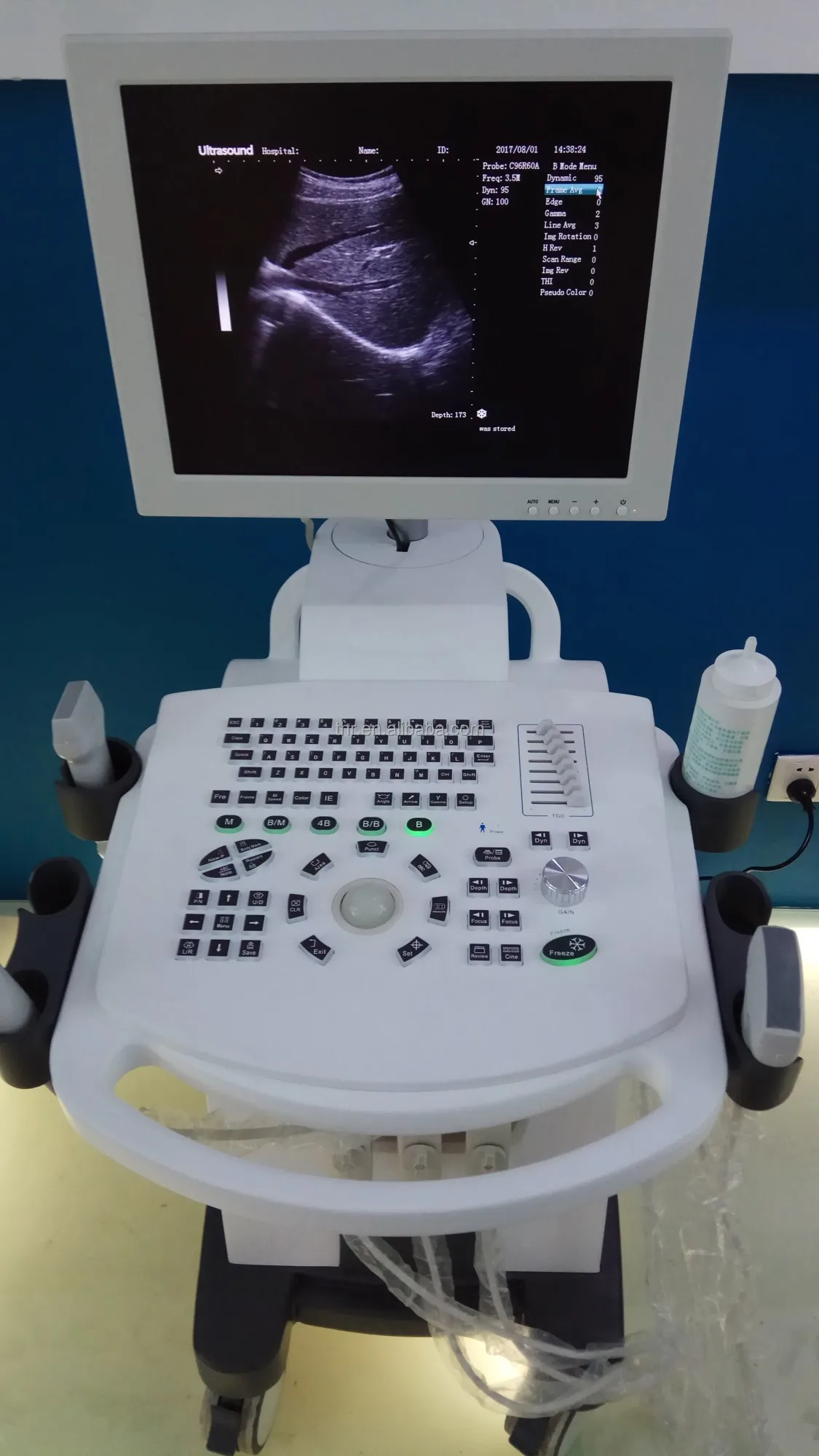

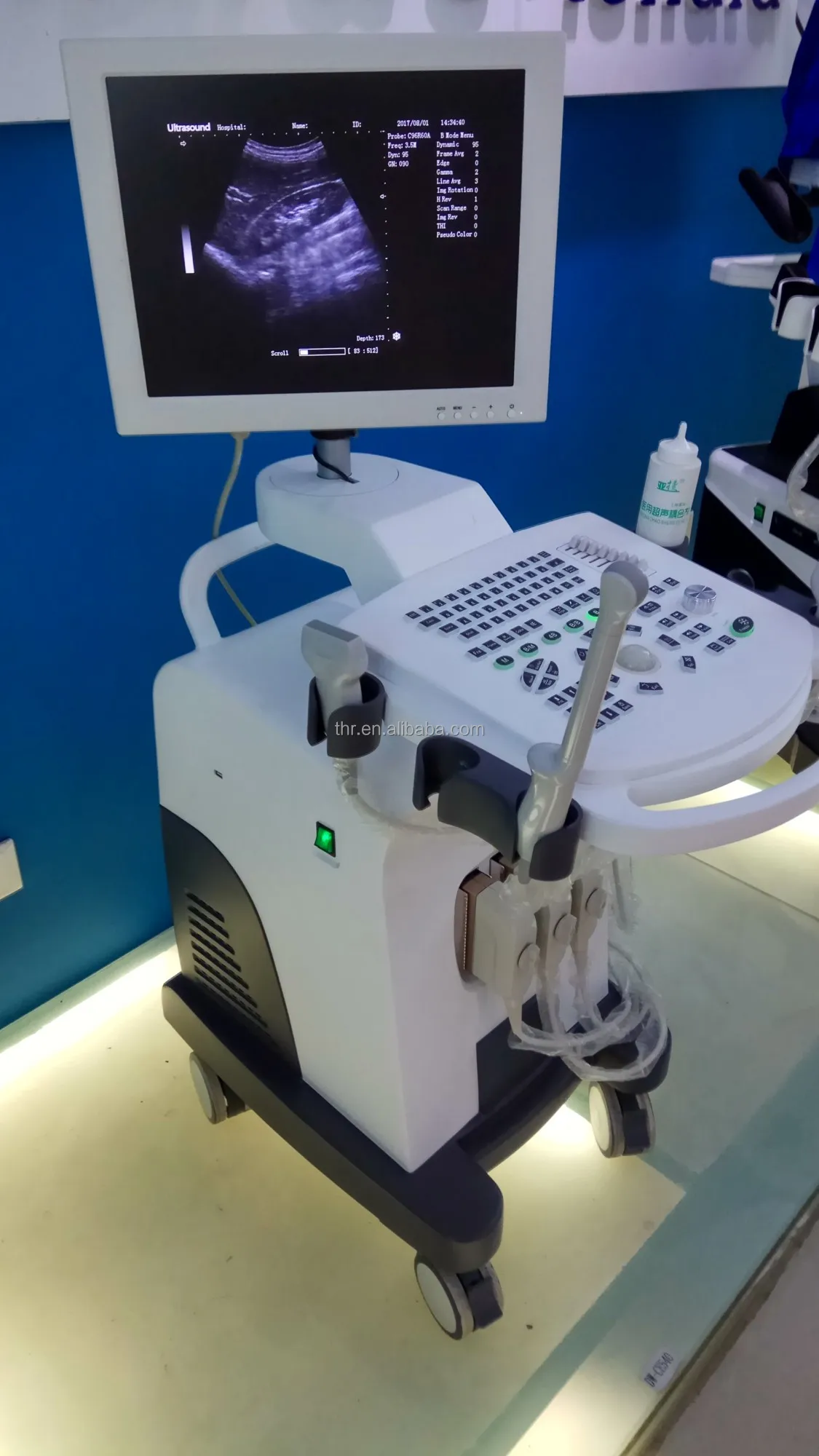

Stable ultrasound master control system
All three probe interfaces are activated
Main Features:

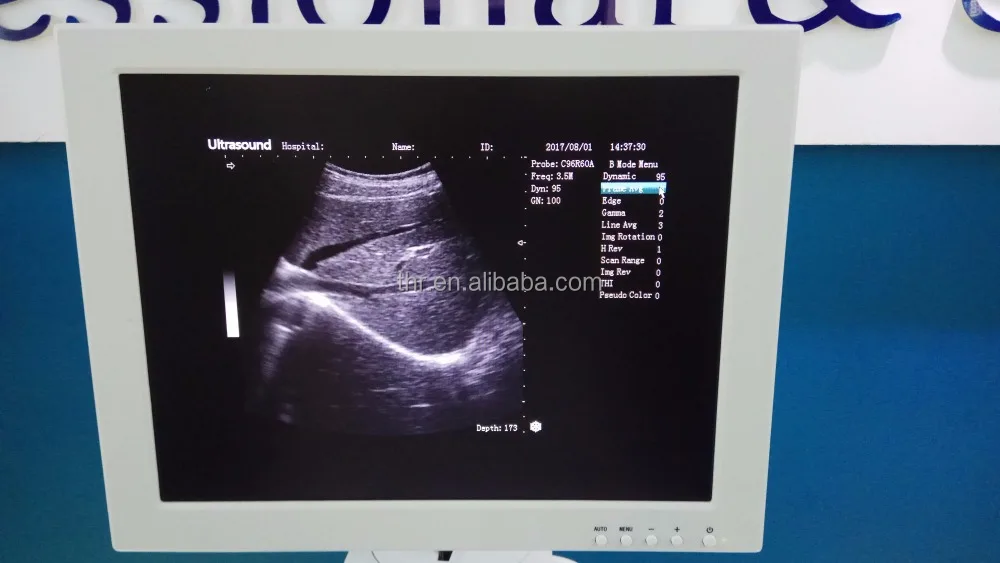

·15inch LCD monitor
·3 probe connectors
·Support OB Report

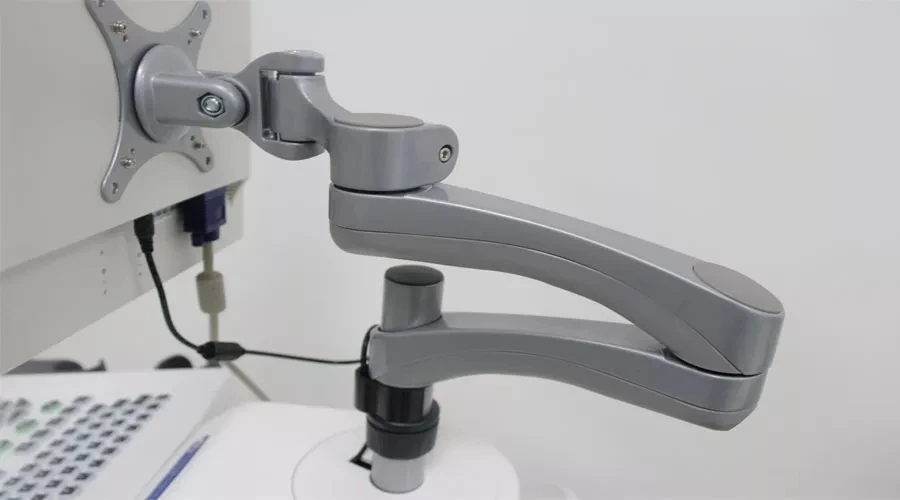

·Telescopic lifting support
·Support Various pseudo-color
·Multiple languages can be selected
·Display mode: B, B + B, 4B, B + M, M
·USB interface for real-time image storage
·Display puncture guide line, angle and position adjustable
All three probe interfaces are activated
Main Features:
·15inch LCD monitor
·3 probe connectors
·Support OB Report
·Telescopic lifting support
·Support Various pseudo-color
·Multiple languages can be selected
·Display mode: B, B + B, 4B, B + M, M
·USB interface for real-time image storage
·Display puncture guide line, angle and position adjustable
·Applications:OB,GYN,Urology,Vascular,MSK and so on.
·Tissue Harmonic Imaging(THI)·Stable operation system
Technical Specification :
Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED

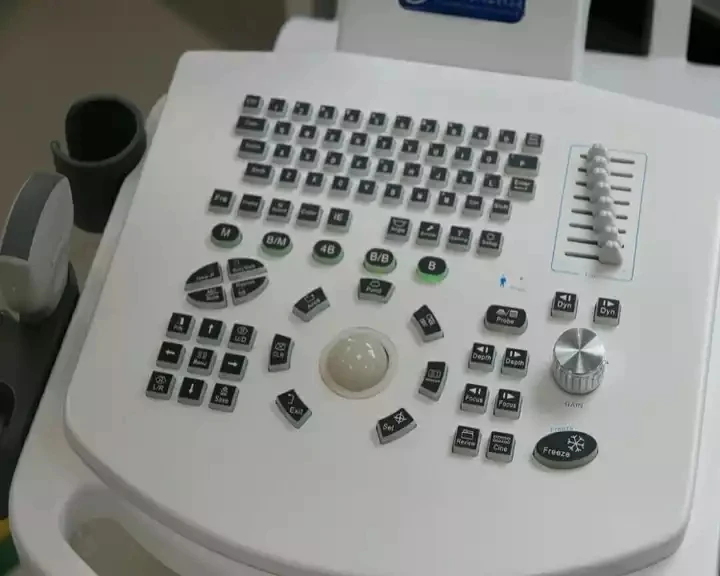

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B、B+B、4B、B+M、M
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz
Scanning mode: convex / linear / micro-convex
Probes: 96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
Display mode: B、B+B、4B、B+M、M
Detecting depth: ≥242mm
Resolution: lateral≤2mm, axial≤1mm
Blind Zone: ≤3mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz
Packing & Delivery
Standard: | Optional: | Package |
*2 probe connectors *USB port | *Convex probe *Trans-vaginal probe *Linear probe *Rectal Probe *Micro convex probe | 61cm*81cm*96cm 40 kgs |
