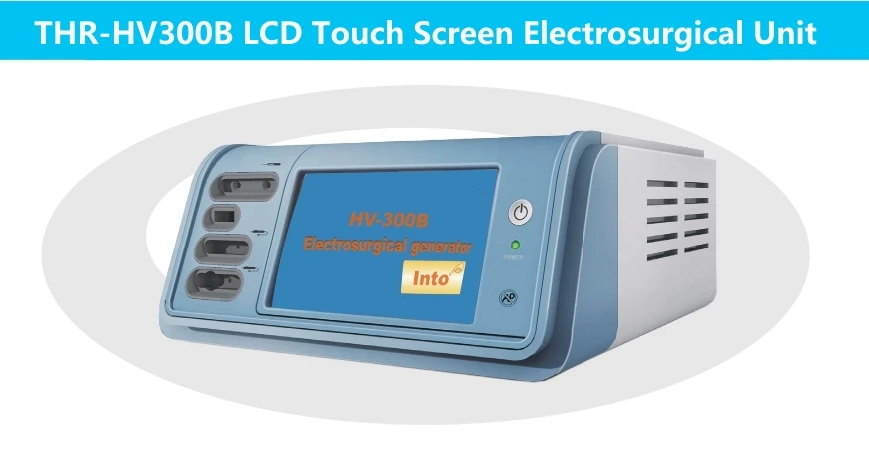

THR-HV300B LCD
0.00
0.00
Intelligent Device System
The intuitive design and user-friendly set-up of the AHANVOS Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
REM (Return Electrode Monitoring)
Return electrode contact quality monitoring system (REM). The REM system con impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
The intuitive design and user-friendly set-up of the AHANVOS Electrosurgical Generator (diathermy) for us in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.
REM (Return Electrode Monitoring)
Return electrode contact quality monitoring system (REM). The REM system con impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.
Compatible with Other Equipments:
▪ Argon Plasma Coagulation System
▪ Optimum Smoke Evacuation System
▪ Argon Plasma Coagulation System
▪ Optimum Smoke Evacuation System
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA
Normal Polarity, Ground open< 50μA
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Normal Polarity, Intact Chassis Ground: <10μA
Normal Polarity, Ground open< 50μA
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Multilanguage Available:
Language options: English, Spanish, Portuguese, Turkish and etc.
Language options: English, Spanish, Portuguese, Turkish and etc.
Application of Use:
General Surgery; Gastroenterology Dermatology;
Vascular Surgery; Obstetrics and Gynecology Heart/Thoracic Surgery;ORL/ENT;
Minimally Invasive Surgery (MSI) Cerebral surgery Neurosurgery;
Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc
General Surgery; Gastroenterology Dermatology;
Vascular Surgery; Obstetrics and Gynecology Heart/Thoracic Surgery;ORL/ENT;
Minimally Invasive Surgery (MSI) Cerebral surgery Neurosurgery;
Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc

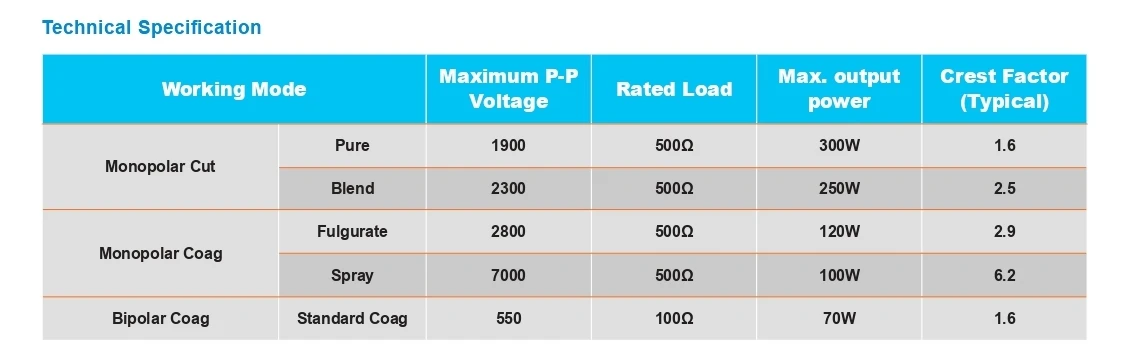

Specification
Product name | Bipolar Electrosurgical Generator | |
Technical Data | Voltage | 110-220V,50Hz/60Hz |
Working Frequency | 512kHz | |
Variety of Equipment | class I,type BF.Ordinary Equipment | |
Working Fashion | Loading intermittently, Functioning continuously. | |
High Frequency Leakage | Monopolar | < 150mA |
Bipolar | < 60mA | |
Delivery Data | Package Dimensions | 34x16x47cm |
Net Weight | 8kg | |
Accessories
The Accessory can be defined to suit the user’s needs and preferences.
1 Power cable plug
2 Disposable ESU pencil
3 Disposable ESU plate
4 Reusable plate cable
5 Two Button Footswitch
6 Reusable Bipolar forceps
7 Reusable Bipolar cable
8 Laparoscopic Vessel Sealing instrument
9 Laparoscopic instrument cable
