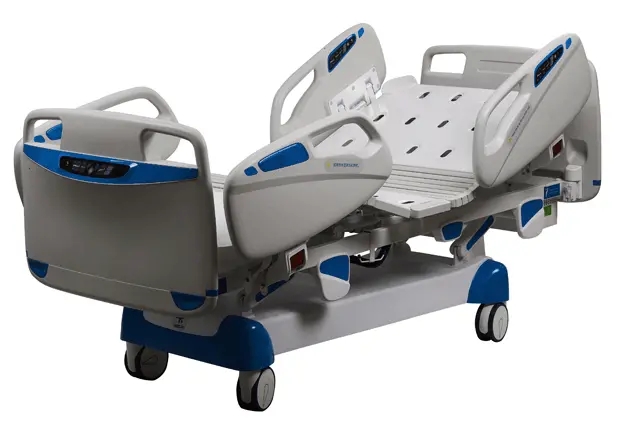

THR-IC-528A Five-Function Electric ICU Bed
a touching switch system at the bed foot board, with patient lock-out system, for nursing person's operation.
Patient Switch System insert in the 2pcs head side rails,for patient adjust bed position easily.

Dimension:L2330mm * W1050mm * H530mm-710mm
Net Weight:148kg
Load Capacity:250kg at max
Packing2080mm*1060mm*610mm


Material:steel framework, ABS & PP for plastic part
Head & Foot Boarddetachable, in PP plastic material, can be fixed when assembled
Side Rails4pcs foldable PP material, controlledy by gas spring
Bed board:with soft connection, make the bending of the bed board more smooth to let the patient more comfortable
Castor150mm dia. Swivel with central locking system controlled by electric
I. V PoleReserving I.V pole mount bracket, at 4 corners of the bed frame
I.V Pole Stand1pc stainless steel


Back-rest Upward0-65°
Foot-rest Upward0-45°
Hi-Low liftingfrom 710mm to 530mm
Trendelenburg10°
Rev. Trendelenburg10°
all achieved by electrically controlled,with indicator light to show the work status.


Switchtouching design
Patient Switch Systeminsert in the 2pcs head side rails,for patient adjust bed position easily
Nurse Switch Systema touching switch system at the bed foot board, with patient lock-out system, for nursing person's operation
"Reset" Functionbed can back to " Zero" position quickly
Backup Batteryfor emergency power failure
Bed Mattress:Optional
