PRODUCT DETAILS
PPRODUCT DETAILS
THR-EB5300

THR-EB5300

0.00
0.00

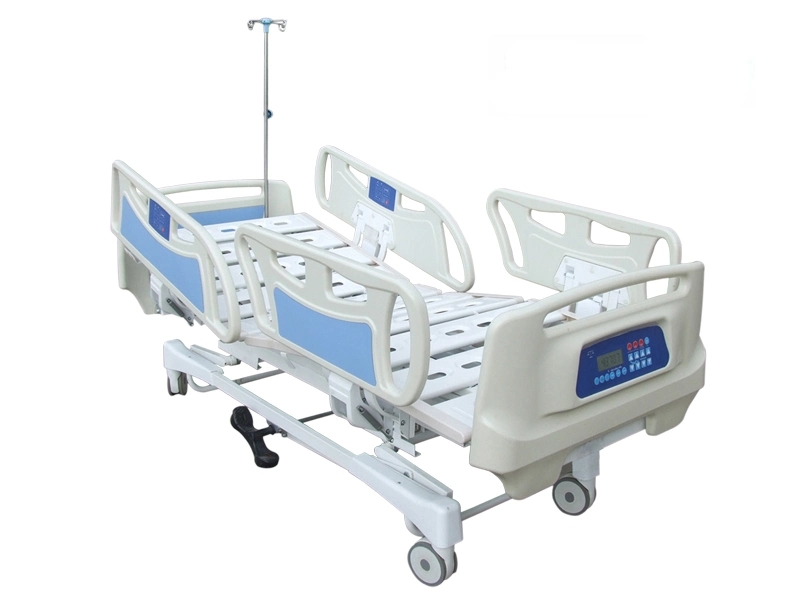

1)ISO, CE Electric Hospital Bed
2)With five function

Technical Parameters:
1. Over all size (L*W*H): 2220*990/1050*450/790mm
2. Maximum Low- 45cm
3. Maximum height---79cm
4.12.5cm castor
5. Four independence motors.
6. Built in foot board's I. V. Pole
7. Control button for outside of side rails and foot board
8. Control button for inside of side rail.
9. Angle scale.
10. CPR handle.
11. Detachable head and foot board
12. Retractable fifth wheel (optional)
13. Electronic function Lock (optional)
14. Weight rendings system: Accuracy of measurement -0.1kg

Features:
1. The security, reliability and practicability of the hospital bed attain national standard.
2. Its in-bed scale system increase efficiencies by taking accurate weight readings with the patient in any position.
3. It addresses patient safety with low bed height, full coverage side rails.
4. Its architecture and retractable support surface designed provides the flexibility to choose the most appropriate patient surface.
5. Patient will feel very convenient while be on drip or used the heart monitor since it won't need to change patient position when the bed back section rise and low.

                                          Specification
Length:223 cm
Width: (Including & Without the side rails)99~105 cm
Patient touching face:90*160 cm
Maximum capacity:250kg
Diameter of Central controlled castors:12.5 cm
Accuracy of Measurement:0.1kg
                                              Material
Top coat:Elactrostatic Powder coating
Bed frame:Cold-Rolled Steel Tube
Bed base:Cold-Rolled Steel Sheet
                                              Function
Adjustable angle of Back Section Panel:0~75°
Adjustable angle of Leg Section Panel:0~45°
Trendelenburg:0~10°
Anti-Trendelenburg:0~10°
Height range:45~70 cm
                                        Standard Accessary
Nurse controller1 unit
Rail controller4 units
Linak Electrical Motor4 units
Drainage hook2 units
Angle scale2 units
Manual CPR Handle1 unit
Central silent castors4 units
Detachable ABS head and foot board1 pair
Rise-and-fall guide wheel1 unit
                                        Optional Accessary
I. V. Pole with 4 hooks
Waterproof ventilative Mattress
Weight reading sysytem
Accuracy of Measurement of 0.05kg or 0.02 kg
                                          Packing Information
Packing size:244L*99W*53H cm
