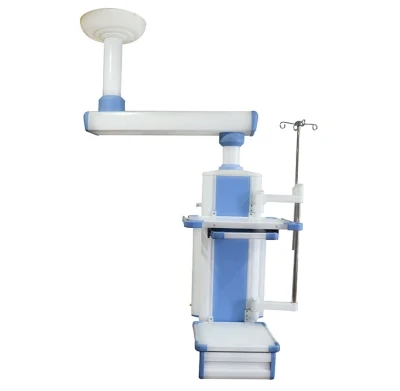

THR-1001 Medical Pendant
The One arm motorized medical pendant is mainly used in the Hospital Intensive Care Units (ICU).
It is ceiling mounted, with Medical Gas Outlets, Electric Sockets, Electric Communicate Ports, etc.
To supply Medical Gases, Electric Power, Communicating for the Medical Operating.
And with shelves, it loads the medical equipments to move.
We offer Medical Gas Outlets for British, German, French, American, South African, Metric Standards.
| Specification: |
| Arm Specification |
| Installing Mode: Ceiling Mounted; |
| Qty: 1 pc; |
| Length: 750mm; |
| Material: Aluminium Alloy; |
| Loading Capability: ≥280 KGs; |
| Rotating: ≥ 340 Degrees; |
| Finishing: Antibacterial Powder Finished; |
| Service Head Specification |
| Qty: 1 pc; |
| Material: Aluminium Alloy; |
| Loading Capability: ≥100 KGs; |
| Rotating: ≥ 340 Degrees; |
| Finishing: Antibacterial Powder Finished; |
| 2 Equipments Shelves; |
| 1 drawer; |
| 8 pcs of 3-Pin Universal Electrical Sockets, ~220V, 10A; |
| 1 pc RJ-15, 1 pc RJ-45 |
| 5 pcs Medical Gas Outlets: 2*Oxygen, 2*Vacuum, 1*Medical Air; |
| 1 pc Handle with Controlling Buttons inside; |
| 2 pcs poles for Infusion Pumps and Infusion Sets; |
| Controlling Specification |
| Buttons: Brake On & Off optional; |
| Brake System Specification |
| Friction Brake System; |
| Pneumatic Brake System optional; |
| Optional Parts: |
| LCD Monitor Brackets; |
| Stainless Steel Baskets; |
| Oxygen Flowmeters, Suction Units; |
| CCTV system. |
