Compact Design and Easy Operation Automatic Urine Analyzer
Features:
·Cold light source facility with long life and high stability
·Internal thermal printer
·Easy operation, cost-efficiency and high quality
·Rs232 serial interface to host PC/LIS, Barcode reader optional

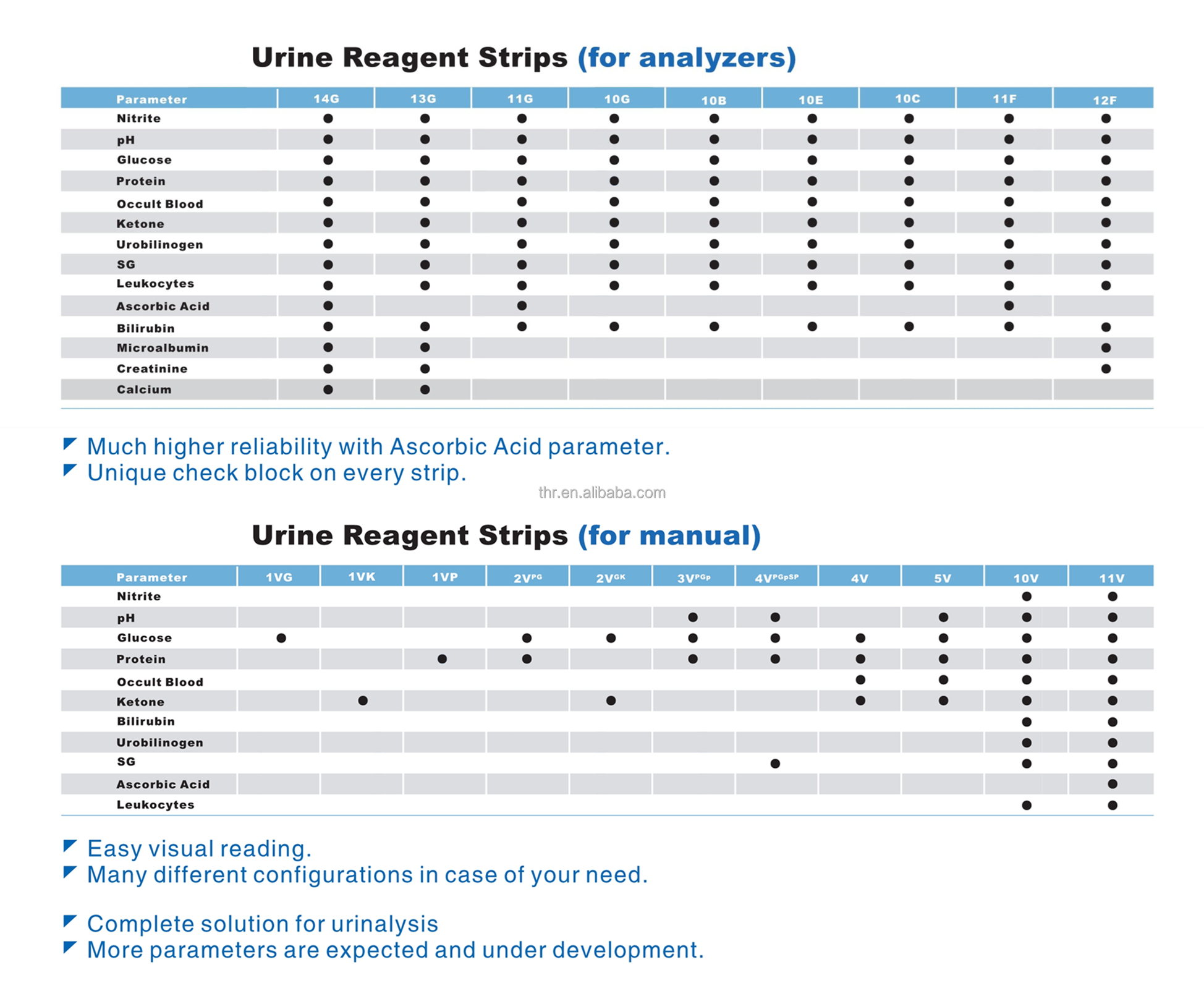

-URIT 10G 11G urine reagent strip
-Complete urine analysis with Ascorbic Acid

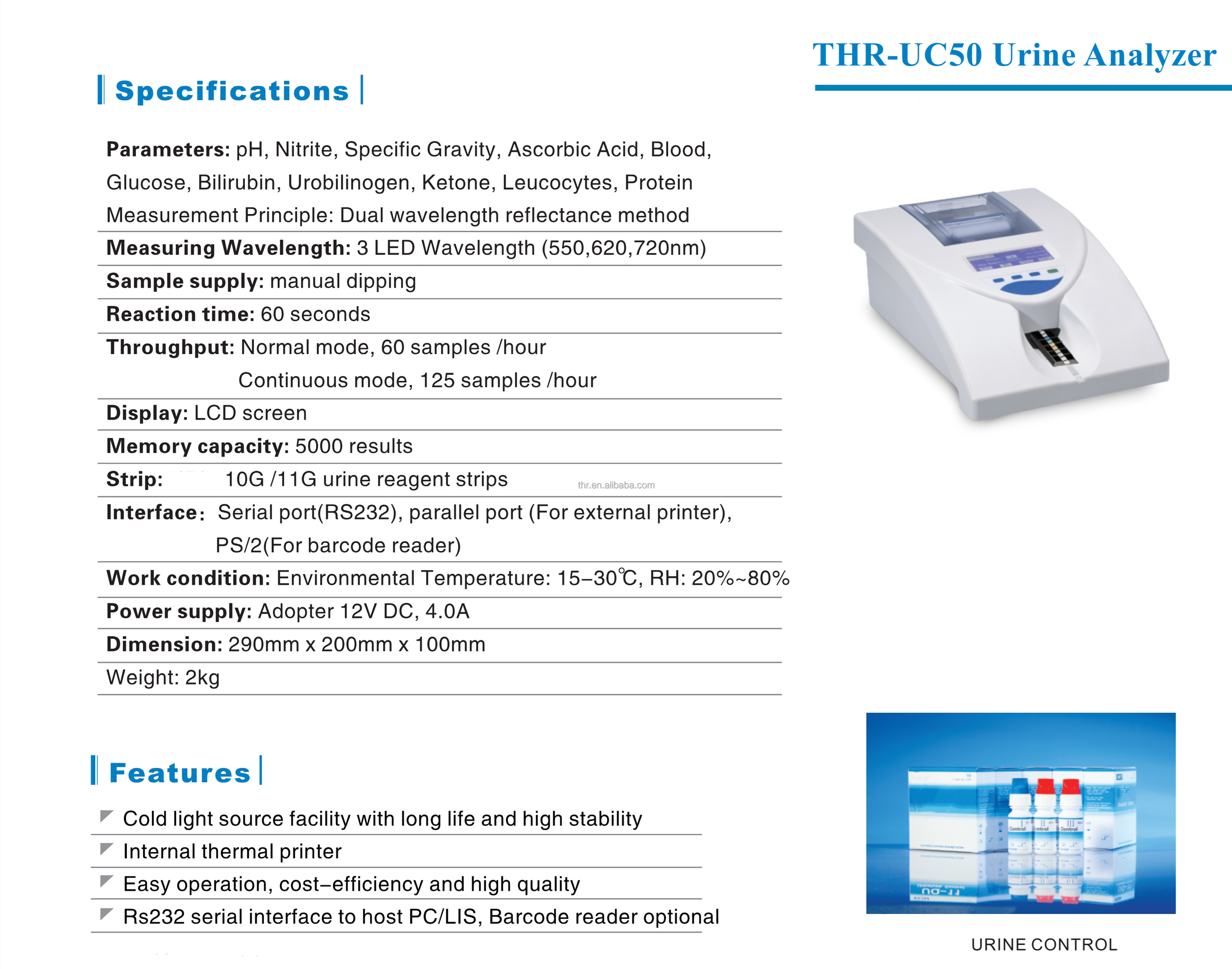

Specifications:
·Parameters: pH, Nitrite, Specific Gravity, Ascorbic Acid, Blood, Glucose, Bilirubin, Urobilinogen,
Ketone, Leucocytes, Protein,Calcinm
·Measurement Principle: Dual wavelength reflectance method
·Measuring Wavelength: 3 LED Wavelength (550,620,720nm)
·Sample supply: manual dipping
·Reaction time: 60 seconds
·Throughput: Normal mode, 60 samples /hour
Continuous mode, 125 samples /hour
·Memory capacity: 5000 results
·Interface: Serial port(RS232), parallel port (For external printer),
PS/2(For barcode reader)
·Work condition: Environmental Temperature: 15-30ºC, RH: 20%~80%
·Power supply: Adopter 12V DC, 4.0A
·Dimension: 290mm x 200mm x 100mm
·Weight: 2kg
·Internal thermal printer
·Easy operation, cost-efficiency and high quality
·Rs232 serial interface to host PC/LIS, Barcode reader optional
-URIT 10G 11G urine reagent strip
-Complete urine analysis with Ascorbic Acid
Specifications:
·Parameters: pH, Nitrite, Specific Gravity, Ascorbic Acid, Blood, Glucose, Bilirubin, Urobilinogen,
Ketone, Leucocytes, Protein,Calcinm
·Measurement Principle: Dual wavelength reflectance method
·Measuring Wavelength: 3 LED Wavelength (550,620,720nm)
·Sample supply: manual dipping
·Reaction time: 60 seconds
·Throughput: Normal mode, 60 samples /hour
Continuous mode, 125 samples /hour
·Memory capacity: 5000 results
·Interface: Serial port(RS232), parallel port (For external printer),
PS/2(For barcode reader)
·Work condition: Environmental Temperature: 15-30ºC, RH: 20%~80%
·Power supply: Adopter 12V DC, 4.0A
·Dimension: 290mm x 200mm x 100mm
·Weight: 2kg
Parameters | pH, Nitrite, Specific Gravity, Ascorbic Acid, Blood, Glucose, Bilirubin, Urobilinogen, Ketone, Leucocytes, Protein Measurement Principle: Dual wavelength reflectance method |
Measuring Wavelength | 3 LED Wavelength (550,620,720nm) |
Sample supply | manual dipping |
Reaction time | 60 seconds |
Throughput | Normal mode, 60 samples /hour Continuous mode, 125 samples /hour |
Display | LCD screen |
Memory capacity | 5000 results |
Interface | Serial port(RS232), parallel port (For external printer), PS/2(For barcode reader) |
