THR-YDB
0.00
0.00
Factory Price Disinfection Equipment Horizontal Cylindrical Pressure Steam Sterilization Autoclave
150/200/280L
Use
The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely toensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chambertemperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations tosterilize surgical instruments, fabric glassed, and the culture media etc.
Characteristics
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if theIdoor doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
• With printer.
The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely toensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chambertemperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations tosterilize surgical instruments, fabric glassed, and the culture media etc.
Characteristics
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if theIdoor doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
• With printer.
Specification
MODEL | THR-150YDB | THR-200YDB | THR-280YDB | |||
Technical Data | ||||||
Stenilizing chamber volume | 150L φ440×1000 | 200L φ515×1000 | 280L φ600×1000 | |||
Working pressure | 0.22Mpa | |||||
Working temperature | 134℃ | |||||
Temperature adjust range | 40℃-134℃ | |||||
Time for sterilization | 0-99min | |||||
Time for drying | 0-99min | |||||
Heat average | ≤±2℃ | |||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | |||
Dimension（mm） | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 | |||
Exerior package dimension（mm） | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 | |||
G.W/N.W | 430/340kg | 436/350kg | 570/462Kg | |||

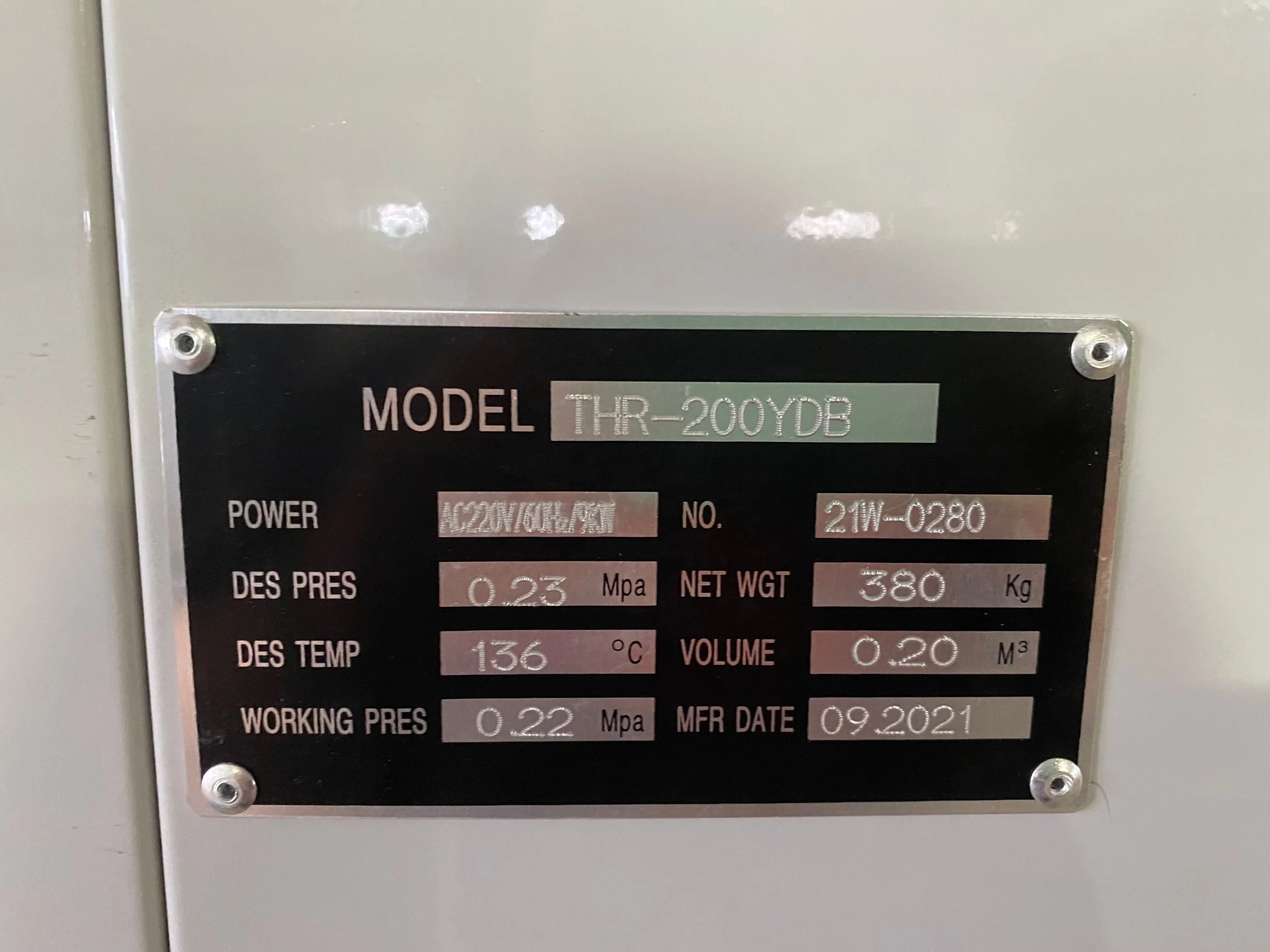

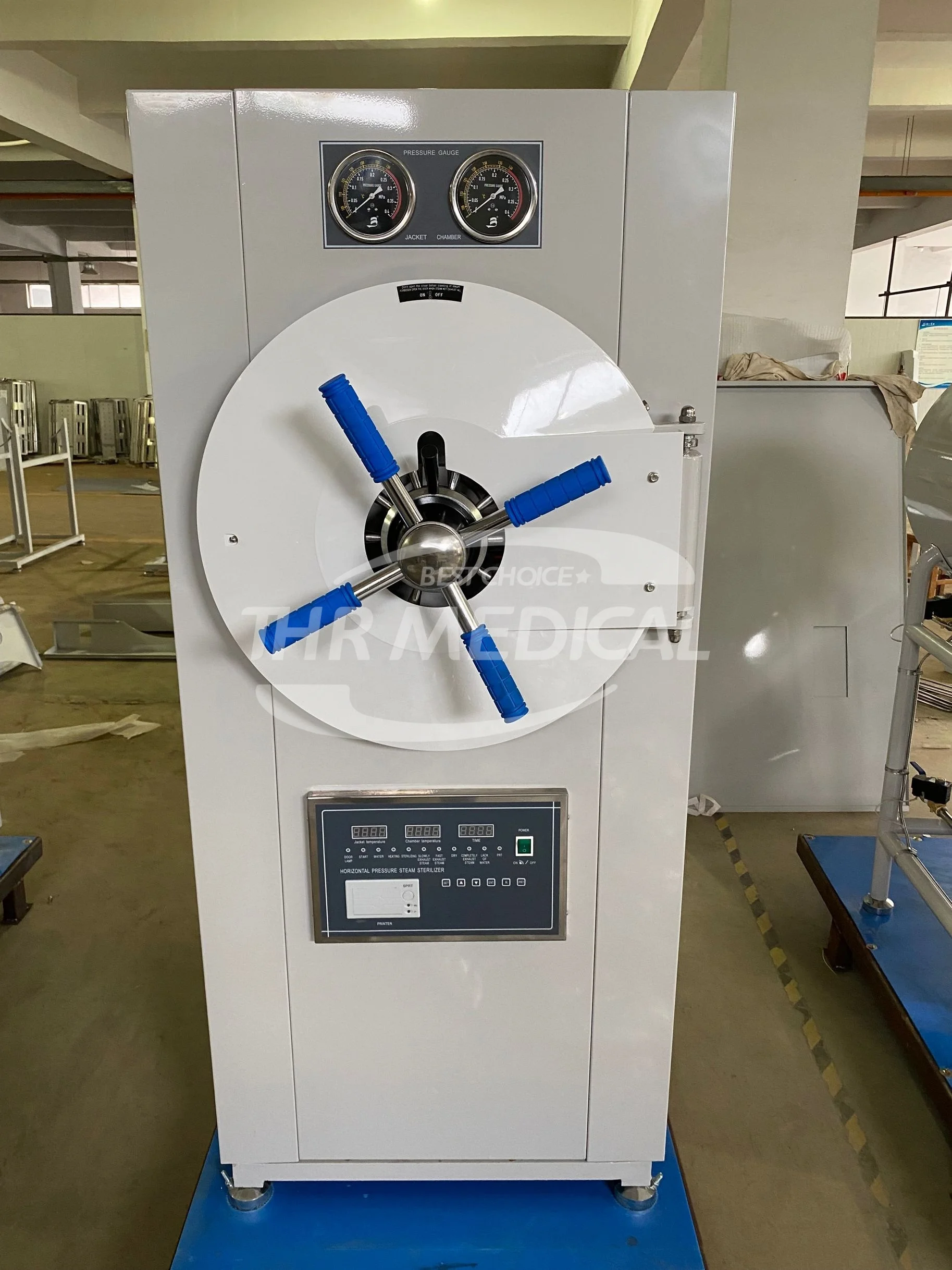

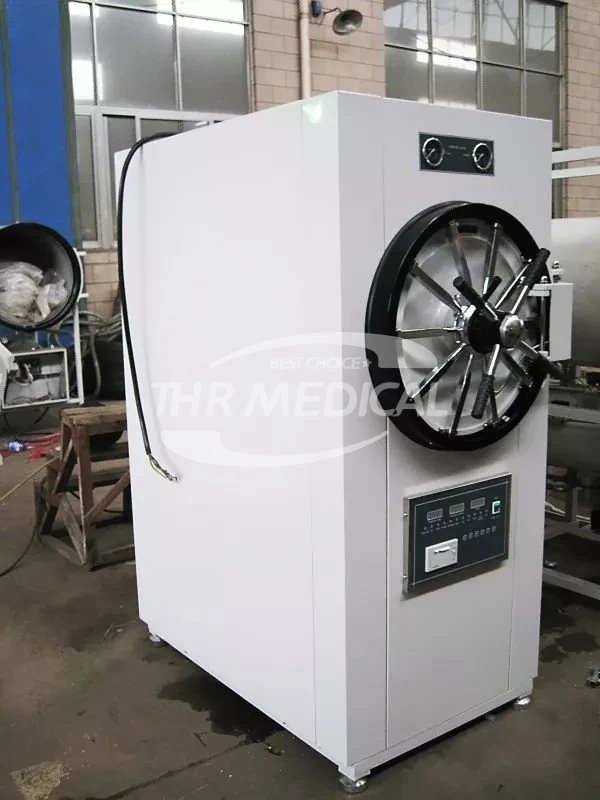

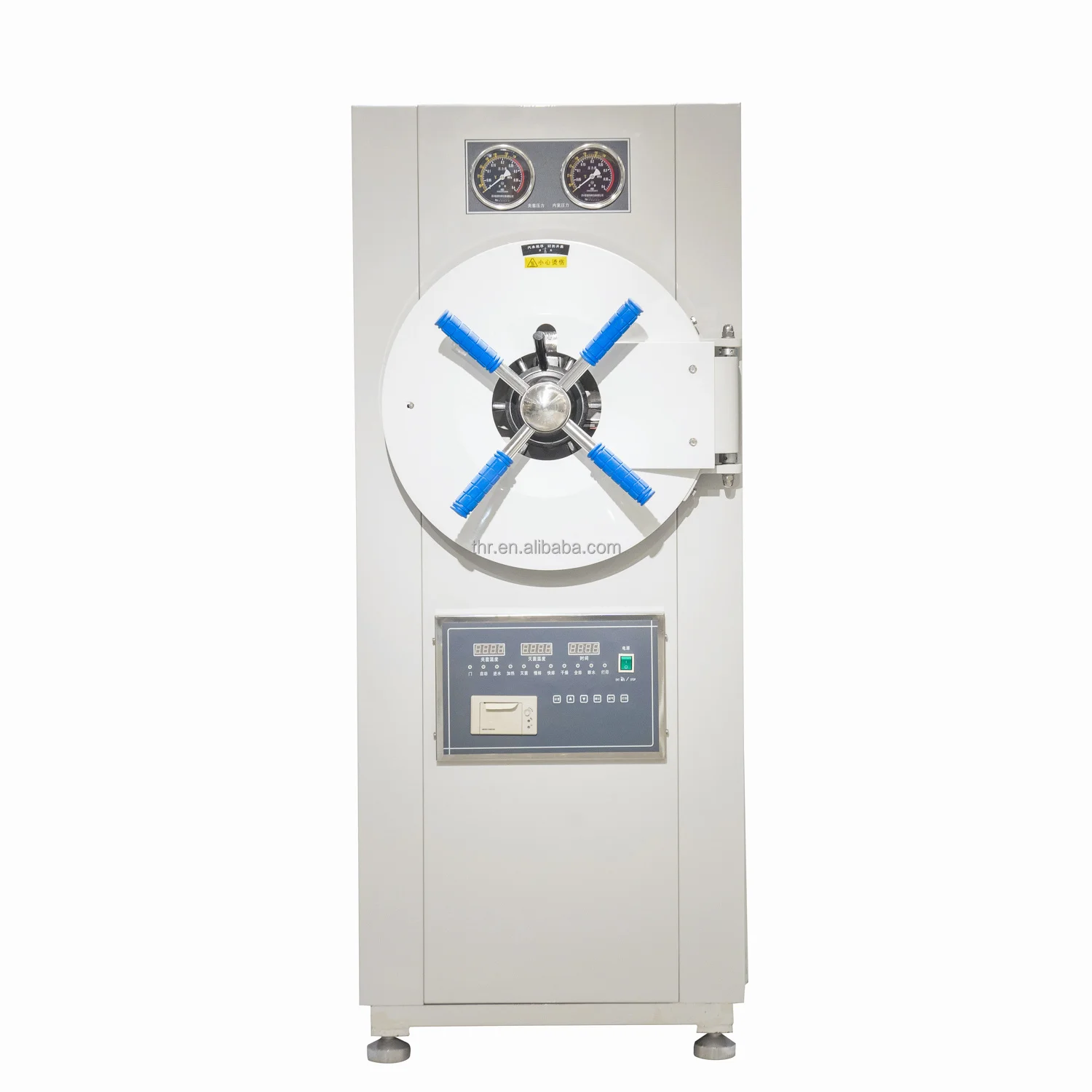

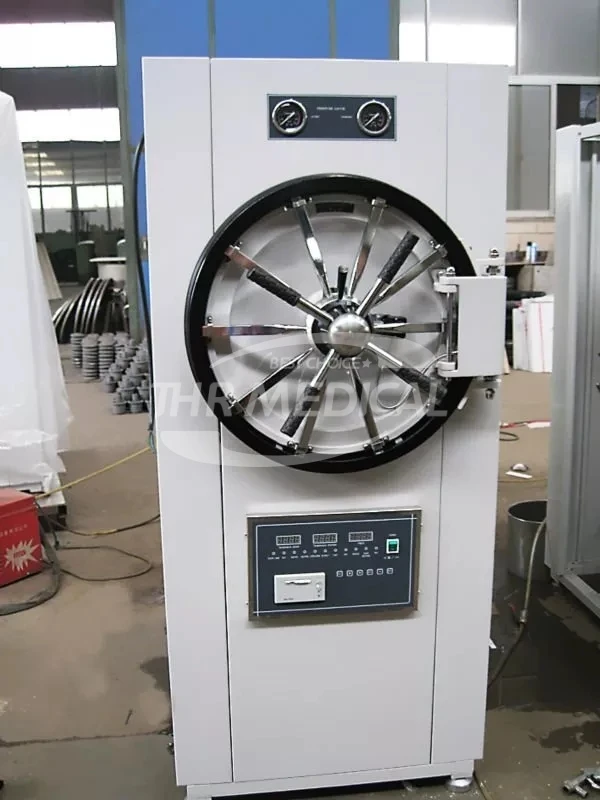

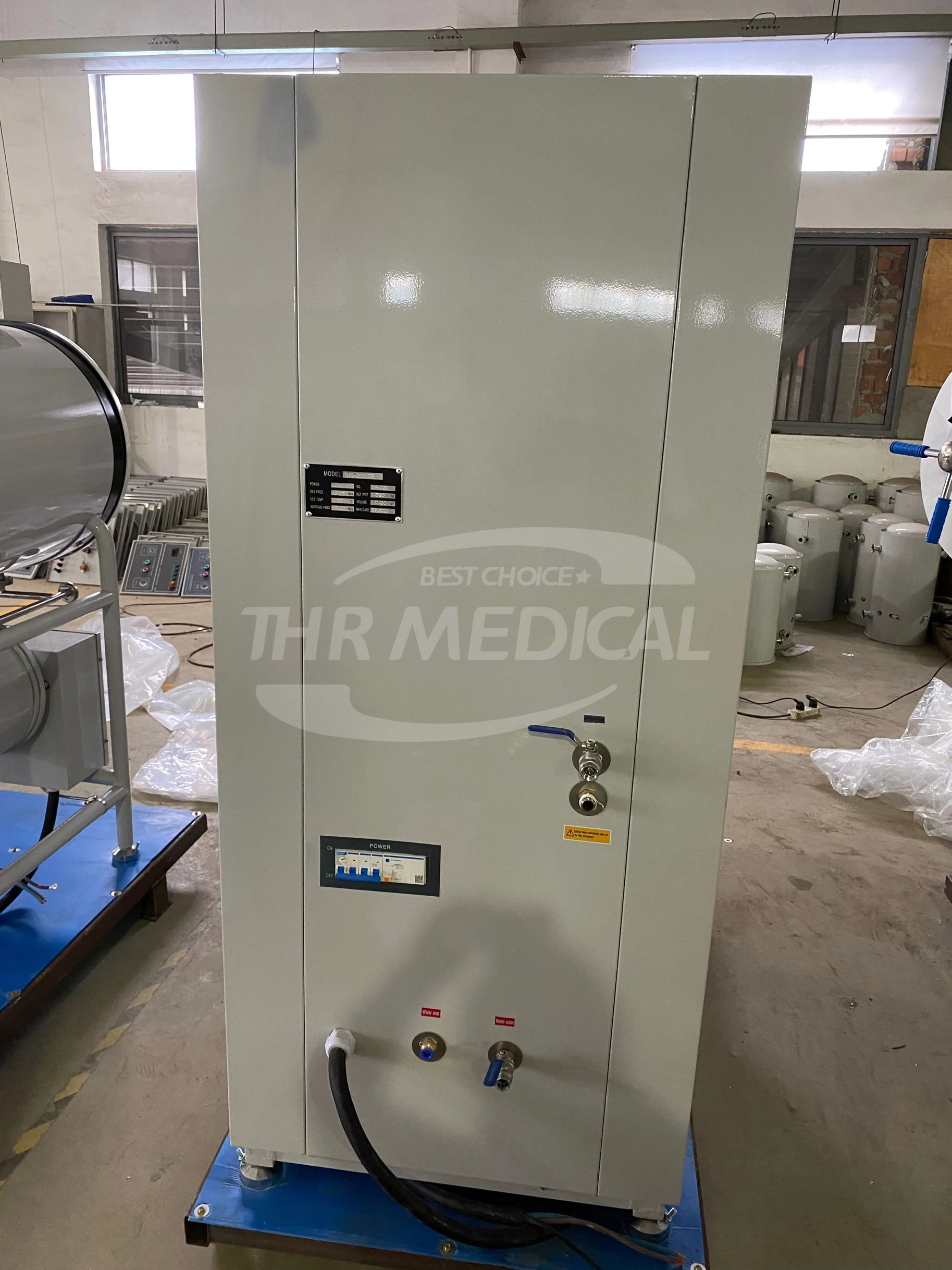

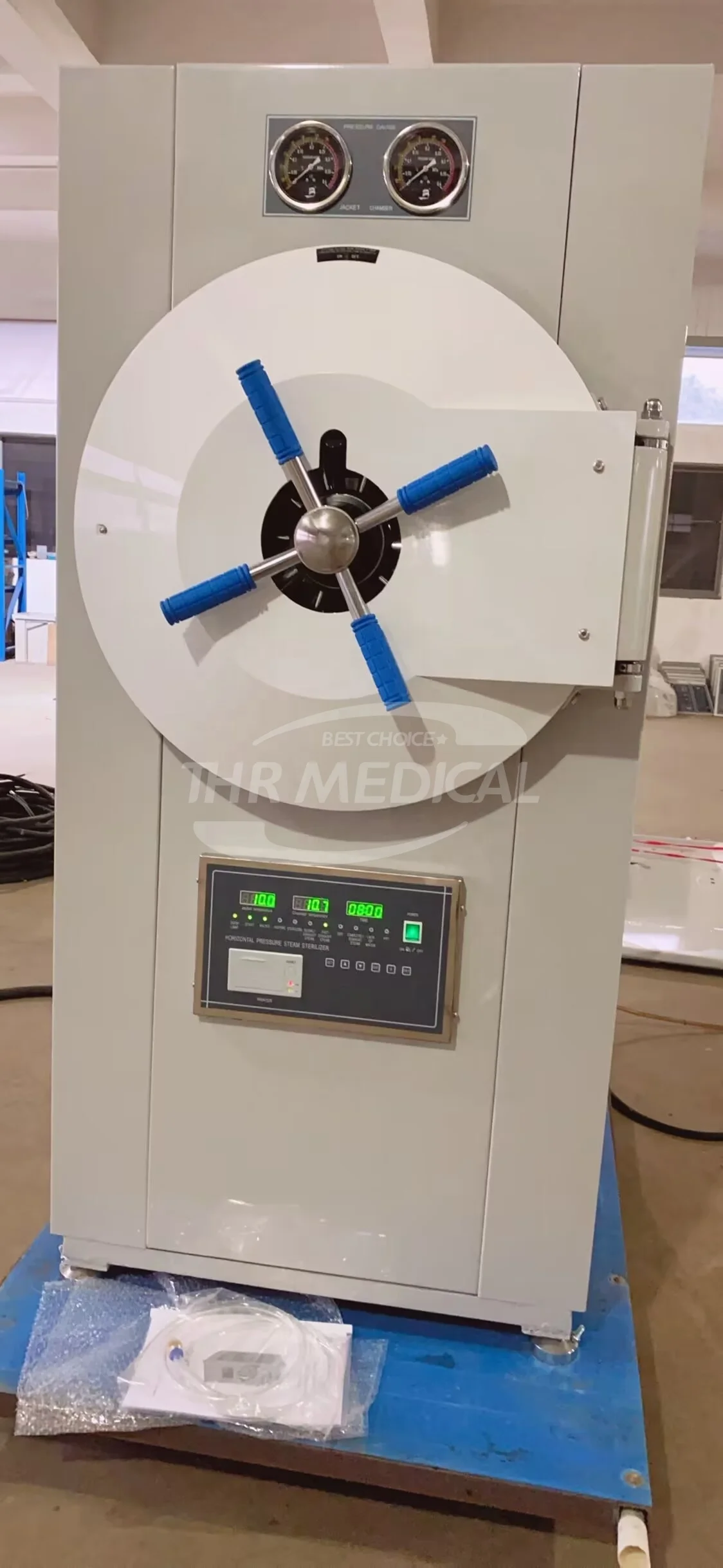

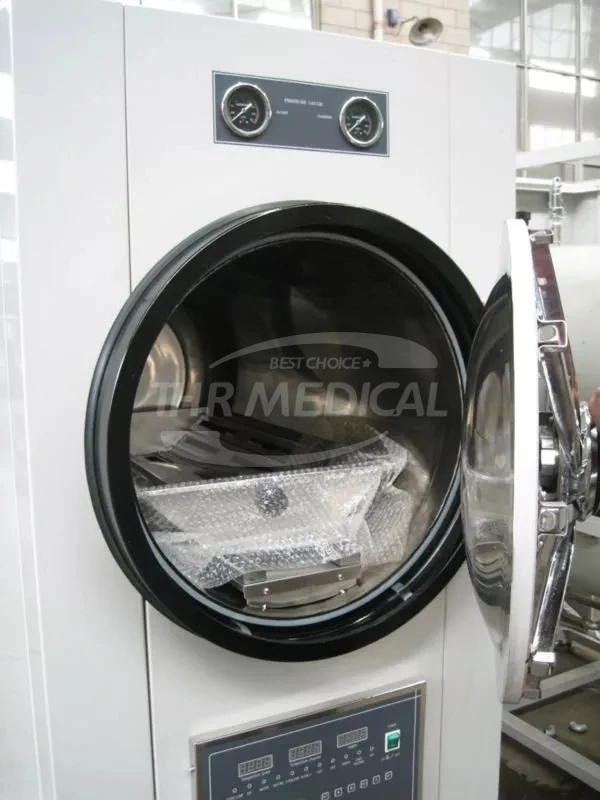

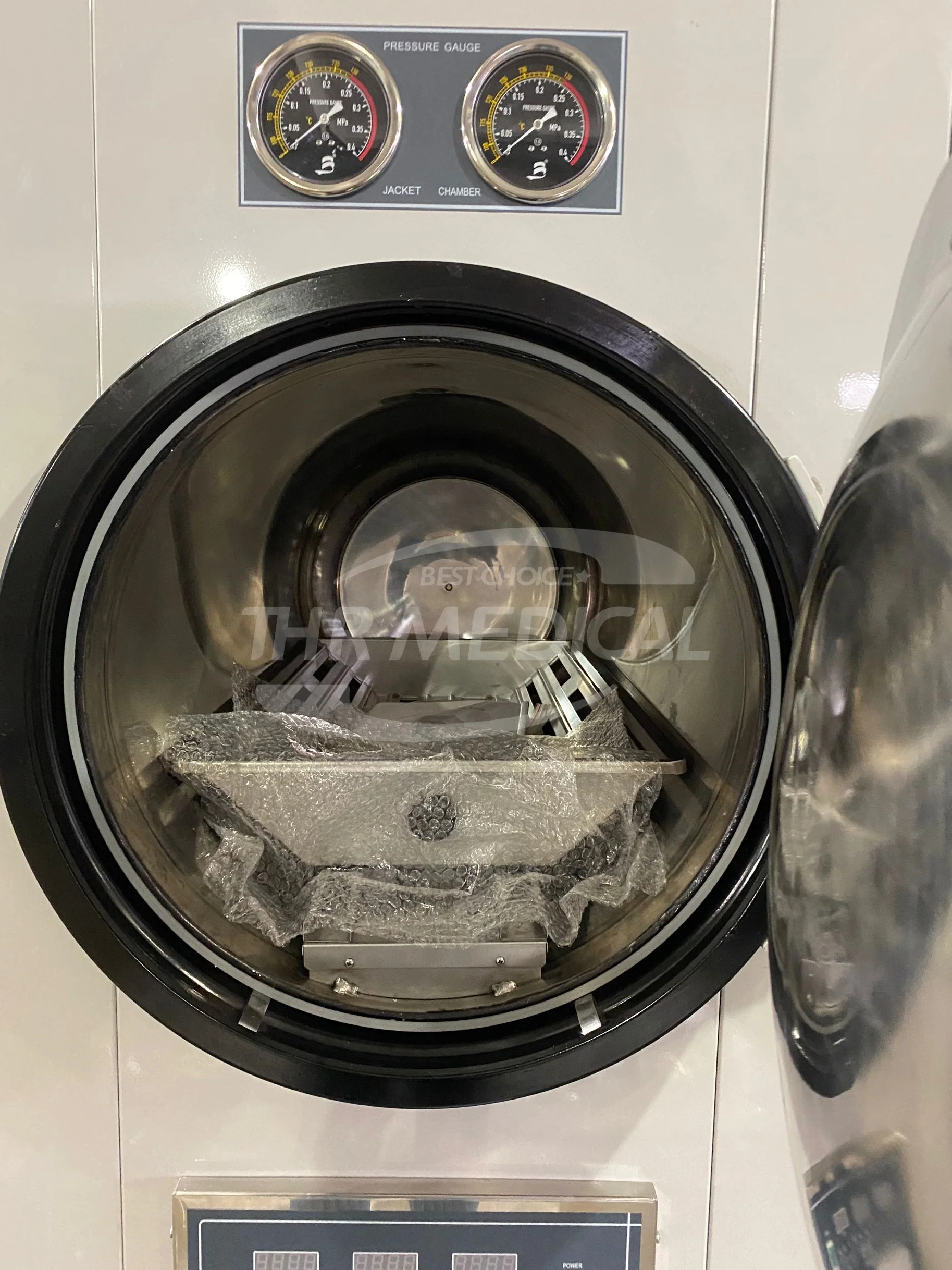

Detailed Images
