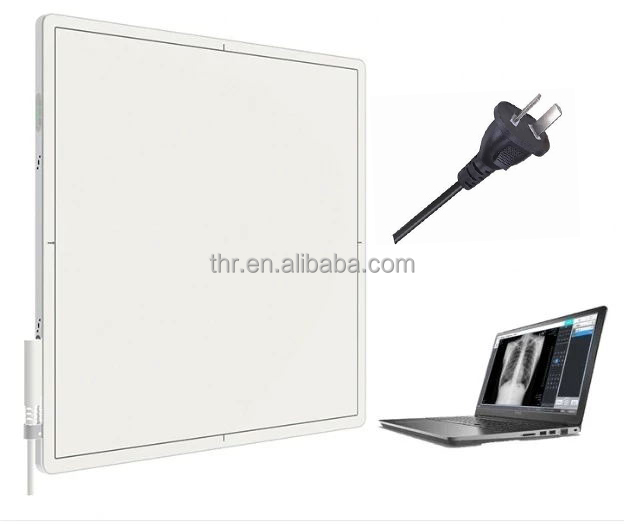

High performance, cassette-sized flat panel detector which has both wired and wireless version. Battery stands by for at least 8 hours.
It supports IEEE 802.11ac with transmission speed up to 1300M bps. The detector acquires outstanding images with high DQE and high resolution.
Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.
Specification：
Flat Panel Detectors
Detector Technology : a-Si
Scintillator: CsI
Image Size: 43×43 cm
Pixel Matrix: 3072×3072 (17×17 in)
Pixel Pitch: 140 μm
A/D Conversion: 16 bit
Minimum Detectable Dose: 14 nGy
Maximum Linear Dose (RQA5): 110 μGy
Spatial Resolution: 3.6 LP/mm
Data Interface: GigE /802.11ac
Power Dissipation: 20 W
Adapter Input: AC 100-240V,50-60Hz
Dimensions: 46×46×1.5 cm
Computer
Intel i5 processor ;
8 G memory;
2 G independent graphics card;
128 G solid state hard disk 1 TB mechanical hard disk;
PCI-E and ethernet dual gigabit network interface;
22.5 inch dell professional small dot display;
operating system: win10.
