PRODUCT DETAILS
PPRODUCT DETAILS

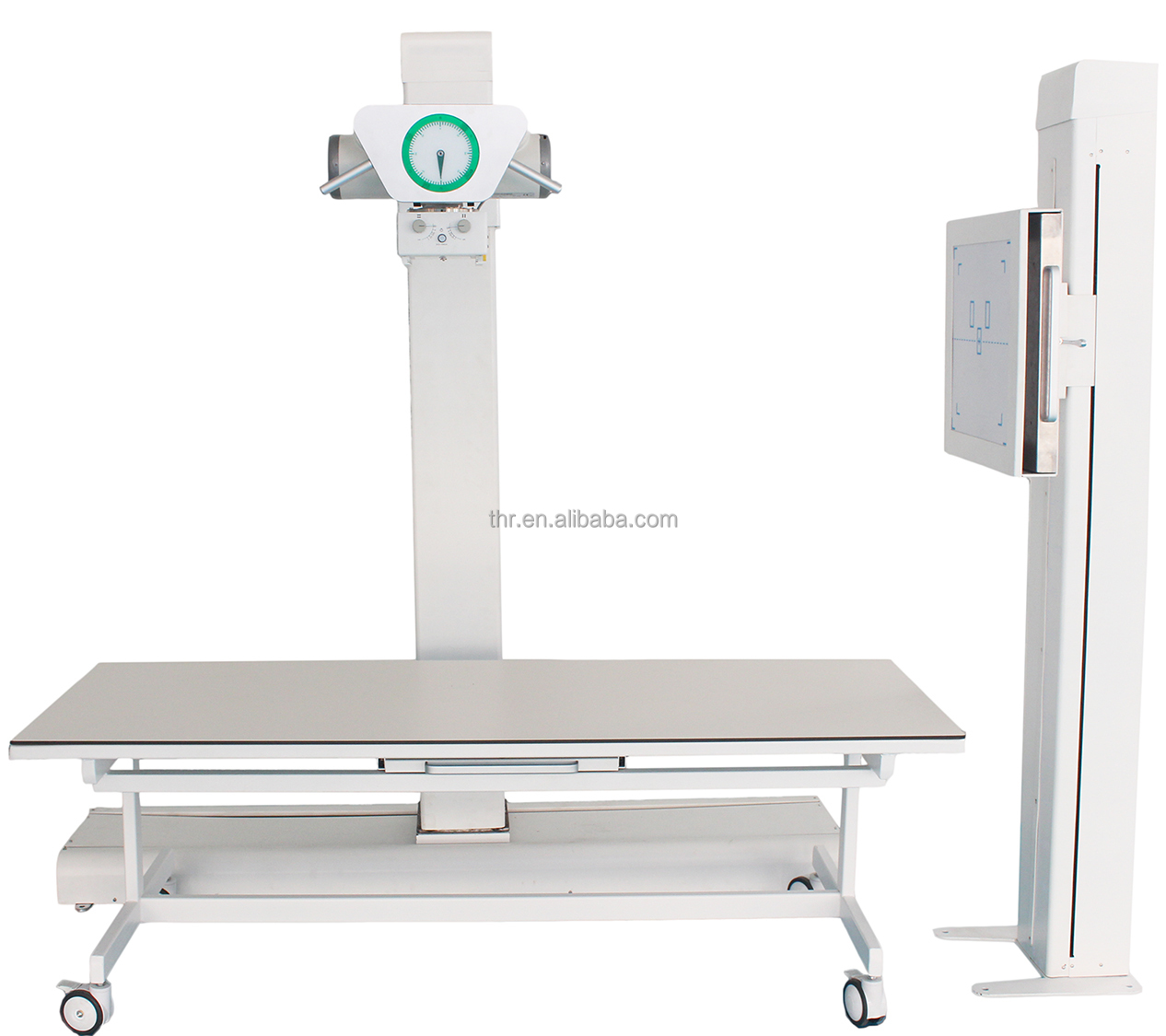

THR-XR-650
0.00
0.00
Generator
1, Power voltage:3-phase3-wire system, 3-phase 380VAC ±10%
2, Maximum Working Frequency:500 KHz
3, Nominal Electric Power:65kw(@103kv,630mA,100ms)
4, KV range:40-150KV (≤±5%)
5, mA range:10-800mA (≤±5%)
6, mAs range:0.5-800mAs (≤± (10% + 0.2mAs))
7, Photoformy time:1ms-10000ms
2, Maximum Working Frequency:500 KHz
3, Nominal Electric Power:65kw(@103kv,630mA,100ms)
4, KV range:40-150KV (≤±5%)
5, mA range:10-800mA (≤±5%)
6, mAs range:0.5-800mAs (≤± (10% + 0.2mAs))
7, Photoformy time:1ms-10000ms
X-ray tube
1, Working voltage: 40KV-150KV
2, Nominal Focal Spot Value:Large focus 1.2,Small focus 0.6
3, Maximum power (0.1 S):
4, Anode angle:12°
5, Total filtration (lead equivalent):Permanent Filtration:1.0mm AL/75Kv
6, Anode Heat Content:220KJ(313KHU)
7, Tube component heat capacity:900KJ(1250KHU)
2, Nominal Focal Spot Value:Large focus 1.2,Small focus 0.6
3, Maximum power (0.1 S):
4, Anode angle:12°
5, Total filtration (lead equivalent):Permanent Filtration:1.0mm AL/75Kv
6, Anode Heat Content:220KJ(313KHU)
7, Tube component heat capacity:900KJ(1250KHU)

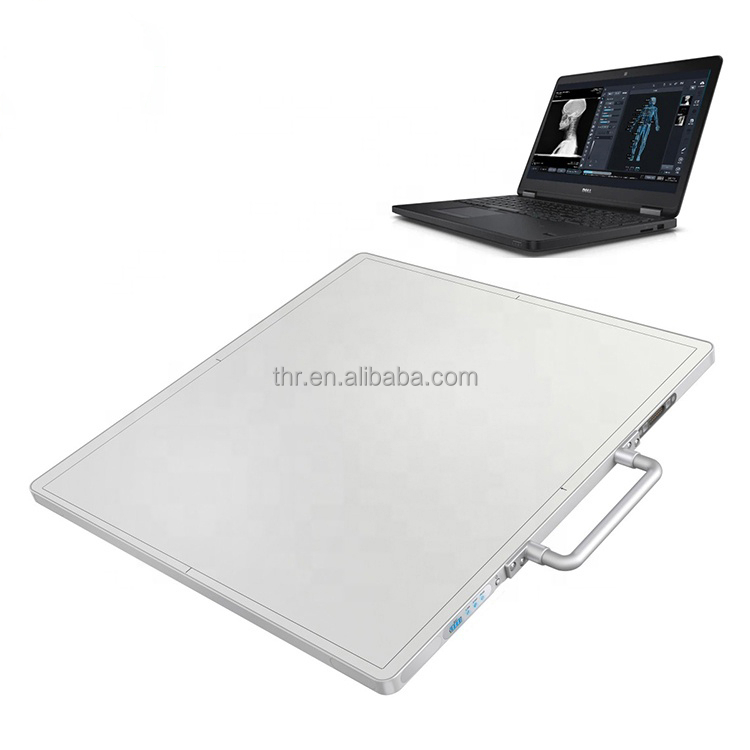

Flat Panel Detectors
Detector Technology : a-Si
Scintillator: CsI
Image Size: 43×43 cm
Pixel Matrix: 3072×3072 (17×17 in)
Pixel Pitch: 140 μm
A/D Conversion: 16 bit
Minimum Detectable Dose: 14 nGy
Maximum Linear Dose (RQA5): 110 μGy
Spatial Resolution: 3.6 LP/mm
Data Interface: GigE /802.11ac
Power Dissipation: 20 W
Adapter Input: AC 100-240V,50-60Hz
Dimensions: 46×46×1.5 cm
Scintillator: CsI
Image Size: 43×43 cm
Pixel Matrix: 3072×3072 (17×17 in)
Pixel Pitch: 140 μm
A/D Conversion: 16 bit
Minimum Detectable Dose: 14 nGy
Maximum Linear Dose (RQA5): 110 μGy
Spatial Resolution: 3.6 LP/mm
Data Interface: GigE /802.11ac
Power Dissipation: 20 W
Adapter Input: AC 100-240V,50-60Hz
Dimensions: 46×46×1.5 cm
Computer
Intel i5 processor ;
8 G memory;
2 G independent graphics card;
128 G solid state hard disk 1 TB mechanical hard disk;
PCI-E and ethernet dual gigabit network interface;
22.5 inch dell professional small dot display;
operating system: win1
8 G memory;
2 G independent graphics card;
128 G solid state hard disk 1 TB mechanical hard disk;
PCI-E and ethernet dual gigabit network interface;
22.5 inch dell professional small dot display;
operating system: win1
Specification：
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | THR |
Model Number | THR-XR-650 |
Power Source | Electric |
Product name | High Frequency Medical 65KW Digital X ray Machine |
Type | X-ray Machine |
Certificate | CE |
mA adjustable range | 10-800mA (≤±5%) |
Core heat capacity | 220KJ(313KHU) |
Maximum output power | 65kw(@103kv,630mA,100ms) |
X-ray tube focus | 0.6/1.2mm |
Frequency | 500kHz |
