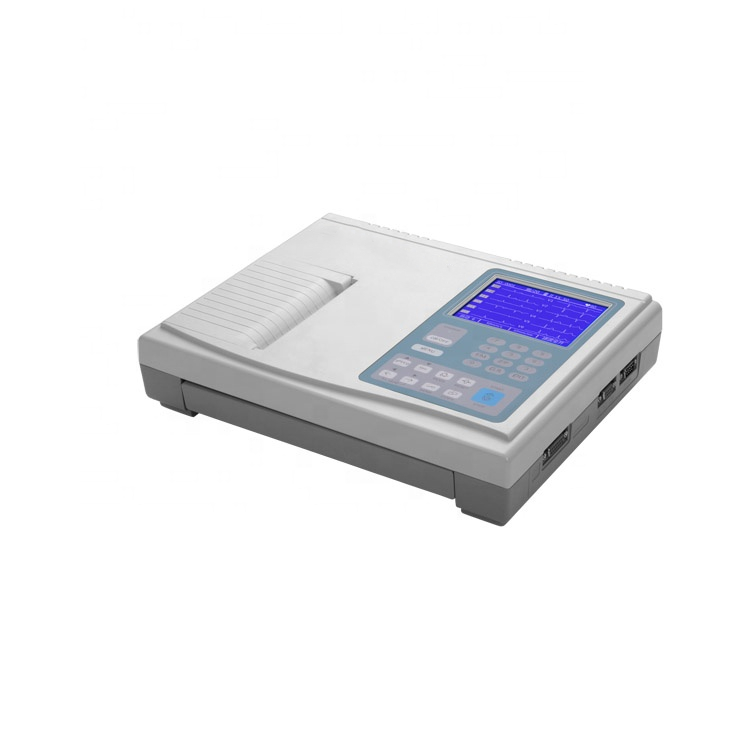

THR-ECG-1206A
THR-ECG-1206A

THR-ECG-1206A

0.00
0.00

Input modefloating and defibrillation protection
Frequency response0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR>60dB, >100dB(add filter)
Time constant≥ 3.2s
Patient leak current<10µA
Calibration voltage1mV±3%
Sensitivity2.5, 5, 10, 20 mm/mV ±3%
Noise leve<15µVp-p
Input impedance≥50MΩ
Recording modethermal printing system
Auto recordset record according to auto record format and mode, automatically switching leads, measuring and analyzing
Rhythm recordset record according to rhythm record format and mode, automatically measuring and analyzing
Manual recordset record according to record format, manually switching leads.
Measurement parametersHR, P-R interval, QRS Duration,  QT interval, QTC, P/QRS/T axis ,  RV5, SV1, RV5/SV1 range
Paper size112mm(W)×20m(L) / 112mm(W)×30m(L)
Polarizable voltage±400mV
Papar speed6.25, 12.5, 25, 50mm/s, ±3%




Features

1.3/4/(3-6)/6 channel printout format
2.5.1 inch 320x240 LCD to display ECG waveform, setting menu and operating status
3.Rhythm lead with R-R interval histogram and trend graph
4.Automatic measurement and interpretation of ECG parameters
5.Built in RS232/USB interface for data transmission to PC
6.128 exams in memory for recall and duplication
7.Able to enter patient into of ID, sex, age & weight
8.Data communcation with HIS in format of XML, JPG, PDF, etc
9.Optional ECG viewer software for further data management
10.Paper size: 112mmx20m, roll type
11.Built in  rechargeable Lithium battery supporting 50 exams
