THR-HV2150
0.00
0.00

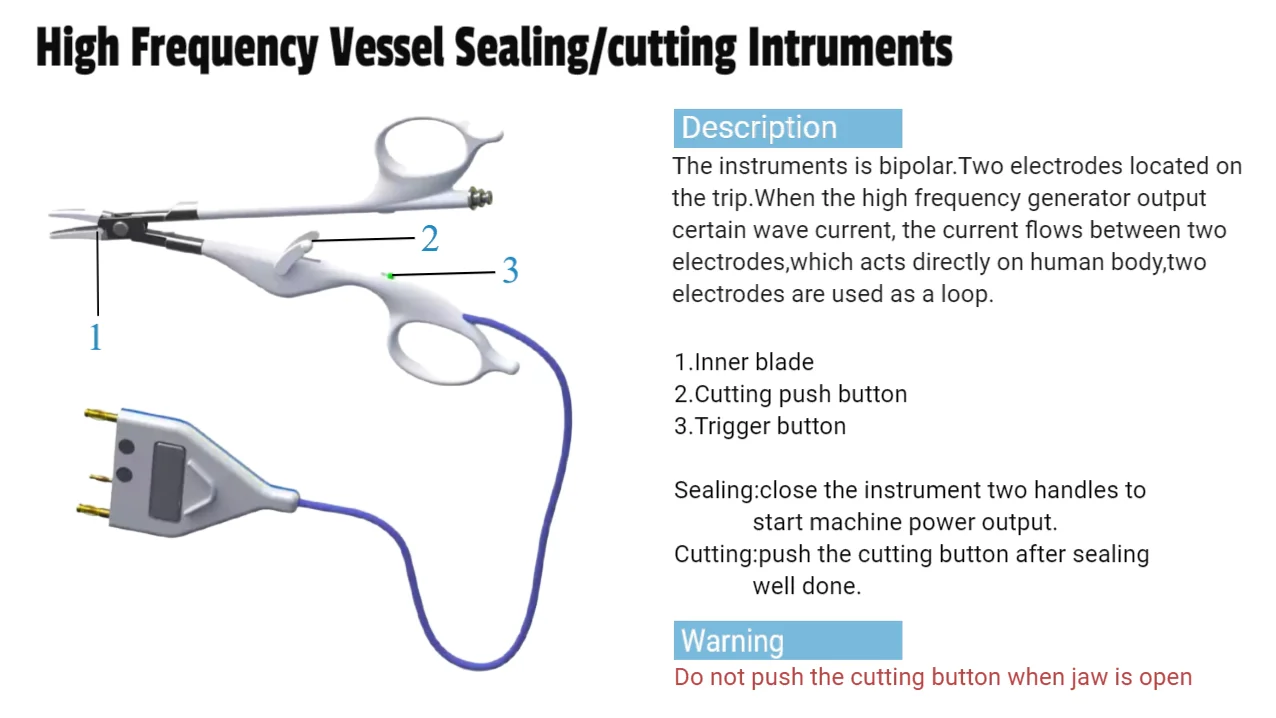

Small jaw with inner blade and suction system tube
Real time Instant Power technology features an advanced feedback system that recognizes changes in tissue 1,000 times per second.The generator automatically senses tissue resistance and adjusts the output voltage to maintain a consistent effect across different tissue density.This adjustment is based on the power setting and the leve loft issue resistance.
Clinical Benefits for Both the Surgeons and Patients
1. Permanently fuses vessels up to and including 7 mm in diameter
2. Tissue bundles without dissection or isolation
3. Reduces the risk of needlestick injuries，Reduces thermal spread ，Minimizes thermal spread to approximately 1~ 2 mm for most instruments.
4. Unique energy output results in virtually no sticking or charring
5. Permanent seal leaves no foreign material behind to interfere with future diagnosis .
6.Potential time savings compared to suture.
7. A clinical study demonstrated that seals withstand 3x normal systolic blood pressure
8. May reduce blood loss in some surgical procedures. Minimizes the need for multiple applications.
Real time Instant Power technology features an advanced feedback system that recognizes changes in tissue 1,000 times per second.The generator automatically senses tissue resistance and adjusts the output voltage to maintain a consistent effect across different tissue density.This adjustment is based on the power setting and the leve loft issue resistance.
The maximum output voltage is controlled to reduce tissue damage and to minimize sparking.The generator produces a high- current,low-voltage output that corresponds to at least four times the current of a standard electrosurgery generator, with one-fifth to one-twentieth the amount of voltage.
Clinical Benefits for Both the Surgeons and Patients
1. Permanently fuses vessels up to and including 7 mm in diameter
2. Tissue bundles without dissection or isolation
3. Reduces the risk of needlestick injuries，Reduces thermal spread ，Minimizes thermal spread to approximately 1~ 2 mm for most instruments.
4. Unique energy output results in virtually no sticking or charring
5. Permanent seal leaves no foreign material behind to interfere with future diagnosis .
6.Potential time savings compared to suture.
7. A clinical study demonstrated that seals withstand 3x normal systolic blood pressure
8. May reduce blood loss in some surgical procedures. Minimizes the need for multiple applications.

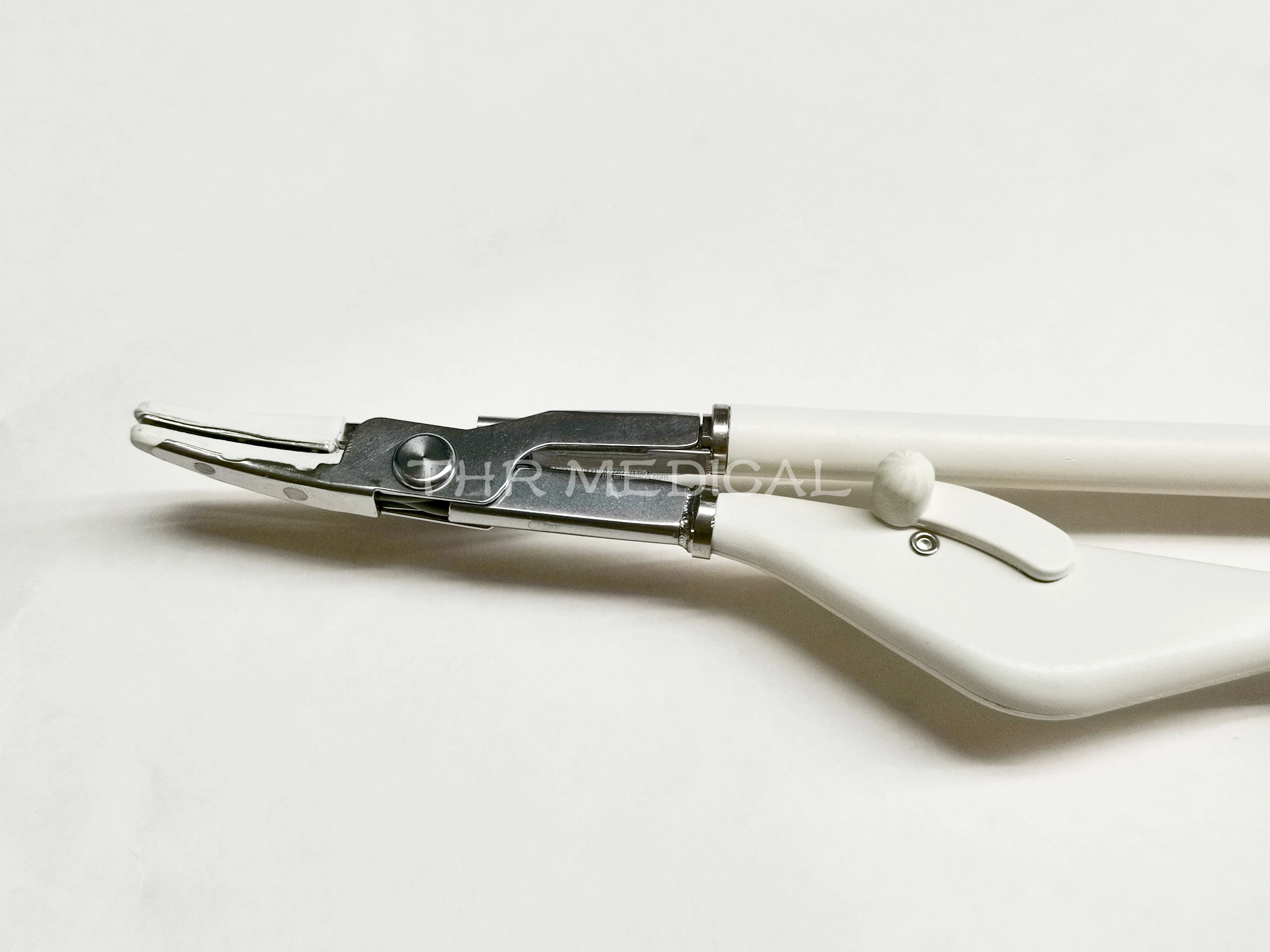

Fine curved jaw
Allows for precision around critical structures
Enhances the ability to work in tight spaces Maximizes the line of sight Engineered for fine dissection A working length that’s optimized to provide precise control A cutting trigger that’s aligned with the handle, eliminating interference with the wound edge Fewer instrument exchanges More efficient procedures in the OR All delivered with the speed and reliable performance of LigaSure vessel sealing technology.Name | Shaft diameter | Length | Wire length | Type |
THR-HV1100 | 10mm | 370mm | 2800mm | Non detachable |
THR-HV1100D | 10mm | 370mm | 2800mm | Non detachable |
THR-HV1200 | 10mm | 200mm | 2800mm | Detachable |
THR-HV1200D | 10mm | 200mm | 2800mm | Detachable |
THR-HV1500 | 5mm | 370mm | 2800mm | Non detachable |
THR-HV1520 | 5mm | 200mm | 2800mm | Non detachable |
THR-HV1500D | 5mm | 370mm | 2800mm | Detachable |
THR-HV1520D | 5mm | 200mm | 2800mm | Detachable |
THR-HV2520 THR-HV2150 | / | / 220mm | 2800mm 2800mm | Detachable Non detachable |
THR-HV2520 Detachable THR-HV2150 Non detachable
THR-HV1510 THR-HV5000 Machine
